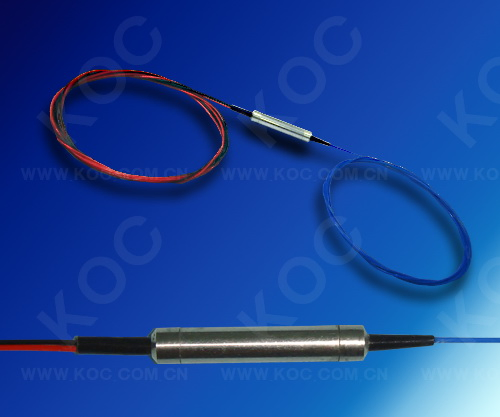

Shenzhen Competitive Wavelength1310/1490/1550 Fiber Optical Fwdm
Product DescriptionVaried customized CWDM Multiplier.Features:Widely Operating Wavelength RangeLow Insertion LossHigh Channel IsolationHigh Stability and ReliabilityUltra Flat Wide Pass bandEpoxy Free Optical PathApplications:System MonitoringWDM SystemTransmitters and Fiber lasersFiber Optical Ampl......
Send Inquiry
Product Description
Product Description
Varied customized CWDM Multiplier.
Features:
Widely Operating Wavelength Range
Low Insertion Loss
High Channel Isolation
High Stability and Reliability
Ultra Flat Wide Pass band
Epoxy Free Optical Path
Applications:
System Monitoring
WDM System
Transmitters and Fiber lasers
Fiber Optical Amplifier
Fiber optic instruments
Parameter | Standard | |
| Pass Channel wavelength Range (nm) | 1550±10 | |
| Reflect Channel wavelength (nm) | 1310±40&1490±10 | |
| Insertion Loss (dB) | Pass Channel | <0.60 |
| Reflect channel | <0.60 | |
| Insertion Loss Ripple (dB) | Pass Channel | ≤0.30 |
| Reflect Channel | ≤0.30 | |
| Isolation(dB) | Pass Channel | ≥40 |
| Reflect Channel | ≥20 | |
| Insertion Loss Temperature Sensitivity (dB/ºC) | <0.005 | |
| Polarization Dispersion Loss(dB) | ≤0.10 | |
| Polarization Mode Dispersion (ps) | <0.1 | |
| Directivity (dB) | ≥55 | |
| Return Loss (dB) | ≥50 | |
| Max Power Handling (mw) | 300 | |
| Operating Temperature (°C) | 0~+70 | |
| Storage Temperature (°C) | -40~+85 | |
| Fiber Type | SMF-28e | |
| Package Dimension (mm) | ¢5.5*L31 OR ¢5.5*L34 | |
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows:
Basic Components: Connector kits, Adapter kits, Attenuator kits.Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC.
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
Note:the price is for FWDM only.
