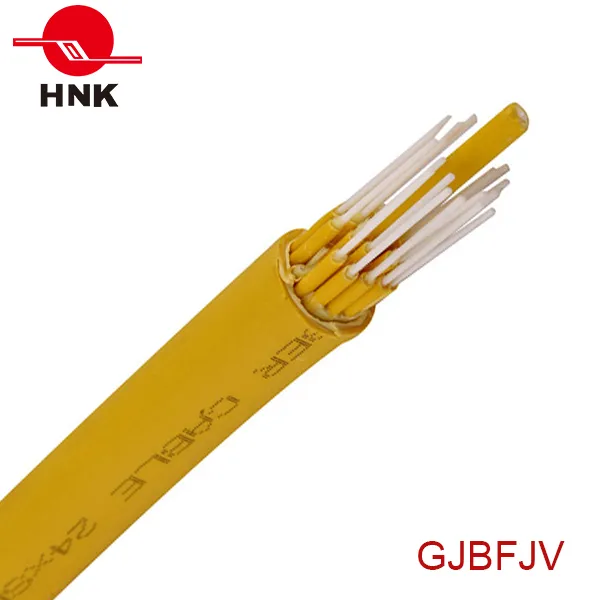

Breakout Tight Buffer Fiber Optic Cable (GJBFJV)
These cables are constructed bundling tight buffered simplex optical fiber in an outer jacket. Non metallic FRP strength members in the cable give it good tensile strength and electro-magnetic protection. It has small diameter, light weight and thick wall jacket protection, giving it versatile appli......
Send Inquiry

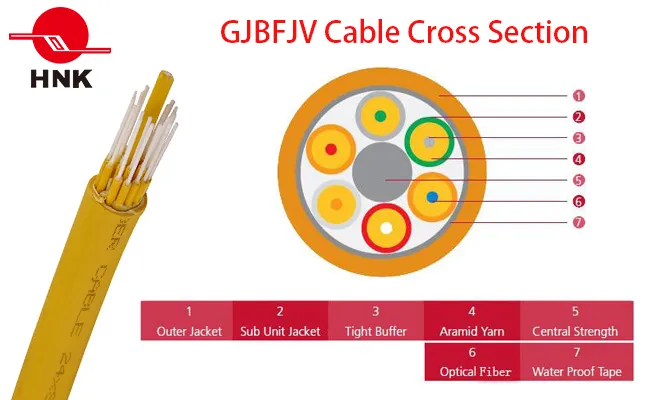

Product Description
These cables are constructed bundling tight buffered simplex optical fiber in an outer jacket. Non metallic FRP
strength members in the cable give it good tensile strength and electro-magnetic protection. It has small diameter,
light weight and thick wall jacket protection, giving it versatile applications. It can be used in cable assemblies
and places of high electro-magnetic interferences.
Flexible and small bent radius ensures good performance against pressure. These simplex cables are individually
reinforced with Aramid yarn so can be terminated without the need for breakout boxes, patch panel or junction boxes.
Each fiber is mechanically reinforced with two successive sheaths of 400µm and 900µm which enables direct
termination of connectors. Excellent strip force stability, fiber geometrical dimension and transmission performance
meets the customer demand. Available in PVC, LSZH, Plenum outer sheath and tight buffer: 900µm, 600µm. The
cable is specially designed for indoor applications like oor distribution, interconnection and equipment connection.
Complied With Or Exceeds Standard
. ITU-T G652.D . ITU-T G651.1 OM1 OM2 OM3 OM4
. ITU-T G657.A . IEC60793-2-10 type A1a.1/A1b OM1/OM2
. IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0)
Mechanical & Environmental Characteristics
ANSI/TIA/EIA-598-B Standard Fiber Color CodeFiber 13 and higher The color code is repeated with added black stripe or dash
Note: Fiber Tube color will be followed with same order.
Optical Characteristics
Of all the differences between multimode & singlemode fiber, the most fundamental differences are the
size of the fiber's core and the associated attenuation or loss and bandwidth of the fiber. The smaller the
core diameter, the higher the fiber's bandwidth and the lower the attenuation (loss in dB per kilometer).
The fiber's attenuation and bandwidth are also dependent on wavelength.
Singlemode was for high-speed longdistance transmission and multimode (in either the 50 µm or 62.5 µm
core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower
cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the
data carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below.
Ordering Information
Part Number: OC-XX-ABCDCL
Ordering Guide
Ordering Sample
strength members in the cable give it good tensile strength and electro-magnetic protection. It has small diameter,
light weight and thick wall jacket protection, giving it versatile applications. It can be used in cable assemblies
and places of high electro-magnetic interferences.
Flexible and small bent radius ensures good performance against pressure. These simplex cables are individually
reinforced with Aramid yarn so can be terminated without the need for breakout boxes, patch panel or junction boxes.
Each fiber is mechanically reinforced with two successive sheaths of 400µm and 900µm which enables direct
termination of connectors. Excellent strip force stability, fiber geometrical dimension and transmission performance
meets the customer demand. Available in PVC, LSZH, Plenum outer sheath and tight buffer: 900µm, 600µm. The
cable is specially designed for indoor applications like oor distribution, interconnection and equipment connection.
Complied With Or Exceeds Standard
. ITU-T G652.D . ITU-T G651.1 OM1 OM2 OM3 OM4
. ITU-T G657.A . IEC60793-2-10 type A1a.1/A1b OM1/OM2
. IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0)
Mechanical & Environmental Characteristics
| ITEM | Value |
| Max. Tensile Load (Short Term) | 1500N |
| Max. Tensile Load (Long Term) | 600N |
| Max. Crush Load (Short Term) | 1000N/100mm |
| Max Crush Load (Long Term) | 300N/100mm |
| UL Fire Rated | OFNR |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Sheath Material | Standard: PVC Optional: LSZH, PE or other |

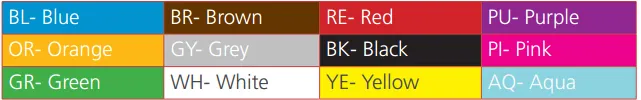

ANSI/TIA/EIA-598-B Standard Fiber Color Code
Fiber Number Fiber Color Fiber Number Fiber Color
Fiber 1 Blue Fiber 7 Red
Fiber 2 Orange Fiber 8 Black
Fiber 3 Green Fiber 9 Yellow
Fiber 4 Brown Fiber 10 Violet
Fiber 5 Slate Fiber 11 Rose
Fiber 6 White Fiber 12 Aqua
Note: Fiber Tube color will be followed with same order.
Optical Characteristics
Of all the differences between multimode & singlemode fiber, the most fundamental differences are the
size of the fiber's core and the associated attenuation or loss and bandwidth of the fiber. The smaller the
core diameter, the higher the fiber's bandwidth and the lower the attenuation (loss in dB per kilometer).
The fiber's attenuation and bandwidth are also dependent on wavelength.
Singlemode was for high-speed longdistance transmission and multimode (in either the 50 µm or 62.5 µm
core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower
cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the
data carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below.
| Fiber Type | Max. Attenuation (dB/km) | Min.Overfill Launch Bandwidth (Mhz.km) | Min.Gigabit Ethernet Link Distance (m) | ||||||
| Gigabit | 10Gigabit | ||||||||
| 850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nnm | |
| OM1 62.5/125µm | ≤2.7 | ≤0.6 | - | - | ≥500 | ≥600 | 275 | 550 | - |
| OM2 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥500 | ≥500 | 750 | 600 | 150 |
| OM3 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
| OM4 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1100 | 600 | 550 |
| G652D 9/125µm | - | - | ≤0.30 | ≤0.18 | - | - | - | - | - |
| G657A 9/125µm | - | - | ≤0.35 | ≤0.21 | - | - | - | - | - |
Ordering Information
Part Number: OC-XX-ABCDCL
Ordering Guide
| XX | A | B | C | D | CL |
| Cable Type | Jacket | Fiber/Sub | Fiber Count | Fiber Type(FXX) | Jacket Color(CL) |
| GJBFJV | 1=PVC 2=LSZH 3=PE | 01=01 Fiber/S 02=02 Fiber/S ... 11=11 Fiber/S 12=12 Fiber/S | No. Of Fiber 004F,048F | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A | As noted in Color code chart |
Ordering Sample
| Part Number | Description |
| OC-GJBFJV-2124G652DYE | 24 cores Singlemode G652D GJBFJV Fiber Optic Cable, 1 Fiber/Sub, LSZH jacket, Yellow color. |
