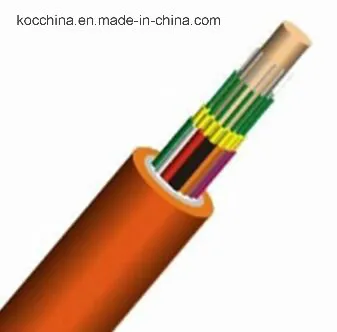

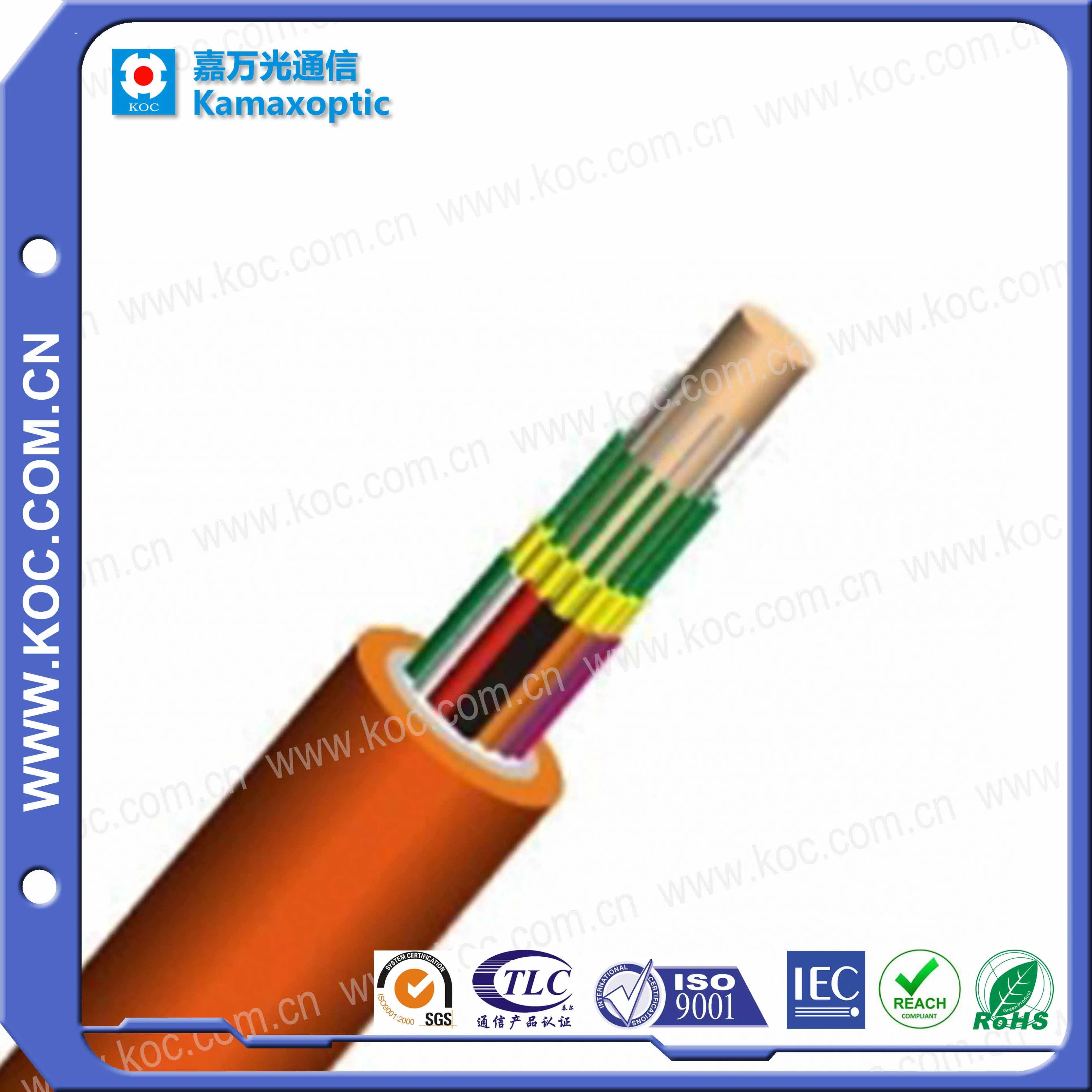

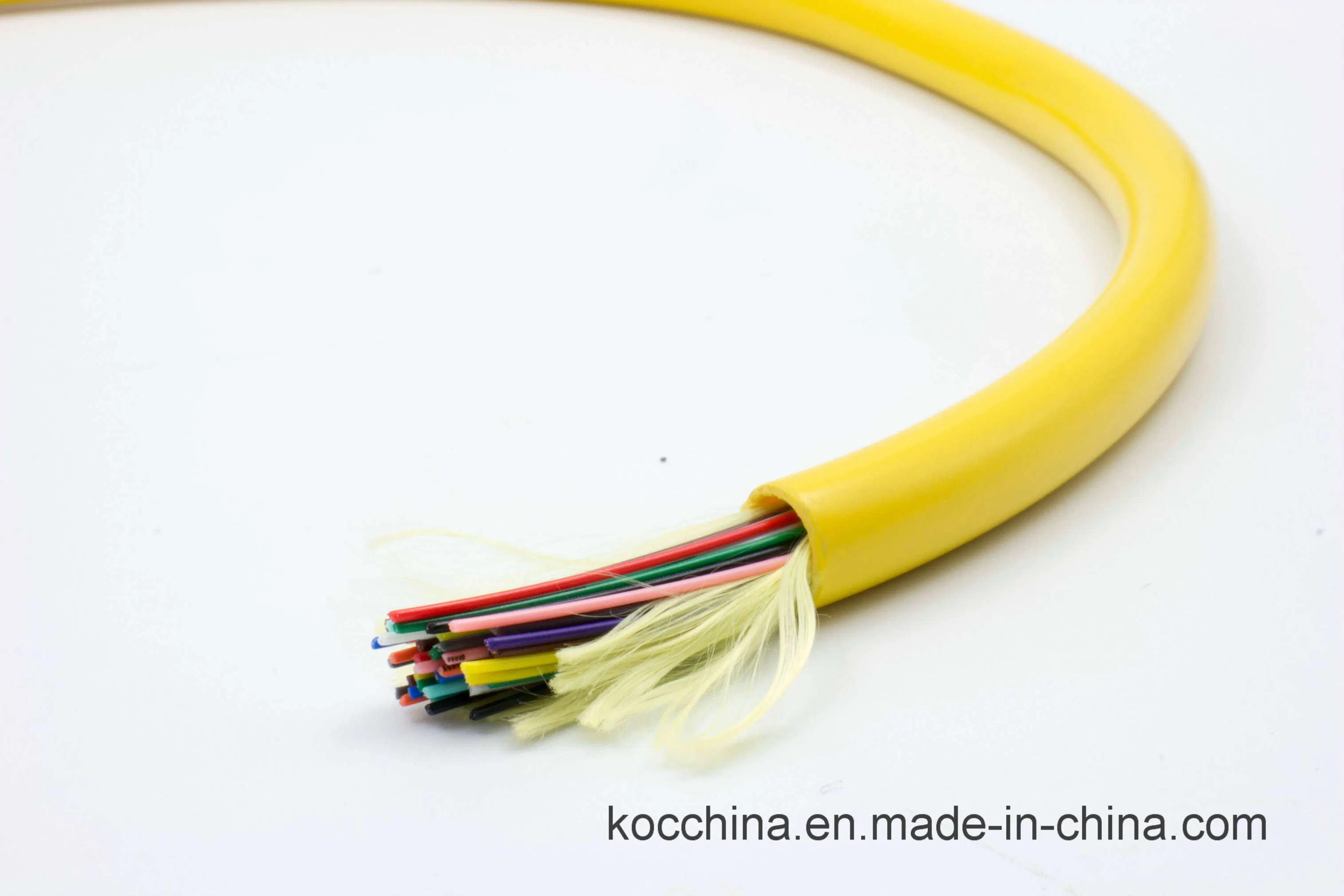

50/125 48f Fiber Optic Multi-Fiber Breakout Indoor Cable II
Multi-fiber Breakout Indoor Cable II FeaturesGood mechanical and environmental characteristics;Flame retardant characteristics meet the requirements of relevant standards; The mechanical characteristics of jacket meet the requirements of relevant standards;Soft, flexible, easy to lay and splice, and......
Send Inquiry
Product Description

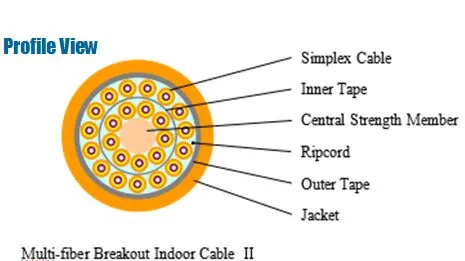

Multi-fiber Breakout Indoor Cable II
Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Application
1. Used in indoor cabling, especially used as breakout cable;
2. Used as access building cable;
3. Used as interconnect line of equipments, and used in optical connections in optical communication equipment rooms and distribution frames;
4. Used in pigtails and patch cords.
Specification
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplez cable of 2.0mm outer diameter;
3. D is outer diameter of the round cable;
4. The minimum bend radius (static) is 5D when G657 fiber is used.
Options
Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
Fiber Count: Total number of fibers in the cable;
Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), or other contracted material;
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.
Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Application
1. Used in indoor cabling, especially used as breakout cable;
2. Used as access building cable;
3. Used as interconnect line of equipments, and used in optical connections in optical communication equipment rooms and distribution frames;
4. Used in pigtails and patch cords.
Specification
| Fiber Count | Cable Dimension (mm) | Cable Weight (kg/km) | Tensile (N) | Crush (N/100mm) | Min. Bend Radius (mm) | Range of Temperature(ºC) | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 16 | 12.0 | 120 | 500 | 1500 | 300 | 1000 | 20D | 10D | -20~+60 |
| 24 | 15.0 | 178 | 800 | 2200 | 300 | 1000 | |||
| 36 | 17.5 | 200 | 1000 | 3000 | 300 | 1000 | |||
| 48 | 20.0 | 247 | 1500 | 4000 | 300 | 1000 |
2. The cable dimension and weight are subject to the simplez cable of 2.0mm outer diameter;
3. D is outer diameter of the round cable;
4. The minimum bend radius (static) is 5D when G657 fiber is used.
Options
Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
Fiber Count: Total number of fibers in the cable;
Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), or other contracted material;
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.
