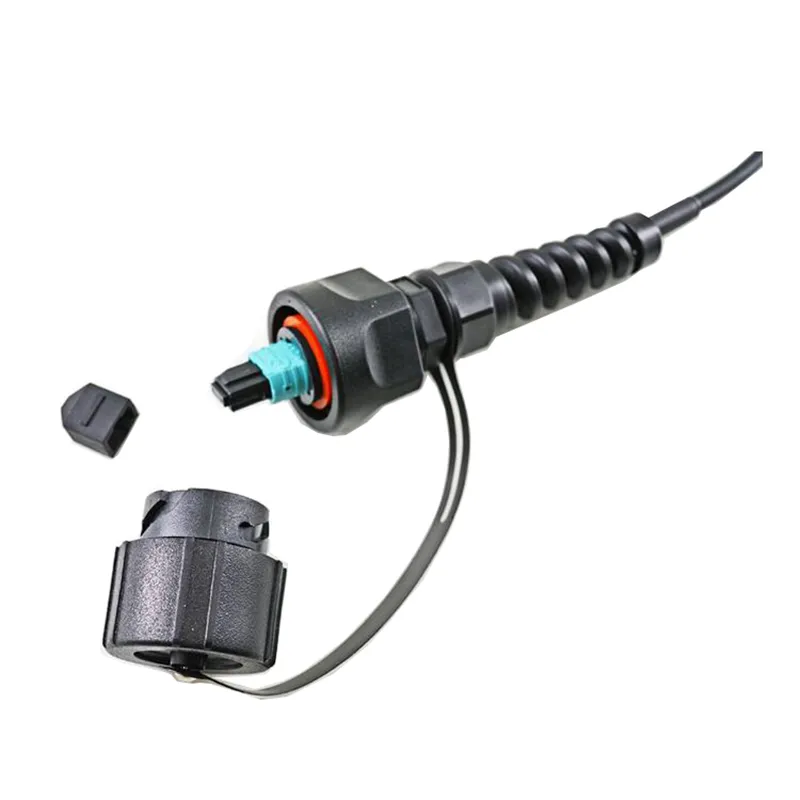

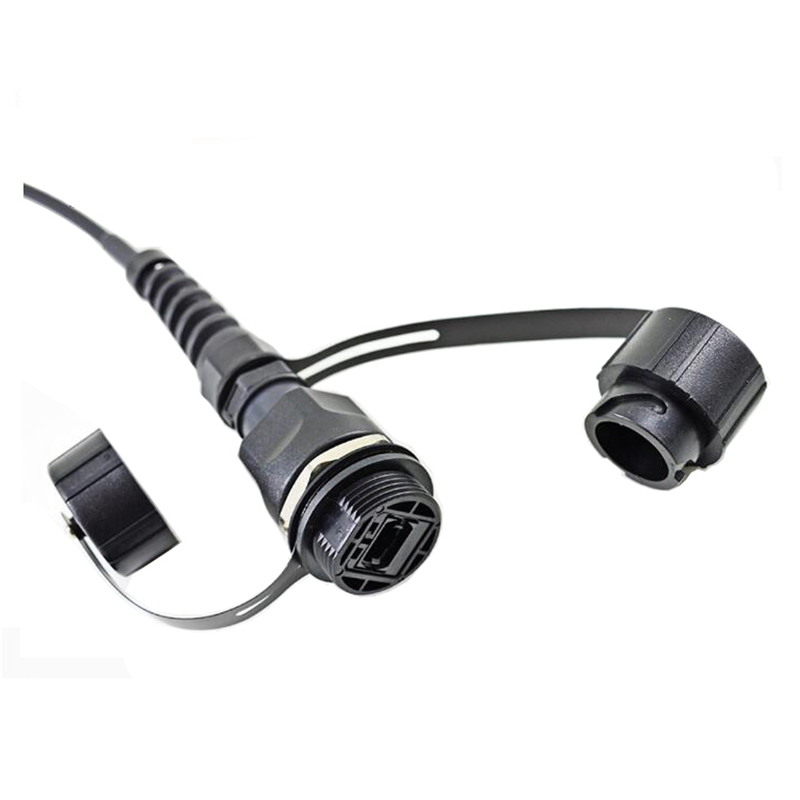

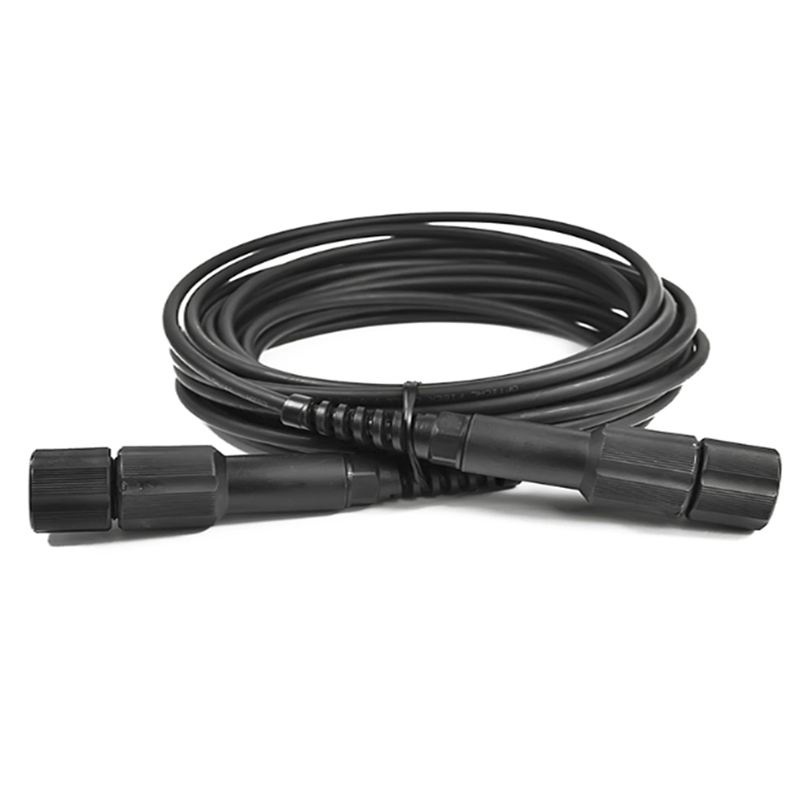

China Outdoor MPO Connector Odva MPO Fiber Optic Patchcord Cable IP68 Waterproof Jumper Armored Patch Cord

Product Description

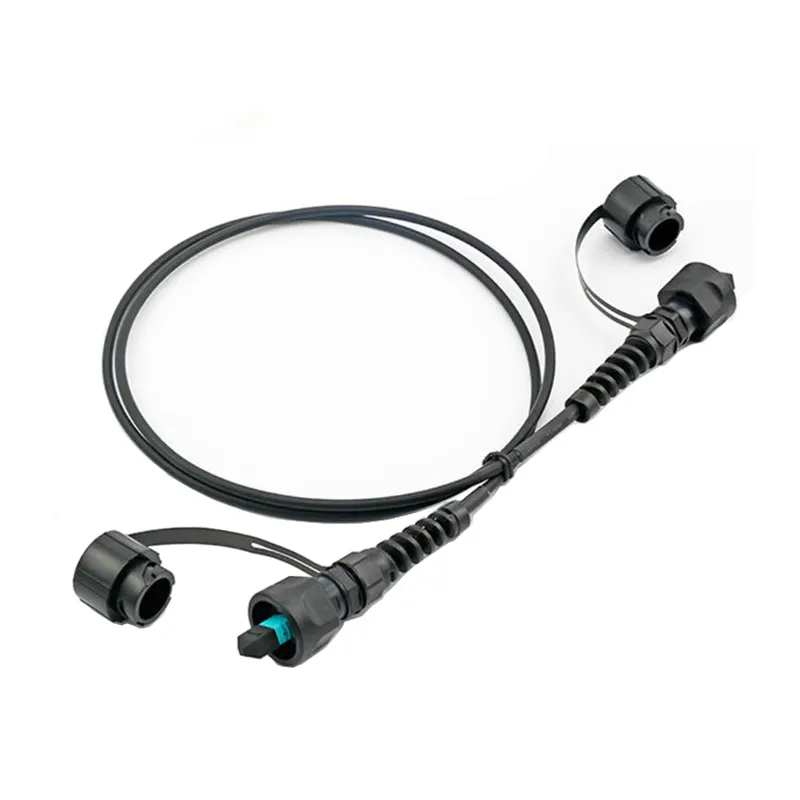

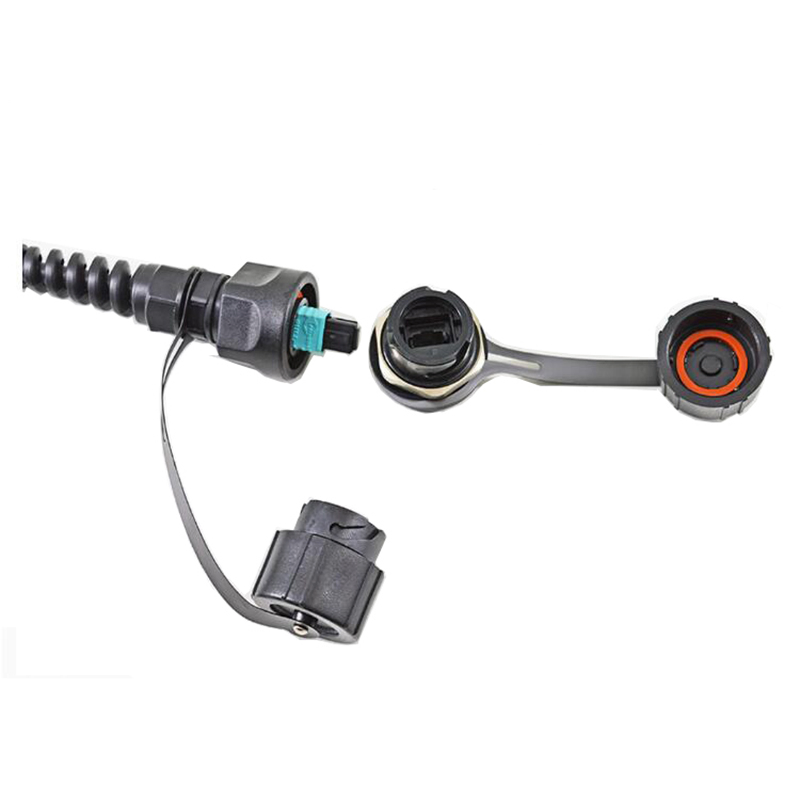

Outdoor MPO Connector ODVA MPO Fiber Optic Patchcord Cable IP68 Waterproof Jumper Armored Patch Cord

Features

1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients

Application

3G 4G base station, Aerospace & Defence, Equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX,WIMAX,
BBU, RRU, RRH, LTE.Multimode DLC/PC DLC/PC Outdoor Optical Cable Assembly GYFJH 2A1a(LSZH) 7.0mm 2 Cores with protected branch

Wide range of applications Strong compatibility Plug and play

Product Paramenters

Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20

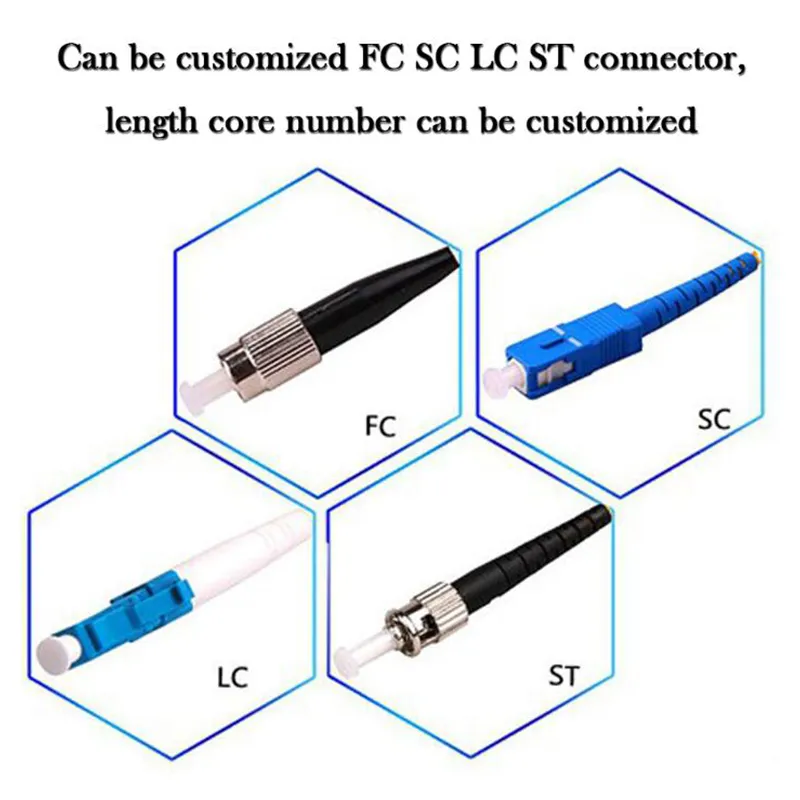

LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

Iterm			Test Condition	Single Mode	Multi Mode
Optical Characteristics	IL	UPC	SM@1310nm/1550nm MM@850nm/1300nm	≤0.5dB	≤0.5dB
		APC	1310nm/1550nm	≤0.5dB
	RL	UPC	SM@1310nm/1550nm MM@850nm/1300nm	≥55 dB	≥35 dB
		APC	1310nm/1550nm	≥65 dB
Mechanical Characteristics (EL)	Impulse Test		8 times	<0.1 dB	<0.1 dB
	Vibration Test		10-60Hz,1mm	<0.1 dB	<0.1 dB
	Durability Test		>1000 times	<0.1 dB	<0.1 dB
	Tensile Test		> 100N	<0.1 dB	<0.1 dB
Enviromental Characteristics (EL)	T C		-25ºC~+70ºC, 2 hours	<0.2 dB	<0.2 dB
	High Temperature		+80ºC, 2 hours	<0.2 dB	<0.2 dB
	Low Temperature		-40ºC, 2 hours	<0.2 dB	<0.2 dB
	Humidity&Heat		+40ºC,90-95%RH, 2 hours	<0.2 dB	<0.2 dB
