Optical Fiber Nsn LC Uniboot Fiber Optic Patch Cord Cable Assembly with Flexible Boot Connector
Cable Diameter:5.5/7.0mmCable Jacket:LSZH,PE,TPU,UV ResistanceCable Length:1/3/5/10m Or CustomizedConnector:NSN LCFiber Count:DuplexFiber Mode:SM/MMHigh Light:waterproof cable assembly, fiber optic connector assembly NSN LC Uniboot connector patch cord, outdoor waterproof cable assembly with flexibl......
Send Inquiry
Product Description
| Cable Diameter: | 5.5/7.0mm | Cable Jacket: | LSZH,PE,TPU,UV Resistance |
|---|---|---|---|
| Cable Length: | 1/3/5/10m Or Customized | Connector: | NSN LC |
| Fiber Count: | Duplex | Fiber Mode: | SM/MM |
| High Light: | waterproof cable assembly,fiber optic connector assembly | ||

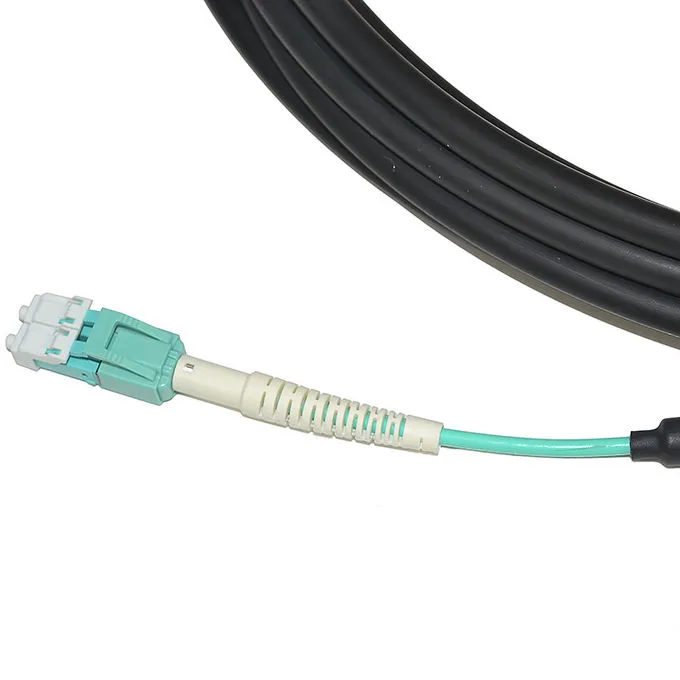

NSN LC Uniboot connector patch cord, outdoor waterproof cable assembly with flexible boot compatiable to Nokia equipment

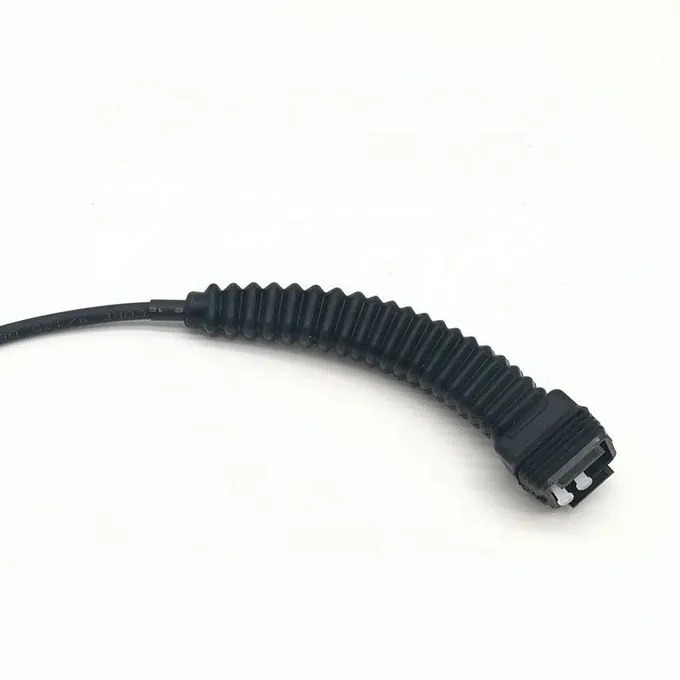

The NSN boot LC patch cord is available with 90 degrees and straight duplex to connect the Nokia Simens RRH panels.The fiber cable has corrugated steel armored or non-armored for option with UV resistance jacket.
Application:
Outdoor FTTP, FTTA
Telecom networks;
CATV, LAN&WAN.
Broadband;
Features:
Provides moisture and dust protection for use in harsh industrial environments.
IP67 protection, salt-mist proof, humidity proof, dust proof.
Drastically reduces field splicing with a predetermined loss at each waterproof tether access point.
Utilize traditional field installation techniques for aerial, below ground and duct applications.
Reduce installation time by as much as 50 percent per network access point.
Available in single mode and multimode styles to work with any common fiber type
Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications
PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
Working temperature | -40 to + 85ºC | |||||
