Optic Fiber Cable with PE Sheath 12 Core

Product Description

Optic Fiber Cable with PE Sheath 12 Core

Features:

1.Low dispersion and attenuation.
2.Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental characteristics.
3.The armoring of steel wire makes cable have excellent tensile strength and nice crush resistance performance.
4.Steel-PE sheath makes cable have nice moisture resistance performance.
5.Small cable diameter, light cable weight, self supporting, easily to install.

General Specifications:

Cable type	Application
-GYXTC8S	Aerial Self-supported installation cable

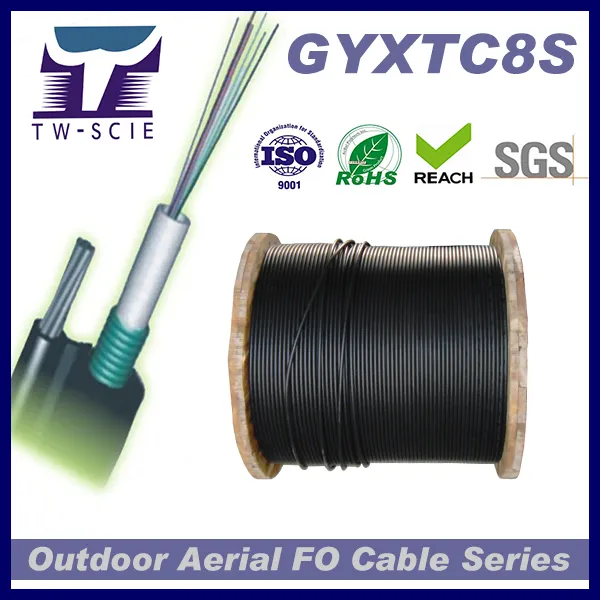

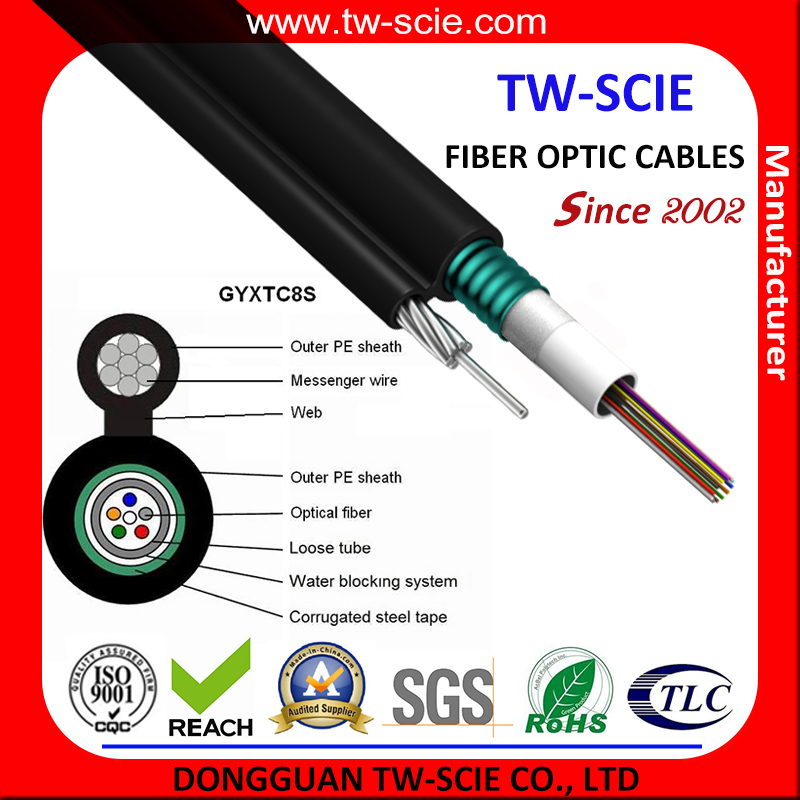

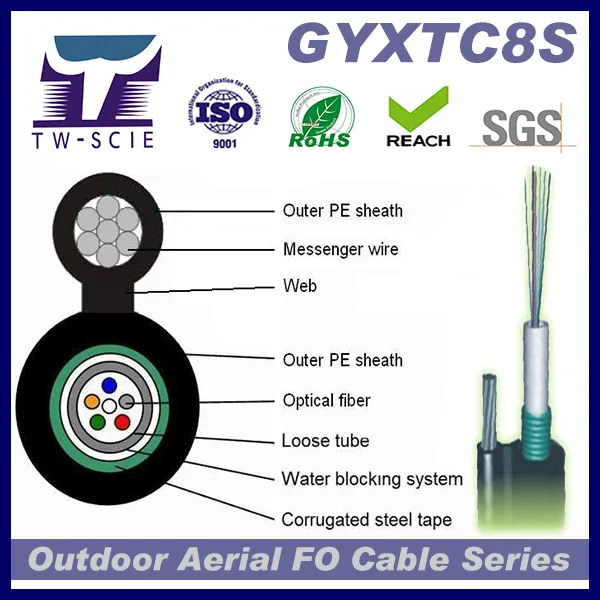

Cable Structure:

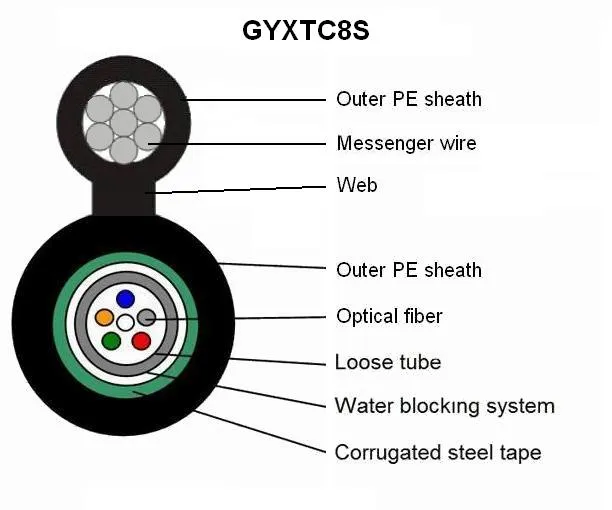

Cable Design:

Dimension and Properties
General properties		Unit	Nominal value
Fiber count (G.652D)		PC	Up to 12
Max. No of loose tube		PC	1

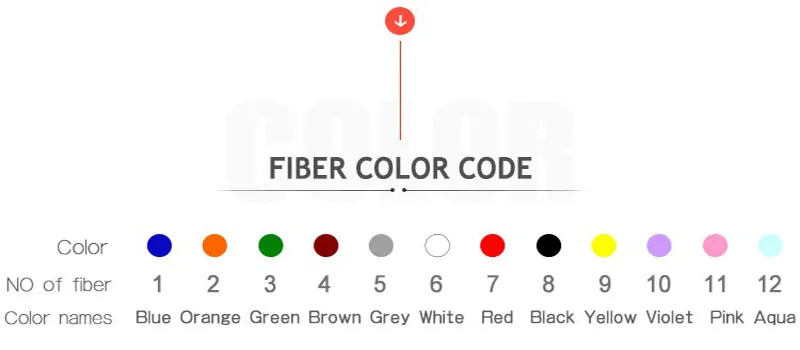

Fiber No. per tube		PC	12
Loose tube		Material	PBT
Cable Diameter		mm	5.0*7.4
Menssenger Wire		Material	Steel wire
Outer PE Sheath	Diameter	mm	2.0
	Material		MDPE
Max. allowable pulling force		N	1000/3000
Armoured		Material	Corrugated steel tape
Crush resistance		N/100mm	1000/1500

Fiber Specifications:

G652D In cable

Category	Description		Specifications
			Before cabling	After cabling
Optical Specifications	Attenuation @1310 nm		≤0.34 dB/km (max.)	≤0.36 dB/km (max.)
	Attenuation @1550 nm		≤0.20 dB/km (max.)	≤0.22 dB/km (max.)
	Attenuation @1625 nm		≤0.23dB/km	≤ 0.25 dB/km
	Zero Dispersion Wavelength		1300~1324 nm
	Zero Dispersion Slope		≤ 0.090 ps/nm2·km
	PMD Link value (M=20cables Q=0.01% ) maximum PMDQ		0.2 ps/√km
	Cable Cutoff Wavelength (λcc)		≤1260 nm
	Macro bending Loss (1 turn; Ф32 mm) @1550 nm (100 turns; Ф60 mm) @1625 nm (100 turns; Ф50 mm) @1310 &@1625 nm		≤ 0.05 dB ≤ 0.05 dB ≤0.05 dB
	Mode Field Diameter	@1310 nm	9.2±0.4μm
		@1550 nm	10.4±0.5μm
Dimensional Specifications	Cladding Diameter		125 ±0.7μm
	Core/clad concentricity error		≤0.5μm
	Cladding Non-Circularity		≤1.0%
Mechanical Specifications	Proof stress		≥0.69Gpa
