Om3 Om4 Fiber Optic Patchcord 12 Fiber Break out MTP-LC MPO-LC Fiber Optical Patch Cord
OM3 OM4 Fiber Optic Patchcord 12 Fiber break out MTP-LC MPO-LC Fiber Optical Patch Cord100% 3D test MPO MTP patch cordWe supply MTP and MPO fiber optic cables.These are available in Female to female or a male to male and male to female configurations.The male version has MTP pins.These can be made w......
Send Inquiry
Product Description
OM3 OM4 Fiber Optic Patchcord 12 Fiber break out MTP-LC MPO-LC Fiber Optical Patch Cord
100% 3D test MPO MTP patch cord
We supply MTP and MPO fiber optic cables.These are available in Female to female or a male to male and male to female configurations.The male version has MTP pins.These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.
Features
1.MTP/MPO standard compliant multifibre connector
2.LC (SFF data center standard), SC discrete interface
3.OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)
4.48,12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
5.Polarity A (standard), B or C
6.Factory terminated and tested
7.High performance zirconia sleeve adaptors
Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes.
MTP/MPO interface MTP/MPO components feature superior optical and mechanical properties.
Optimized performance Low loss MTP/MPO Elite, discrete Premium connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget, high-speed network environments.
Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards

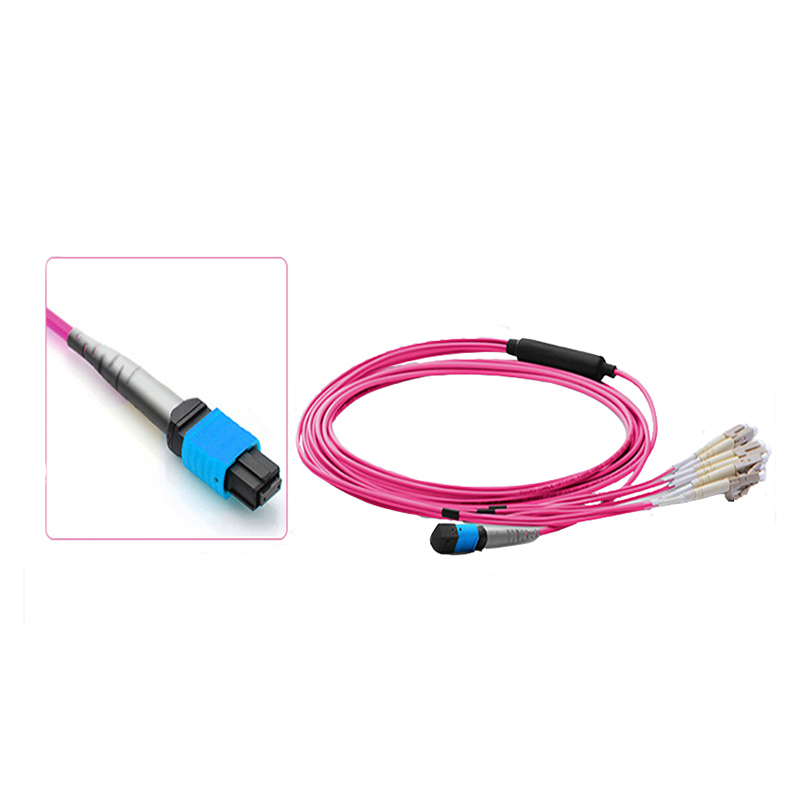

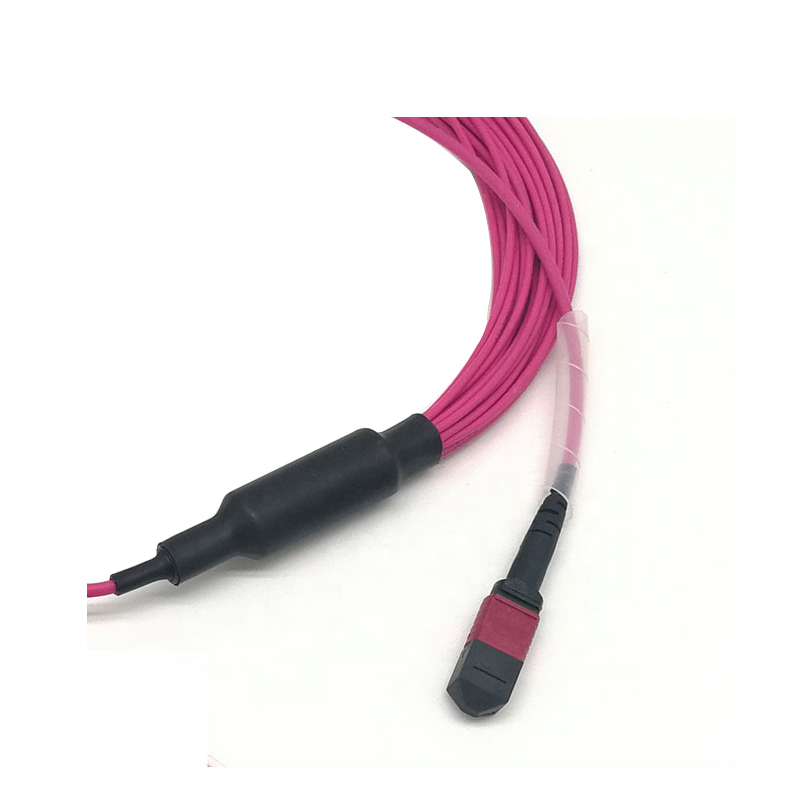

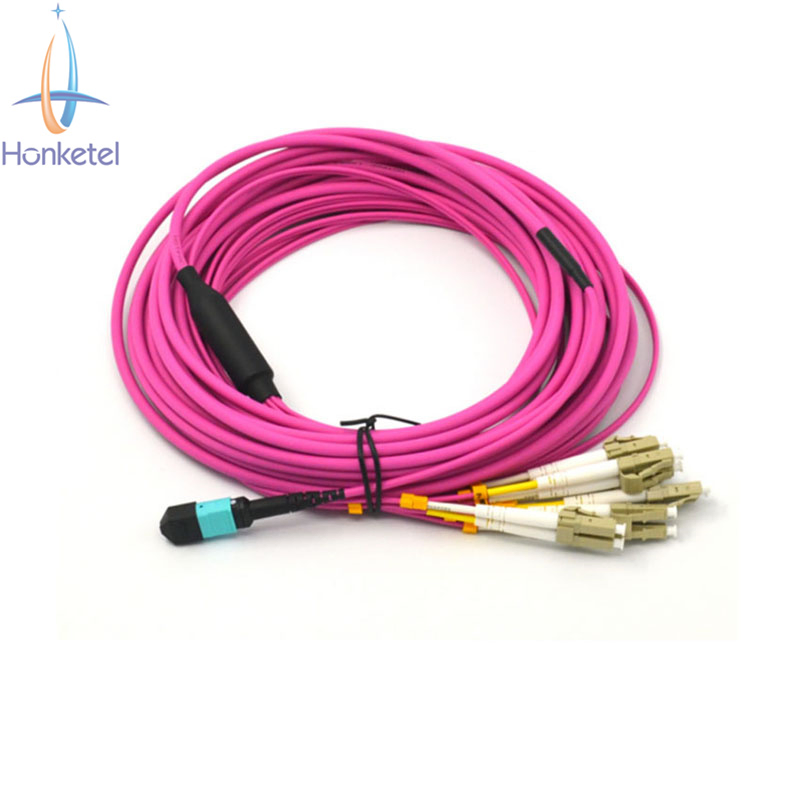

Product Images
Applications
Company Profile
Certifications
Packaging &Shipping

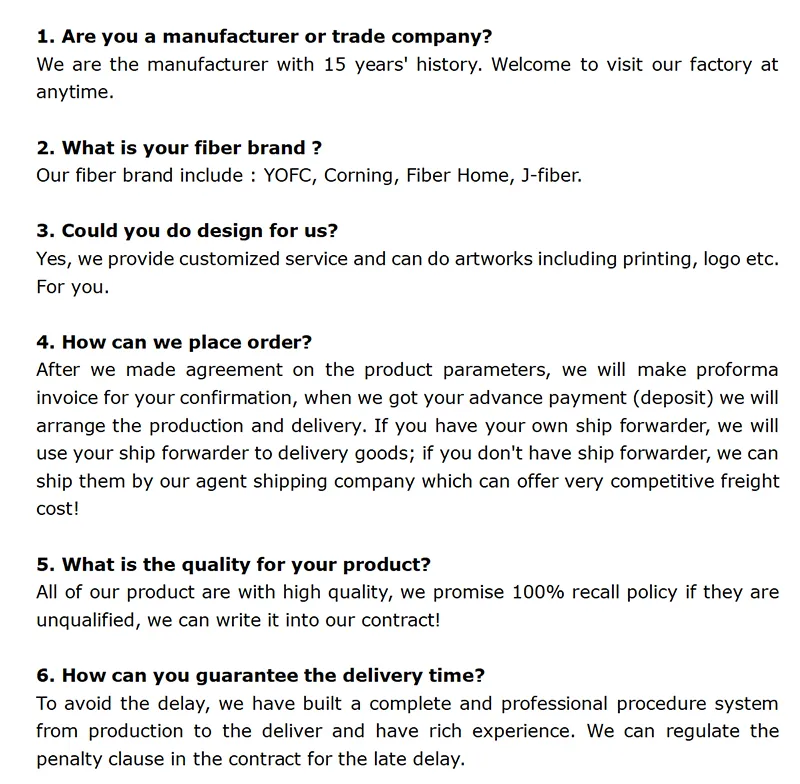

FAQ
100% 3D test MPO MTP patch cord
We supply MTP and MPO fiber optic cables.These are available in Female to female or a male to male and male to female configurations.The male version has MTP pins.These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.
Features
1.MTP/MPO standard compliant multifibre connector
2.LC (SFF data center standard), SC discrete interface
3.OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)
4.48,12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
5.Polarity A (standard), B or C
6.Factory terminated and tested
7.High performance zirconia sleeve adaptors
Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes.
MTP/MPO interface MTP/MPO components feature superior optical and mechanical properties.
Optimized performance Low loss MTP/MPO Elite, discrete Premium connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget, high-speed network environments.
Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards

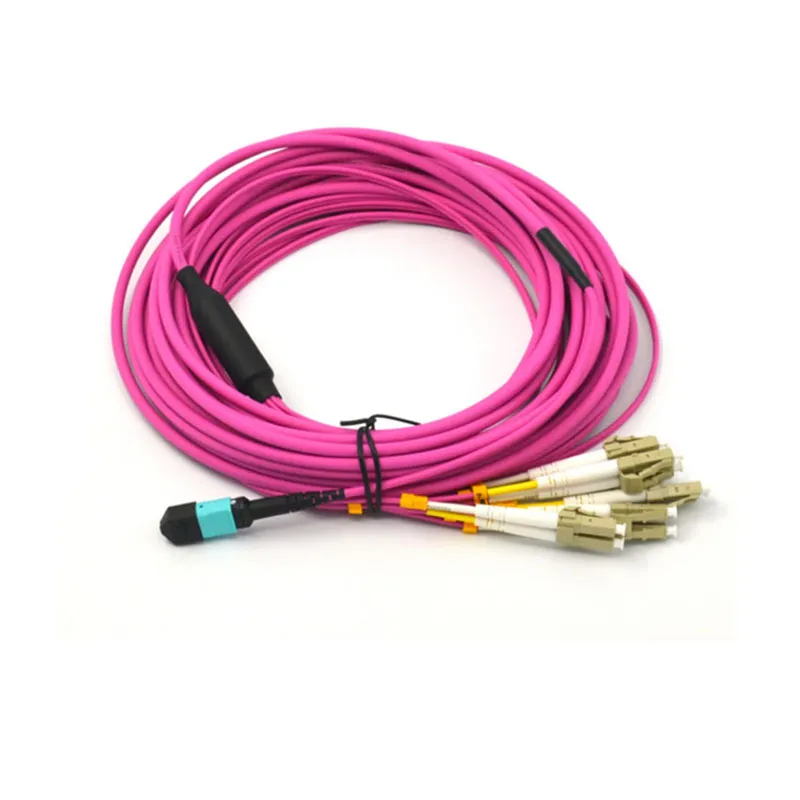

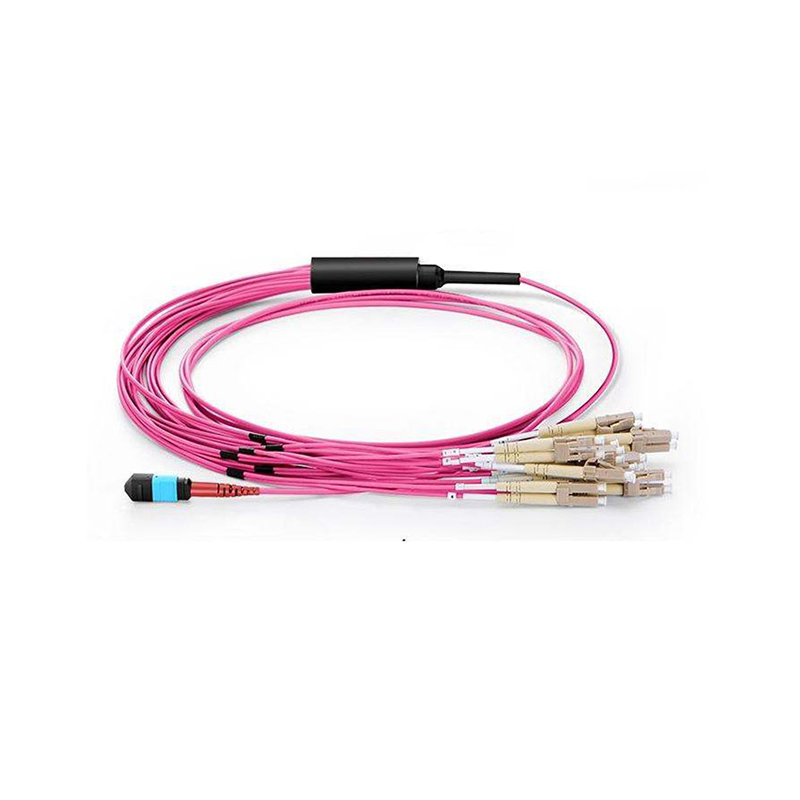

Product Images

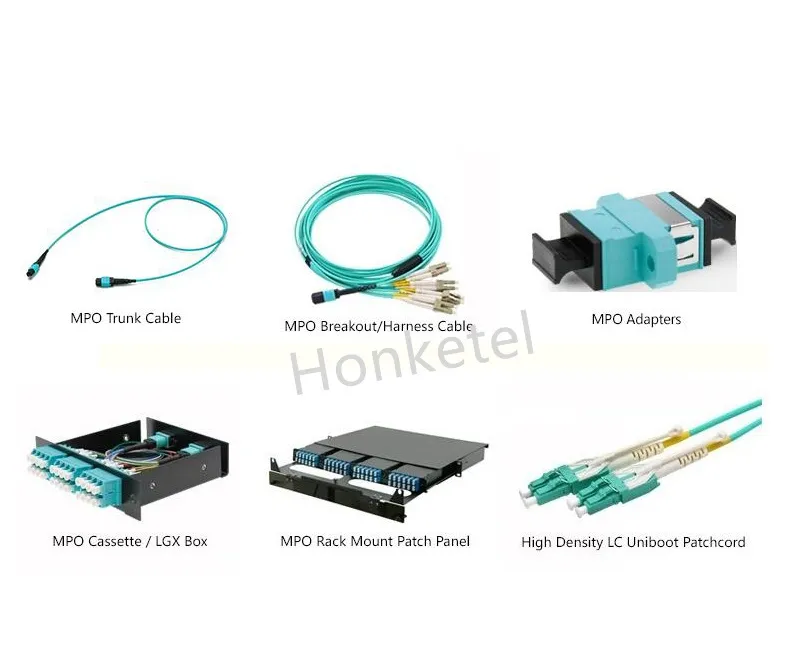

Applications
- Telecommunication Networks
- Computer networks
- CATV networks
- FTTX Termination
- Gigabit Ethernet
- Space saving in central offices, POPs and data centers
- 40GBASE-SR4 and 100GBASE-SR10 per IEEE 802.3ba
- Telecommunications networks and CATV networks.
- LAN/WAN Premises.
| Type/Performance | Singlemode(APC polish) | Multimode(PC / Flat Polish) | ||
| Standard | Elite Low Loss | Standard | Elite Low Loss | |
| Maximum Insertion Loss | ≤ 0.75dB | ≤ 0.35dB | ≤ 0.60dB | ≤ 0.35dB |
| Return Loss | ≥ 50dB | N/A | ||
| Operating Temperature | -40°C to 80°C | 40°C to 80°C | ||
| Test Wavelength | 1310nm | 850nm | ||

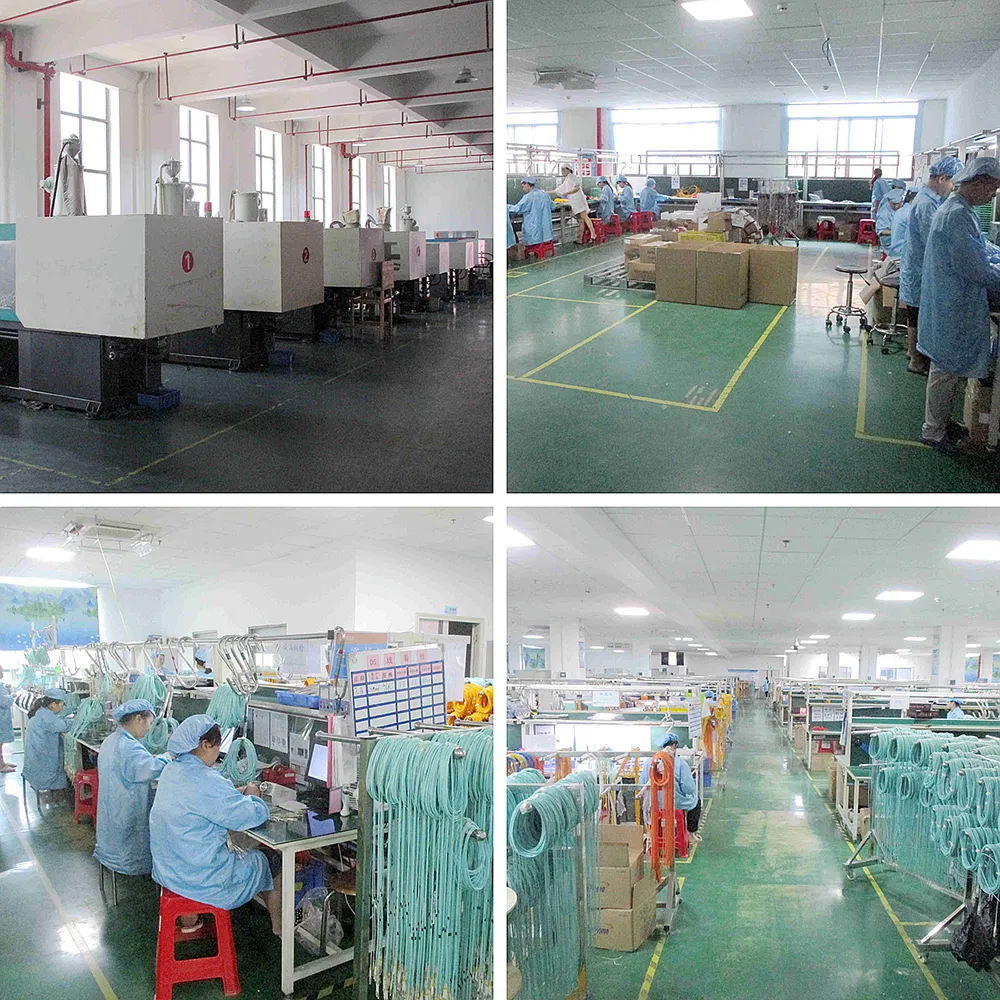

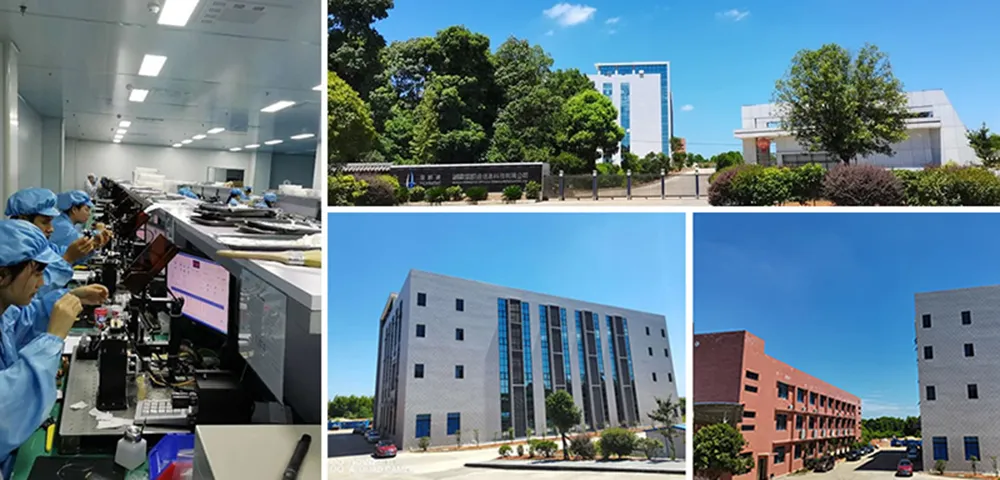

Company Profile
