Newest St APC to Sc APC Duplex Single Mode Fiber Optic Patch Cord

Product Description

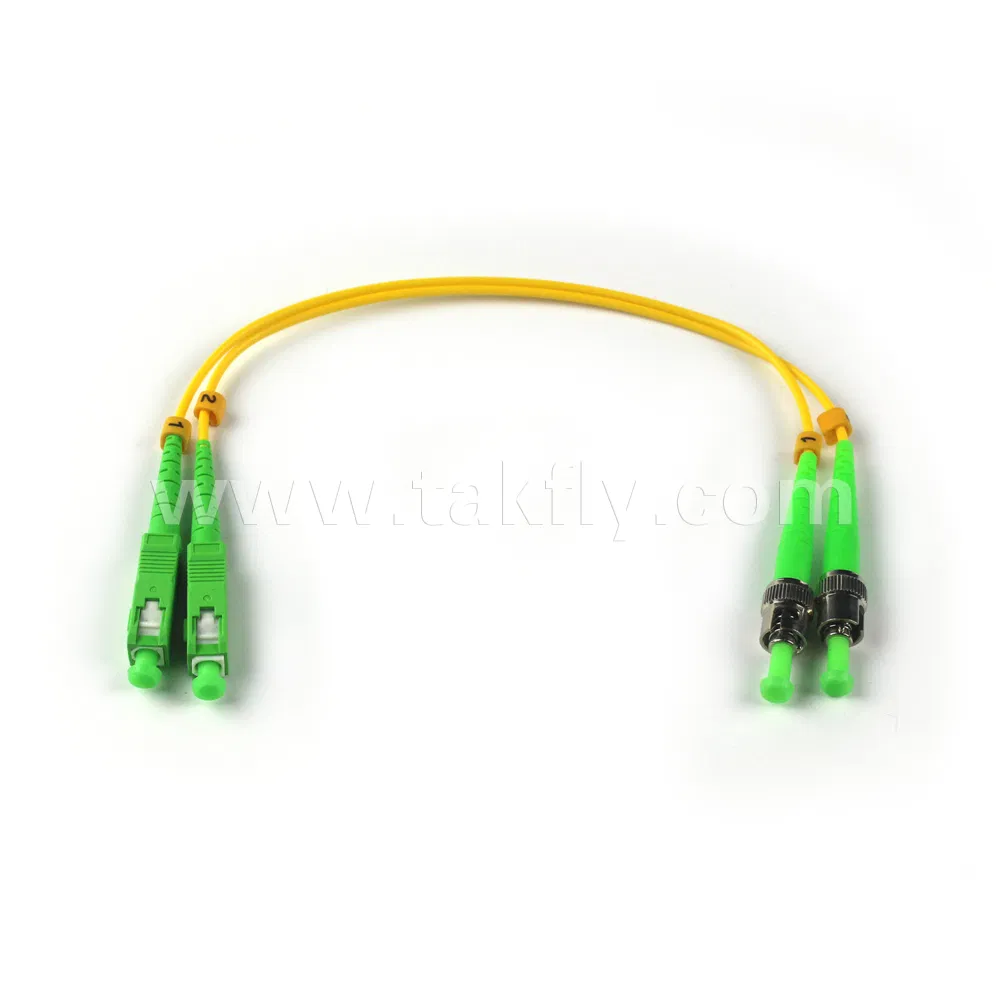

Newest ST APC to SC APC Duplex Single Mode Fiber Optic Patch Cord

A patch cord is a fiber optic cable used to attach one device to another for signal routing.
LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the ST.
The OM3 50/125 multimode fiber optic cables compliant to ISO/IEC 11801 standards. They are used for 10Gbps networks to meet the requirement of continuous growing of high data rates.

Features:
Low insertion loss and high return loss
Small, light, high dense connection
Good exchangeability
High credibility and stability
Support 10 Gigabit data transmitting rates
MM cables type
FC, LC, SC, MU, ST, MTRJ, E2000, MPO optional
Polishing: PC, UPC and APC
Meets IEC standard

Applications:
Telecommunication networks
Fiber optic communication networks
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Testing equipment
Optical access network

Specification:

Parameter	Unit	Standard & Requirement
Insertion loss	dB	≤0.20
Changeability	dB	≤ 0.20dB
Radius of curvature	nm	10 ≤ r ≥25
Curvature eccentricity	um	<50
Fiber core undercut	nm	<50
Insertion loss change	dB	< 0.1
Return loss change	dB	< 5
Insert & pull out (Max.)	kg	2
Insert and pull frequency	Time	> 1000
Operating temperature	ºC	-40~+85
