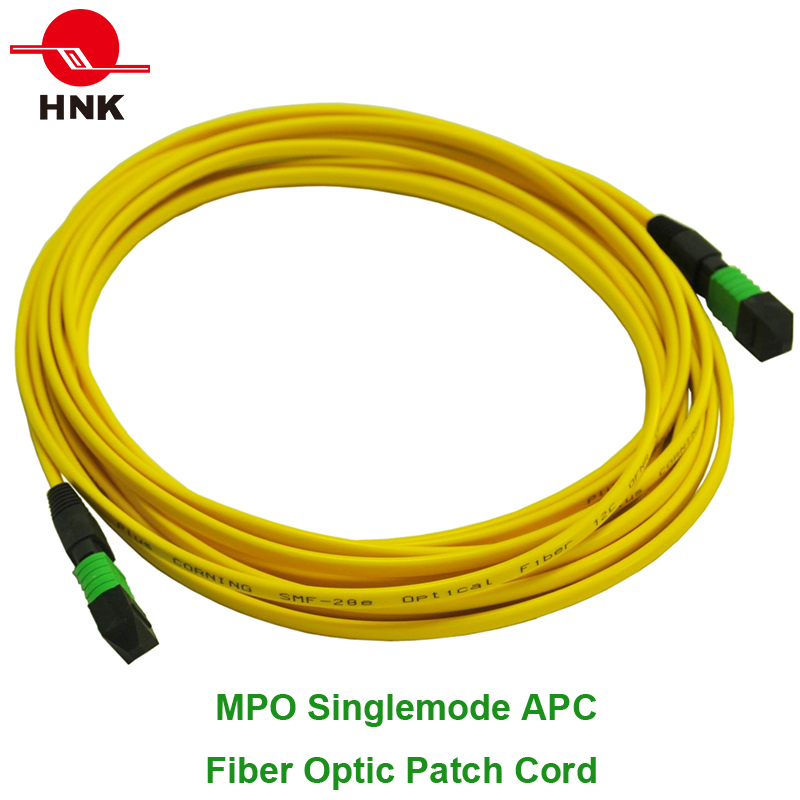

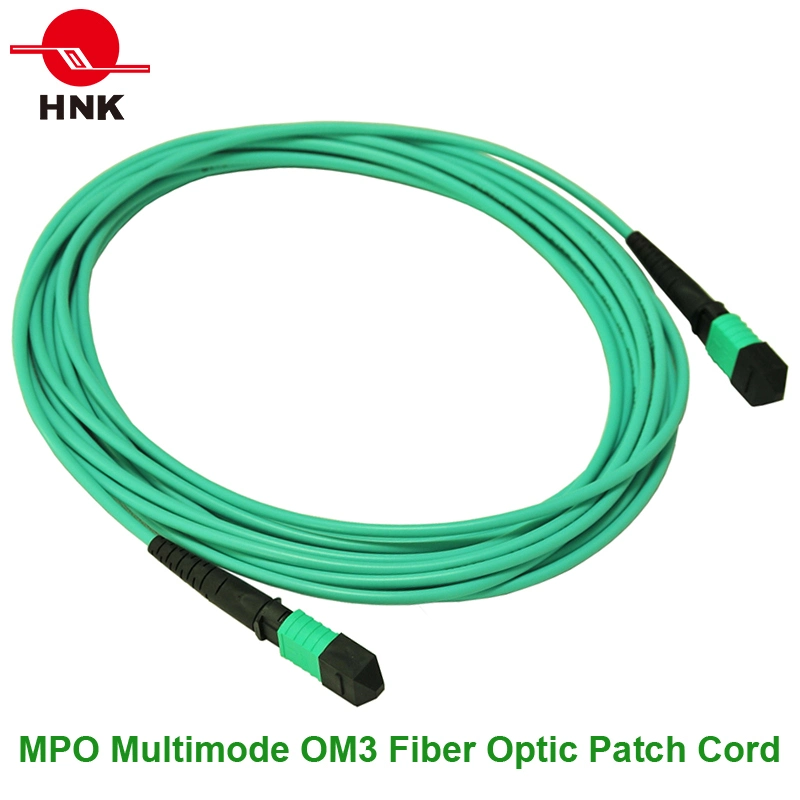

MPO Singlemode Multimode Fiber Optic Patch Cord
Features:· High Performance in Insertion Loss & Return Loss· 4,8,12 and 24 fiber connector terminations and assemblies· Designed for low loss and standard loss SM and MM applications· Economical solution for mass-termination of fiber· S......
Send Inquiry
Product Description
Features:
· High Performance in Insertion Loss & Return Loss· 4,8,12 and 24 fiber connector terminations and assemblies
· Designed for low loss and standard loss SM and MM applications
· Economical solution for mass-termination of fiber
· Suitable for MPO/MTP application

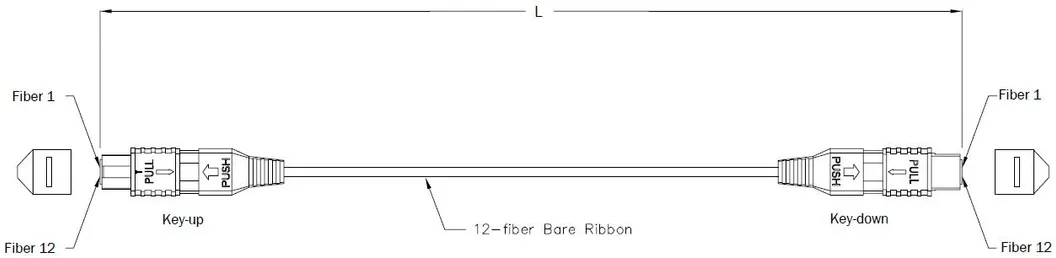

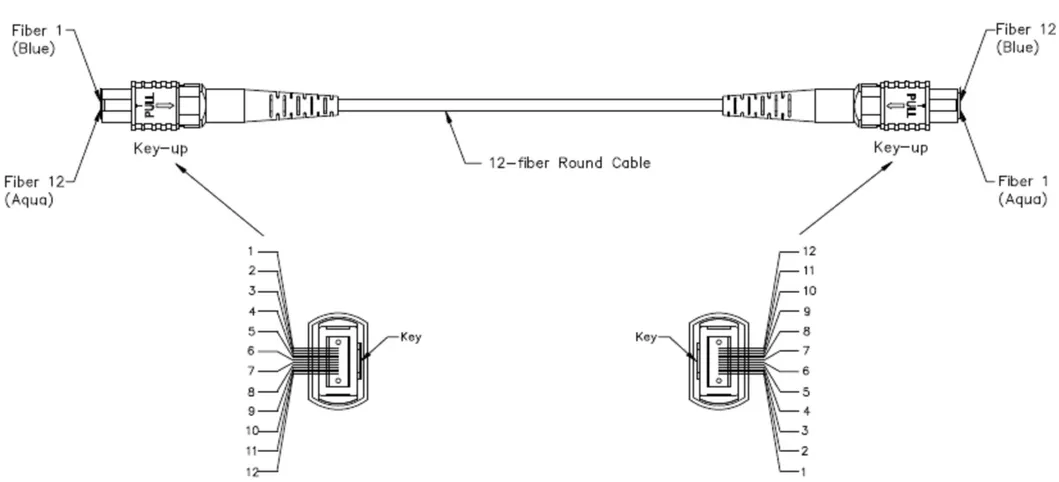

· Ruggedized round cable, oval cable and bare ribbon options available
· Color coded housings available to differentiate fiber type, polish type and/or connector grade
Compliance:
· IEC 61754-7& JIS C5982
· Structured cabling per TIA-568-C
· Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
· Infiniband
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Specifications
| Fiber Type | Single mode (APC Polish) | Multimode (PC/ Flat Polish) | ||
| Parameter | Standard | Low Loss | Standard | Low Loss |
| Insertion Loss Maximum | <0.7dB | <0.35dB | <0.7dB | <0.35dB |
| Return Loss | >60dB | None | ||
| Durability | >500 Mating Cycles | |||
| Operating Temperature | -40°C to 80 °C | |||
| Test Wavelength | 1310nm | 850nm | ||
Applications:
· Optical switching inter-frame connections
· High fiber density card edge access
· Array trunk cables
· Datacenter cabling
