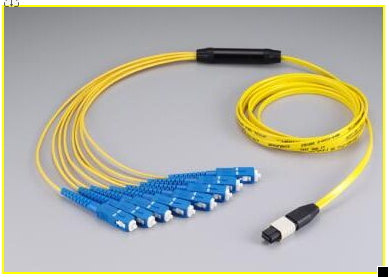

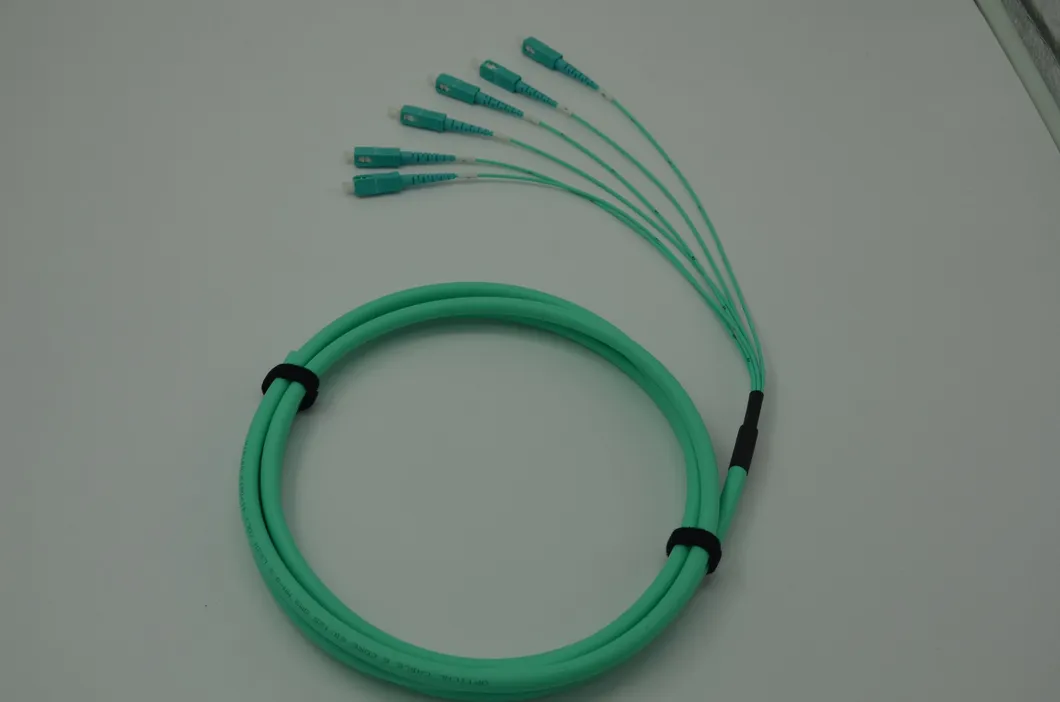

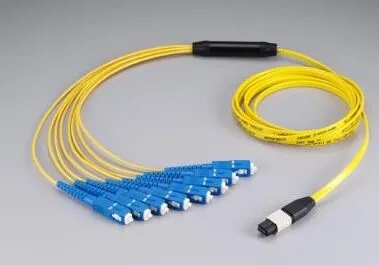

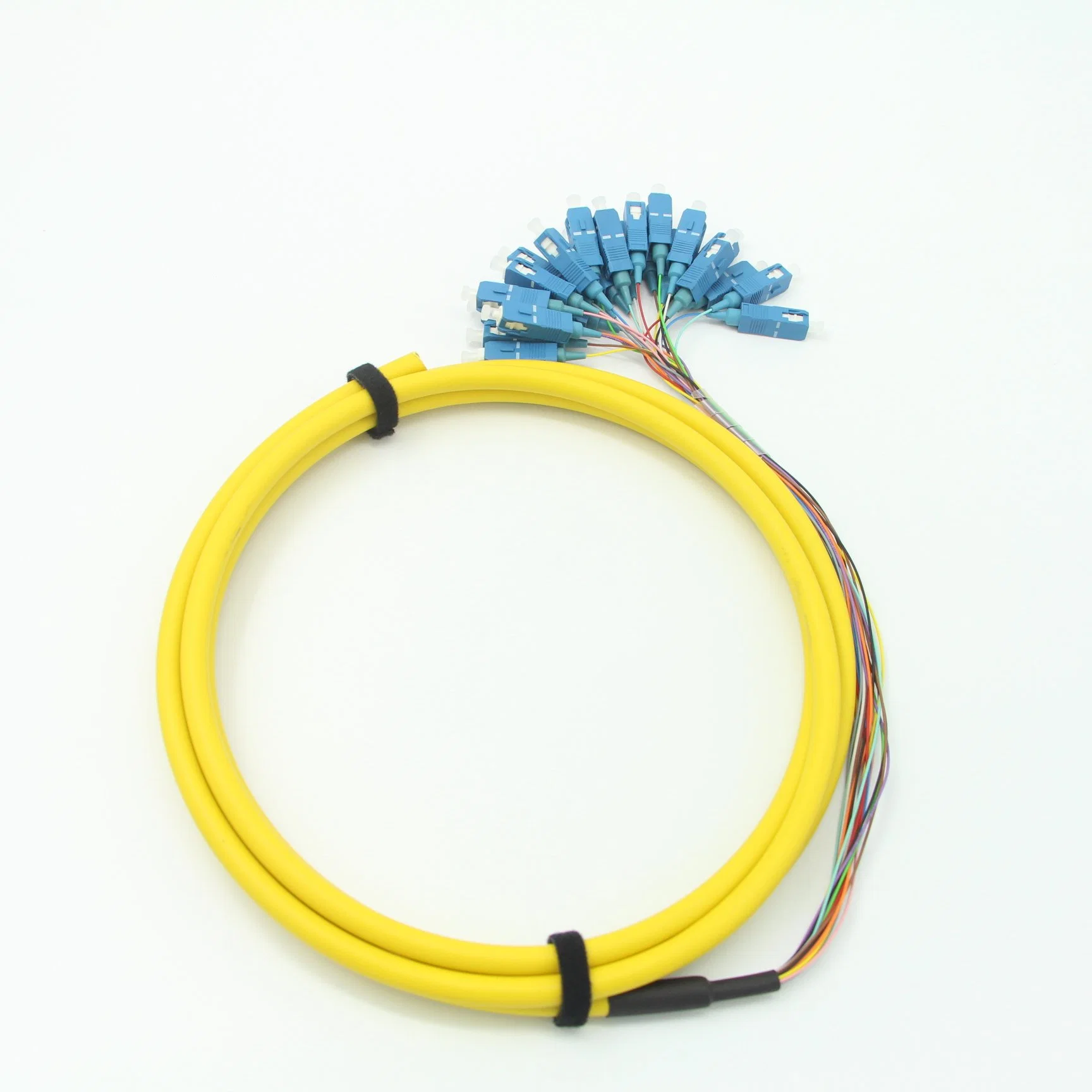

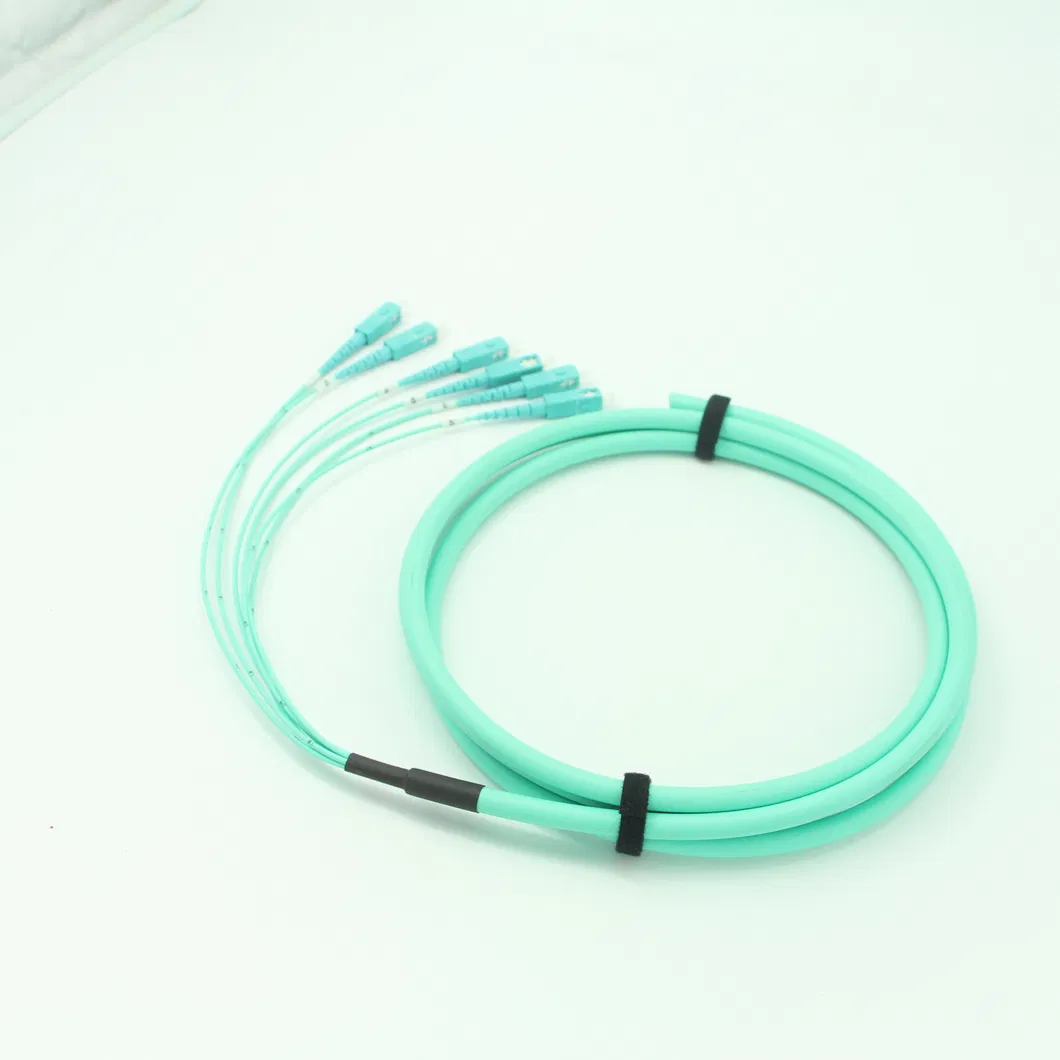

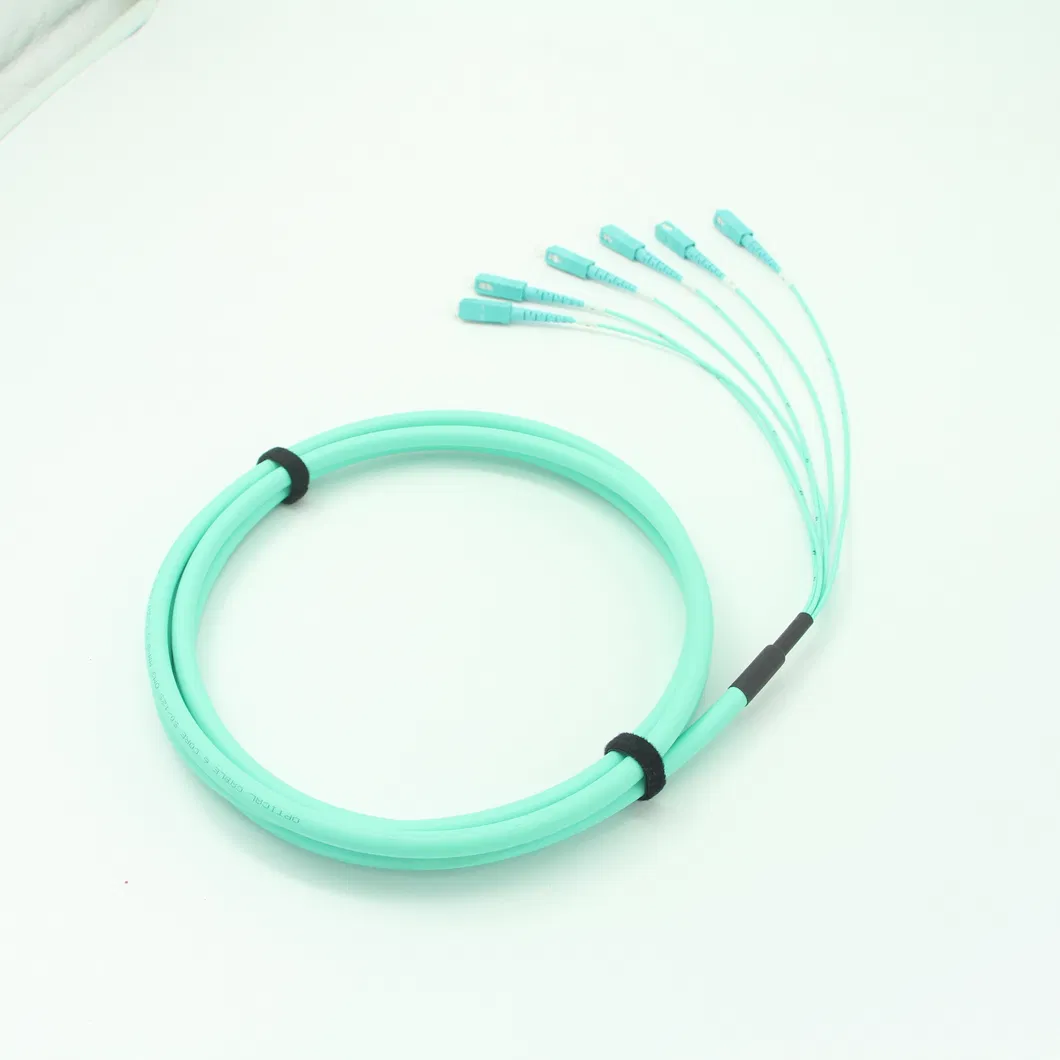

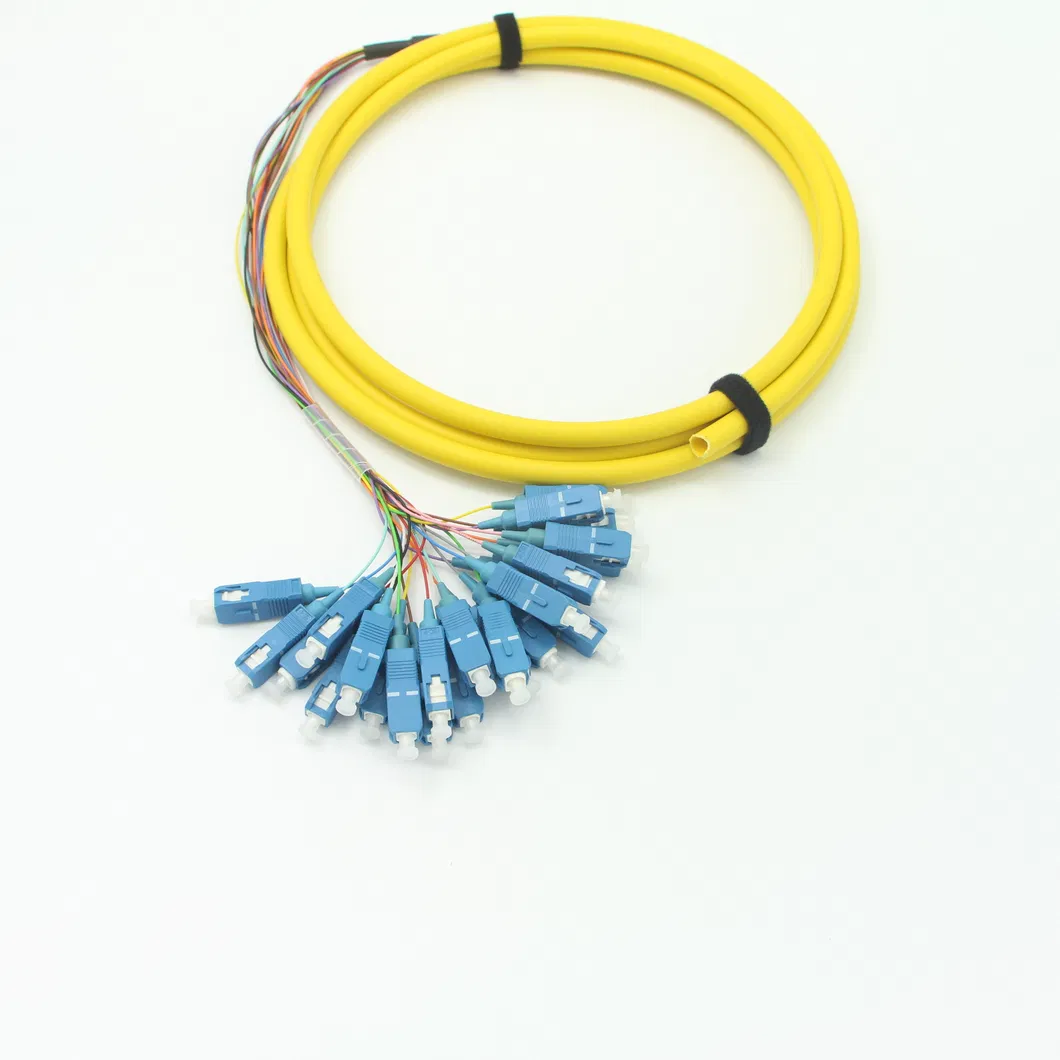

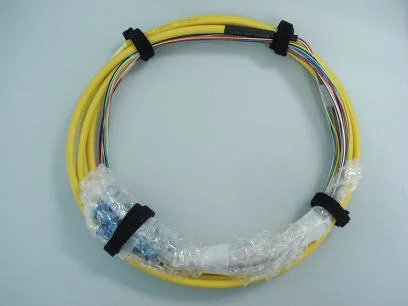

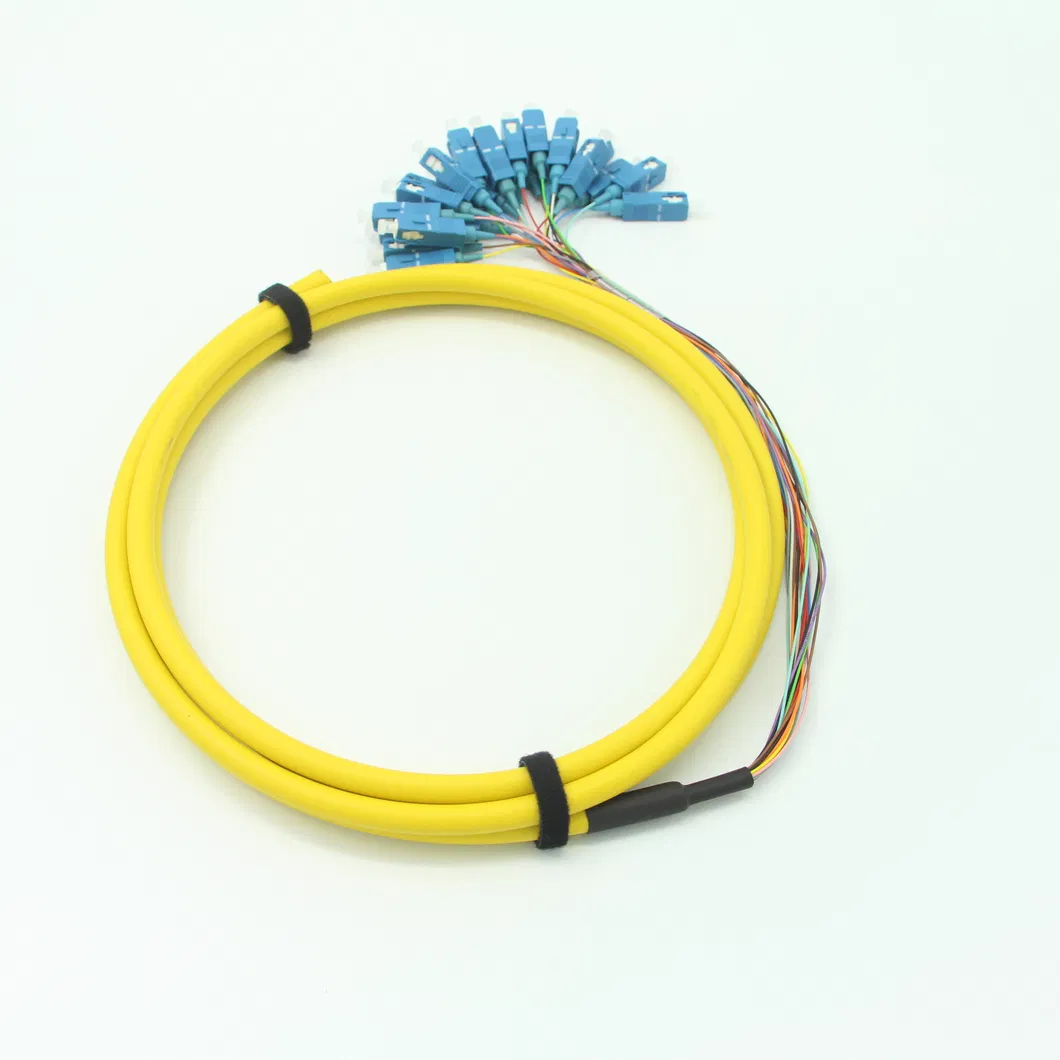

China MPO Sc 12f Break out 0.9mm Patch Cord

Product Description

APPLICATIONS:
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

FEATURES:
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE

SPECIFICATIONS:

	Single mode	Multimode
Insertion Loss	Typical≤0.2dB, Maximum≤0.3dB	≤0.25dB
Return Loss	≥50 dB (PC) ≥60 dB (APC)	≥30 dB
Repeatability	≤0.1
Durability	≤0.2 dB typical change, 1000 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

ORDERING OPTIONS:

Connector Color	Boot (cable) Size	Boot Color	Fiber Type	Cable number	Application	Length
Beige	0.9mm	Beige	9/125μm (SM)	Simplex	PC	Customized
Blue	2.0mm	Black	50/125μm(MM)	Duplex	APC
Green	3.0mm	Blue	62.5/125μm(MM)	Fan-out (4f)
		Green		Fan-out (6f)
		Gray		Fan-out (8f)
		Red		Fan-out (12f)
		White		Fan-out (24f)
