China Mini Type Fiber Optic PLC Coupler

Product Description

BRIEF INTRODUCTION
Planar Lightwave Circuit Splitter(PLCS) is fabricated using quartz optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, low insertion loss and low PDL, high reliability and return loss, small size. The PLCS is widely used in FTTH system, LAN&WAN&CATV networks, PON networks to realize optical signal power management. The ARK provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet the Telcordia 1209 and 1221 reliability requirements.

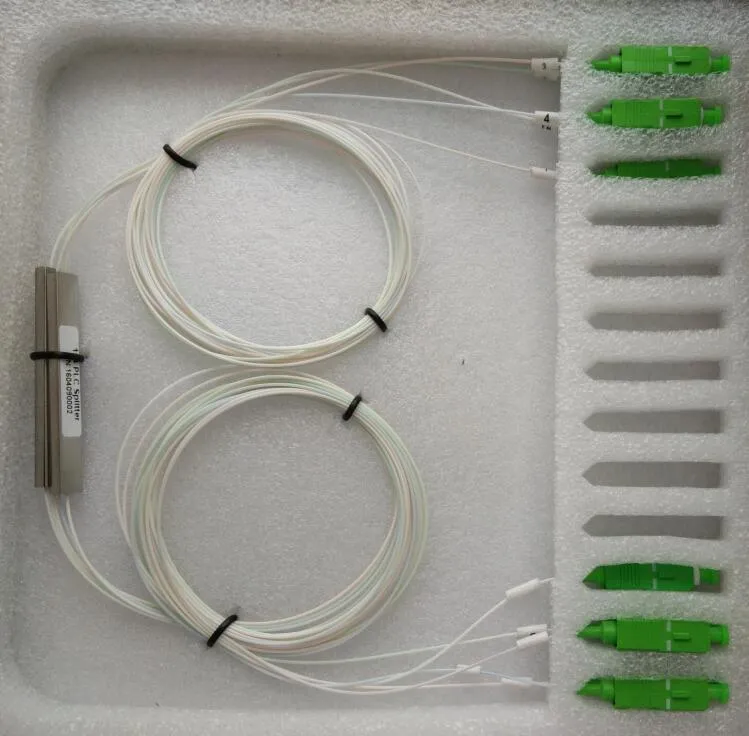

Mini Type Fiber Optic PLC Coupler

SPECIFICATIONS

1XN Parameters
ITEM	1X2	1X4	1X8	1X16	1X32	1X64		Unit
Insertion Loss	≤3.7	≤7.20	≤10.5	≤13.6	≤16.9	≤21.0		dB
Uniformity	≤0.6	≤0.6	≤0.8	≤1.2	≤1.5	≤2.5		dB
Ribbon Fiber Packaging Size (L×W×H)	40×4 ×4	40×4 ×4	40×4 ×4	40×4 ×4	50×7×4	60×12×4		mm
¢0.9mm Loose Tube Packaging Size(L×W×H)		50×7 ×4	50×7 ×4	60×12 ×4	80×12×4	/		mm
ABS Box Packaging Size (L×W×H)	100X80X9 Distance between screw holes:70x74			120x80x18 Distance between screw holes:80x74	140x114x18 Distance between screw holes:100x106			mm
Operating Wavelength	1260~1650							nm
PDL	< 0.2						< 0.3	dB
Directivity	>55							dB
Return Loss	>55							dB
Operation Temperature	-40~+85							ºC
Storage Temperature	-40~+85							ºC
2XN Parameters
ITEM	2X2	2X4	2X8	2X16	2X32	2X64		Unit
Insertion Loss	≤4.0	≤7.5	≤11.2	≤14.5	≤17.5	≤21.4		dB
Uniformity	0.8	≤1.2	≤1.5	≤2.0	≤2.5	≤2.5		dB
Ribbon Fiber Packaging Size (L×W×H)	50×4×4	50×4×4	50×4×4	60×7×4	60×7×4	/		mm
¢0.9mm Loose Tube Packaging Size(L×W×H)	60×7×4	60×7×4	60×7×4	80×12×6	100×20×6	/		mm
ABS Box Packaging Size (L×W×H)	100x80x9 Distance between screw holes:70x74			120x80x18 Distance between screw holes:80x74	140x114x18 Distance between screw holes:100x106			mm
Operating Wavelength	1260~1650							nm
PDL	< 0.2			< 0.3				dB
Directivity	>55							dB
Return Loss	>55							dB
Operation Temperature	-40~+85							ºC
Storage Temperature	-40~+85							ºC
