Manufacturing GYTC8S Stranded Steel Wire Underground Single Modo Outdoor Fiber Cable
Manufacturing GYTC8S Stranded Steel Wire Underground Single Modo Outdoor Fiber Cable Product Description Armoured Outdoor Duct Production Line Gytc8s Fiber Optic CableGYTC8S is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYTC8S fiber optic cable from 2fibe......
Send Inquiry
Product Description

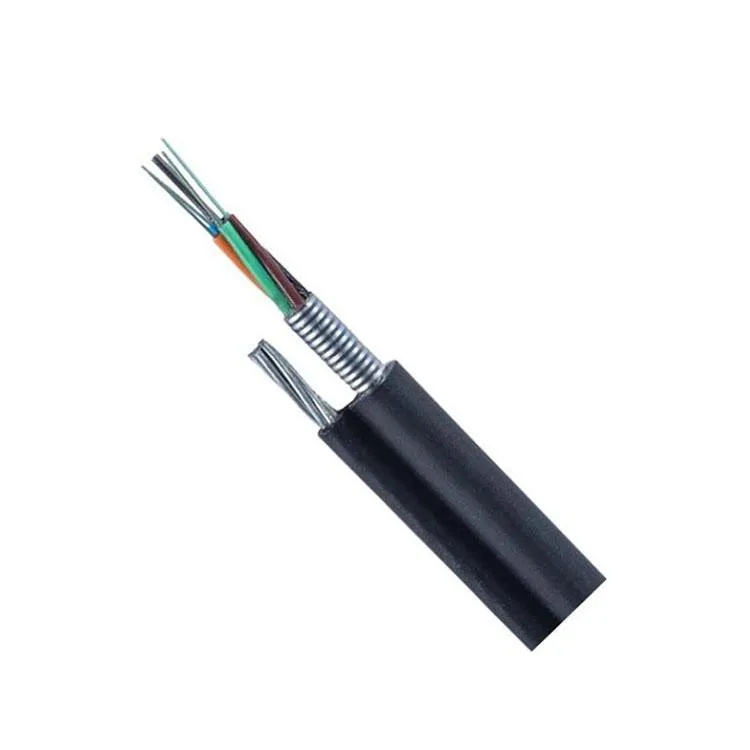

Manufacturing GYTC8S Stranded Steel Wire Underground Single Modo Outdoor Fiber Cable
Cable Specification:
Item Name:Fiber optical cable GYTC8S
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 30 years
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

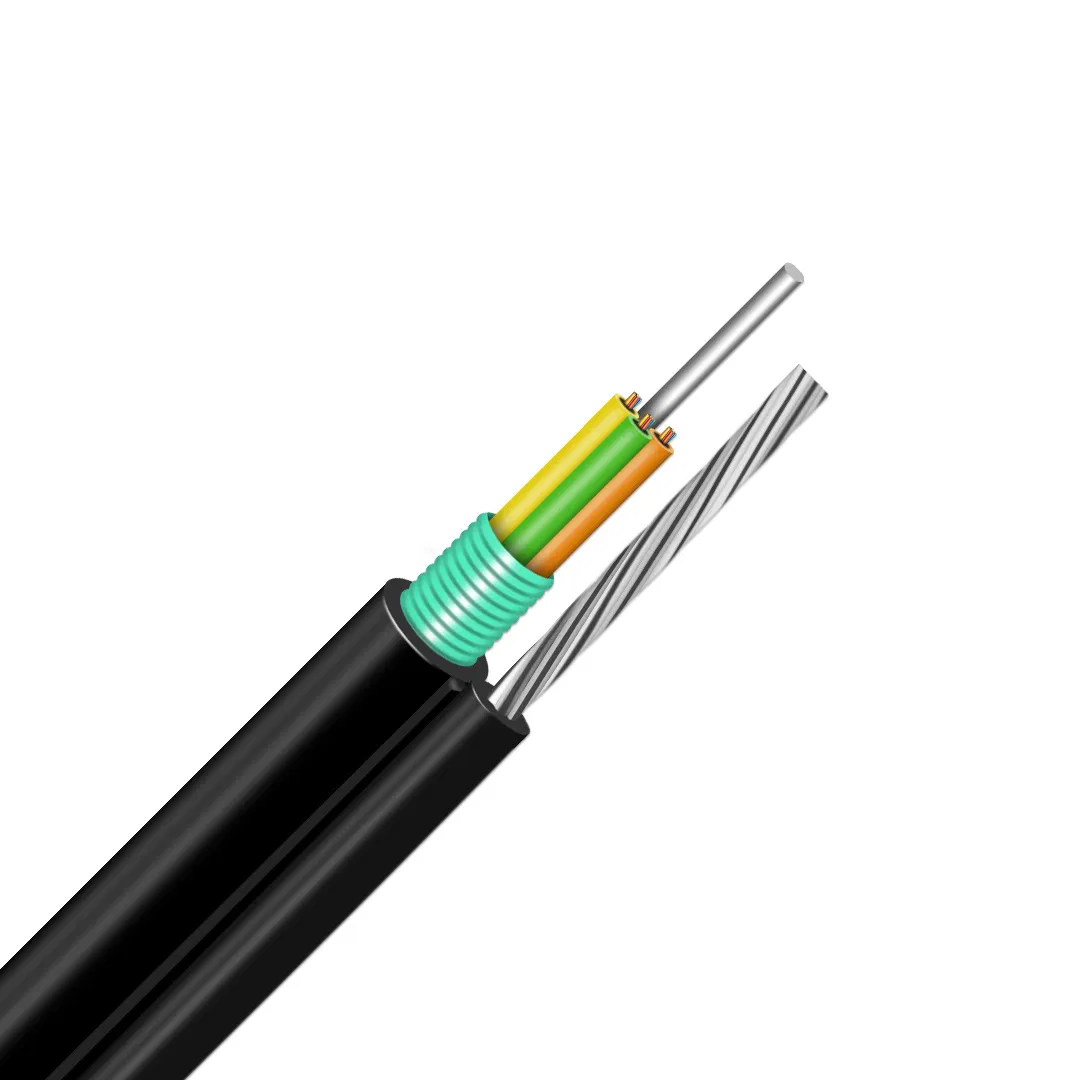

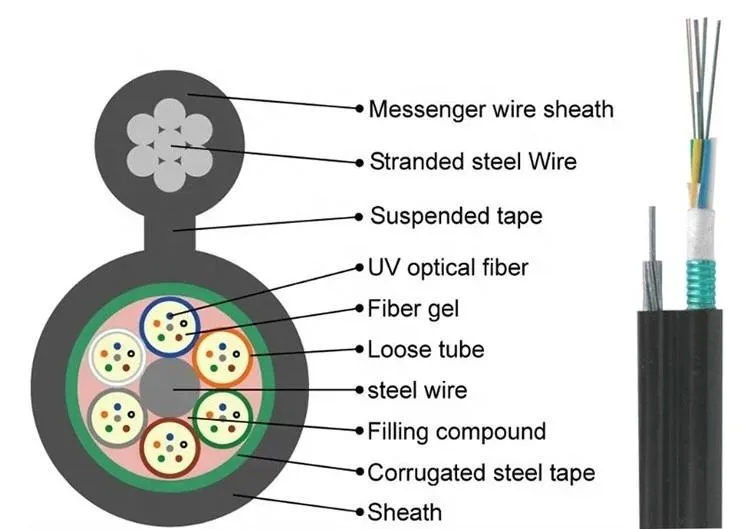

Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
Armoured Outdoor Duct Production Line Gytc8s Fiber Optic Cable
GYTC8S is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYTC8S fiber optic cable from 2
fiber cores to 144 fiber cores. Both single mode type and multimode types are available.
---Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
---Large span lengths
---Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
---The design life span is 30 years

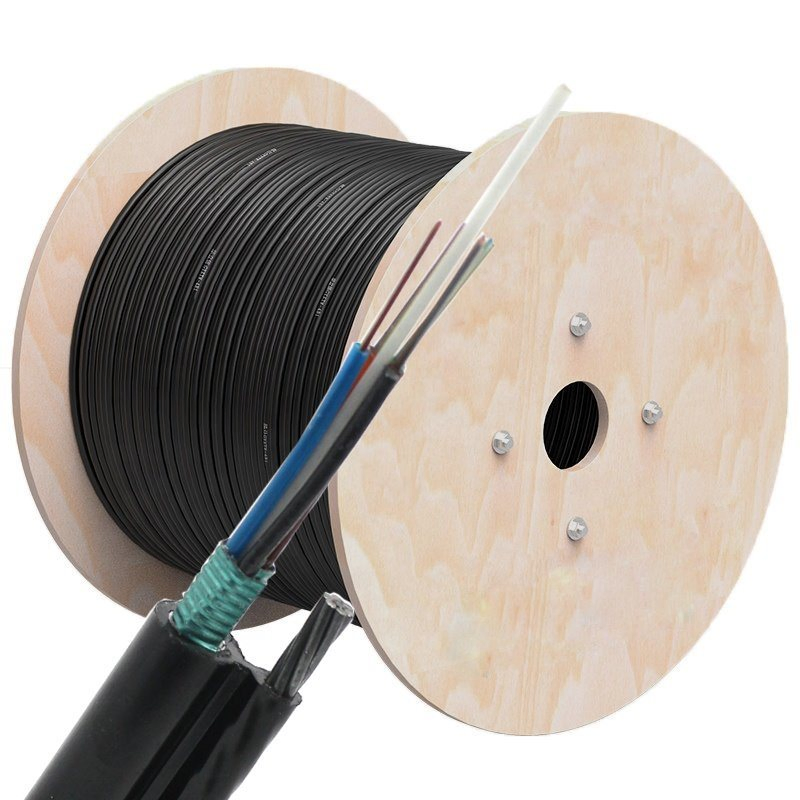

---Package :4-5 km/ wooden drum
fiber cores to 144 fiber cores. Both single mode type and multimode types are available.
---Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
---Large span lengths
---Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
---The design life span is 30 years
---Package :4-5 km/ wooden drum
Technical Parameters
Performance | Long-term | Short-term |
Max.Tension(N) | 3500 | 7000 |
Max.Crushing | 300 | 1000 |
Resistance(N/100mm2) | 30D(Dynamic) | 15D(static) |
Storage and operating temperature | -40ºC to +70ºC | |
Optical Characteristics:
G.652D | 50/125μm | 62.5/125μm |
Attenuation (+20ºC) | @850nm | |
@1300nm | ||
@1310nm | ≤0.36 dB/km | |
@1550nm | ≤0.22 dB/km | |
Bandwidth (Class A) | @850nm | |
@1300nm | ||
Numerical Aperture | ||
Cable Cut-off Wavelength λcc | ≤1260nm | |
Cable Specification:
Item Name:Fiber optical cable GYTC8S
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 30 years
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.
Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
