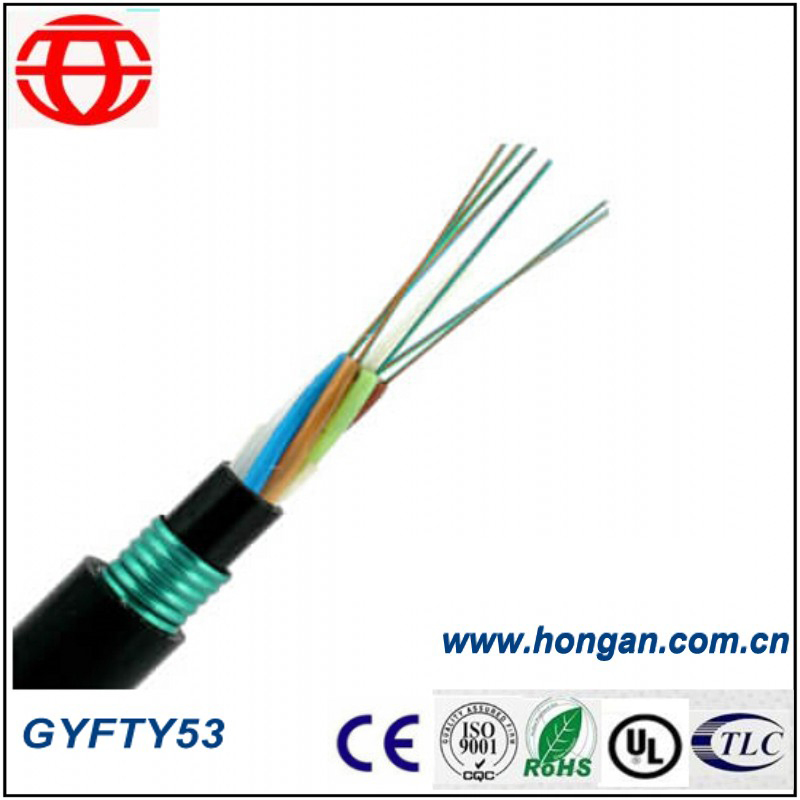

Layer Stranded Fiber Optic Cable with FRP Strength Member
Product Description- Characteristics of product:1.Structurer with FRP strength member,glass yarn,corrugated steel tape as armor,loose tube stranding with double sheath;2.Loose tube material has good hydrolysis resistance performance and high strength;3.Compact structure, excellent water-blocking per......
Send Inquiry
Product Description
- Characteristics of product:

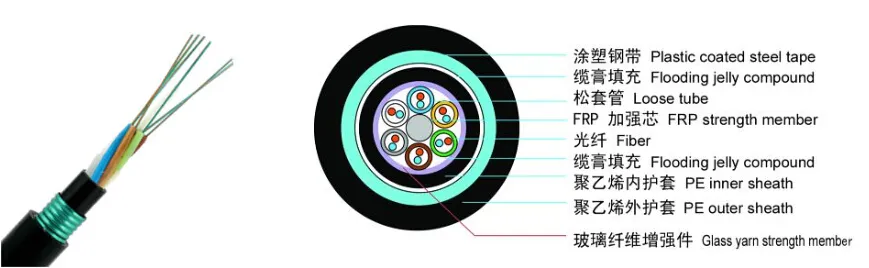

1.Structurer with FRP strength member,glass yarn,corrugated steel tape as armor,loose tube stranding with double sheath;
2.Loose tube material has good hydrolysis resistance performance and high strength;
3.Compact structure, excellent water-blocking performance;
4.Strict manufacturing processes. Good mechanical performance and environmental properties.
-Product Applications:
1.Buried,aerial;
2.Relay communication system;
3.Core network , metropolitan area network and access network etc.
| Structure parameters: | Structure | Nominal diameter(mm) | Nominal weight(kg/km) | Permitted tensile (N) | Permitted crush(N) | Bend Radius(mm) |
| 2-36 | 1+6 | 12.8 | 171 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 38-72 | 1+6 | 13.6 | 185 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 74-84 | 1+7 | 14.7 | 201 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 86-96 | 1+8 | 15.4 | 219 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 98-108 | 1+9 | 16 | 233 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 110-120 | 1+10 | 16.6 | 248 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 122-132 | 1+11 | 17.2 | 264 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 134-144 | 1+12 | 17.9 | 288 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 146-216 | 1+6+12 | 18 | 296 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 218-288 | 1+9+12 | 20.5 | 355 | 1000/3000 | 1000/3000 | 12.5D/25D |

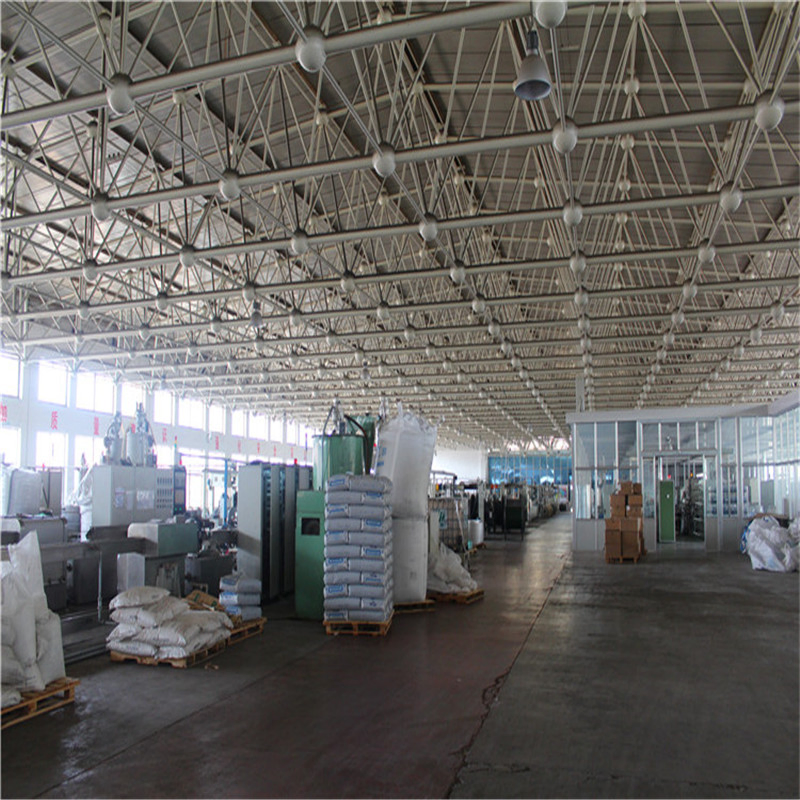

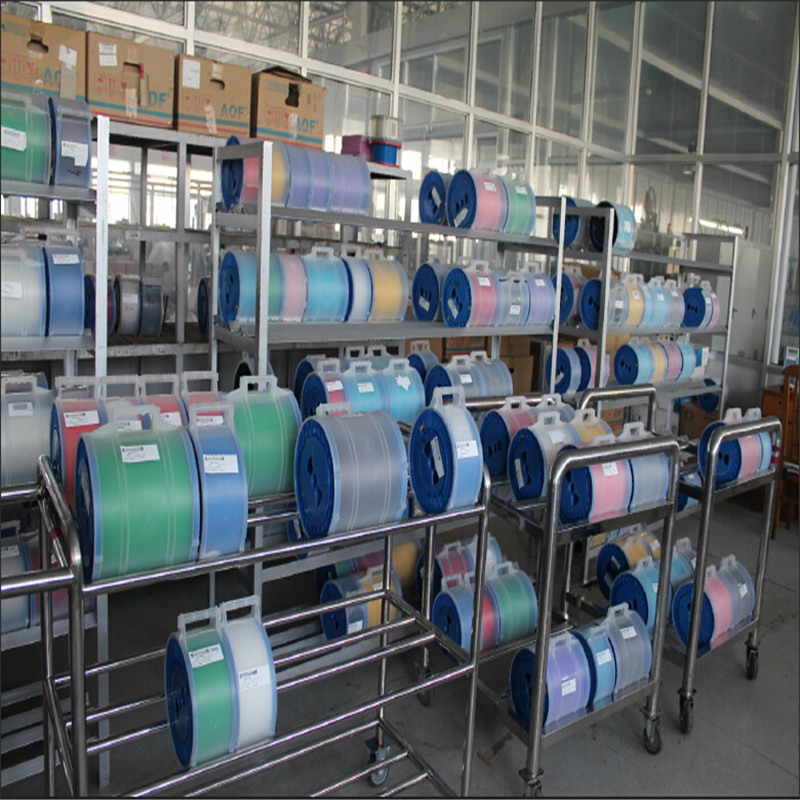

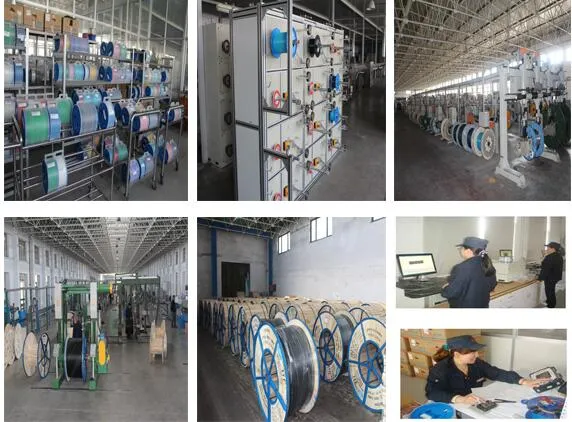

Item&Production Line

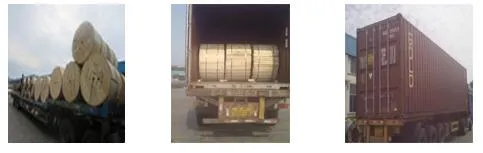

Shipping&Packing

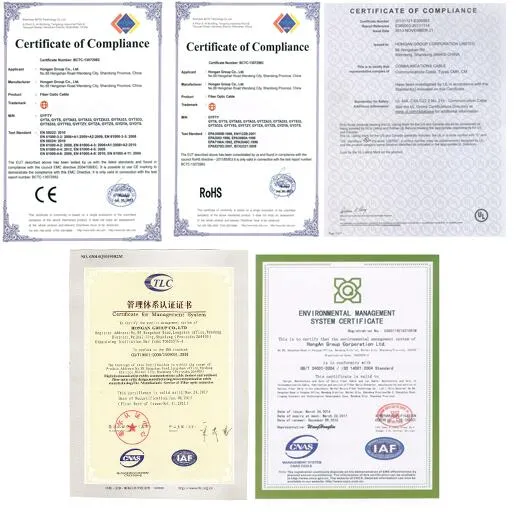

Certification
Company Information
Hongan Fiber Optical Cable Company was established in 1994 which was expanded in 1998,2001,2012 respectively. Advanced fiber optical cable lines and inspection equipments were imported from Switzerland,Finland,USA,Japan and other countries.The main products include:outerdoor fiber optical cable,indoor fiber optical cable,FTTH fiber optical cable, special fiber optical cable (include OPLC hybrid cable,ADSS fiber optical cable,under-water fiber optical cable,micro fiber optical cable, dry outdoor fiber optical cable.flexible armored indoor fiber optical cable,low temperature resistance fiber optical cable.high temperature resistance fiber optical cable etc.) Annual production capacity reaches 150,000 km.
Hongan Optical Cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system.OHSAS18001 occupational health and safety management system, and its fiber optical cable meet the requirements of European CE.ROHS,Chinese TLC. The products are mainly used in China Mobile,China Telecom,China Broadcast,China Defense,Railway,Oil Fields and other communication operators ,also export to Europe, Middle East,South-East Asia,America,Africa etc.
FAQ
-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
-Q6:How many years does the fiber cable's life?
A:Fiber cable's life is about 25 years.
Welcome you select our products! Any inquiry, pls feel free to contact with us!
