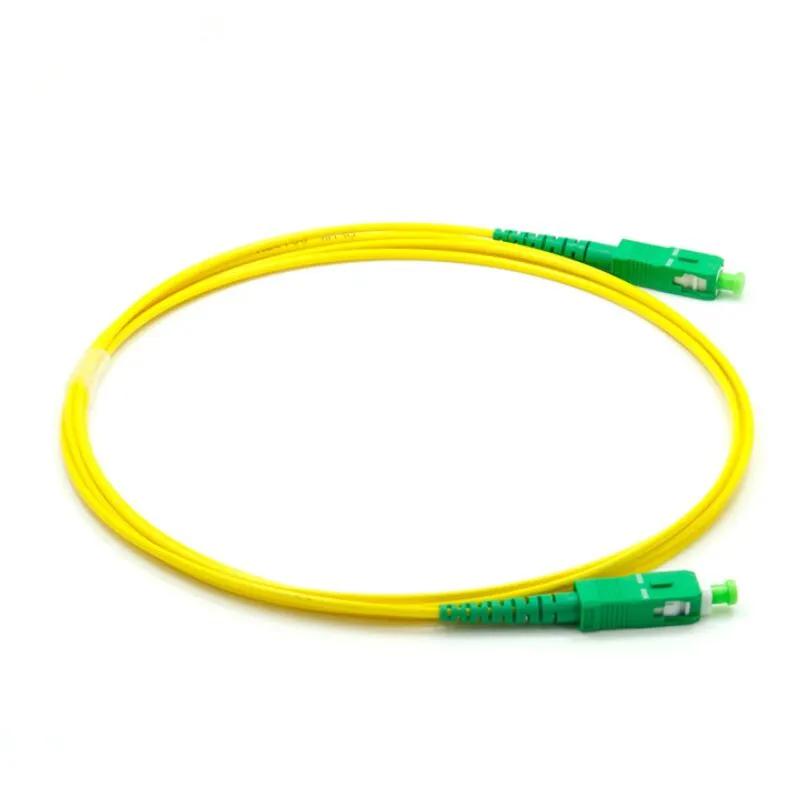

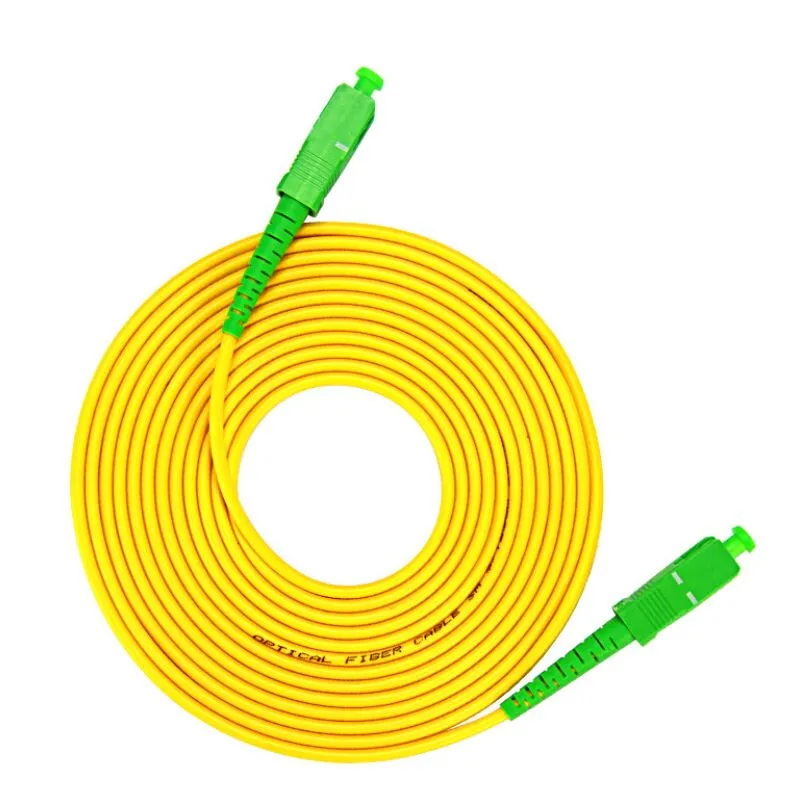

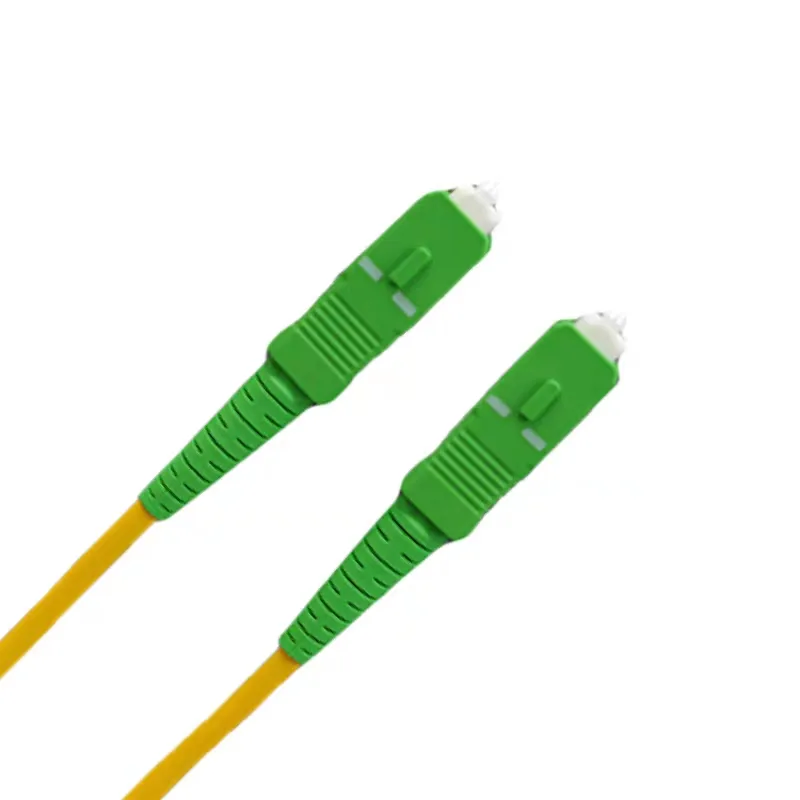

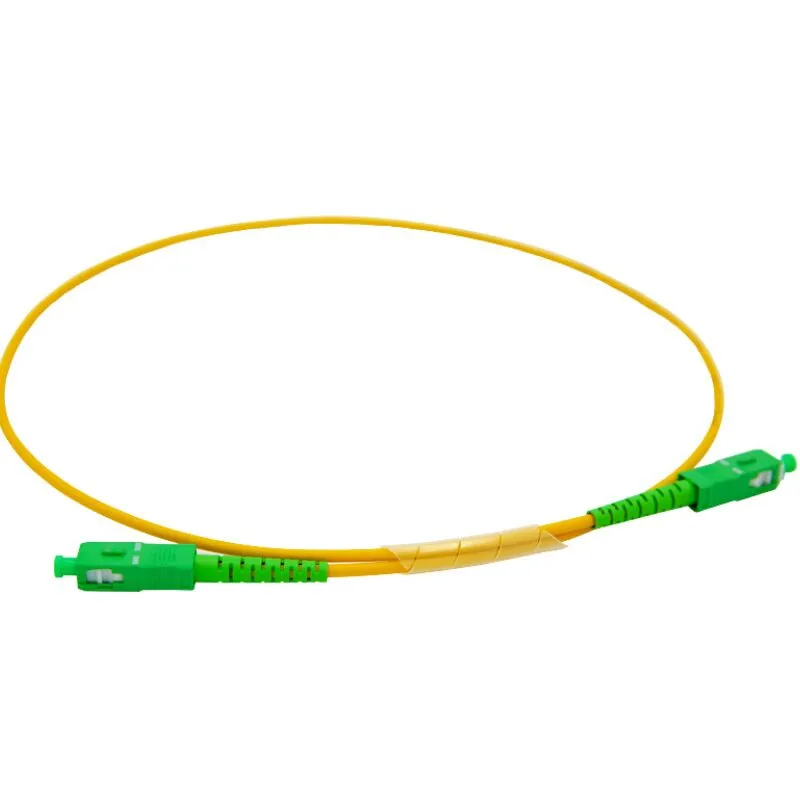

High Quality Sc/APC to Sc/APC Fiber Optic Patch Cord with Sm Simplex PVC for Fiber Patchcord
High Quality Sc/Apc To Sc/Apc Fiber Optic Patch Cord with Sm Simplex PVC for PatchcordDescriptionFiber Optic Patch Cord is important of optical network.They have same or different connectors which are installed on the end offiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensi......
Send Inquiry
Product Description
High Quality Sc/Apc To Sc/Apc Fiber Optic Patch Cord with Sm Simplex PVC for Patchcord
Description
Fiber Optic Patch Cord is important of optical network.They have same or different connectors which are installed on the end of
fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your
demand for the deployment.
Feature
1. Price-Competitive
2. Low Insertion Loss & PDL
3. Factory-terminated and Tested
4. Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber

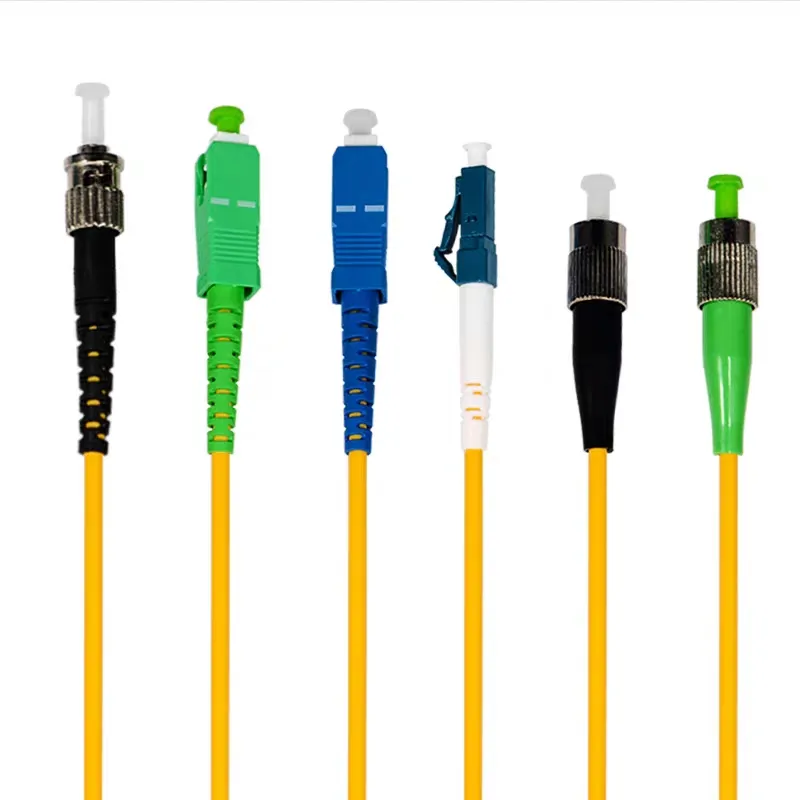

5. Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
6. Polishing Options:PC/UPC/APC
7. Feature Connector with Ceramic Ferrules
Application
1. Access Network
2. Telecom/CATV
3. Systems FTTX
.
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) TIA/EIA-455-107 | ≤ 0.25dB (PC/UPC/APC) | ≤ 0.3dB (PC/UPC) |
| Return Loss(dB) TIA/EIA-455-107 | ≥50dB(PC/UPC) ≥60dB(APC) | ≥40dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
