GYTA53 Outdoor Fiber Cable Use for Direct Burial , Aluminum Tape, Metallic Type
GYTA53 Outdoor fiber cable use for Direct burial, Aluminum tape, metallic typeDescription:Filled communicaton-used outdoor Loose tube style, optical fiber cable with metallic central strength member of steel wire or stranded and moisture barrier inner sheathed. Cable protected by laminated aluminum......
Send Inquiry
Product Description
GYTA53 Outdoor fiber cable use for Direct burial, Aluminum tape, metallic type
Description:
Filled communicaton-used outdoor Loose tube style, optical fiber cable with metallic central strength member of steel wire or stranded and moisture barrier inner sheathed. Cable protected by laminated aluminum tape a corrugated steel armouring and a black PE outer sheath for protection against mechanical damage and termite or rodent attack. Loose tube contain optical fiber single mode or multimode, the color coded as per color coding scheme.
Application:
- suitable for direct burial
- Long-haul communication
- Junction communication
- Subscriber network
- Local area network
Properties:
Stranded type, double PE Sheath, Suitable for multi-cor arbitrary combination, resistance to side pressure, better waterproof, easy for underground laying.
Physical Performance:
*Fiber color and Binder color code: according to EIA/TIA 598B
Products display:
Related Products:
- Central tube optical fiber cable:
GYXY, GYXTW, GYXTY, GYXTA, GYXTS
- Stranded type fiber cable
GYSTY, GYSTS, GYSTA, GYTY53, GYTA53
- Nonmetallic (FRP) fiber cable
GYFTY, GYFSTS, GYFTY53, GYFTA53.
- Figure-8 Self-supporting optical fiber cable
GYXTC8A, GYXTC8S, GYXTY8S, GYXTY8A, GYXTC8Y, GYXYC8Y, GYFTC8Y, GYTC8Y, GYTC8S, GYTC8A
- Aerial outdoor optical fiber cable
ADSS
- FTTH drop optical fiber cable
GJXH, GJXFH, GJXFDH, GJXDH
Description:

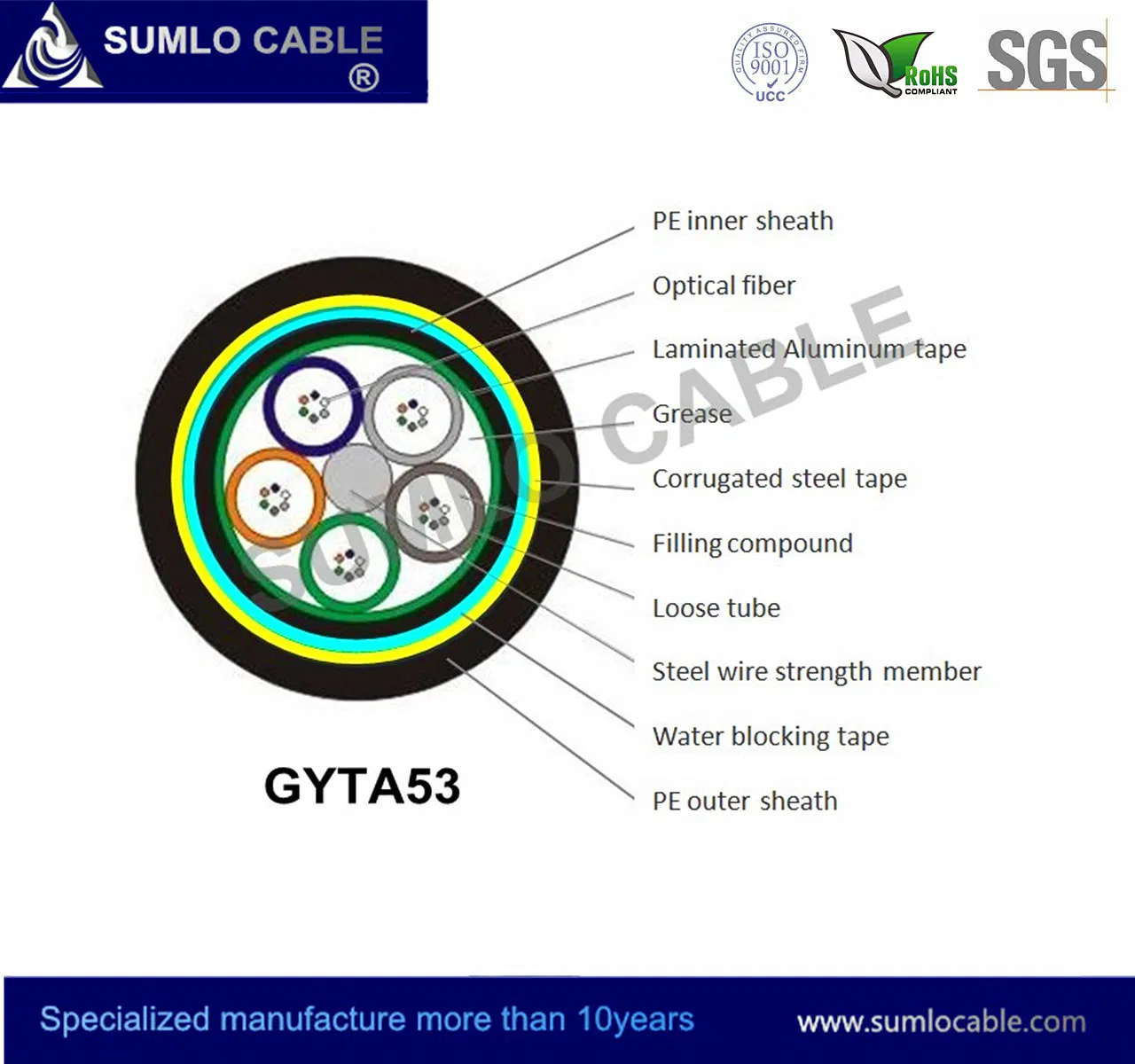

Filled communicaton-used outdoor Loose tube style, optical fiber cable with metallic central strength member of steel wire or stranded and moisture barrier inner sheathed. Cable protected by laminated aluminum tape a corrugated steel armouring and a black PE outer sheath for protection against mechanical damage and termite or rodent attack. Loose tube contain optical fiber single mode or multimode, the color coded as per color coding scheme.
Application:
- suitable for direct burial
- Long-haul communication
- Junction communication
- Subscriber network
- Local area network
Properties:
Stranded type, double PE Sheath, Suitable for multi-cor arbitrary combination, resistance to side pressure, better waterproof, easy for underground laying.

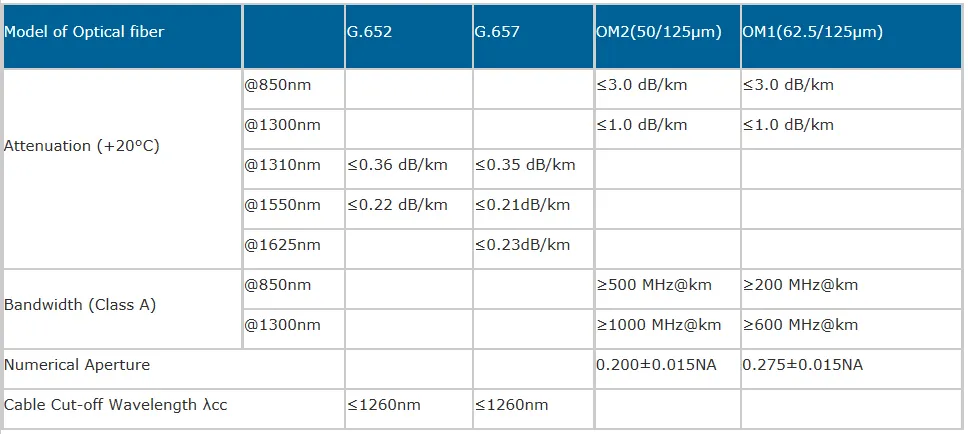

Physical Performance:
| No. of fiber core | Max. NO. of fibers per loose tube | No. of Loose tube | Steel wire/Strand | Outer Dia. (mm) | Tensile Strength Resistance (short term) | Crush Resistance (N/100mm) | Permissible Bending Radius | Weight | Temperature Range |
| (Static/ Dynamic) | (kg/km) | ||||||||
| GYTA53 2-36 | 6 | 6 | 2.3 | 14.9 | 3000 | 3000 | 10times x Dia. 20times x Dia. | 237 | Storage: -50ºC ~ +70ºCOperating:-40ºC ~ +60ºC |
| GYTA53 38-72 | 12 | 6 | 2.3 | 16.5 | 277 | ||||
| GYTA53 74-96 | 12 | 8 | 2.3 | 18.2 | 327 | ||||
| GYTA53 98-120 | 12 | 10 | 2.3 | 20.3 | 389 | ||||
| GYTA53 122-144 | 12 | 12 | 2.3 | 22.3 | 458 |
*Fiber color and Binder color code: according to EIA/TIA 598B

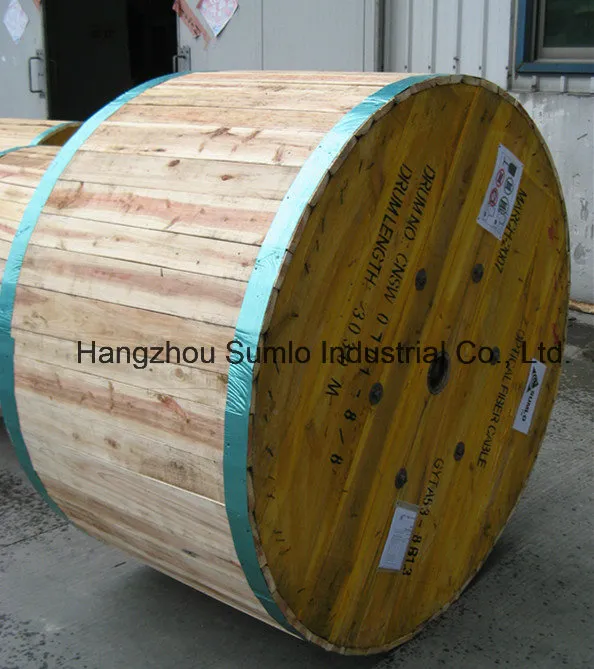

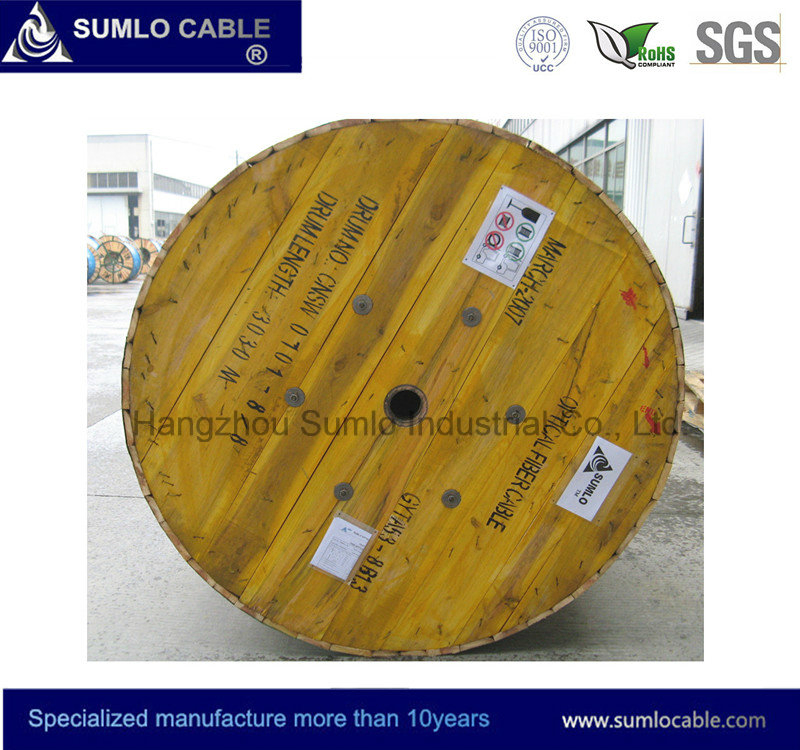

Products display:
