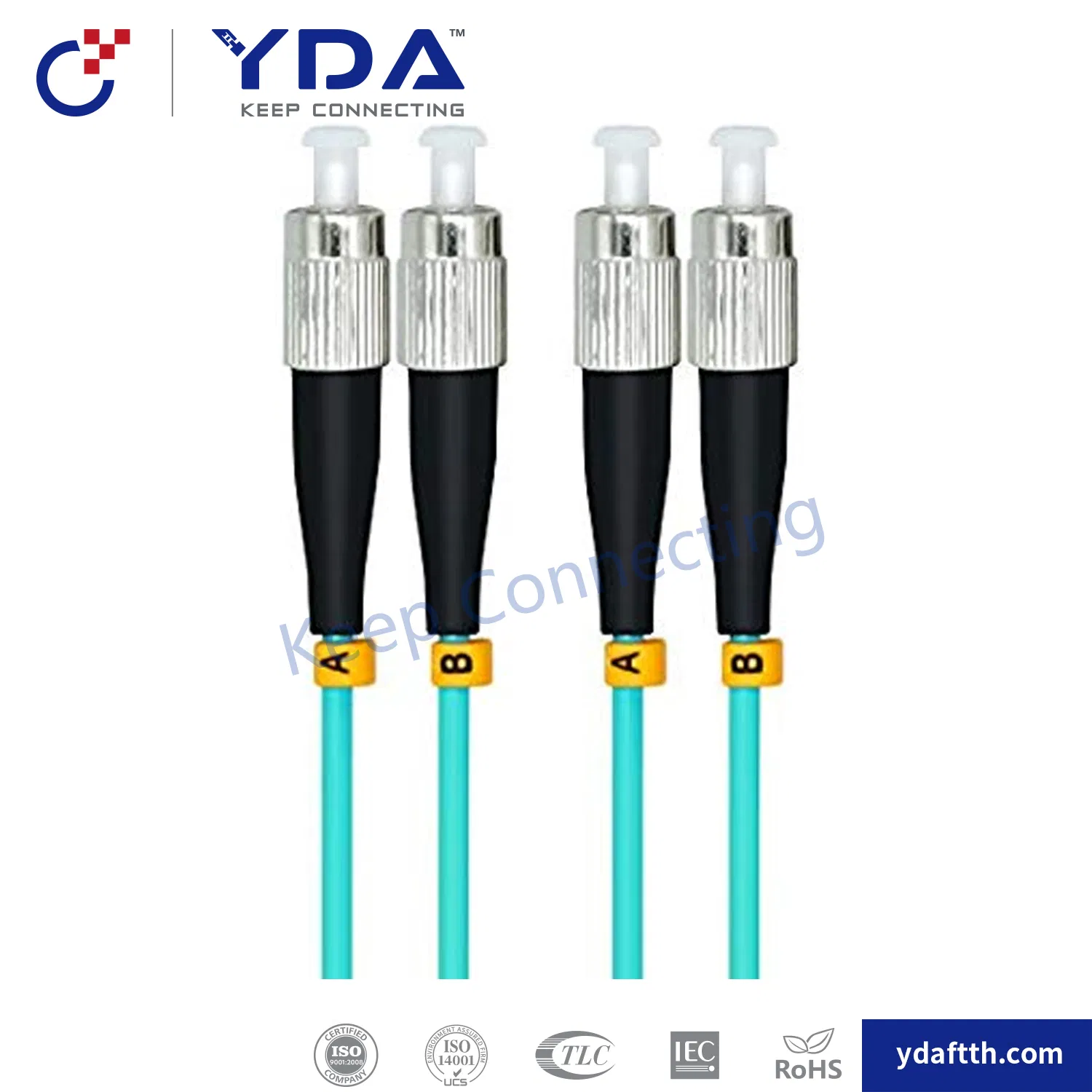

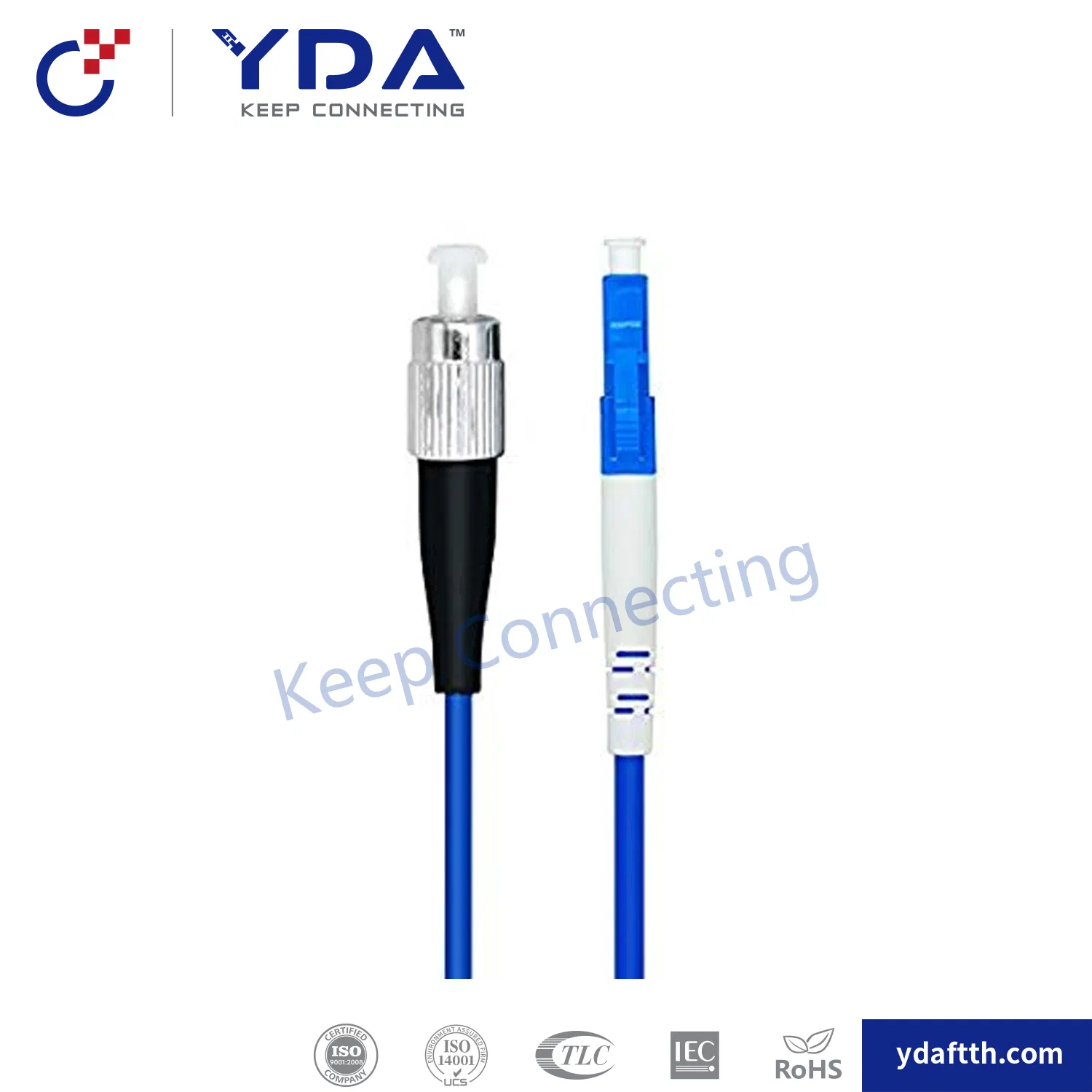

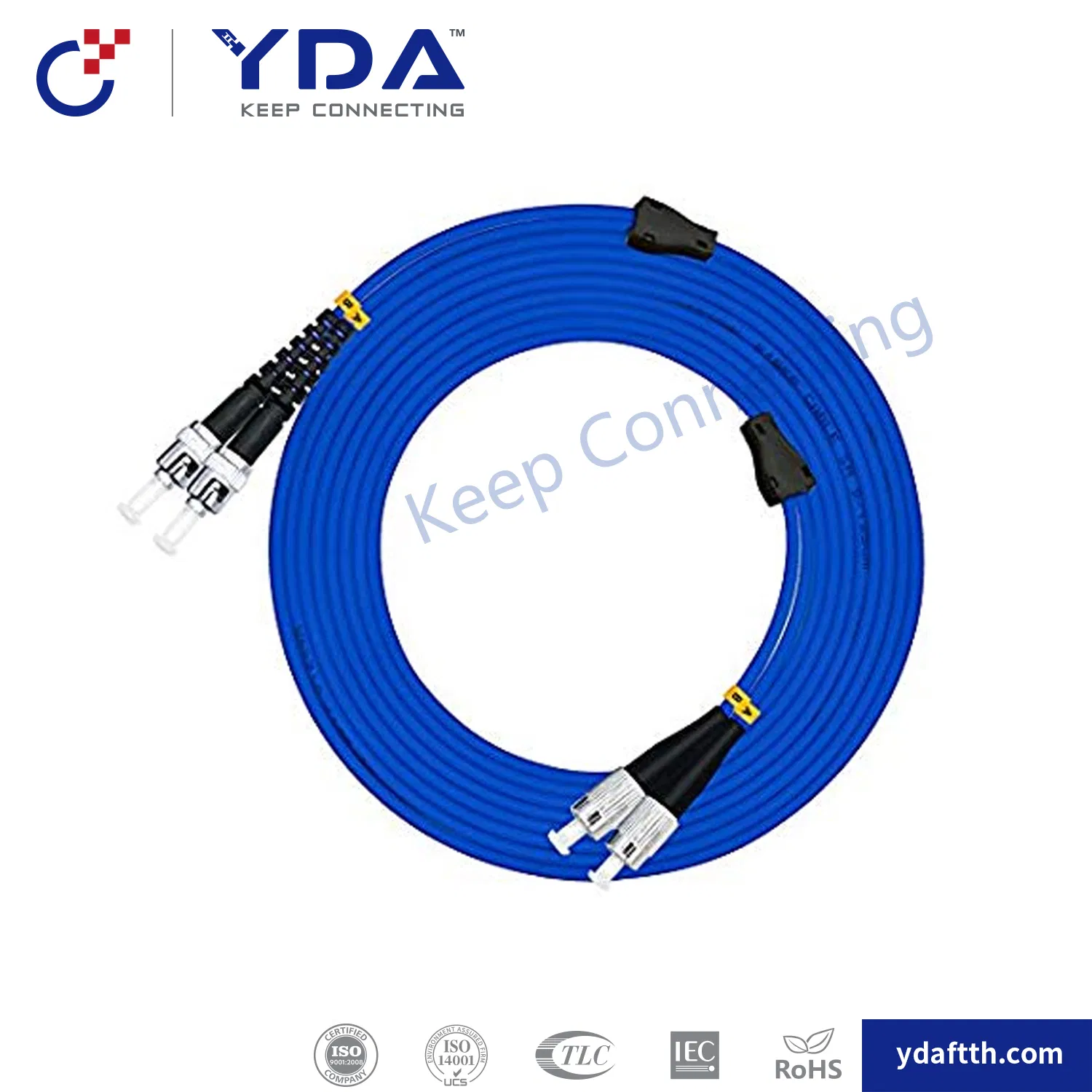

FTTH China Supplier Indoor FC Fiber Optic Patch Cord
FTTH China Supplier Indoor FC Fiber Optic Patch CordOverviewFiber Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is ......
Send Inquiry
Product Description
FTTH China Supplier Indoor FC Fiber Optic Patch Cord
Overview
Fiber Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling"
Application
Data transmission
Telecommunication
Testing equipment
WBN
Optical fiber CATV
LAN indoor/outdoor
Specification
Q:The History of our factory?
A:In 2000, Yuda started our adapters business at first and accumulated
funds, then we started producing jumpers in 2006. In 2009 We developed
the splitter workshop. The sales volume exceeded 15 million US dollars
in 2015. In the same year, we began to explore foreign markets.
Q:What's your advantage products?
A:optic fiber PLC splitter, patch cord, pigtail, connector and adaptor
Q:What insert loss (IL)Value we can reach?
A:Below 0.1db,generally 0.2db is enough for the market.
Q:What kind of package you usually applied in?
A:We usually use carton, but it also can be customized
Q:Warranty policy?
A: Fiber Equipments Warranty Notice Warranty period:24months after buying,Generally ,there is no questions for application in 20 years.
Overview
Fiber Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling"
Application
Data transmission
Telecommunication
Testing equipment
WBN
Optical fiber CATV
LAN indoor/outdoor
Specification
| Conector | FC, SC, LC, ST, MU, E2000, LSH... | |
| Fiber model | SM | G652D, G657A1, G657A2 |
| MM | OM1, OM2, OM3, OM4, OM5 | |
| Cable Dia | Ø0.9mm, Ø2.0mm, Ø3.0mm | |
| Strength Member | China aramid yarn, Dupont kelvar yarn | |
| Jacket | PVC, LSZH, OFNR, PE, TPU | |
| Core number | Simplex, Duplex, Multicore | |
| Length | 1, 2, 3, 5, 10m...or customized | |
| Item | Single mode | Multi mode | ||
| PC | UPC | APC | PC | |
| Insertion Loss | <or=0.3dB | <or=0.3dB | <or=0.3dB | <or=0.3dB |
| Reture Loss | >or=50dB | >or=55dB | >or=60dB | >or=35dB |
| Repeatability | <or=0.1dB | <or=0.1dB | <or=0.1dB | <or=0.1dB |
| Operating Wavelength | 1310nm,1550nm | 850nm,1300nm | ||
| Temperature Stability | Additional Loss≤0.2dB, Return Loss Variability<5dB | |||
| Working Temperature | -50ºC~+75ºC | |||
Q:The History of our factory?
A:In 2000, Yuda started our adapters business at first and accumulated
funds, then we started producing jumpers in 2006. In 2009 We developed
the splitter workshop. The sales volume exceeded 15 million US dollars
in 2015. In the same year, we began to explore foreign markets.
Q:What's your advantage products?
A:optic fiber PLC splitter, patch cord, pigtail, connector and adaptor
Q:What insert loss (IL)Value we can reach?
A:Below 0.1db,generally 0.2db is enough for the market.
Q:What kind of package you usually applied in?
A:We usually use carton, but it also can be customized
Q:Warranty policy?
A: Fiber Equipments Warranty Notice Warranty period:24months after buying,Generally ,there is no questions for application in 20 years.
