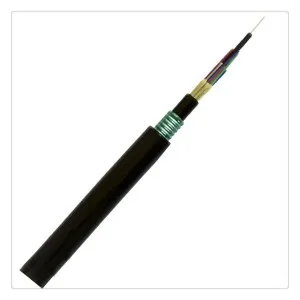

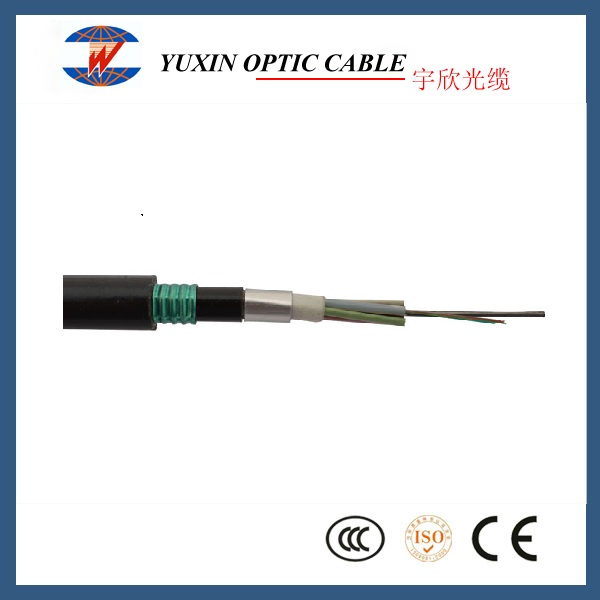

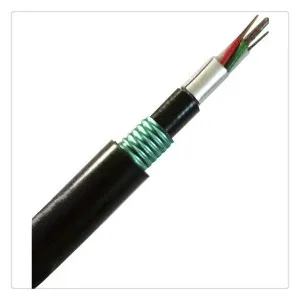

Double Sheath Aluminium Direct Burial 8 Core Fiber Optic Cable (GYTA53)
Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

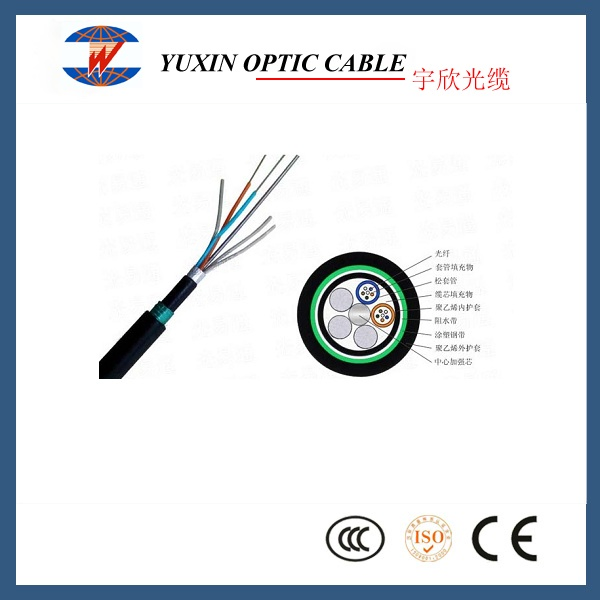

Cable Structure

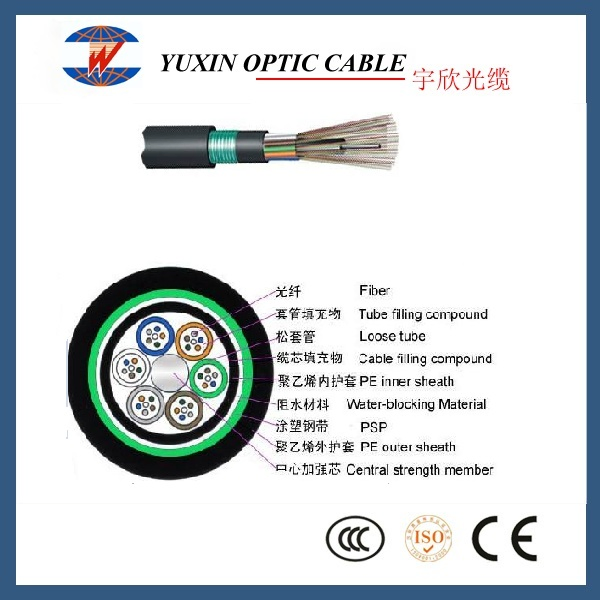

Product Construction:
Features
Loose tube gel-filled construction for superiorfiber protection.
Double jacket single armored(GYTY53) and Double jacket double armored
(GYTA53) for rodent pr.otection and direct burial.
UV and moisture-resistant design
Applications
Directburied, DuctorUnderground conduits.
Backbone.
Structure and Technical Specifications
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fibers per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
Short Term | Long Term | Short Term | Long Term | |||||
2~30 | 12.2 | 142 | 6 | 5 | 3000 | 1000 | 3000 | 1000 |
32~48 | 12.8 | 155 | 8 | 6 | 3000 | 1000 | 3000 | 1000 |
50~72 | 13.6 | 170 | 12 | 6 | 3000 | 1000 | 3000 | 1000 |
74~96 | 15.0 | 192 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
98~144 | 16.6 | 220 | 12 | 12 | 3000 | 1000 | 3000 | 1000 |
>144 | Available upon customer's request | |||||||
Structure and Technical Specifications GYTA53
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fibers per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
Short Term | Long Term | Short Term | Long Term | |||||
2~30 | 13.2 | 162 | 6 | 5 | 3000 | 1000 | 3000 | 1000 |
32~48 | 13.8 | 175 | 8 | 6 | 3000 | 1000 | 3000 | 1000 |
50~72 | 14.6 | 205 | 12 | 6 | 3000 | 1000 | 3000 | 1000 |
74~96 | 16.0 | 230 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
98~144 | 17.6 | 285 | 12 | 12 | 3000 | 1000 | 3000 | 1000 |
>144 | Available upon customer's request | |||||||
Note:
1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material, and the type is GYTZS.
2.Upon customer's request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series.
3. Special cable structure can be designed and manufactured on customer's request.
