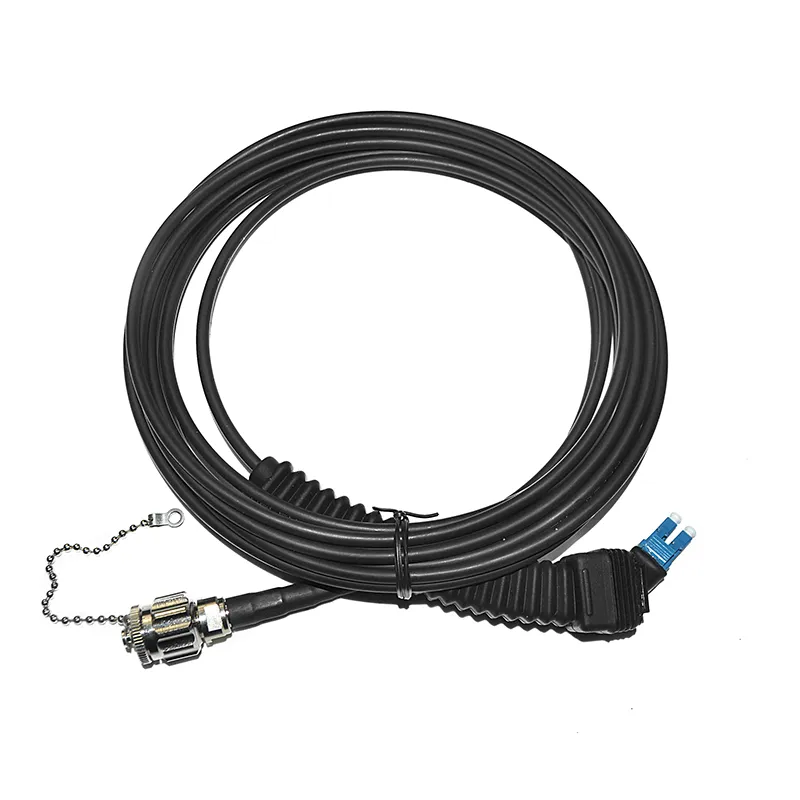

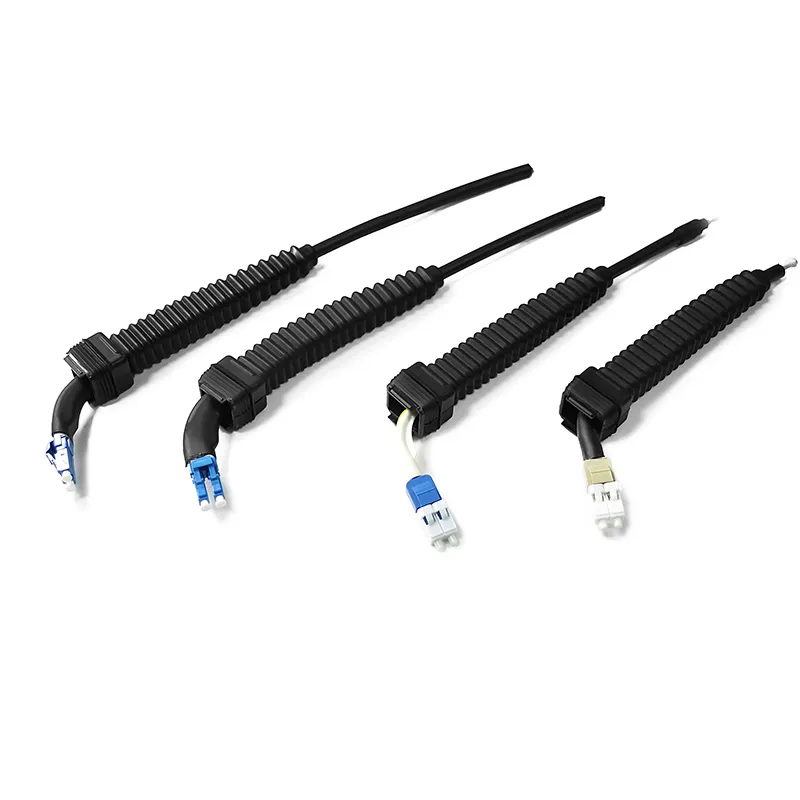

360 Degree Adjustable LC Uniboot Nsn to Aarc Connectors Patch Cable Assembly

Product Description

360 degree adjustable LC Uniboot NSN to AARC connectors patch cable assembly

APPLICATION
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications

FEATURES
Bird proof and rodent resistant
IP67 water and dust protection
Available with singlemode or multimode fiber

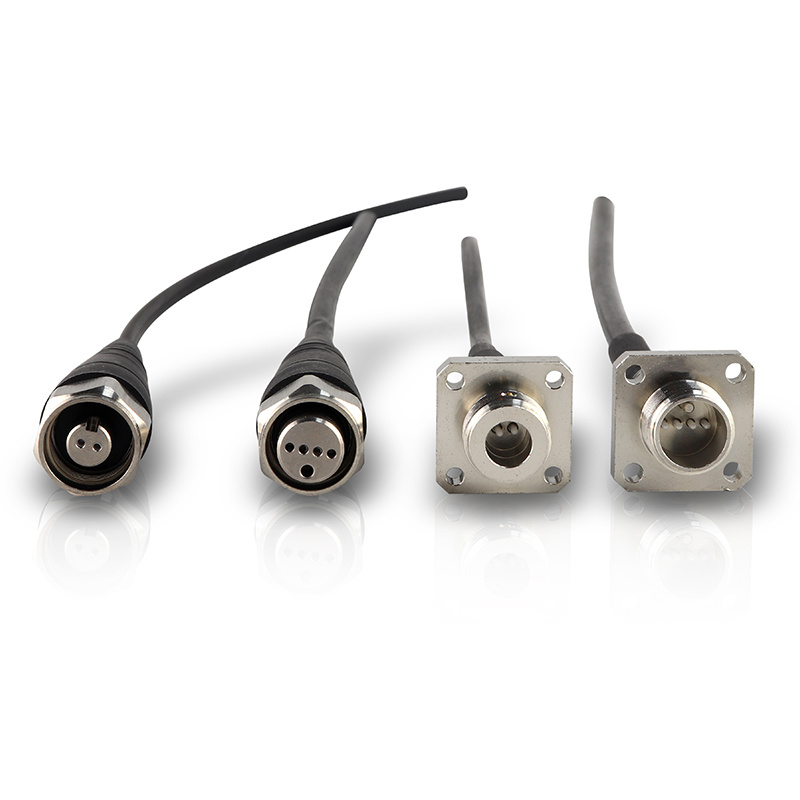

Flange, Jam-Nut, or In-Line type receptacle assemblies
Operating temperature: -40° to 85°C
RoHS compliant

1.Feature:
1>FTTA , WiMax base station,CATV outdoor Application;
2>Optional Diameter:4.8mm,7.0mm or Customized;
3>Optional Jacket:LSZH,PE.,Armoured or Non Armoured;
4>IP67 Waterproof protection;
360 Degree Adjustable LC Uniboot Nsn to Aarc Connectors Patch Cable Assembly

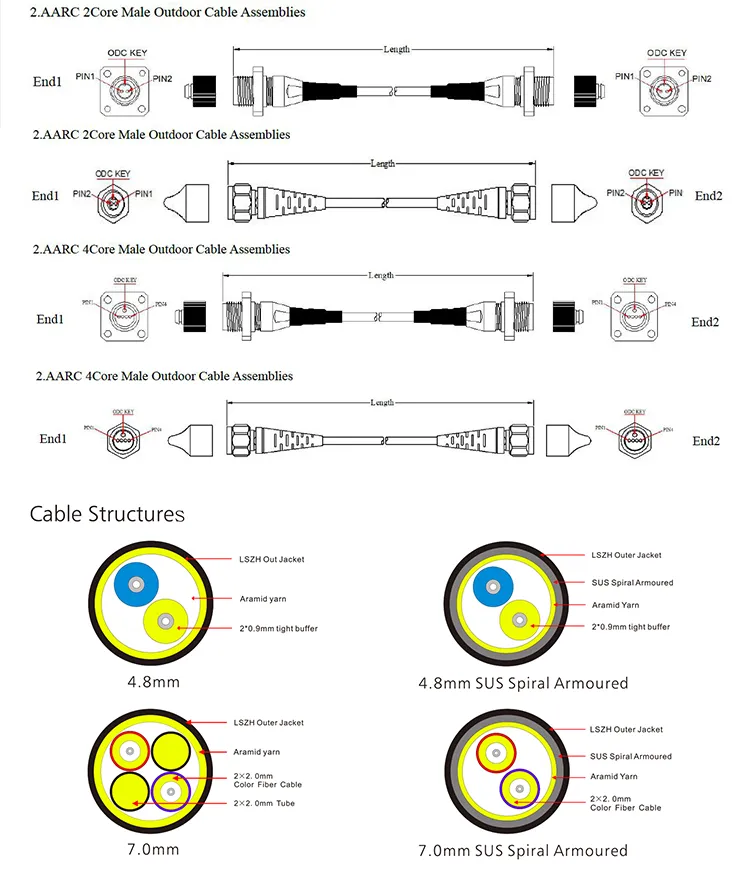

2. Drawing:

ITEM

Description

Q'TY

1

IP67 Waterproof Protection NSN Outdoor Fiber Optic Cable Assemblies ODLC

1.Feature:
1>FTTA , WiMax base station,CATV outdoor Application;
   2>Optional Diameter:4.8mm,7.0mm or Customized;
   3>Optional Jacket:LSZH,PE,PU.,Armoured or Non Armoured;
4>IP67 Waterproof protection;


    2. Drawing:

  NSN Boot(for 7.0mm Cable) NSN Boot(For 4.8mm cable)

3. Assembly Performance:

Item	Data
Insertion Loss	≤0.2dB
Return Loss	SM/UPC≥55dB,SM/APC≥65dB,MM≥35dB
Mechanical life	500cycles
Working temperature	-40°C~+70°C
Storage temperature	-40°C~+70°C
Operating temperature	-10°C~+50°C
Protection Level	IP67
Tensile Data	Tensile between junction and fiber cable≥100N
Authentication	Meet with RoHS

4. Cable Specification:

Item	Data
fiber	OS2,OM1,OM2,OM3,OM4
Tension member	Aramid Kevlar,Armoured Tube
Max. attenuation	SM:≤0.34dB/km at 1310nm,≤0.20dB/km at 1550nm MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm
Tensile resistance(short term)	500N(no breakage)
Crush resistance(short term/long term)	1000N/100mm
inflaming retarding	IEC 60332-3
Temperature	-40~+70°C
Uvioresistant	PASS
Authentication	Meet with RoHS &UL
