Home > Products > Optical Fiber > 24 Core Non-Armored Optical Fiber Cable in Excellent Water- Blocking Performance

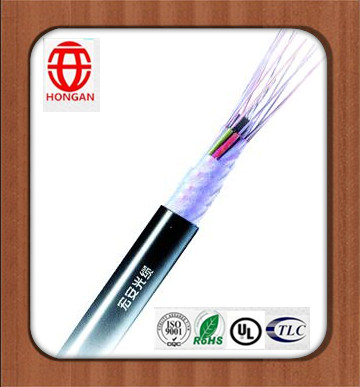

24 Core Non-Armored Optical Fiber Cable in Excellent Water- Blocking Performance
Product Description- Characteristics of product:1.Small diameter,lighter and softness2.Reasoning designation,excellent water-blocking performance3.FRP as non-metallic strength member4.Good electromagnetism resistance ability -Product Applications:1.Aerial,duct,leading in,etc;2.Strong electromagnetis......
Send Inquiry
Product Description
Product Description

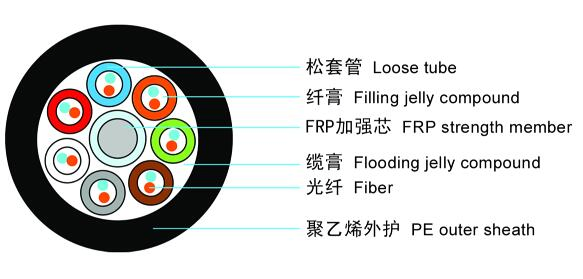

- Characteristics of product:
1.Small diameter,lighter and softness
2.Reasoning designation,excellent water-blocking performance
3.FRP as non-metallic strength member
4.Good electromagnetism resistance ability
-Product Applications:
1.Aerial,duct,leading in,etc;
2.Strong electromagnetism environment
3.Areas with lightning strike

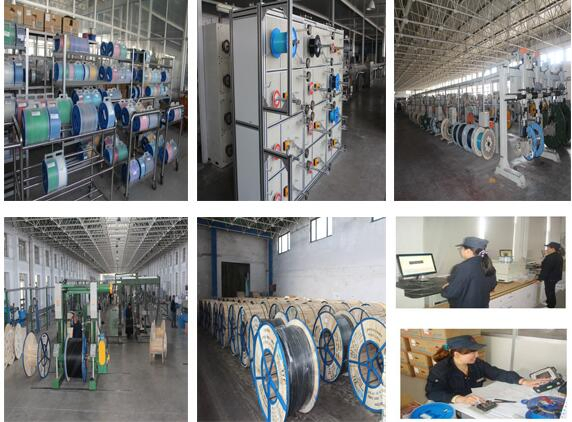

Item&Production Line
Shipping&Packing
Certification
Company Information
Hongan Fiber Optical Cable Company was established in 1994 which was expanded in 1998,2001,2012 respectively. Advanced fiber optical cable lines and inspection equipments were imported from Switzerland,Finland,USA,Japan and other countries.The main products include:outerdoor fiber optical cable,indoor fiber optical cable,FTTH fiber optical cable, special fiber optical cable (include OPLC hybrid cable,ADSS fiber optical cable,under-water fiber optical cable,micro fiber optical cable, dry outdoor fiber optical cable.flexible armored indoor fiber optical cable,low temperature resistance fiber optical cable.high temperature resistance fiber optical cable etc.) Annual production capacity reaches 150,000 km.
Hongan Optical Cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system.OHSAS18001 occupational health and safety management system, and its fiber optical cable meet the requirements of European CE.ROHS,Chinese TLC. The products are mainly used in China Mobile,China Telecom,China Broadcast,China Defense,Railway,Oil Fields and other communication operators ,also export to Europe, Middle East,South-East Asia,America,Africa etc.
Our Customer
FAQ
-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
-Q6:How many years does the fiber cable's life?
A:Fiber cable's life is about 25 years.
Welcome you select our products! Any inquiry, pls feel free to contact with us!

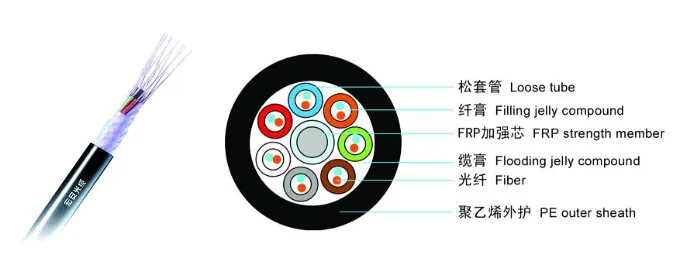

- Characteristics of product:
1.Small diameter,lighter and softness
2.Reasoning designation,excellent water-blocking performance
3.FRP as non-metallic strength member
4.Good electromagnetism resistance ability
-Product Applications:
1.Aerial,duct,leading in,etc;
2.Strong electromagnetism environment
3.Areas with lightning strike
| Structure parameters: | Structure | Nominal diameter(mm) | Nominal weight(kg/km) | Permitted tensile (N) | Permitted crush(N) | Bend Radius(mm) |
| 2-36 | 1+6 | 8.6 | 60 | 600/1500 | 300/1000 | 10D/20D |
| 38-72 | 1+6 | 9.3 | 68 | 600/1500 | 300/1000 | 10D/20D |
| 74-84 | 1+7 | 10 | 82 | 600/1500 | 300/1000 | 10D/20D |
| 86-96 | 1+8 | 10.8 | 96 | 600/1500 | 300/1000 | 10D/20D |
| 98-108 | 1+9 | 11.4 | 103 | 600/1500 | 300/1000 | 10D/20D |
| 110-120 | 1+10 | 12 | 114 | 600/1500 | 300/1000 | 10D/20D |
| 122-132 | 1+11 | 12.6 | 125 | 600/1500 | 300/1000 | 10D/20D |
| 134-144 | 1+12 | 13.3 | 138 | 600/1500 | 300/1000 | 10D/20D |
| 146-216 | 1+6+12 | 13.8 | 149 | 600/1500 | 300/1000 | 10D/20D |
| 218-288 | 1+9+15 | 15.5 | 195 | 600/1500 | 300/1000 | 10D/20D |

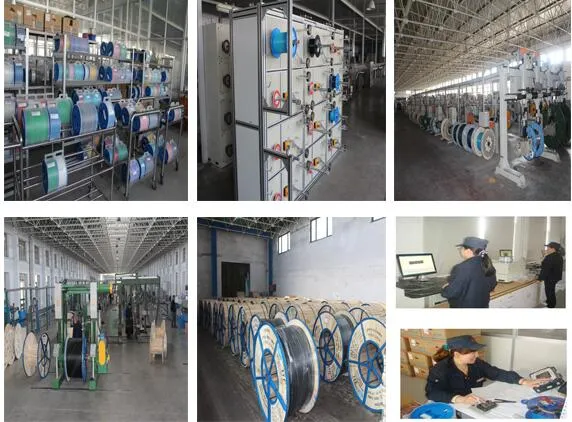

Item&Production Line
Shipping&Packing
Certification
Company Information
Hongan Fiber Optical Cable Company was established in 1994 which was expanded in 1998,2001,2012 respectively. Advanced fiber optical cable lines and inspection equipments were imported from Switzerland,Finland,USA,Japan and other countries.The main products include:outerdoor fiber optical cable,indoor fiber optical cable,FTTH fiber optical cable, special fiber optical cable (include OPLC hybrid cable,ADSS fiber optical cable,under-water fiber optical cable,micro fiber optical cable, dry outdoor fiber optical cable.flexible armored indoor fiber optical cable,low temperature resistance fiber optical cable.high temperature resistance fiber optical cable etc.) Annual production capacity reaches 150,000 km.
Hongan Optical Cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system.OHSAS18001 occupational health and safety management system, and its fiber optical cable meet the requirements of European CE.ROHS,Chinese TLC. The products are mainly used in China Mobile,China Telecom,China Broadcast,China Defense,Railway,Oil Fields and other communication operators ,also export to Europe, Middle East,South-East Asia,America,Africa etc.
Our Customer
FAQ
-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
-Q6:How many years does the fiber cable's life?
A:Fiber cable's life is about 25 years.
Welcome you select our products! Any inquiry, pls feel free to contact with us!
