2--96 C Gjbfjv Gjbfjh Indoor Breakout Fiber Optic Cable
DescriptionMGXTSWV fiber optic cable, the fibers,200μm or 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water......
Send Inquiry
Product Description
Description
MGXTSWV fiber optic cable, the fibers,200μm or 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, over a thin inner PE sheath, the cable is completed with a polyethylene (PE) outer sheath.
Characteristics
·Good mechanical and temperature performance
·High strength loose tube has good performance of water proof and high strength
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance.
·Two parallel steel wires ensure tensile strength
·PSP enhancing moisture-proof and anti rodent
·Good water resistance material prevent longitudinal seepage
·Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance.
Standards
·MGXTWV cable complies with Standard MT386-1995 test method and decision rule of the flame retardant of the cable used in coal mine.
Optical Characteristics
Technical Parameters
Storage/Operating Temperature : -40ºC to + 70ºC
Zhejiang Fuchunjiang Optoelectronic Technology Co., Ltd. is the core subsidiary of the "information and communication" industry of Fuchunjiang Group, one of the top 500 private enterprises in China. The company was founded in 1992 and is a the national high-tech enterprises that specializes in research and development, production and sales of all kinds of single-mode optical fiber, optical cable, passive optical component and accessories. The first HYYV local telephone cable in Hangzhou and the first communication optical cable in Zhejiang province were born in our company.
The company is headquartered in Fuyang District, Hangzhou City, Zhejiang Province, with a registered capital of 300 million yuan. Headquarter covers an area of nearly 13.4 hectare and has construction area of more than 100,000 square meters. The company has nearly 1,000 employees with a strong team of professional and technical personnel. The company's products are widely used in China Mobile, China Telecom, China Unicom, National radio and television, SGCC, National defense engineering and railway, subway, highway, airport, oil field and other key projects. Meanwhile our products have been applied in Shanghai, Zhejiang, Jiangsu, Anhui, other Yangtze River Delta region and the Pearl River Delta region market of China Telecom, China Unicom, China Mobile. We have participated in the supply of optical cables for domestic key high-speed railway lines and urban subway lines, etc., and exported to Europe, America, Africa and Asia and other countries and regions. Our products have been well received by customers at home and abroad. The company has been awarded as one of the top 100 electronic information enterprises in China, one of the top 10 innovative enterprises in China's information industry, and one of the top 10 optical communication enterprises with the most comprehensive competitiveness.

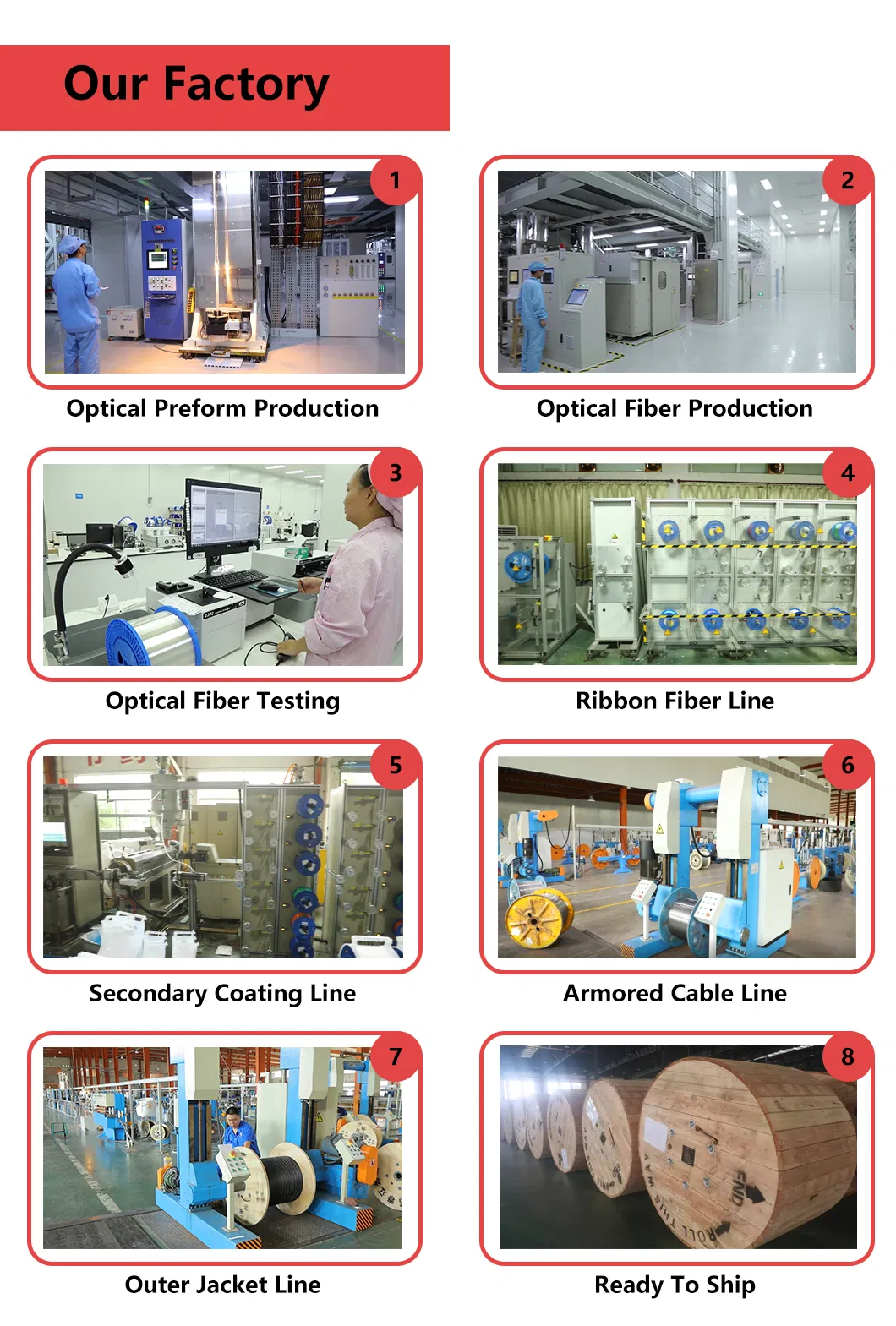

In 2017, Zhejiang Fuchunjiang photoelectric technology co., LTD. established a wholly-owned subsidiary, which is specialized in the R&D and production of optical preform and optical fiber. The company adopts advanced VAD+OVD process technology, mainly manufacturing to the G.652, G.654 and G.657 series and other special applications of optical preform and optical fiber products.
As a professional manufacturer of communication products, Fuchunjiang photoelectric technology co., LTD. has a complete coverage of optical fiber, cable, optical components industry chain. It has the annual output of 600 tons of optical fiber preform, 30 million kilometers optical fiber, all kinds of communication cable 20 million Fk, 1 million kilometers butterfly drop cable, 10 million (sets)all kinds of passive component.
MGXTSWV fiber optic cable, the fibers,200μm or 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, over a thin inner PE sheath, the cable is completed with a polyethylene (PE) outer sheath.
Characteristics
·Good mechanical and temperature performance
·High strength loose tube has good performance of water proof and high strength
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance.
·Two parallel steel wires ensure tensile strength
·PSP enhancing moisture-proof and anti rodent
·Good water resistance material prevent longitudinal seepage
·Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance.
Standards
·MGXTWV cable complies with Standard MT386-1995 test method and decision rule of the flame retardant of the cable used in coal mine.
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20ºC) | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| @1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850 | ≥500MHZ·km | ≥500MHZ·km | ||
| @1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters
| Cable Type | Fiber Count | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100m | Bending Radius Static/Dynamic mm |
| MGXTSWV-2~12 | 2~12 | 11 | 130 | 500/1000 | 500/1500 | 15D/30D |
