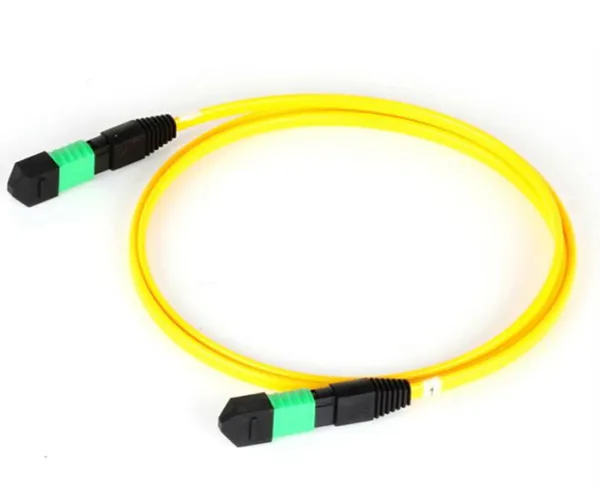

12 Fibers Type B LSZH OS2 9/125 Single Mode MPO Trunk Cable
12 Fibers Type B LSZH OS2 9/125 Single Mode MPO Trunk CableProduction DescriptionMTP (Mechanical Transfer Pull Off) is USCONEC's trade name for their own superior style of MPO connector. The MTP® connector is a high performance MPO connector with multiple engineered product enhancements ......
Send Inquiry
Product Description

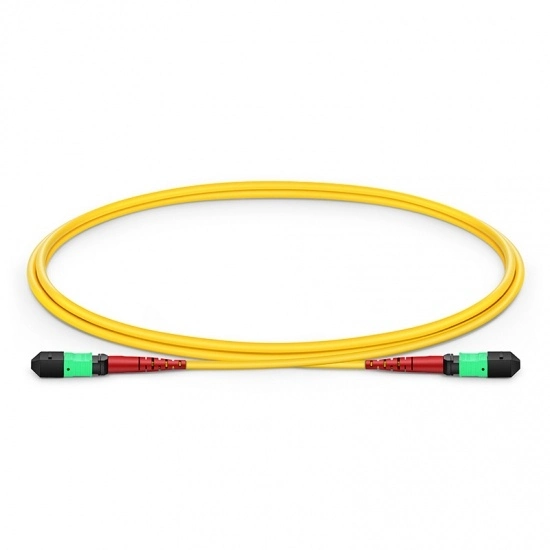

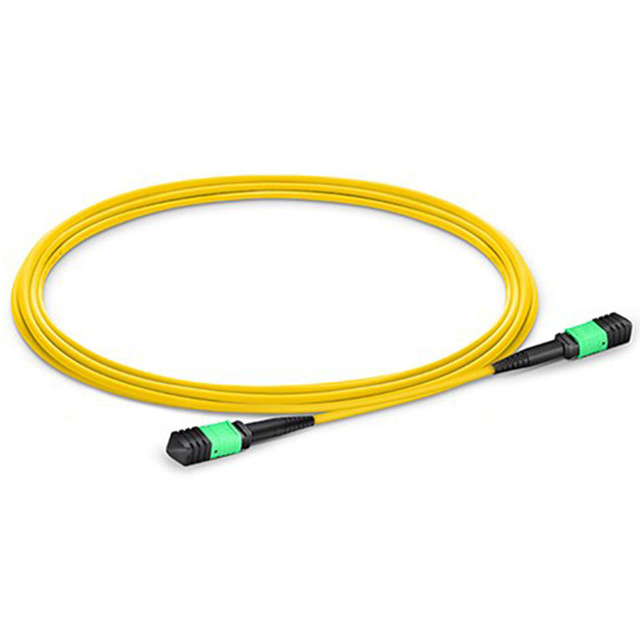

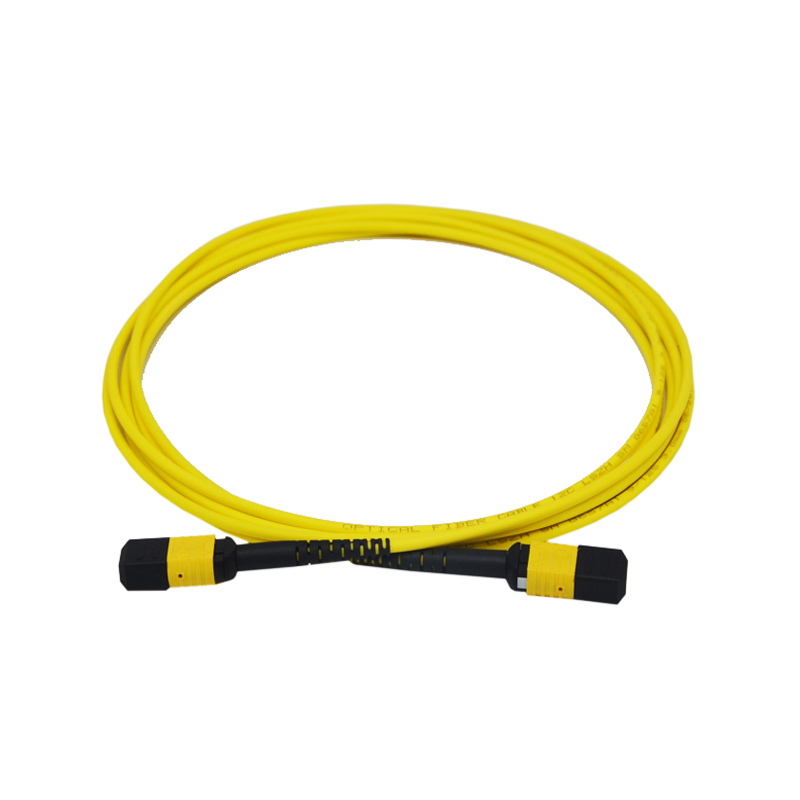

12 Fibers Type B LSZH OS2 9/125 Single Mode MPO Trunk Cable
Production Description
MTP (Mechanical Transfer Pull Off) is USCONEC's trade name for their own superior style of MPO connector. The MTP® connector is a high performance MPO connector with multiple engineered product enhancements to improve optical and mechanical performance when compared to generic MPO connectors. The MTP® connector is in complete compliance with all MPO connector standards including the EIA/TIA-604-5 and the IEC-61754-7. MTP® patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MTP® can be mass terminated in combination of 4,8, 12 or 24 fibers.
Features
1.Polish Typle:UPC/APC
2.Fiber Typle:OS1/2,OM3,OM4 fiber grades(OM1 and OM2 available)
3.Fiber Count:8/12/24.,Specify
4.Cable/Pigtail Length:0.5m/2.0m/3.0m,.Specify
5.Polarity:Polarity A/Polarity B/Polarity C
6.MPO/MTP Connector Typle:Female/Male
7.Jacket Coating: PVC/LSZH
8. Connector Type: FC-UPC/FC-APC/LC-APC…specify
Application
Our MPO/MTP Series
MPO/MTP Trunk Cable
MPO/MTP Harnesses Cables
MPO/MTP Fan out 0.9mm Patch Cords
IP-Series MPO/MTP Assembly
High Density Patch Cords
MPO/MTP Loopback
MT Patch Cords
MPO/MTP Cassettes
MPO/MTP Fiber Optic Patch Panel
Production Description
MTP (Mechanical Transfer Pull Off) is USCONEC's trade name for their own superior style of MPO connector. The MTP® connector is a high performance MPO connector with multiple engineered product enhancements to improve optical and mechanical performance when compared to generic MPO connectors. The MTP® connector is in complete compliance with all MPO connector standards including the EIA/TIA-604-5 and the IEC-61754-7. MTP® patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MTP® can be mass terminated in combination of 4,8, 12 or 24 fibers.
Features
1.Polish Typle:UPC/APC
2.Fiber Typle:OS1/2,OM3,OM4 fiber grades(OM1 and OM2 available)
3.Fiber Count:8/12/24.,Specify
4.Cable/Pigtail Length:0.5m/2.0m/3.0m,.Specify
5.Polarity:Polarity A/Polarity B/Polarity C
6.MPO/MTP Connector Typle:Female/Male
7.Jacket Coating: PVC/LSZH
8. Connector Type: FC-UPC/FC-APC/LC-APC…specify
Application
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
| Fiber Type | OS2,OM1,OM2,OM3,OM4,OM5 |
| Fiber Count | 8/12/24 cores |
| Cable Diamter | 3.0mm 5.5mm or customized |
| Jacket Color | Yeloow, Orange, Aqua, Purple |
| Jacket Material | OFNR, OFNP, PVC, LSZH |
| Tensile Strength | 500N |
| Operating Temperature | -20 to 70 ºC |
| Storage Temperature | -40 to 75ºC |
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.50 | ≥20 | ||||
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
