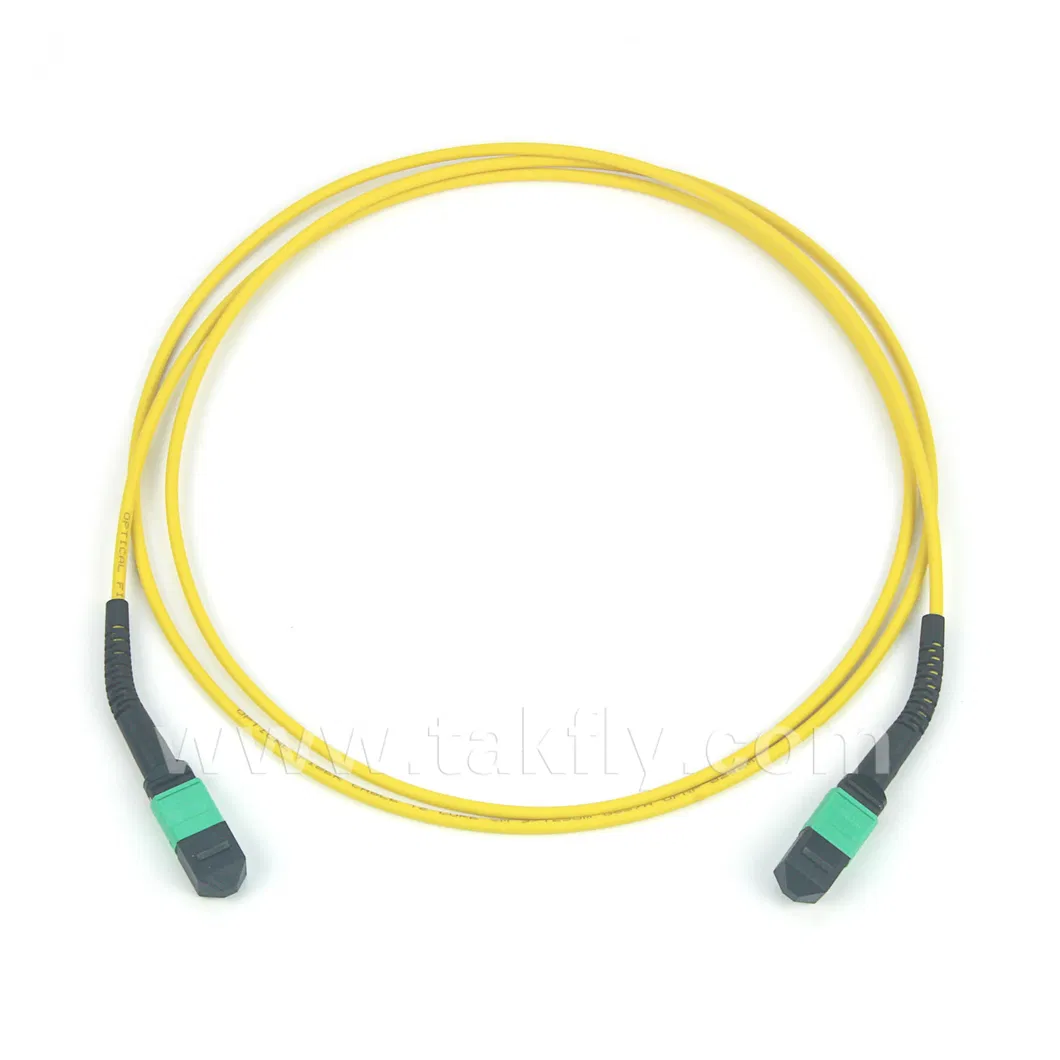

12 Cores MTP MPO to MPO Trunk Cable with Bending Boot
12 cores MTP MPO to MPO Trunk Cable with bending bootModel Number: MPOPolishing type: PC, UPC, APCInserion Loss: <0.5dbReturn Loss: >50dbLength: CustomizedJacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, YellowDetail:MPO connector produced specially for multi-fiber ribbon cable, it ......
Send Inquiry
Product Description

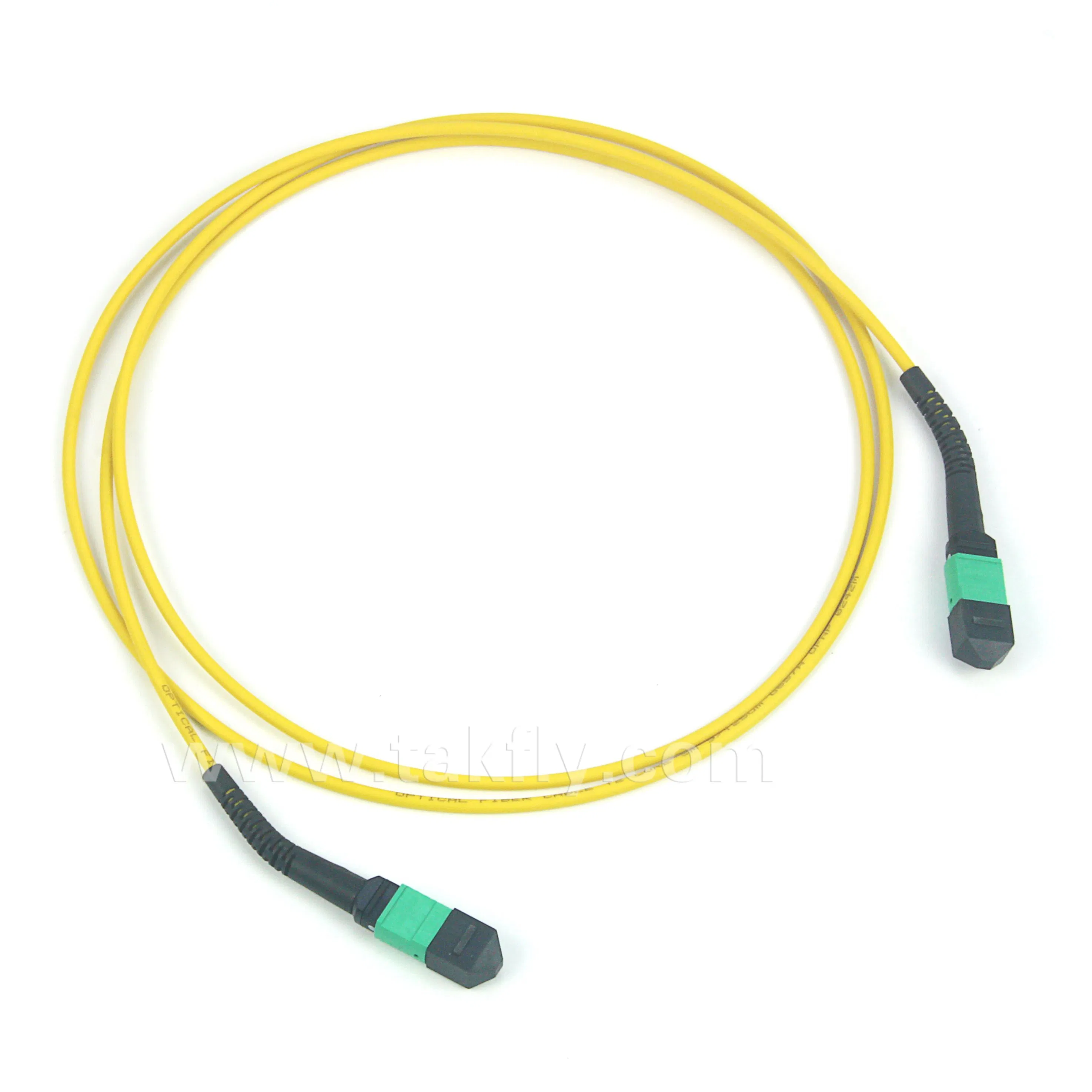

12 cores MTP MPO to MPO Trunk Cable with bending boot
Model Number: MPO
Polishing type: PC, UPC, APC
Inserion Loss: <0.5db
Return Loss: >50db
Length: Customized
Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
Detail:
MPO connector produced specially for multi-fiber ribbon cable, it use precision molded MT ferrules, together with metal guide pins and precise housing dimensions ensure fiber alignment when mating, realize high density interconnection. Compact design available to 4,8,12,24 fiber ribbons, cable types include bare fiber ribbon and PVC jacket ruggedized ribbon. MPO pre-termination save time and reduce the risk of damage fragile optical connectors, the plug and play system is the perfect solution for today's optical fiber installations.
Features
1.Connector A) MPO female connector (No guide pins)
2.40Gb pin-out configuration
3.Jacket Type: LSZH Rated (OFNR)
4.Jacket Color: Aqua (blue)
5.Fiber Mode: Multimode 50 Laser Optimized OM3
6.Length: Custermized
7.Cable type: 3mm round
Specifications:
For MPO/MTP product from us.
***Any interest in our 12 cores MTP MPO to MPO Trunk Cable with bending boot, please don't hesitate to leave me a message below.
Model Number: MPO
Polishing type: PC, UPC, APC
Inserion Loss: <0.5db
Return Loss: >50db
Length: Customized
Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
Detail:
MPO connector produced specially for multi-fiber ribbon cable, it use precision molded MT ferrules, together with metal guide pins and precise housing dimensions ensure fiber alignment when mating, realize high density interconnection. Compact design available to 4,8,12,24 fiber ribbons, cable types include bare fiber ribbon and PVC jacket ruggedized ribbon. MPO pre-termination save time and reduce the risk of damage fragile optical connectors, the plug and play system is the perfect solution for today's optical fiber installations.
Features
1.Connector A) MPO female connector (No guide pins)
2.40Gb pin-out configuration
3.Jacket Type: LSZH Rated (OFNR)
4.Jacket Color: Aqua (blue)
5.Fiber Mode: Multimode 50 Laser Optimized OM3
6.Length: Custermized
7.Cable type: 3mm round
Specifications:
Item | SM | MM | ||
| Polishing Type | PC | UPC | APC | PC |
| Insertion Loss | ≤0.2dB (Typical ≤0.1dB | ≤0.3dB/0.5dB(MTRJ) | ||
| Custom | ||||
| Return Loss | ≤-45dB | ≤-55dB | ≤-65dB | / |
| Custom | ||||
| Durability(500 Mating) | 0.2 dB Max. Increase | |||
| Operating Temperature | -20°C~+75°C | |||
| Storage Temperature | -40°C~+75°C | |||
| Remark: | Ferrule Concentricity<1μm | |||
| Ferrule inner diameter tolerance+1/ 0μm | ||||
| Ferrule outer diameter tolerance±0.5μm | ||||
| Insertion loss<0.1dB random mating | ||||
For MPO/MTP product from us.
***Any interest in our 12 cores MTP MPO to MPO Trunk Cable with bending boot, please don't hesitate to leave me a message below.
