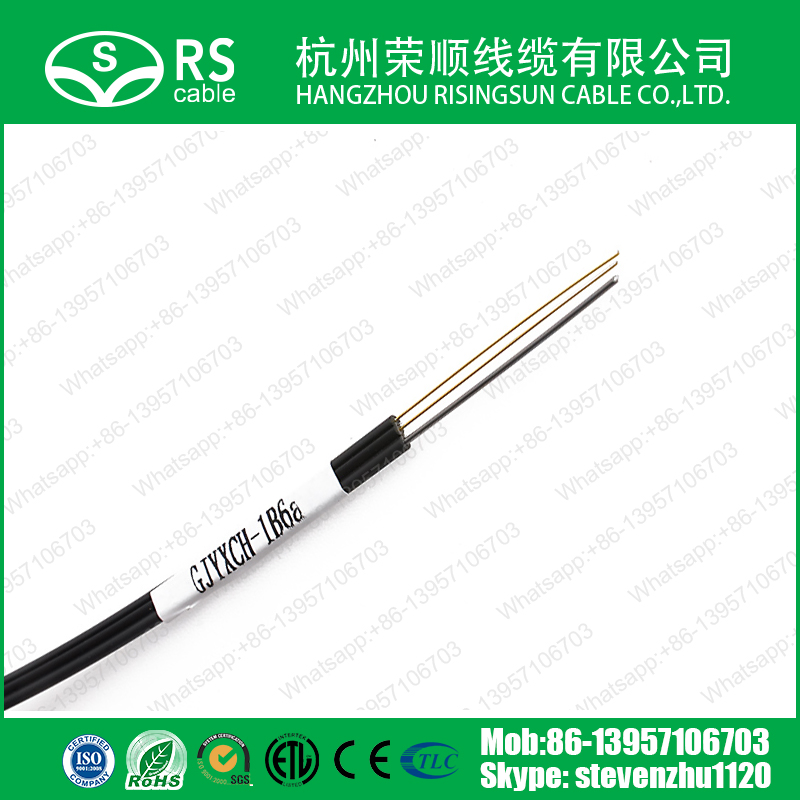

1 Core G657 FTTH Fiber Optic Drop Cable Gjyxch
Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally extrusion black or color poly Vinyl chloride ......
Send Inquiry
Product Description

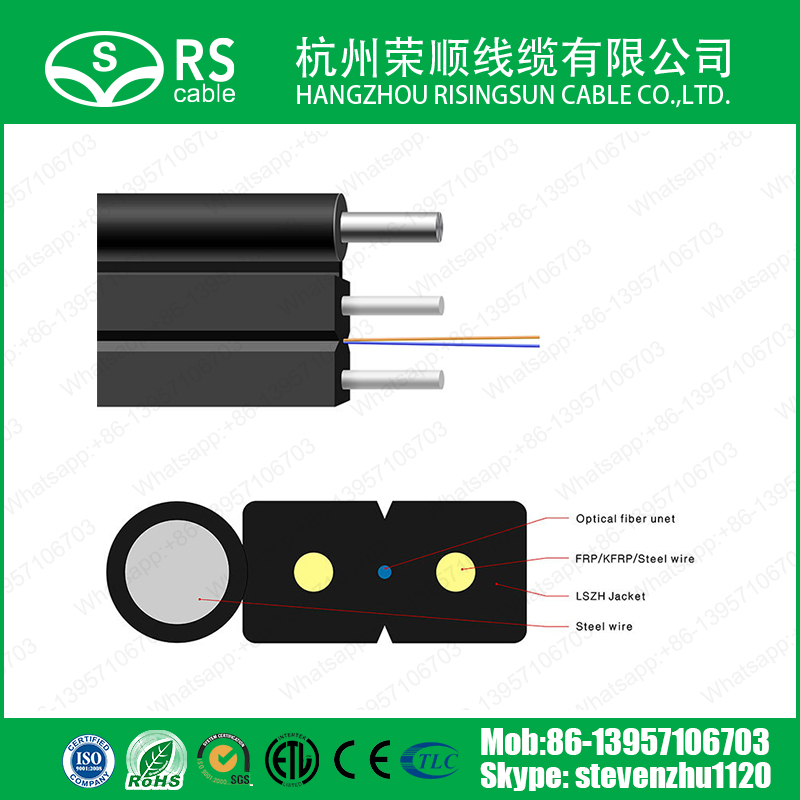

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
Related Products:
- Central tube optical fiber cable:
GYXY, GYXTW, GYXTY, GYXTA, GYXTS
- Stranded type fiber cable
GYSTY, GYSTS, GYSTA, GYTY53, GYTA53
- Nonmetallic (FRP) fiber cable
GYFTY, GYFSTS, GYFTY53, GYFTA53.
- Figure-8 Self-supporting optical fiber cable
GYXTC8A, GYXTC8S, GYXTY8S, GYXTY8A, GYXTC8Y, GYXYC8Y, GYFTC8Y, GYTC8Y, GYTC8S, GYTC8A
- Aerial outdoor optical fiber cable
ADSS
- FTTH drop optical fiber cable
GJXH, GJXFH, GJYXC8H,GJYXCH,GJX8H,GJYXFCH,GJXFDH, GJXDH
- Fiber Patch cable
LC,SC,FC,ST,MU,E2000,MT,SMA
| Item | FTTH Drop Cable |
| Core | 1 2 4 6 8 12Core |
| Mode Type | SM MM |
| Cable Diameter | 3.0*2.0mm 5.2*2.0mm |
| Color | Black or white |
| Fiber Type | GJXH GJXFH GJYXCH GJYXFCH |
| Sheath Material | LSZH |
| Messenger | available |
| Central Strength | Steel or FRP |
| Item | Technology parameter |
| Cable type | FTTH Drop Cable |
| Cable Count | 1 2 4 6 8 12 |
| Fiber color | Blue, Orange, Green, Brown etc |
| Fiber type | 9/125 (G657A2) |
| Sheath color | Black and white |
| Sheath material | LSZH |
| Cable dimension (mm) | 5.2(±0.1)*2.0(±0.1) |
| Cable weight (Kg/km) | 15 |
| Min. bending radius (mm) | 10 (Static) 25 (Static) 30 (Static) 60 (Static) |
| Attenuation (dB/km) | <= 0.4 at 1310nm, <= 0.3 at 1550nm |
| Short term tensile ( N) | 200; 600 |
| Crush resistance (N/100mm) | 1000; 2200 |
| Operation temperature (ºC) | -20~+70ºC |
