1/2/4 Core G657A1 FRP Fiber Optic FTTH Drop Cable
1/2/4 core G657a1 fiber optic ftth drop cableThis fiber optic ftth drop cable is used for fiber to the home project,with 1 pcs 0.8/1.0/1.2mm steel wire as messenger,2 pcs 0.5mm FRP,it's a self support type ftth drop cable,with 1/2/4/8 core capacity,G657a1 or G657a2 ensure the bending radius,LSZH......
Send Inquiry
Product Description

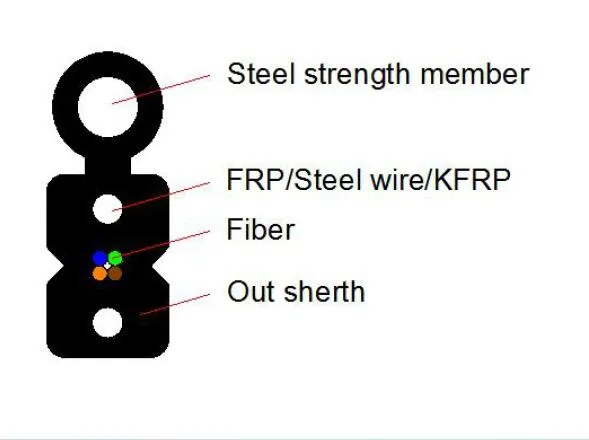

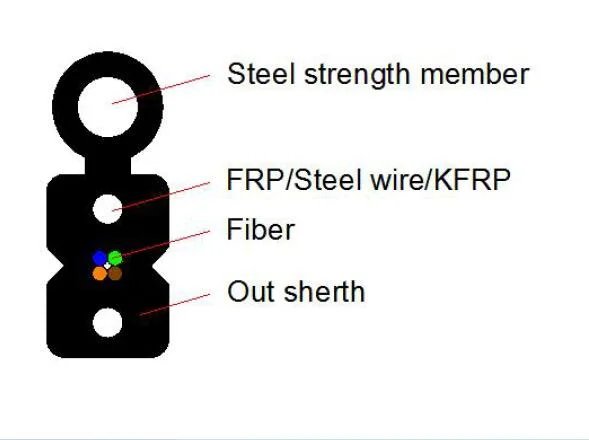

This fiber optic ftth drop cable is used for fiber to the home project,with 1 pcs 0.8/1.0/1.2mm steel wire as messenger,2 pcs 0.5mm FRP,it's a self support type ftth drop cable,with 1/2/4/8 core capacity,G657a1 or G657a2 ensure the bending radius,LSZH jacket,2.0*5.0mm size.It's widely used at ftth/fttx/fttb projects.Below is the structure pic.
Application:
1. CATV
2. Optical fiber communication systems
3. Optical fiber data transmission
4. Building network access
5. Cabling system,
6. FTTX applications
Features
-Made of 1/2/4colored optical fiber and 2 FPR (steel wire), with excellent tensile strength and side pressure resistance to protect optical fiber.
-Compact structure and portable, convenient for indoor distribution wire.
-Excellent resistance to side crush design to protect optical fiber.
-It has 1/2/4fiber cores and can be customized according to customer requirements.
-The color of outer sheath is white for indoor with recommendation, but can also be customized according to customer requirements.
-The material of outer sheath is LSZH with recommendation , but can be customized according to customer requirements.
-Divisible drop cable includes single mode and multimode optical fiber , convenient for special occasions to use.

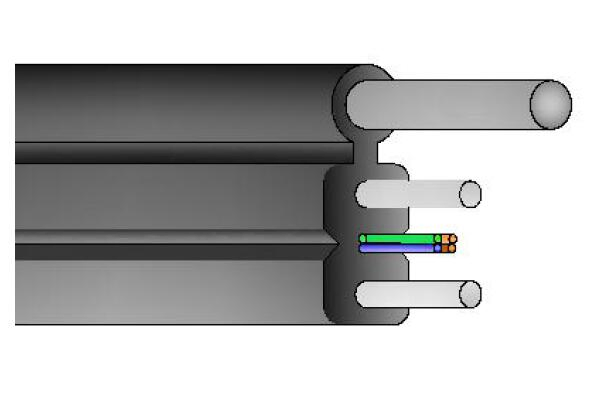

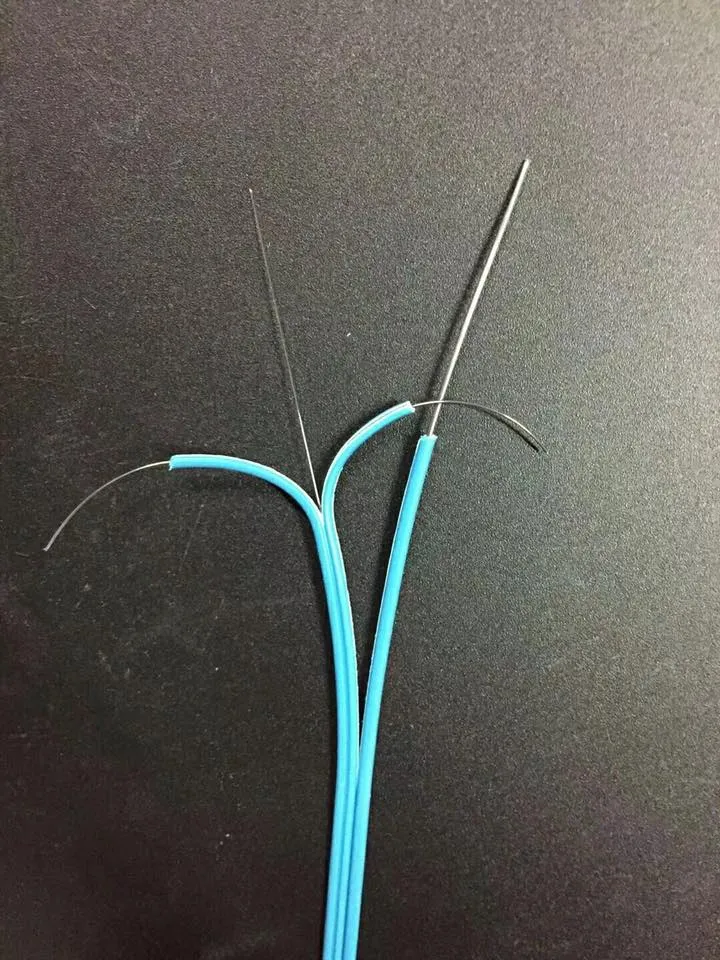

Below is the detail pic,take 1 core as example.
Spec
No. | Items | Unit | Specification | |
G.657A1 or G657a2 | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
1550nm | μm | 10.1±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
1550nm | dB/km | ≤0.21 | ||
10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 |
1turn×10mm radius@1625nm | dB | ≤1.5 | ||
Cable Parameters
Items | Specifications | |
Fiber Count | 1/2/4/8 core | |
Colored Coating Fiber | Dimension | 250±15μm |
Color | Blue, Orange, Green, Brown,Gray,White,Red,Black | |
Strength Member | Dimension | 0.5mm |
Material | FRP | |
Self-Supporting Member | Dimension | 1.0mm |
Material | Steel Wire | |
Jacket | Dimension | 5.2±0.2mm×2.0±0.1mm |
Material | LSZH | |
Color | Black | |

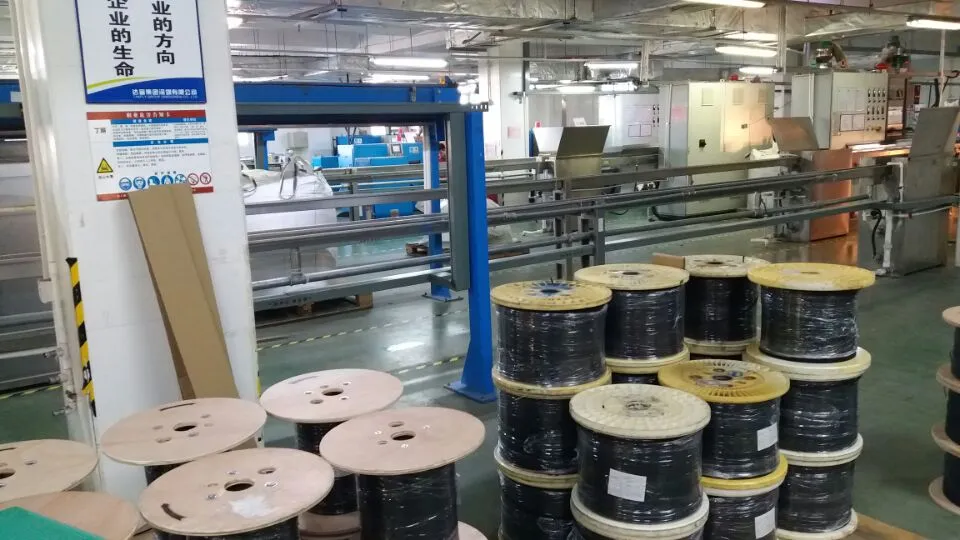

Factory view.
Would you like some 1 core ftth drop cable for testing?Please leave me an inquiry or contact me directly.
