0.9mm/2.0mm LSZH Sm Sx 12 Core Om1 LC/APC Fiber Optic Pigtail

Product Description

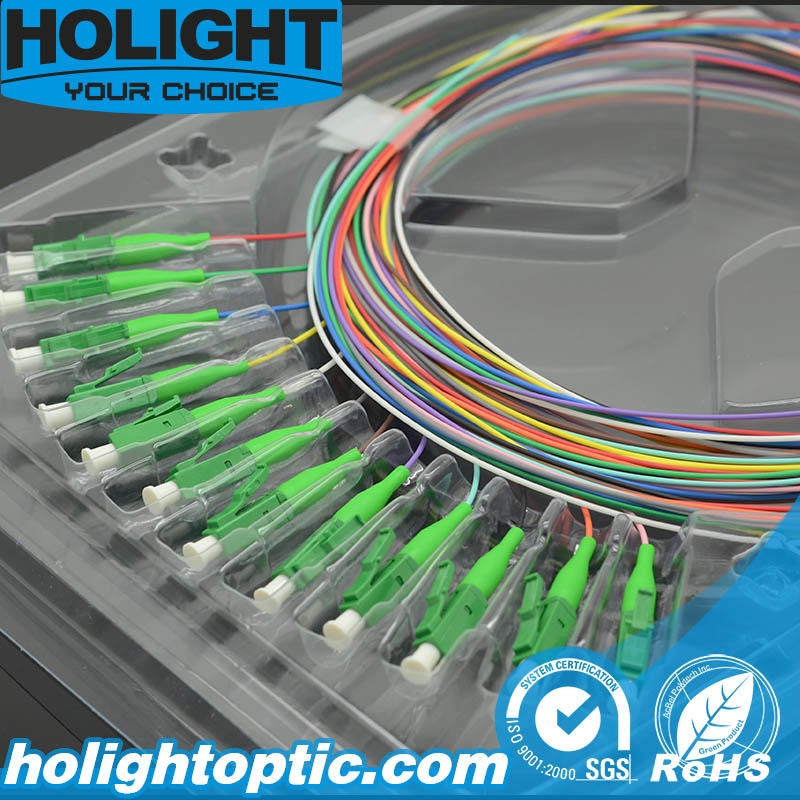

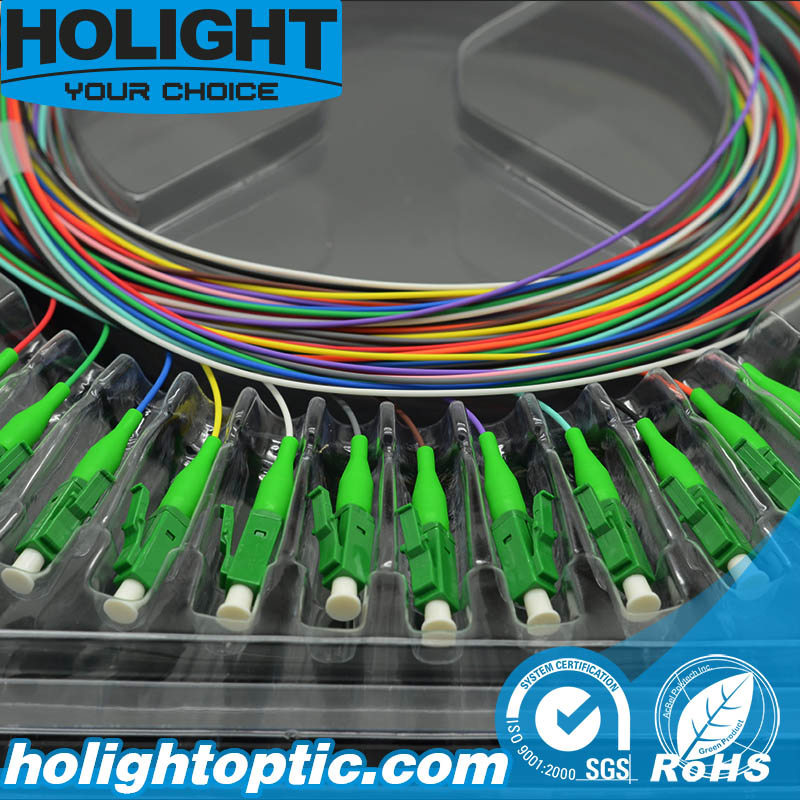

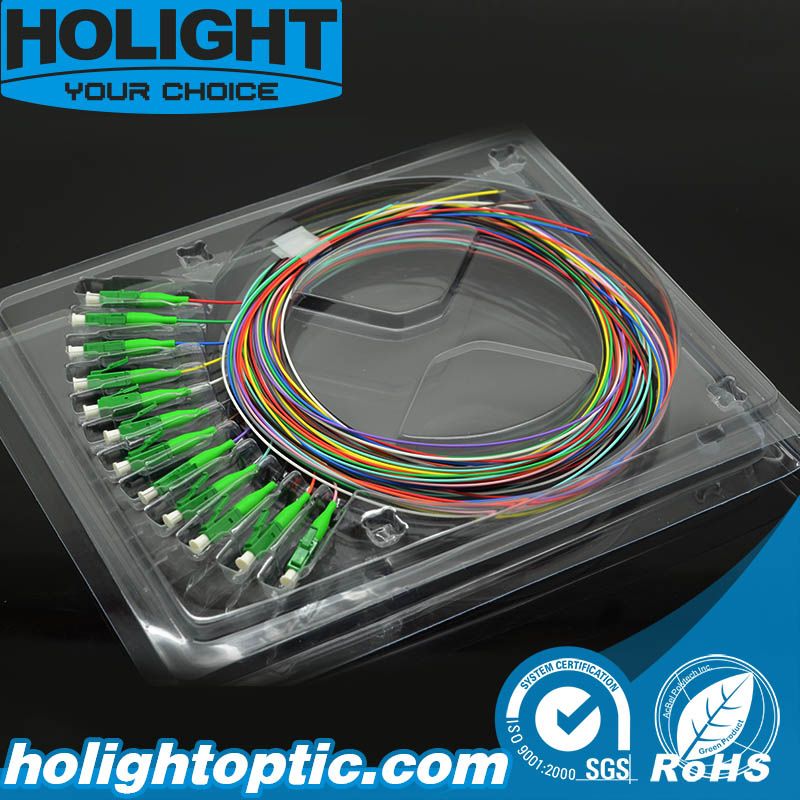

LC/APC SM 0.9mm Fiber Optic Pigtails

APPLICATIONS

· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)

FEATURE

· UPC or APC polish available;
· Any other connector type at another side upon request;
· Fan-out on request;
· Superior quality standard PC/UPC/APC polishing;
· 100% factory test (Insertion Loss & Return Loss);
· 0.9mm, 2.0mm and 3.0mm cable optional.

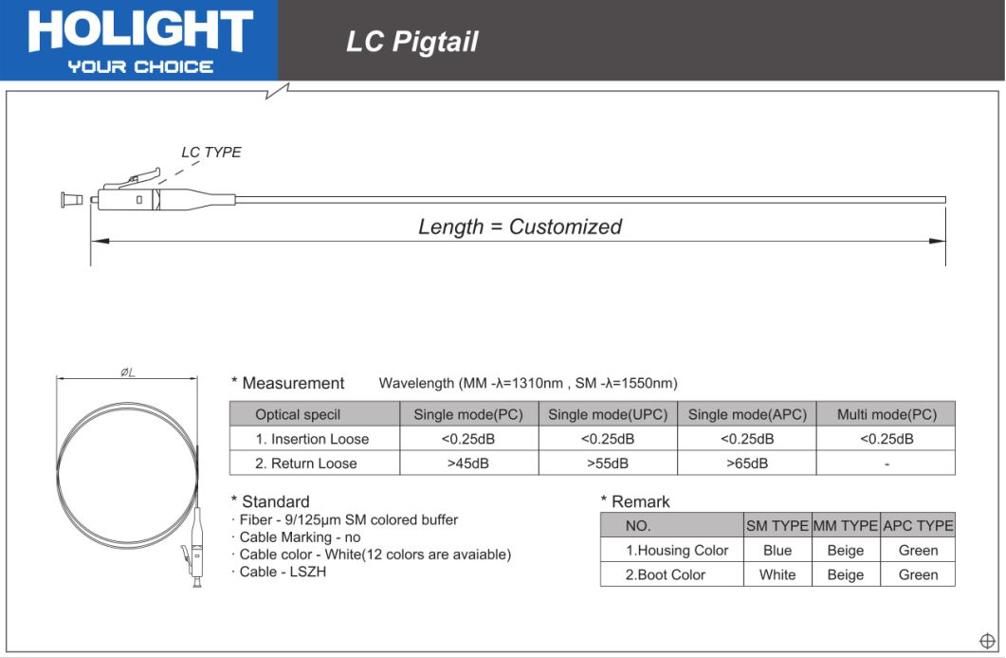

FOR PIGTAIL ORDERING INFORMATION
Cable number	One side conectors	Polish type of conectors	Fiber Type	Boot (cable) Size	Fiber Cable Length	Fiber Cable Jacket	Fiber Cable Color (Standard)
Simplex	LC	PC	9/125μm (SM)	0.9mm	Customized	LSZH	White (0.9mm)
-	SC	UPC	50/125μm (MM)	2.0mm	-	PVC	Yellow
-	ST	APC	62.5/125μm (MM)	3.0mm	-	OFNP	Orange
-	FC	-	-	-	-	-	Aqua
-	E2000	-	-	-	-	-	-
-	MTRJ	-	-	-	-	-	-
-	MPO	-	-	-	-	-	-
-	MU	-	-	-	-	-	-
For example: Pigtail-LCA SM 0.9mm - 1.5m LSZH White
