Product Description

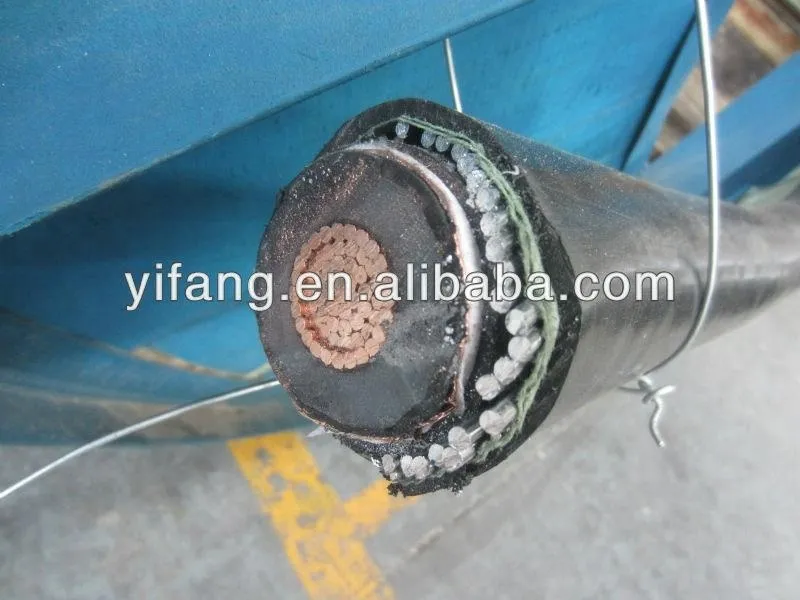

Yifang MV Underground Power Cables Outdoor Energy BS6622 - 6.35/11kv Single 1x240 Core AWA
Single core armoured cable with XLPE insulation. Rated voltage 6.35/11 KV (Um=12kV)
STANDARDS
International : IEC 60502-2 BS 6622
DESCRIPTION
Electric cable with copper conductor, semiconductive conductor screen, XLPE insulation, semiconductive insulation screen, copper metallic screen on each core, PVC bedding, aluminium wires armour (AWA), PVC outer sheath
Application
for energy networks where mechanical stesses are expected. Suitable for underground installation or in ducts
Note: the cable is suitable for rated voltage 6/10 KV (Um=12kV) according to IEC 60502-2

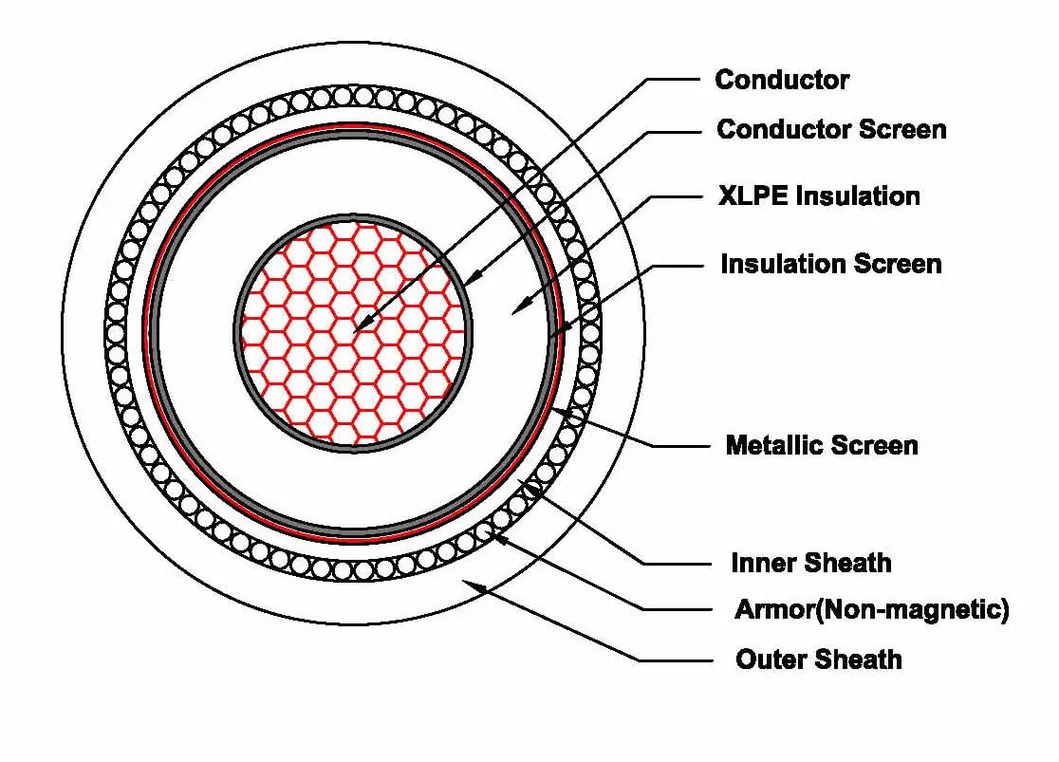

Design
1. copper/aluminum conductor
2. semiconductive conductor screen
3. XLPE insulation
4. semiconductive insulation screen
5. metallic screen
6. PVC bedding
7. aluminum wires armour
8. PVC outer sheath
Product Introduction
Product Parameters
| Sizes(mm2) | Overall Dia.(mm) | Weight(kg/km) | Rated Current(in soil,A) |
| 1x25(Cu) | 26.0 | 964 | 157 |
| 1x35(Cu) | 26.8 | 1088 | 187 |
| 1x50(Cu) | 28.0 | 1256 | 220 |
| 1x70(Cu) | 30.0 | 1529 | 269 |
| 1x95(Cu) | 31.6 | 1829 | 320 |
| 1x120(Cu) | 34.0 | 2203 | 363 |
| 1x150(Cu) | 35.6 | 2526 | 407 |
| 1x185(Cu) | 37.4 | 2936 | 458 |
| 1x240(Cu) | 40.0 | 3575 | 530 |
| 1x300(Cu) | 42.4 | 4236 | 597 |
| 1x400(Cu) | 46.6 | 5298 | 580 |
| 1x500(Cu) | 50.0 | 6425 | 772 |
| 1x630(Cu) | 53.8 | 7939 | 873 |
| 1x800(Cu) | 58.2 | 9796 | 976 |
