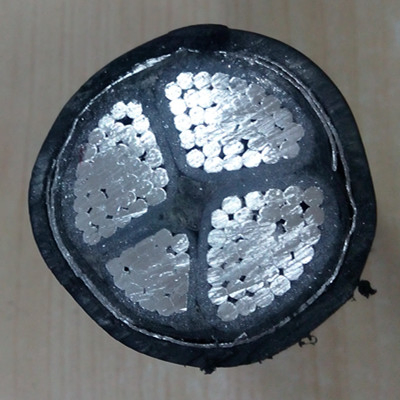

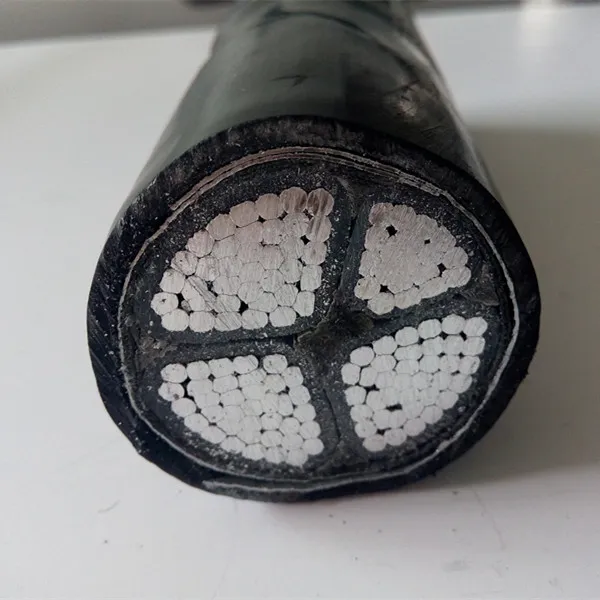

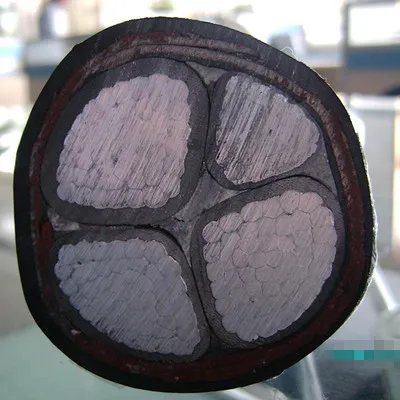

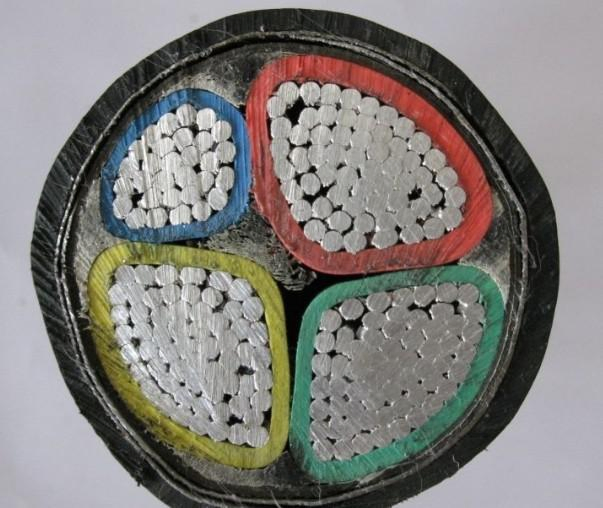

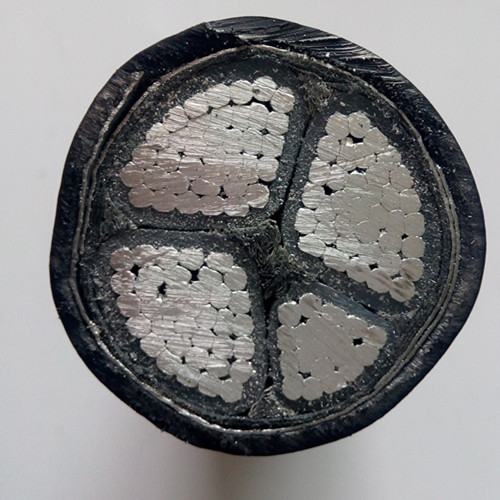

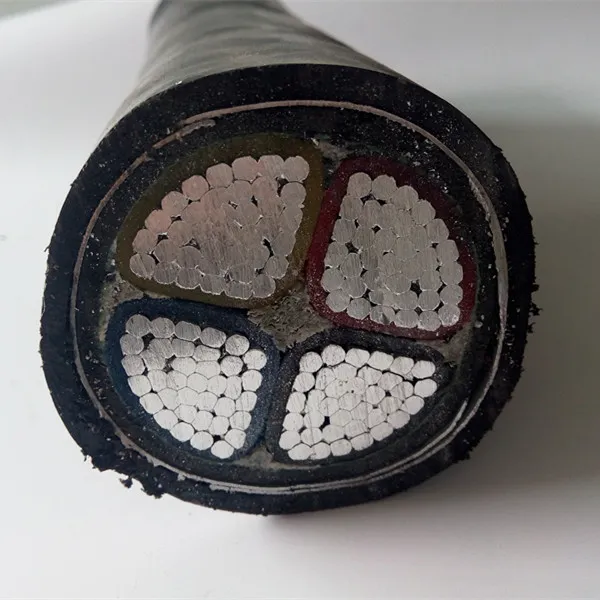

U- 1000 ARVFV 600/1000V Power Cable

Product Description

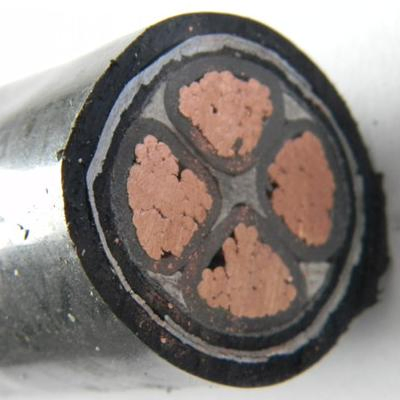

U-1000 ARVFV 600/1000V Power Cable

Application and Description:

0.6/1KV, copper conductor, XLPE/PVC insulated power cable is for Iindustrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.

Standards: NFC 32-321 / IEC 60502 / BS 5467 / DIN / ICEA

Design

Conductor: Stranded circular copper - class 2 according to IEC 60228 / BS EN 60228: 2005

Cores: 1C, 2C, 3C, 4C, 5C, 3C+1E, 4C+1E, 3C+2E

Insulation: XLPE / PVC

Filler: Laying up with fillers

Inner sheath: PVC / LSZH

Armour: Steel or steel tapes ( aluminium wires or aluminum tape can be customized)

Outer sheath: PVC / LSZH

Rated Voltage Uo/U (Um): 0.6/1 KV

Range of Nominal cross section: 1.5 mm2 ~ 630 mm2

8AWG~4/0AWG, 300MCM, 500MCM, 750MCM, 1000MCM

Mechanical characteristics:

Mechanical resistance to impacts: Excellent

Cable flexibility: Rigid

Usage characteristics:

Max. Conductor temperature in service: 70° C(PVC insulation), 90° C(XLPE insulation)

Short-circuit max. Conductor temperature: 250° C

Operating temperature, range: -25...60° C

Weather resistance: Very good

Flame retardant: C2, NF C 32-070

Chemical resistance: Accidental

Type	Description	Number of cores	Nominal cross section of conductor
YJV32	CU/XLPE/SWA/PVC Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
YJLV32	AL/XLPE/SWA/PVC Power Cable
YJV72	CU/XLPE/Non-magnetic SWA or AWA/PVC Power Cable	1	1.5~1000mm2
YJLV72	AL/XLPE/Non-magnetic SWA or AWA/PVC Power Cable
YJV33	CU/XLPE/SWA/PE Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
YJLV33	AL/XLPE/SWA/PE Power Cable
Z-YJV32	CU/XLPE/SWA Flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
Z-YJLV32	AL/XLPE/SWA Flame-retardant Power Cable
WDZ-YJY33	CU/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
WDZ-YJLY33	AL/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable
N-YJV32	CU/XLPE/SWA Fire-resistant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2

Cross Section					Cores		3+1

		XLPE Insulation		PVC Inner Sheath	Galvanized Steel Tape		Outer Sheath
		Phase Core	Earth Wire		Layer	Nominal Thickness	Nominal Thickness	Overall OD
mm2		Nominal Thickness		Nominal Thickness
Phase Core	Earth Core	Nominal Thickness		Nominal Thickness	No
50	25	1.0	0.9	1.0	2	0.2	1.9	28.6
70	35	1.1	0.9	1.2	2	0.2	2.0	33.2
95	50	1.1	1.0	1.2	2	0.5	2.2	38.7
120	70	1.2	1.1	1.2	2	0.5	2.3	42.0
150	70	1.4	1.1	1.4	2	0.5	2.5	47.0
185	95	1.6	1.1	1.4	2	0.5	2.6	51.7
240	120	1.7	1.2	1.6	2	0.5	2.8	57.8
300	150	1.8	1.4	1.6	2	0.5	3.0	63.0
