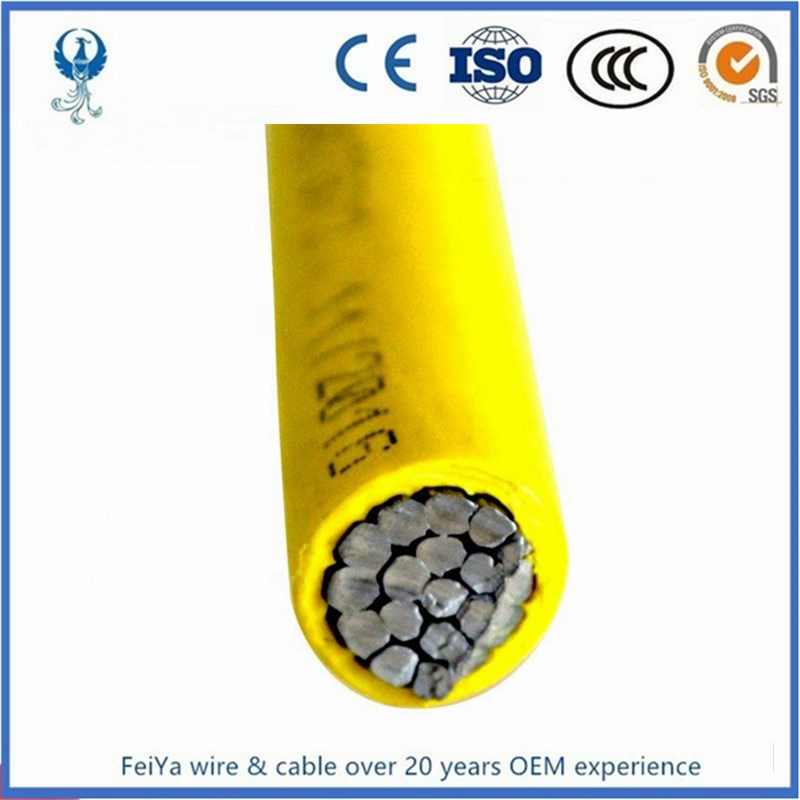

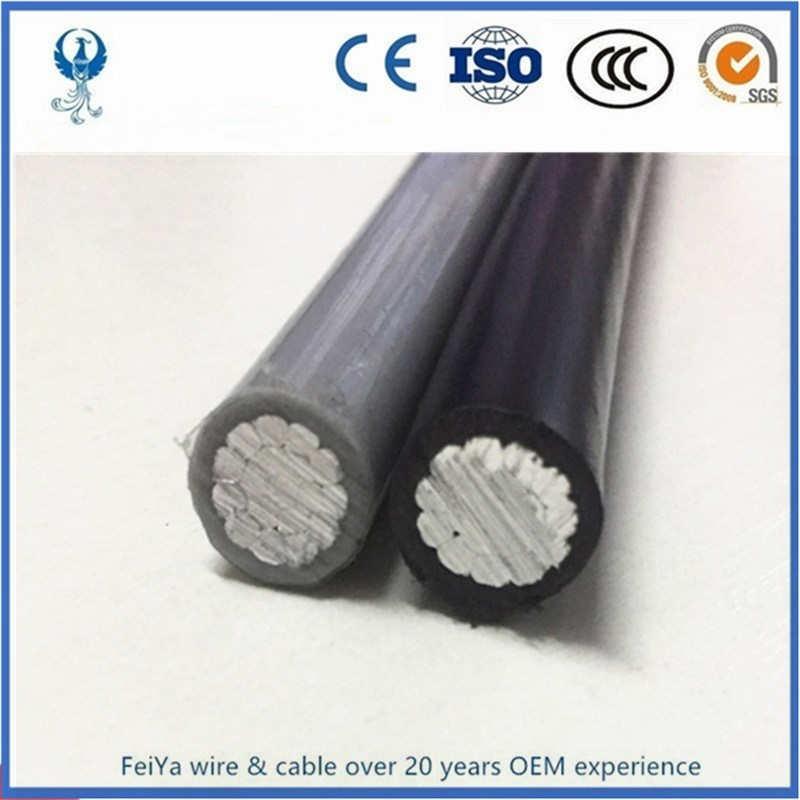

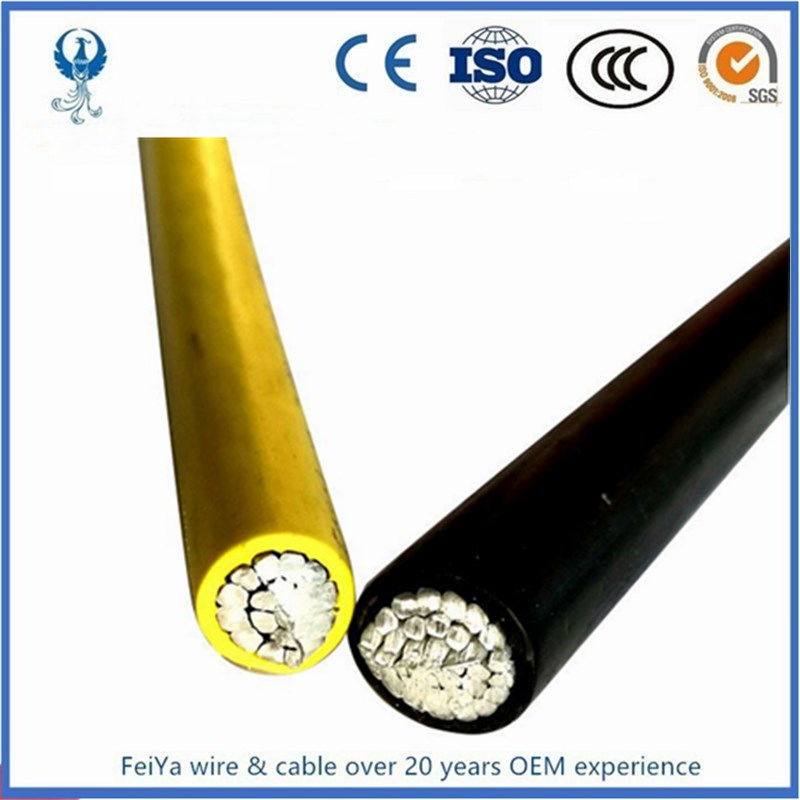

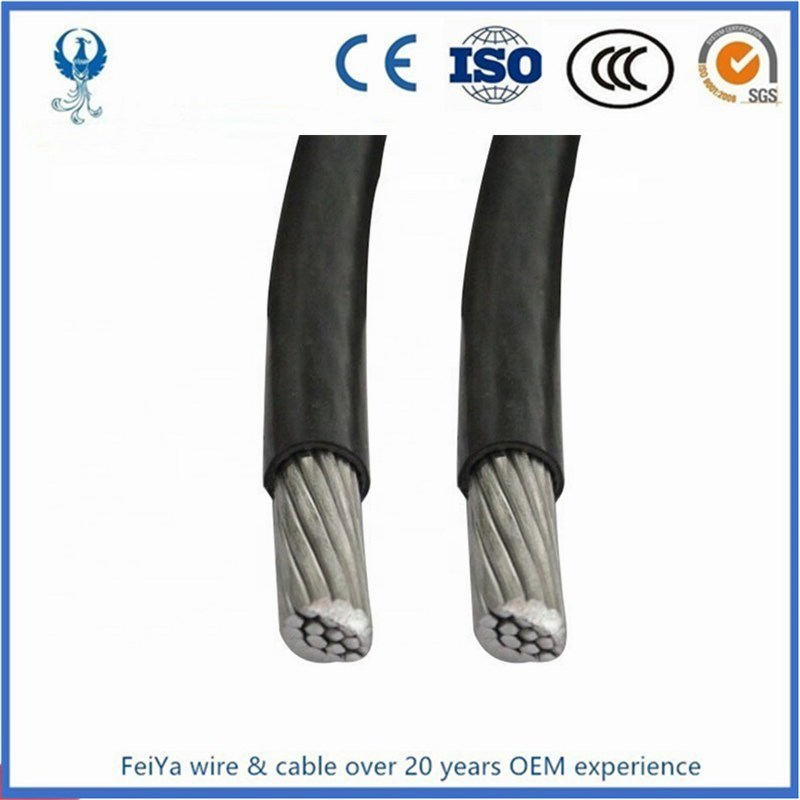

Thw /Tw Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire
Executive standardIt is manufactured acconding to GB/T 5023-2008,JB/T 8734-2016 standards.(Equivalent national standard of IEC60227).ApplicationB serie are used for fixed laying in engine devices of AC rated voltage 450/750V of lower, R serie are used for household electrical appliances ,small elect......
Send Inquiry
Product Description
Executive standard
It is manufactured acconding to GB/T 5023-2008,JB/T 8734-2016 standards.(Equivalent national standard of IEC60227).
Application
B serie are used for fixed laying in engine devices of AC rated voltage 450/750V of lower, R serie are used for household electrical appliances ,small electrical tools, instruments and engine lighting of AC rated voltage 450/750V or lower.
Type of the cables
| Type | Designation | Core No. | Production Range mm2 | Rated voltage |
| 60227IEC01(BV) | General purpose single core hard conductor cable without sheath | 1 | 1.5-400 | 450/750 |
| 60227IEC02(RV) | General purpose single core soft conductor cable without sheath | 1 | 1.5-240 | 450/750 |
| 60227IEC05(BV) | 70ºC Inner wiring purpose single core solid conductor cable without sheath 70ºC for conductor temperature | 1 | 0.5-1.0 | 300/500 |
| 60227IEC06(RV) | 70ºC Inner wiring purpose single core solid conductor cable without sheath 70ºC for conductor temperature | 1 | 0.5-1.0 | 300/500 |
| 60227IEC10(BVV) | Light type PVC sheath cable | 2-5 | 1.5-35 | 300/500 |
| 60227IEC52(RVV) | Light type PVC sheath soft wire | 2-3 | 0.5-0.75 | 300/300 |
| 60227IEC53(RVV) | General PVC sheath soft wire | 2-5 | 0.75-2.5 | 300/500 |
| BV | Cu conductor PVC insulation cable | 1 | 0.75-1.0 | 300/500 |
| BLV | Al conductor PVC insulation cable | 1 | 2.5-400 | 450/750 |
| BVR | Cu conductor PVC insulation soft cable | 1 | 2.5-70 | 450/750 |
| BVV | Cu conductor insulation and sheath circular cable | 1 | 0.75-10 | 300/500 |
| BLVV | Al conductor insulation and sheath circular cable | 1 | 2.5-10 | 300/500 |
| BVVB | Cu conductor insulation and sheath flat cable | 2-3 | 0.75-10 | 300/500 |
| BLVVB | Al conductor insulation and sheath flat cable | 2-3 | 2.5-10 | 300/500 |
| RVVP | Cu conductor PVC insulation sheath and shielded soft cable | 1-24 | 0.5-6 | 300/300 |
