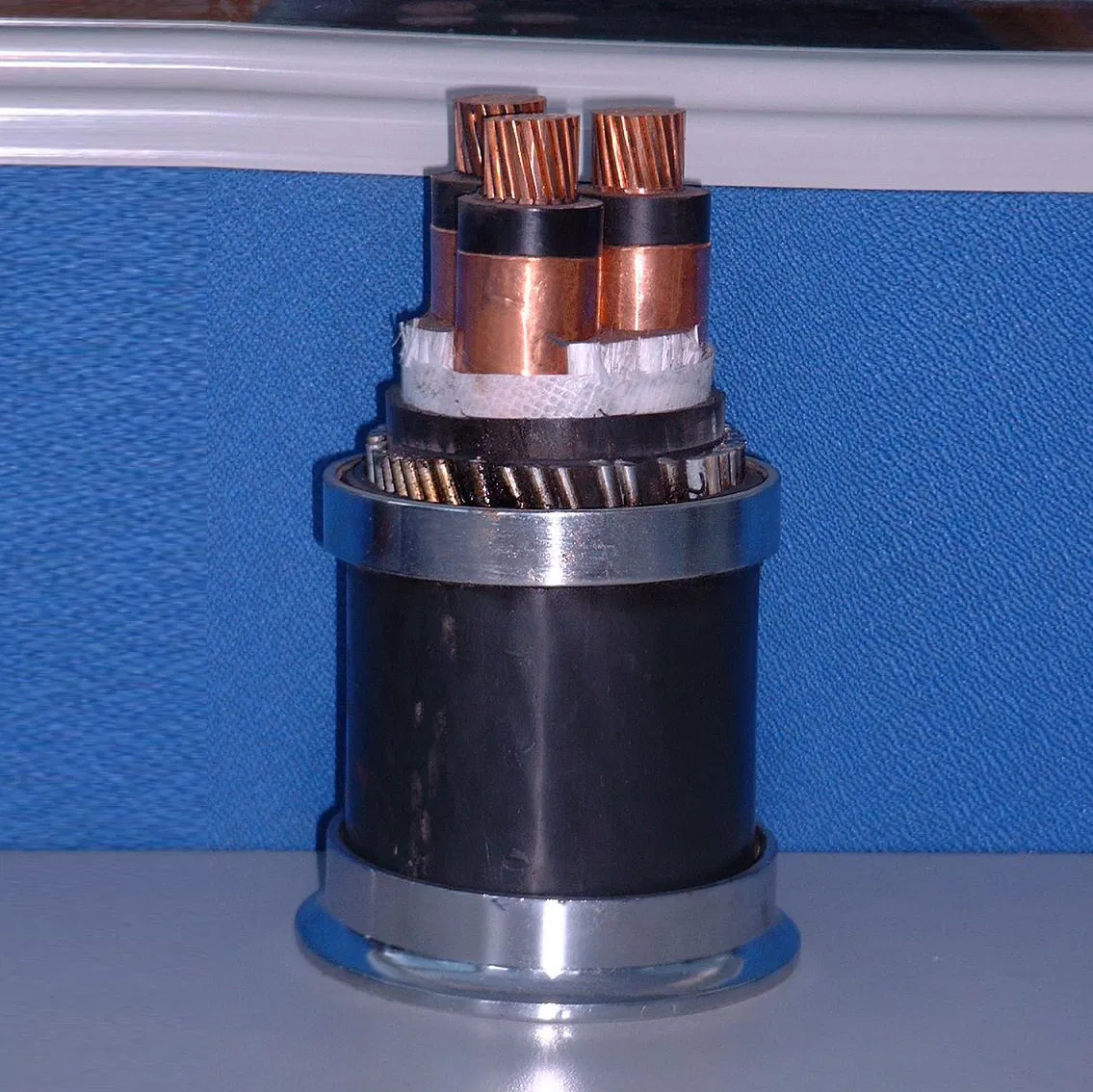

China SWA Cable - BS6724 Steel Wire Armoured LSZH

Product Description

Conductor:
Class 2 stranded plain annealed copper conductor to BS EN 60228: 2005 (previously BS6360)
Insulation:
XLPE (Cross-Linked Polyethylene)
Bedding:
LSZH (Low Smoke Zero Halogen)
Armouring:

Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour)
Sheath:
LSZH (Low Smoke Zero Halogen)
Sheath Colour:
Black
Voltage Rating:
600/1000V
Temperature Rating:
0° C to +90° C
Minimum Bending Radius:

1.5mm² - 16mm² :
6 x overall diameter

25mm² And above:
8 x overall diameter
Core Identification:

1 Core: Brown
2 Cores: Brown, Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Alternative core identification: White Cores with Black numbers


No. of Cores x Cross Sectional Area # x mm²	Nominal Thickness of Insulation mm	Nominal Diameter Under Armour mm	Nominal Overall Diameter mm	Nominal Weight kg/Km
1 x 70	1.1	14.7	20.2	960
1 x 95	1.1	16.6	22.3	1240
1 x 120	1.2	18.5	24.2	1510
1 x 185	1.6	23.2	30.0	2320
1 x 800	2.6	45.6	55.4	9381
2 x 1.5	0.6	7.3	12.1	302
2 x 6.0	0.7	10.5	15.9	499
2 x 185.0	1.6	34.9	44.7	6180
2 x 240.0	1.7	39.0	49.0	7570
3 x 1.5	0.6	7.8	12.6	330
3 x 185.0	1.6	40.0	49.8	8350
3 x 400.0	2.0	55.8	66.6	14600
4 x 1.5	0.6	8.5	13.5	365
4 x 400.0	2.0	65.4	78.1	19800
5 x 1.5	0.6	9.7	14.3	410
5 x 35.0	0.9	27.8	34.8	2932
7 x 1.5	0.6	10.2	15.2	470
7 x 4.0	0.7	14.0	19.7	890
12 x 1.5	0.6	13.7	19.4	780
19 x 1.5	0.6	16.2	22.2	1000
19 x 4.0	0.7	22.5	29.3	1830
27 x 1.5	0.6	20.0	26.7	1500
27 x 4.0	0.7	27.5	34.4	2500
37 x 1.5	0.6	22.3	29.0	1800
37 x 4.0	0.7	31.0	39.2	3100
48 x 1.5	0.6	25.4	32.7	2050
