Medium Voltage 3.6/6 (7.2) Kv Swa XLPE Insulated Electrical Wire Power Cable
Medium Voltage 3.6/6 (7.2) Kv SWA XLPE Insulated Electrical Wire Power Cable Application:XLPE Cable is used indoor or outdoor, in tunnel, cable furrow or pipe, to be laid underground, be applicable to the well, water inside and fall in the bad soil.Standards:IEC60502-2, BS7870-4, BS7870-7, BS7870-8C......
Send Inquiry
Product Description
Application:
XLPE Cable is used indoor or outdoor, in tunnel, cable furrow or pipe, to be laid underground, be applicable to the well, water inside and fall in the bad soil.
Standards:IEC60502-2, BS7870-4, BS7870-7, BS7870-8
Cores: 1 Core, 3 Core
Conductor:Cu or Aluminum
Insulation:XLPE (Cross-Linked Polyethylene)
Armor:non-armor, steel tape armored, steel wire armored
Sheath:PVC or PE
Sheath Color:Black or Colors
Product Description:
- XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
- XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)

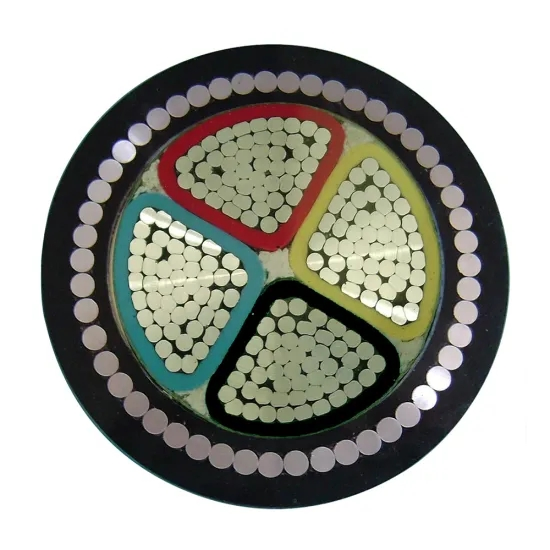

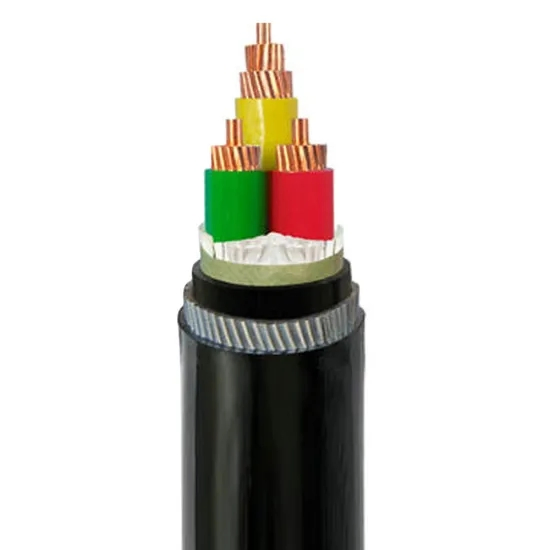

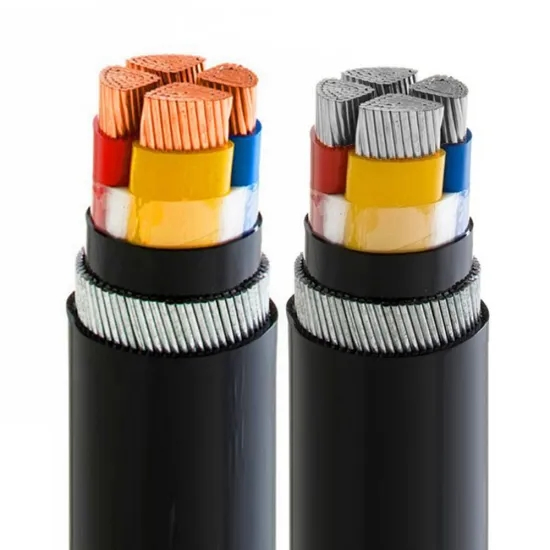

- XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
- Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
- Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
- Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
FR - Flame Retardant
| Nominal cross section (mm2) | Insulation Thickness(mm) | Approx. Overall Dia.& Weight | ||||
| Steel Tape layer×thickness | PVC sheath | PE sheath | ||||
| Overall dia. mm | Weight kg/km | Overall dia. mm | Weight kg/km | |||
| 50 | 10.5 | 2x0.8 | 89.0 | 8791 | 89.0 | 8326 |
| 70 | 10.5 | 2x0.8 | 93.1 | 9878 | 93.1 | 9377 |
| 95 | 10.5 | 2x0.8 | 97.0 | 11079 | 97.0 | 10530 |
| 120 | 10.5 | 2x0.8 | 100.5 | 12238 | 100.5 | 11655 |
| 150 | 10.5 | 2x0.8 | 104.4 | 13597 | 104.4 | 12976 |
| 185 | 10.5 | 2x0.8 | 108.1 | 15050 | 108.1 | 14391 |
| 240 | 10.5 | 2x0.8 | 114.0 | 17386 | 114.0 | 16658 |
| 300 | 10.5 | 2x0.8 | 118.8 | 19710 | 118.8 | 18934 |
| 400 | 10.5 | 2x0.8 | 126.6 | 23603 | 126.6 | 22722 |
- Imported equipment with experienced technical team

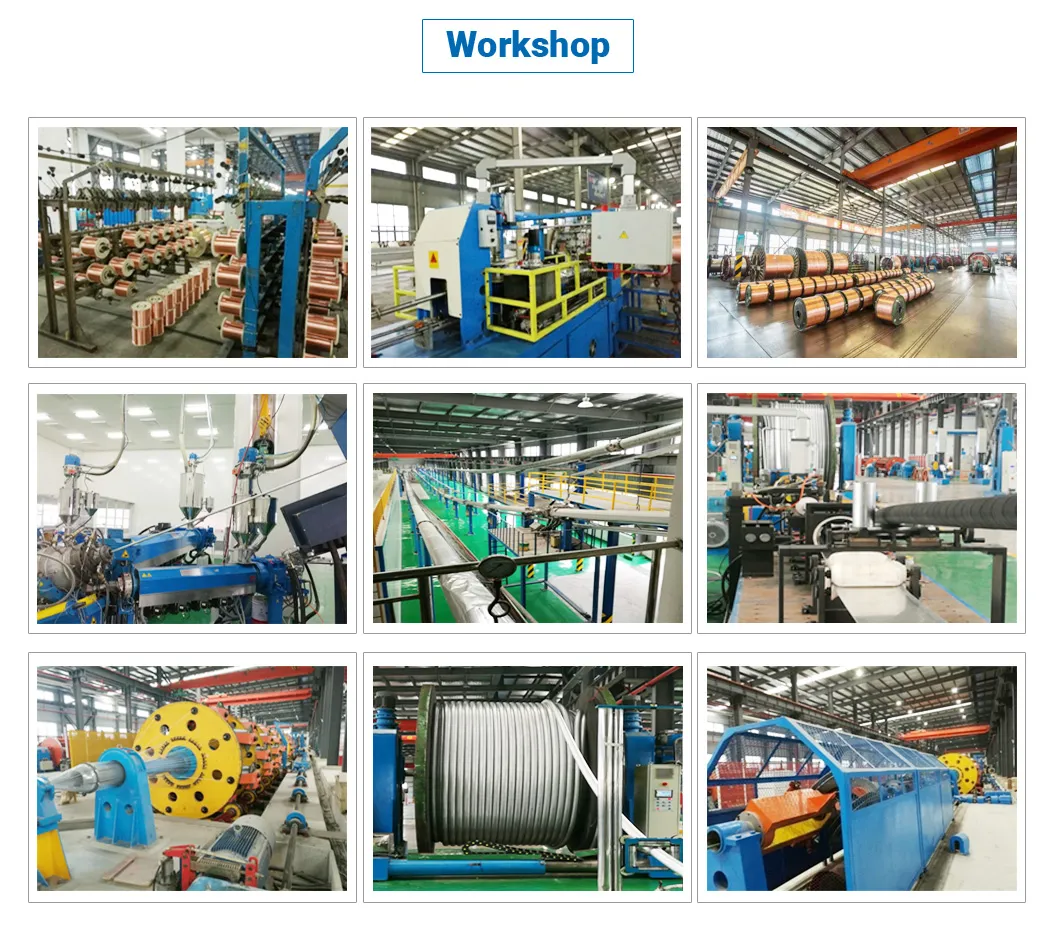

The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany - Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. - Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. - Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
