Home > Products > Power Cable > Kuwait / 2.5mm / Electric Wire and Cable 20mm and PVC Insulated Thw , Thhn, TF, Tfn Wire
Kuwait / 2.5mm / Electric Wire and Cable 20mm and PVC Insulated Thw , Thhn, TF, Tfn Wire
Products model:BVR/BV wire cable 1. Mmultiores pure copper conductor2. PVC insulated, with or without steel armor, pvc shielded3. High quality, ISO 9001, CCC, CE, RoHS certified4. OEM is available.All models:BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVVIEC Code Designation GB Code DesignationRated......
Send Inquiry
Product Description
Products model:
BVR/BV wire cable

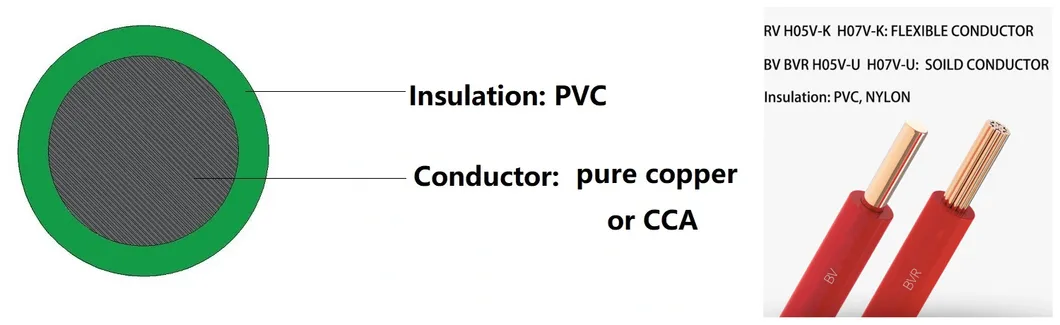

1. Mmultiores pure copper conductor
2. PVC insulated, with or without steel armor, pvc shielded
3. High quality, ISO 9001, CCC, CE, RoHS certified
4. OEM is available.
All models:
BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVV
| IEC Code Designation | GB Code Designation | Rated Voltage | Name ( cable/electrical wire) | Application | Rated Temperature |
| 60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable | Fixed laid indoors Instrument etc. | 0°C to +70°C |
| 60227 IEC 05 | BV | 450/750V | |||
| BLV | 450/750V | Aluminum conductor PVC insulated rigid cable | |||
| BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable | Be for laying permanent place where flexible required. | 0°C to +70°C | |
| 60227 IEC10 | BVV | 300/500V | Copper conductor PVC insulated PVC sheathed round rigid cable | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 0°C to +70°C |
| BLVV | 300/500V | Aluminum conductor PVC insulated PVC sheathed round cable | |||
| BVVB | 300/500V | Copper conductor PVC insulated PVC sheathed flat cable | |||
| BLVVB | 300/500V | Aluminum conductor PVC insulated PVC sheathed flat cable | |||
| 60227 IEC 02 | RV | 450/750V | Copper conductor PVC insulated flexible connector cable | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 0°C to +70°C |
| 60227 IEC 06 | RV | 300/500V | |||
| 60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable | ||
| RVS | 300/300V | Copper conductor PVC insulated flexible twisting connector cable | |||
| 60227 IEC 52 | RVV | 300/300V | Copper conductor PVC insulated PVC sheathed round flexible connector cable | ||
| 60227 IEC 53 | RVV | 300/500V |
| Description | Installation Place |
| XLPE Insulated, PVC Sheathed Power Cable | Laid in indoor, outdoor, tunnels, cable canals, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force. |
| XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable. | Laid underground. Cable can bear outer mechanic force, but should not bear large tractional force. |
| XLPE Insulated ,fine Steel Wire Armored and PVC Sheathed Power Cable | Laid in indoor, tunnels and mines. Cable can bear outer mechanic force and fairly large tractional force. |
| XLPE Insulated, thick Steel Wire Armored and PVC Sheathed Power Cable. | Laid in vertical section, indoor, tunnels and mines. Cable can bear outer mechanic force and very large tractional force. |
