BS 215 Lion 225mm2 ACSR Aluminium Conductor Steel Reinforce
BS 215 Lion 225mm2 ACSR Aluminium Conductor Steel ReinforceOur main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(St......
Send Inquiry
Product Description

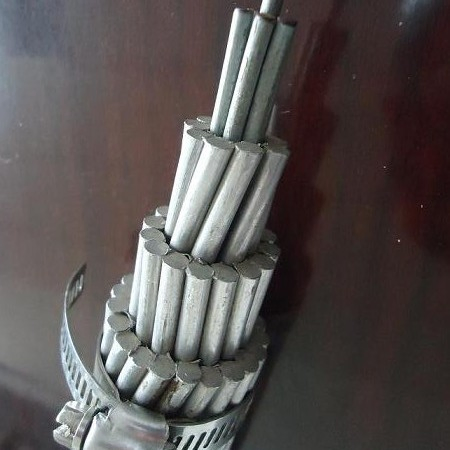

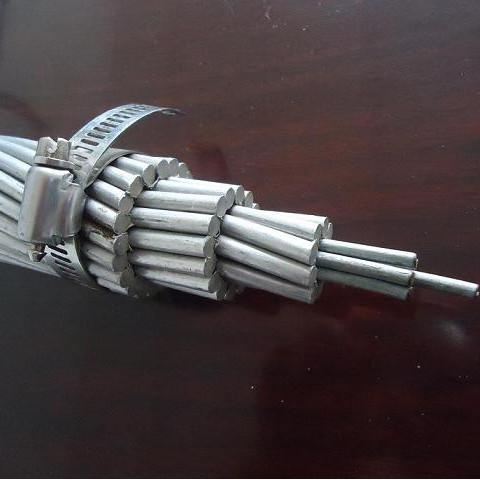

BS 215 Lion 225mm2 ACSR Aluminium Conductor Steel Reinforce
Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire),flame retardant mining cable, etc
We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
Aluminium Conductor Steel Reinforced specification:
| Code name | Nominal aluminum area mm2 | Stranding structure | Sectional area of aluminum | Total sectional area | Overall diameter | ||||
| Total | |||||||||
| Al. No. | Al. Dia. | St. No. | St. Dia | mm2 | mm2 | mm | kg/km | ||
| Mole | 10 | 6 | 1.50 | 1 | 1.50 | 10.62 | 12.39 | 4.50 | 43 |
| Squirrel | 20 | 6 | 2.11 | 1 | 2.11 | 20.94 | 24.43 | 6.33 | 85 |
| Gopher | 25 | 6 | 2.36 | 1 | 2.36 | 26.24 | 30.62 | 7.08 | 106 |
| Weasel | 30 | 6 | 2.59 | 1 | 2.59 | 31.61 | 36.88 | 7.77 | 128 |
| Fox | 35 | 6 | 2.79 | 1 | 2.79 | 36.66 | 42.77 | 8.37 | 149 |
| Ferret | 40 | 6 | 3.00 | 1 | 3.00 | 42.41 | 49.48 | 9.00 | 172 |
| Rabbit | 50 | 6 | 3.35 | 1 | 3.35 | 52.88 | 61.70 | 10.05 | 214 |
| Mink | 60 | 6 | 3.66 | 1 | 3.66 | 63.18 | 73.71 | 10.98 | 255 |
| Skunk | 60 | 12 | 2.59 | 7 | 2.59 | 63.27 | 100.30 | 12.95 | 465 |
| Beaver | 70 | 6 | 3.99 | 1 | 3.99 | 74.82 | 87.29 | 11.97 | 302 |
| Horse | 70 | 12 | 2.79 | 7 | 2.79 | 73.37 | 116.20 | 13.95 | 538 |
| Racoon | 75 | 6 | 4.10 | 1 | 4.10 | 79.20 | 92.40 | 12.30 | 320 |
| Otter | 80 | 6 | 4.22 | 1 | 4.22 | 83.88 | 97.86 | 13.98 | 339 |
| Cat | 90 | 6 | 4.50 | 1 | 4.50 | 95.40 | 111.30 | 15.90 | 386 |
| Hare | 100 | 6 | 4.72 | 1 | 4.72 | 105.00 | 122.50 | 17.50 | 425 |
| Dog | 100 | 6 | 4.72 | 7 | 1.57 | 105.00 | 118.50 | 14.15 | 394 |
| Hyena | 100 | 7 | 4.39 | 7 | 1.93 | 105.80 | 126.20 | 14.57 | 450 |
| Leopard | 125 | 8 | 5.28 | 7 | 1.75 | 131.30 | 148.10 | 15.81 | 492 |
| Coyote | 125 | 26 | 2.54 | 7 | 1.91 | 132.10 | 152.20 | 15.89 | 522 |
| Congar | 125 | 18 | 3.05 | 1 | 3.05 | 130.30 | 137.50 | 15.25 | 419 |
| Tiger | 125 | 30 | 2.36 | 7 | 2.36 | 131.10 | 161.70 | 16.52 | 602 |
| Dingo | 150 | 18 | 3.35 | 1 | 3.35 | 158.70 | 167.50 | 16.75 | 506 |
| Wolf | 150 | 30 | 2.59 | 7 | 2.59 | 158.10 | 194.90 | 18.13 | 726 |
| Caracal | 175 | 18 | 3.61 | 1 | 3.61 | 184.30 | 194.50 | 18.05 | 587 |
| Lynx | 175 | 30 | 2.79 | 7 | 2.79 | 183.40 | 226.20 | 19.53 | 842 |
| Jaguar | 200 | 18 | 3.86 | 1 | 3.86 | 210.60 | 222.30 | 19.30 | 671 |
| Panther | 200 | 30 | 3.00 | 7 | 3.00 | 212.10 | 261.50 | 21.00 | 974 |
| Lion | 225 | 30 | 3.18 | 7 | 3.18 | 238.50 | 294.20 | 22.26 | 1095 |
| Bear | 250 | 30 | 3.35 | 7 | 3.35 | 264.00 | 325.60 | 23.45 | 1213 |
| Goat | 300 | 30 | 3.71 | 7 | 3.71 | 324.30 | 400.00 | 25.97 | 1489 |
| Sheep | 350 | 30 | 3.99 | 7 | 3.99 | 374.10 | 461.40 | 27.93 | 1718 |
| Antilope | 350 | 54 | 2.97 | 7 | 2.97 | 373.10 | 421.50 | 26.73 | 1411 |
| Bizon | 350 | 54 | 3.00 | 7 | 3.00 | 381.80 | 431.30 | 27.00 | 1444 |
| Deer | 400 | 30 | 4.27 | 7 | 4.27 | 429.30 | 529.50 | 28.89 | 1971 |
| Zebra | 400 | 54 | 3.18 | 7 | 3.18 | 428.90 | 484.50 | 28.62 | 1621 |
| ELK | 450 | 30 | 4.50 | 7 | 4.50 | 477.00 | 588.30 | 31.50 | 2190 |
| Camel | 450 | 54 | 3.35 | 7 | 3.35 | 475.20 | 536.80 | 30.15 | 1777 |
| Moose | 500 | 54 | 3.53 | 7 | 3.53 | 528.70 | 597.20 | 31.77 | 1999 |
| Finch | 500 | 54 | 3.65 | 19 | 2.29 | 564.70 | 642.90 | 33.35 | 2243 |
