ASTM B398, 399 Standard Conductores De Aleacion De Aluminio AAAC Cairo
ASTM B398,399 Standard Conductores de aleacion de Aluminio AAAC CairoAluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size. TECHNICAL DATA OF AAAC Cairo NODESCRIPTIONUNIT DATA 1Type/ code name --Cairo2Material --Aluminium Alloy3Standards--ASTM B3......
Send Inquiry
Product Description

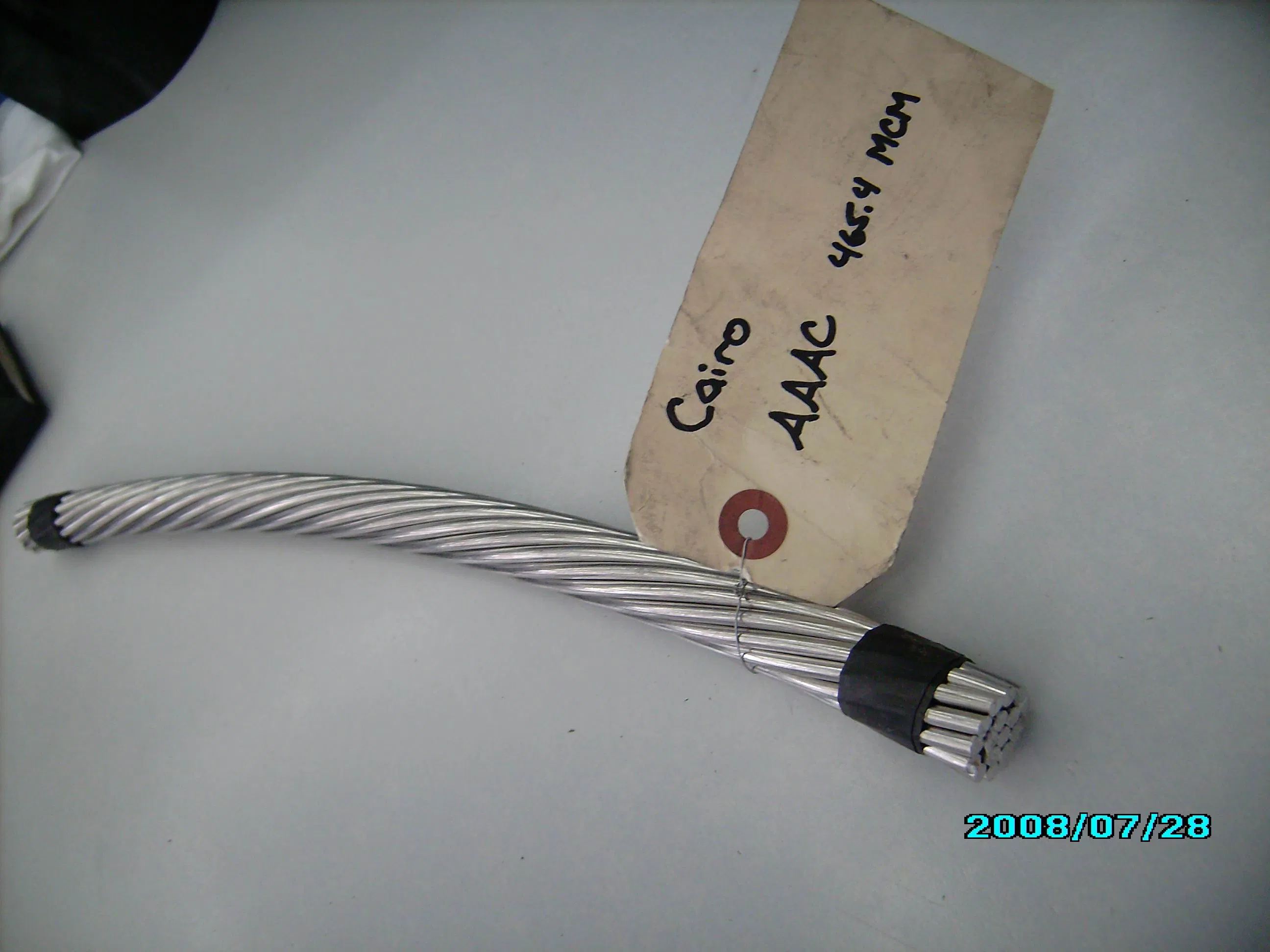

ASTM B398,399 Standard Conductores de aleacion de Aluminio AAAC Cairo

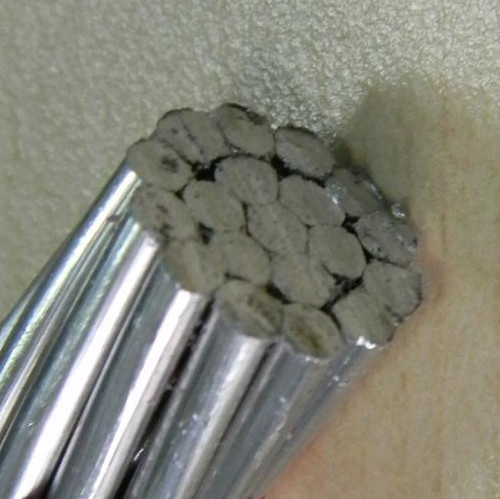

Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.
| TECHNICAL DATA OF AAAC Cairo | |||
| NO | DESCRIPTION | UNIT | DATA |
| 1 | Type/ code name | -- | Cairo |
| 2 | Material | -- | Aluminium Alloy |
| 3 | Standards | -- | ASTM B399,B398 |
| 4 | Cross Section Area | mm2 | 236.4 |
| 5 | Conductor construction | ||
| Wire No. | No.s | 19 | |
| Nominal wire dia. | mm | 3.98 | |
| 6 | Approx. Overall Diameter | mm | 19.9 |
| 7 | Approx. Weight | kg/km | 651.7 |
| 8 | Min.Breaking Load | kN | 69.48 |
| 9 | Max. D.C. Resistant 20ºC | Ω/km | 0.142 |
