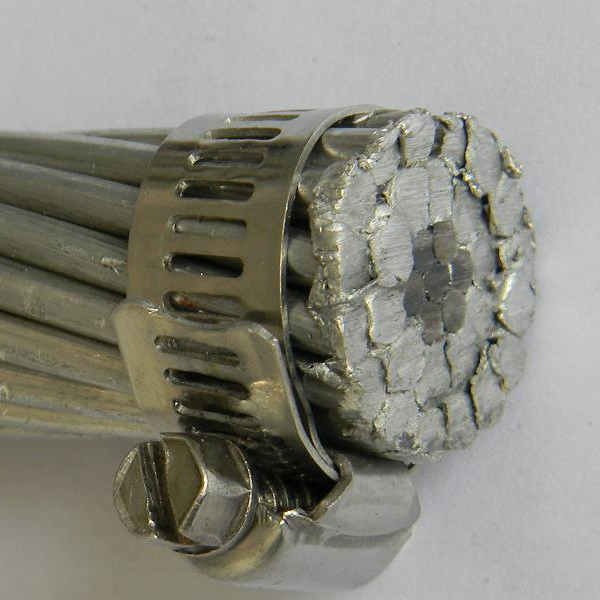

Aluminium conductor steel reinforced ACSR AL1/ST1 DIN & EN Standard
Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire),flame retardant mining cable, etc
We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
Aluminium Conductor Steel Reinforced specification:
| ACSR Technical characteristics / DIN 48204 | |||||||||
| Area | Standing and wire diameter | Overall diameter | Nominal breaking load | Maximum resistance at 20°C | |||||
| Nominal. | Actual | Total. | |||||||
| Al/Steel-- | Al | Steel | Total | Aluminum | Steel | ||||
| mm2 | mm2 | mm2 | mm | mm | mm | kg/km | daN | Ω/km | |
| 16/2.5 | 15.00 | 2.50 | 17.80 | 6/1.80 | 1/1.80 | 5.40 | 62 | 595 | 1.87800 |
| 25/4.0 | 23.80 | 4.00 | 27.80 | 6/2.25 | 1/2.5 | 6.80 | 97 | 920 | 1.20020 |
| 35/6.0 | 34.30 | 5.70 | 40.00 | 6/2.70 | 1/2.70 | 8.10 | 140 | 1265 | 0.83520 |
| 44/32.0 | 44.00 | 31.70 | 75.70 | 14/2.00 | 7/2.40 | 11.20 | 372 | 4500 | 0.65730 |
| 50/8.0 | 48.30 | 8.00 | 56.30 | 6/3.20 | 1/3.20 | 9.60 | 196 | 1710 | 0.59460 |
| 50/30 | 51.20 | 29.80 | 81.00 | 12/2.33 | 7/2.33 | 11.70 | 378 | 4380 | 0.56430 |
| 70/12 | 69.90 | 11.40 | 81.30 | 26/1.85 | 7/1.44 | 11.70 | 284 | 2680 | 0.41300 |
| 95/15 | 94.40 | 15.30 | 109.70 | 26/2.15 | 7/1.67 | 13.60 | 383 | 3575 | 0.30580 |
| 95/55 | 96.50 | 56.30 | 152.80 | 12/3.20 | 7/3.20 | 16.00 | 712 | 7935 | 0.29920 |
| 105/75 | 105.70 | 75.50 | 181.50 | 14/3.10 | 9/2.25 | 17.50 | 891 | 10845 | 0.27350 |
| 120/20 | 121.06 | 19.80 | 141.40 | 26/2.44 | 7/1.90 | 15.50 | 494 | 4565 | 0.23740 |
| 120/70 | 122.00 | 71.30 | 193.30 | 12/3.60 | 7/3.60 | 18.00 | 90 | 10000 | 0.23640 |
| 125/30 | 127.90 | 29.80 | 157.70 | 30/2.33 | 7/2.33 | 16.30 | 591 | 5760 | 0.22590 |
| 150/25 | 148.90 | 24.20 | 173.10 | 26/2.70 | 7/2.10 | 17.10 | 605 | 5525 | 0.19390 |
| 170/40 | 171.80 | 40.10 | 211.90 | 30/2.70 | 7/2.70 | 18.90 | 794 | 7675 | 0.16820 |
| 185/30 | 183.80 | 29.80 | 213.60 | 26/3.00 | 7/2.33 | 19.00 | 746 | 6620 | 0.15710 |
| 210/35 | 209.10 | 34.10 | 243.20 | 26/3.20 | 7/2.49 | 20.30 | 850 | 7490 | 0.13800 |
| 210/50 | 212.10 | 49.50 | 261.60 | 30/3.00 | 7/3.00 | 21.00 | 981 | 9390 | 0.13620 |
| 230/30 | 230.90 | 29.80 | 260.70 | 24/3.50 | 7/2.33 | 21.00 | 877 | 7310 | 0.12490 |
| 240/40 | 243.00 | 39.50 | 282.50 | 26/3.45 | 7/2.68 | 21.90 | 987 | 8640 | 0.11880 |
| 265/35 | 263.70 | 34.10 | 297.80 | 24/3.74 | 7/2.49 | 22.40 | 1002 | 8305 | 0.10940 |
| 300/50 | 304.30 | 49.50 | 353.70 | 26/3.86 | 7/3.00 | 24.50 | 1236 | 10700 | 0.09487 |
| 305/40 | 304.60 | 39.50 | 344.10 | 54/2.68 | 7/2.68 | 24.10 | 1160 | 9940 | 0.09490 |
| 340/30 | 339.30 | 29.80 | 369.10 | 48/3.00 | 7/2.33 | 25.00 | 1180 | 9290 | 0.08509 |
| 380/50 | 382.00 | 49.50 | 431.50 | 54/3.00 | 7/3.00 | 27.00 | 1453 | 12310 | 0.08509 |
| 385/35 | 386.00 | 34.10 | 420.10 | 48/3.20 | 7/2.49 | 26.70 | 1344 | 10480 | 0.07573 |
| 435/55 | 434.03 | 59.30 | 490.60 | 54/3.20 | 7/3.20 | 28.80 | 1653 | 13645 | 0.07478 |
| 450/40 | 448.70 | 39.50 | 488.20 | 48/3.45 | 7/2.68 | 28.70 | 1561 | 12075 | 0.06656 |
| 490/65 | 490.30 | 63.60 | 553.90 | 54/3.40 | 7/3.40 | 30.60 | 1866 | 15310 | 0.06434 |
| 495/35 | 494.10 | 34.10 | 528.20 | 45/3.74 | 7/2.49 | 29.90 | 1646 | 12180 | 0.05846 |
| 510/45 | 510.20 | 45.30 | 555.50 | 48/3.68 | 7/2.87 | 30.70 | 1778 | 13665 | 0.05655 |
| 550/70 | 550.00 | 71.30 | 621.30 | 54/3.60 | 7/3.60 | 32.40 | 2092 | 17060 | 0.05259 |
| 560/50 | 561.70 | 49.50 | 611.20 | 48/3.86 | 7/3.00 | 32.20 | 1954 | 14895 | 0.05140 |
| 570/40 | 565.50 | 39.50 | 610.30 | 45/4.00 | 7/2.68 | 32.20 | 1888 | 13900 | 0.05108 |
| 650/45 | 698.50 | 45.30 | 653.49 | 45/4.30 | 7/2.87 | 34.40 | 2163 | 15552 | 0.04420 |
| 680/85 | 678.80 | 86.00 | 764.80 | 54/4.00 | 19/2.40 | 36.00 | 2570 | 21040 | 0.04260 |
| 1045/45 | 1045.58 | 45.30 | 1090.90 | 72/4.30 | 7/2.87 | 43.00 | 3249 | 21787 | 0.02770 |
