Product Description

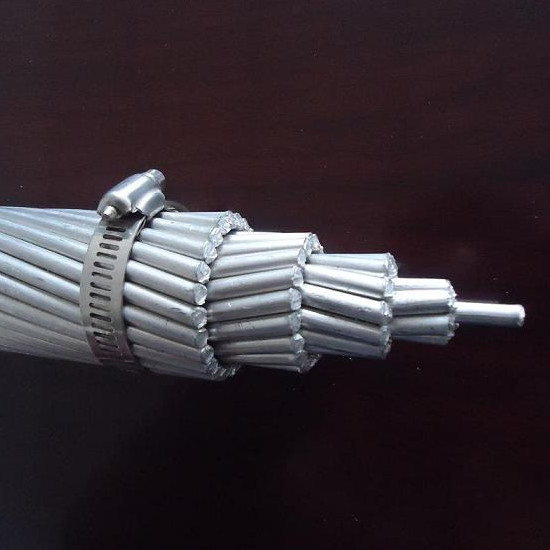

All aluminium alloy conductor AAAC Cable Mulberry 125MM2

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire),flame retardant mining cable, etc

AAAC-Technical characteristics / BS3242

Code Word	Conductor size	Stranding	Sectional Area	Diameter of Conductor	Linear Density	Rated Strength	D.C. Resistance at 20°C
Code Word	mm2	No. /mm	mm2	mm	kg/km	kgf	Ω/km
Box	15	7/1.85	18.82	5.55	51	537	1.74950
Acacia	20	7/2.08	23.79	6.24	65	680	1.38400
Almond	25	7/2.34	30.10	7.02	82	861	1.09340
Cedar	30	7/2.54	35.47	7.62	97	1014	0.92810
	35	7/2. 77	42.18	8.31	115	1205	0.78040
Fir	40	7/2.95	47.84	8.85	131	1367	0.68800
Hazel	50	7/3.30	59.87	9.90	164	1711	0.54980
Pine	60	7/3.61	71.65	10.83	196	2048	0.45940
	70	7/3.91	84.05	11.73	230	2402	0.39170
Willow	75	7/4. 04	89.73	12.12	245	2565	0.36690
	80	7/4.19	96.52	12.57	264	2758	0.34410
	90	7/4.44	108.00	13.32	298	3112	0.30230
Oak	100	7/4.65	118.90	13.95	325	3398	0.27690
	100	19/2.82	118.70	14.10	326	3393	0.27870
Mulberry	125	19/3.18	150. 90	15.90	415	4312	0.21920
Ash	150	19/3.48	180.70	17.40	497	5164	0.18310
Elm	175	19/3.76	211.00	18.80	580	6030	0.15680
Poplar	200	37/2.87	239.40	20.09	659	8841	0.13850
	225	37/3.05	270.30	21.35	744	7724	0.12270
Sycamore	250	37/3.22	303.20	22.54	835	8664	0.10930
Upas	300	37/3.53	362.10	24.71	997	10350	0.09156
Walnut	350	37/3.81	421.80	26.67	1162	12053	0.07860
Yew	400	37/4.06	479.00	28.42	1319	13685	0.06921
Totara	425	37/4.14	498.10	28.98	1372	14233	0.06656
Rub us	500	61/3.50	586.90	31.50	1620	16771	0.05662
Araucaria	700	61/4.14	821.10	37.26	2266	23450	0.04047
