China 22kV SAC Aluminum Spaced Aerial Cable TIS 2341-2555

Product Description

Description:

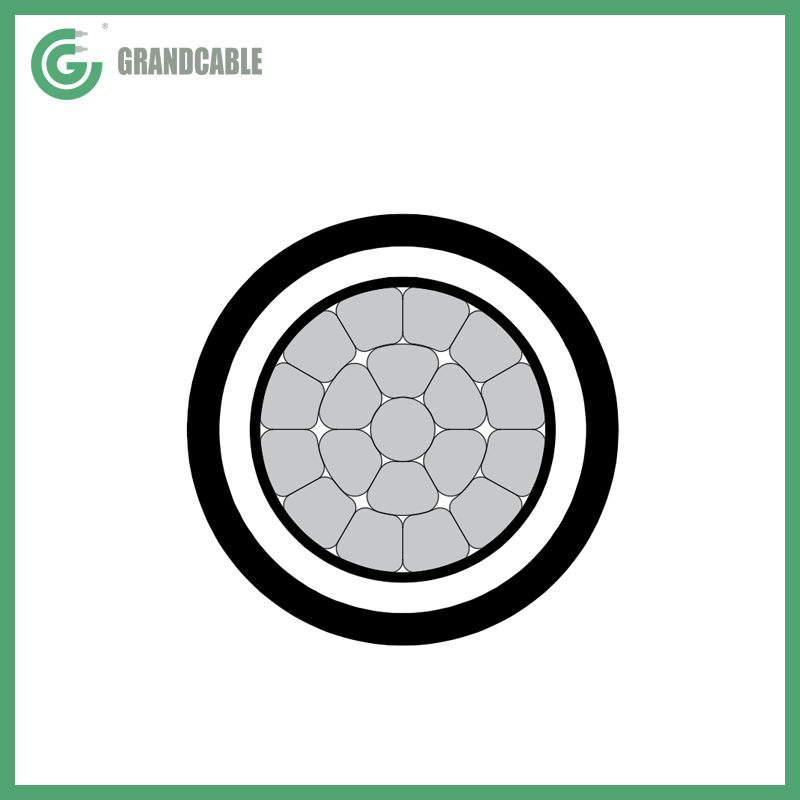

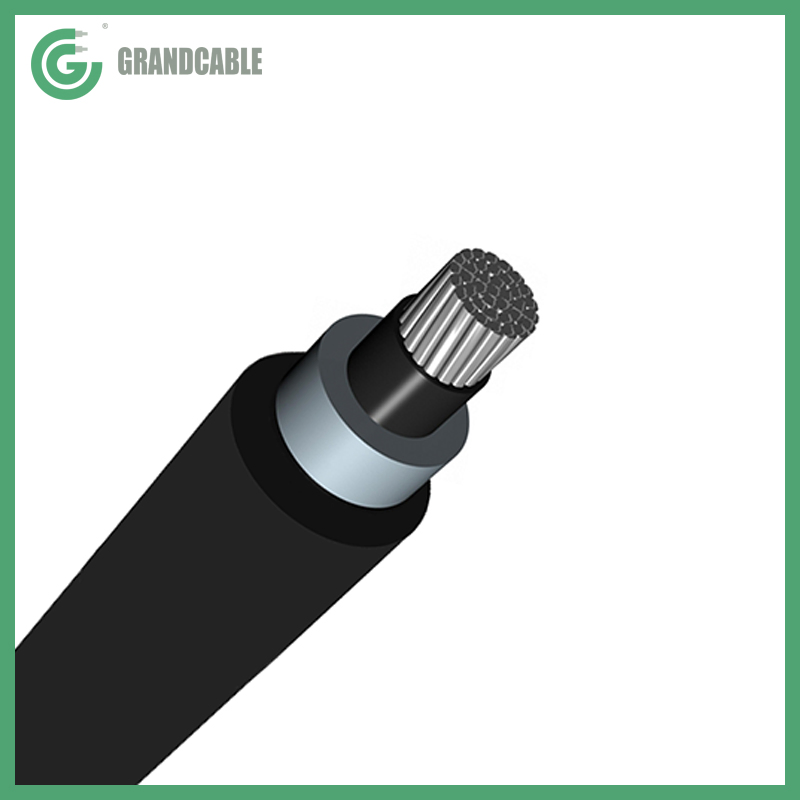

Tree wire or covered open wire consists of the conductor (aluminum, aluminum alloy or ACSR ) and the extruded covering (conductor shield, low density inner layer and protective outer layer). Covering thickness depends on the system voltage. It is designed for full span applications and is supported on polyethylene insulators. We also offer a two layer covered conductor design for 15kV systems that are not subject to heavy tree contact. Covered conductors are available in black or gray depending on visual preference.

Application:

Tree wire designed for systems from 15kV through 46kV. Polyethylene insulators must be used to insure dielectric compatibility with conductor covering. Conductors are supported on crossarms or standoff brackets. Span lengths are limited by the conductor breaking strength and the amount of sag that is permissible.Covered conductors are rated for continuous operation at 75°C.

Applicable Standards:

ICEA S-121-733-2016;ICEA S-66-524
TIS 293;TIS 2341-2555

Dimension Characteristics:

Description		Unit	Data
System Voltage		kV	22
Conductor	Type of conductor	-	Aluminum
	Nominal cross-sectional area	mm²	50	95	120	185
	Stranding	-	Compact Stranded
	Outside diameter ±1%	mm	8.33	11.45	12.95	15.98
	Calculated breaking strength Min.	N	7890	14380	19110	29600
	Volume resistivity of aluminum wire at 20°C Max.	Ω.mm²/m	0.028264
	DC resistance at 20°C Max.	Ω/km	0.592	0.313	0.245	0.161
Conductor Shield	Thickness, not less than Min. Average.	mm mm	0.0635 0.3
Conductor Shield	DC Volume resistivity at 90°C Max.	Ω-cm	50000
Insulation	Thickness	mm	3.175
Jacket	Thickness	mm	3.175
Cable	Overall outside diameter, approx.	mm	22.0	25.2	26.7	29.7
Electrical test Voltage	AC test voltage for 5 minutes	kV	38
Electrical test Voltage	DC test voltage for 5 minutes	kV	100

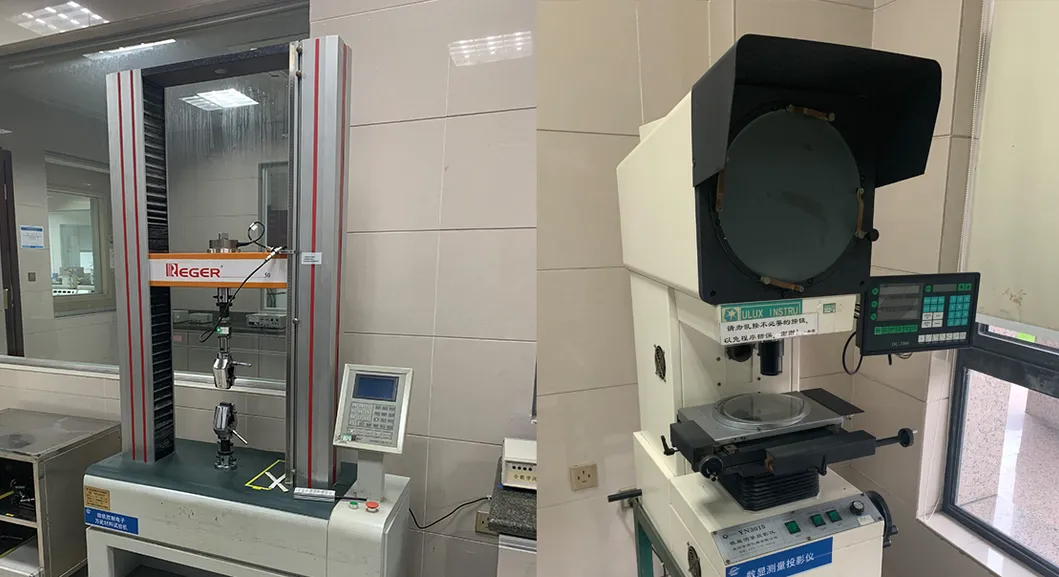

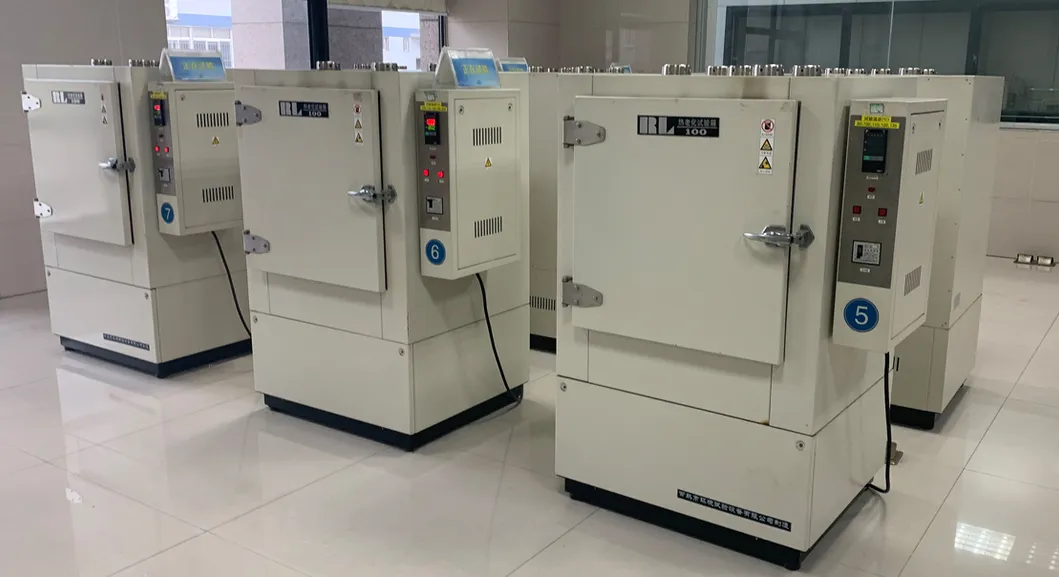

Tesing Facilities:

22kV SAC Aluminum Spaced Aerial Cable TIS 2341-2555

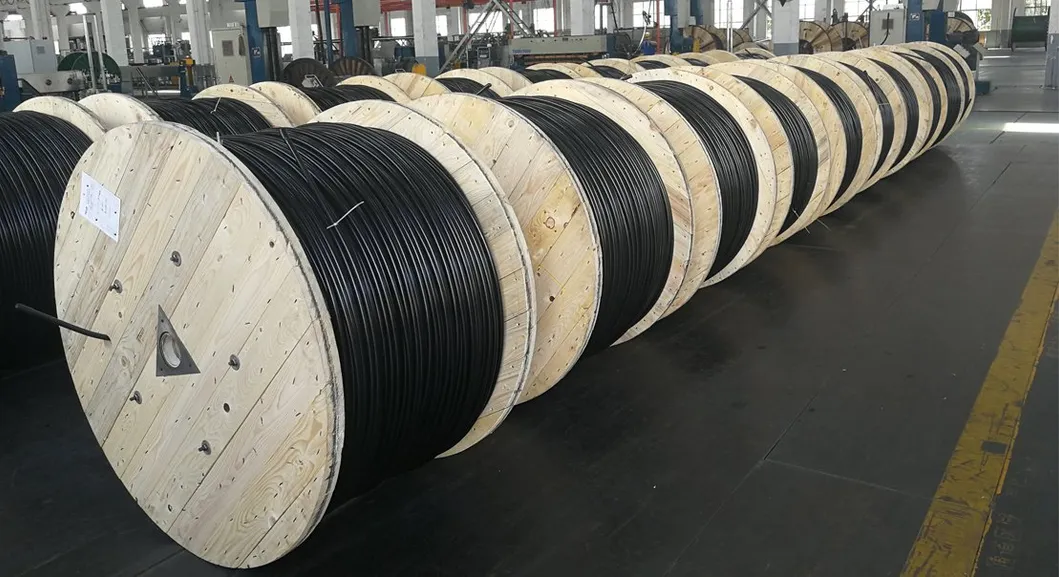

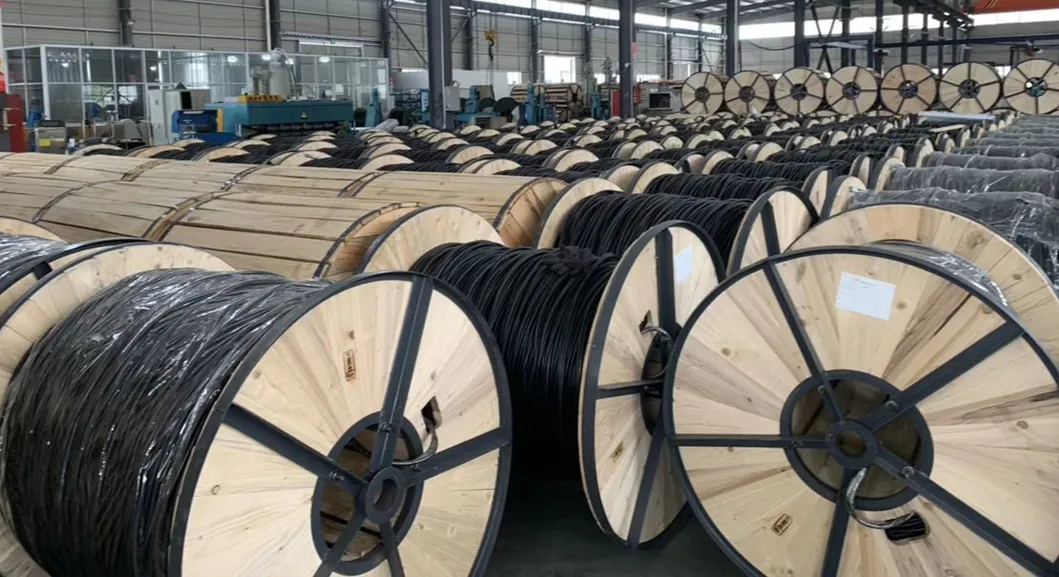

Packaing Photos:

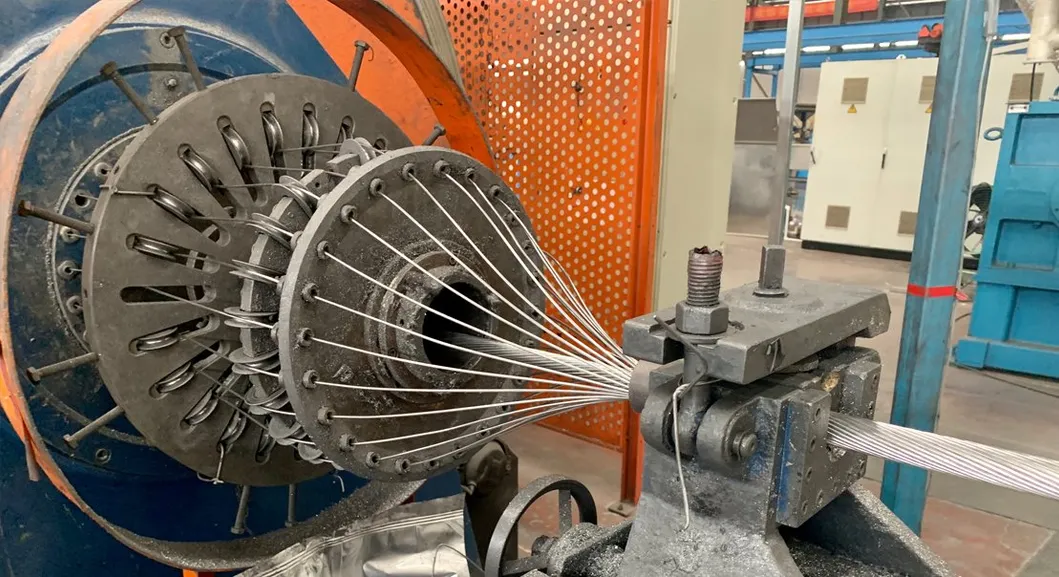

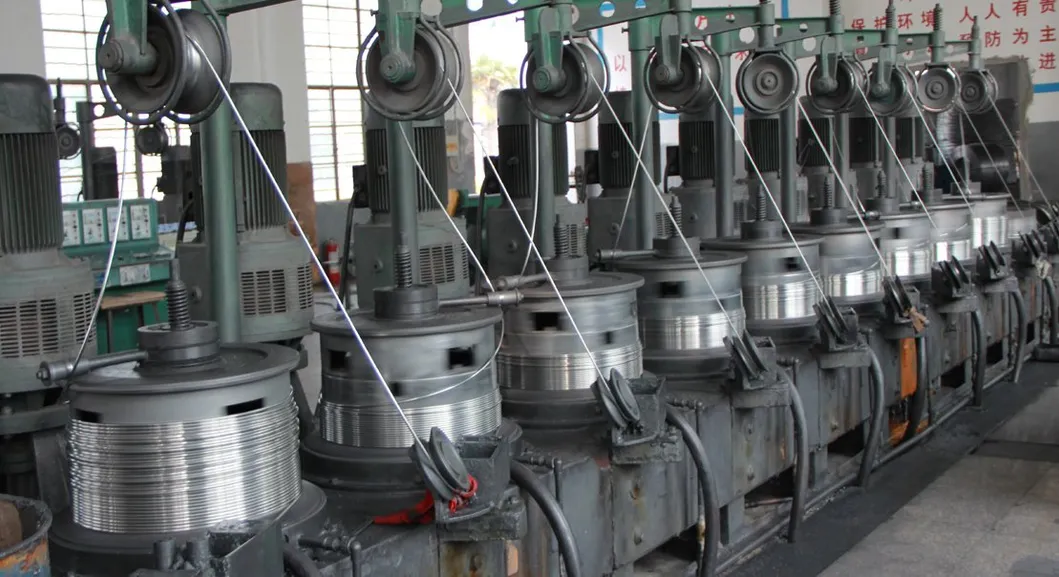

Workshop Views:

About us:

Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.

With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.

FAQ:

Q: How long does it take get my inquiry replied?

A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.

Q: Can I get samples before placing the order?

A: You will get a sample for free if we have the storage of that cable.

Q: What's the MOQ of your product?

A: The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.

Fore More Information, Please do feel free to contact us!
