N2XBY 4 x (1.5-300) mm² 0.6/1 kV
Cu / Mica / XLPE / DSTA / PVC

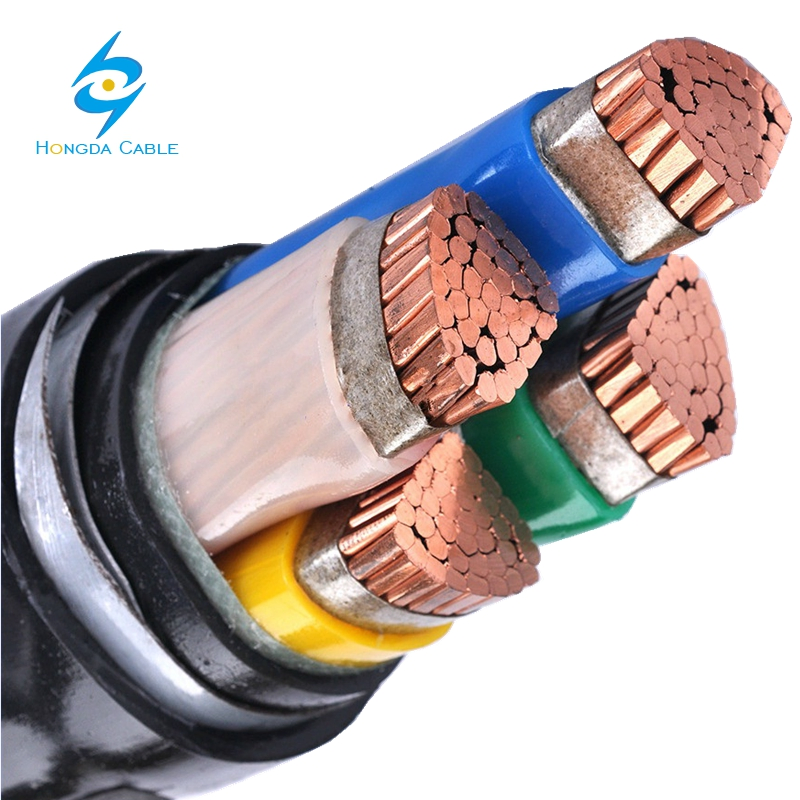

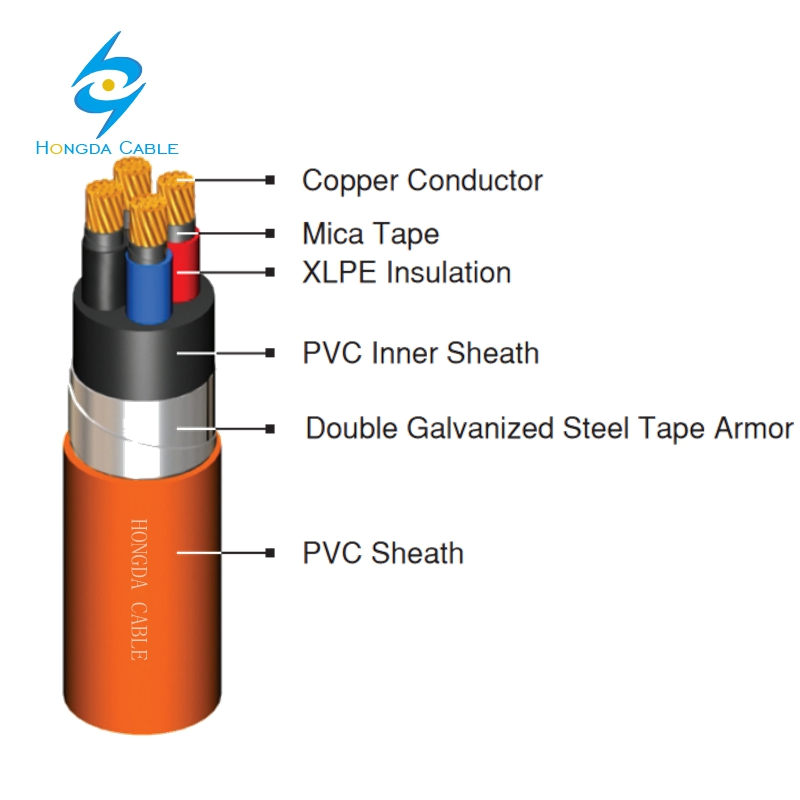

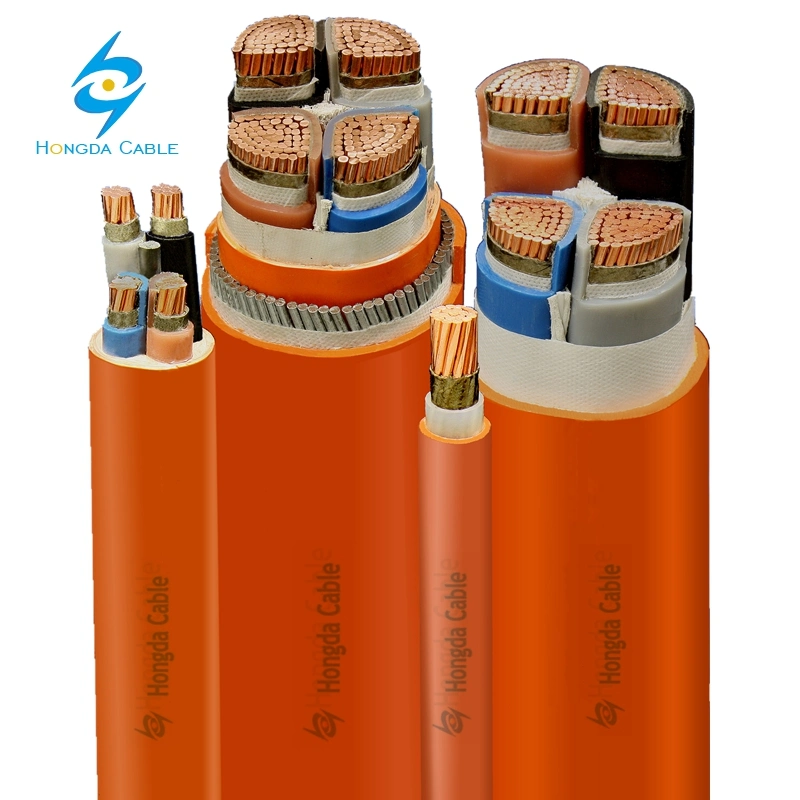

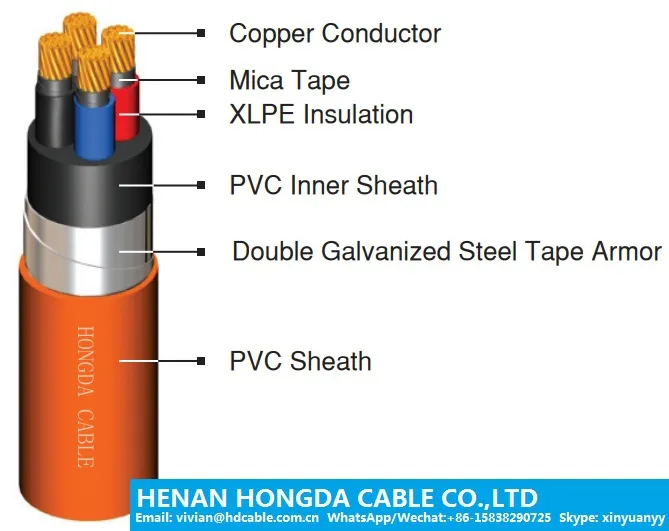

(Copper Conductor, Mica Tape, XLPE Insulated, Double Galvanized Steel Tape Armor, PVC Sheathed)
Standard Specification : IEC 60502-1 and IEC 60331
Application
For wiring of fire resistant safety circuits, such as fire alarm system, emergency lighting and power, public address and emergency voice communication systems in highrise building, control and instrumentation services in industrial, commercial and residential complexes.
Special Features on Request :
• Oil Resistance
• UV Resistance
• Flame Retardant Cat. A, B, C
• Flame Retardant Non Category
• Anti Termite
• Anti Rodent
• Low Smoke Zero Halogen
Note :
Conductor Shape
1.5 - 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape
16 sqmm supplied in non compacted circular stranded (rm) conductor shape
25 - 300 sqmm supplied in compacted circular stranded (cm) conductor shape
Standard Packing
1.5 - 50 sqmm supplied in wooden drum @ 1000 m
70 - 300 sqmm will be suplied in wooden drum on available length
Length Tolerance per drum ± 2%
Construction Data
| Nom. Cross Section Area | Overall Diameter | Cable Weight |
| approx. | approx. | |
| mm² | mm | kg/km |
| 1.5 | 17.6 | 423 |
| 2.5 | 18.7 | 499 |
| 4 | 20.0 | 603 |
| 6 | 22.0 | 734 |
| 10 | 24.5 | 970 |
| 16 | 25.5 | 1,206 |
| 25 | 29.5 | 1,689 |
| 35 | 32.5 | 2,164 |
| 50 | 37.0 | 3,115 |
| 70 | 42.5 | 4,163 |
| 95 | 46.5 | 5,334 |
| 120 | 51.5 | 6,547 |
| 150 | 57.0 | 7,897 |
| 185 | 62.5 | 9,698 |
| 240 | 69.5 | 12,255 |
| 300 | 75.5 | 14,895 |
Electrical Data
| Conductor | Inductance | Current - Carrying Capacity at 30° C * | Short circuit current at 1 sec | |||
| Nom. Cross Section Area | DC Resistance at 20°C | AC Resistance at 90°C | ||||
| in air | in ground | |||||
| (mm²) | Max. (Ω/km) | Max. (Ω/km) | (mH/km) | Max. (A) | Max. (A) | Max. (kA) |
| 1.5 | 12.1 | 15.429 | 0.315 | 27 | 32 | 0.21 |
| 2.5 | 7.41 | 9.449 | 0.293 | 36 | 42 | 0.36 |
| 4 | 4.61 | 5.878 | 0.275 | 48 | 55 | 0.57 |
| 6 | 3.08 | 3.927 | 0.263 | 60 | 68 | 0.86 |
| 10 | 1.83 | 2.334 | 0.248 | 83 | 91 | 1.43 |
| 16 | 1.15 | 1.467 | 0.238 | 110 | 118 | 2.29 |
| 25 | 0.727 | 0.927 | 0.240 | 148 | 152 | 3.58 |
| 35 | 0.524 | 0.669 | 0.233 | 183 | 183 | 5.01 |
| 50 | 0.387 | 0.494 | 0.232 | 214 | 210 | 7.15 |
| 70 | 0.268 | 0.343 | 0.229 | 269 | 256 | 10.01 |
| 95 | 0.193 | 0.247 | 0.224 | 334 | 309 | 13.59 |
| 120 | 0.153 | 0.197 | 0.223 | 386 | 350 | 17.16 |
| 150 | 0.124 | 0.160 | 0.224 | 449 | 395 | 21.45 |
| 185 | 0.0991 | 0.129 | 0.225 | 512 | 444 | 26.46 |
| 240 | 0.0754 | 0.099 | 0.223 | 604 | 513 | 34.32 |
| 300 | 0.0601 | 0.081 | 0.221 | 692 | 577 | 42.90 |
*Further information about rating factor for certain cable arrangement can be found on supplementary technical information
