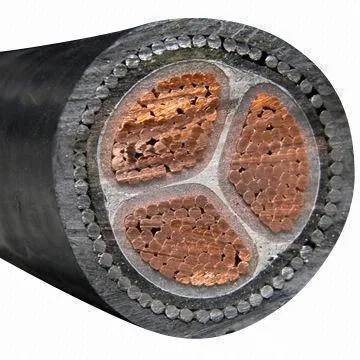

0.6/1kv Cable Cu/PVC/Swa/PVC 4X16, 4X35 , 4X50, 4X70, 4X95, 4X120, 4X150, 4X185, 4X240, 4X300mm2

Application:0.6/1kV XLPE insulated power cable is used indoor or outdoor, in tunnel, cable furrow or pipe. It is able to bear external mechanical forces, but the tractive force during laying.

Standards :  IEC 60502,BS 5467, NF C 32-322 ,DIN,etc

Rated Voltage Uo/U (Um) : 0.6/1 KV

Conductor: Copper  or Aluminum

Conductor shape : Stranded circular or shaped (sector) conductor

Cores number: 1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E

Insulation: XLPE (Cross-Linked Polyethylene)  or  PVC (polyvinyl chloride) with multi color.

Armor: non-armor, steel tape armored, steel wire armored, aluminum wire armoured , aluminum tape armoured.

Sheath: PVC / PE/ LSZH

Sheath Color: Black or Colors as your request.

Range of Nominal cross section: 1.5 mm2 ~ 630 mm2

                                                     8AWG~4/0AWG,300MCM,500MCM,750MCM

Usage characteristics:

Max. conductor temperature in service:                    90°C

Short-circuit max. conductor temperature:               250°C

Operating temperature, range :                                 -25 .. 90°C

Flame retardant cables can be available by the special request.

Water blocking cables can be available by the special request.

Certificate: ISO ,CE , SGS, SONCAP , BV , ETC.

Dear friends,we can design and produce power cable with International  and national standards according to your request
