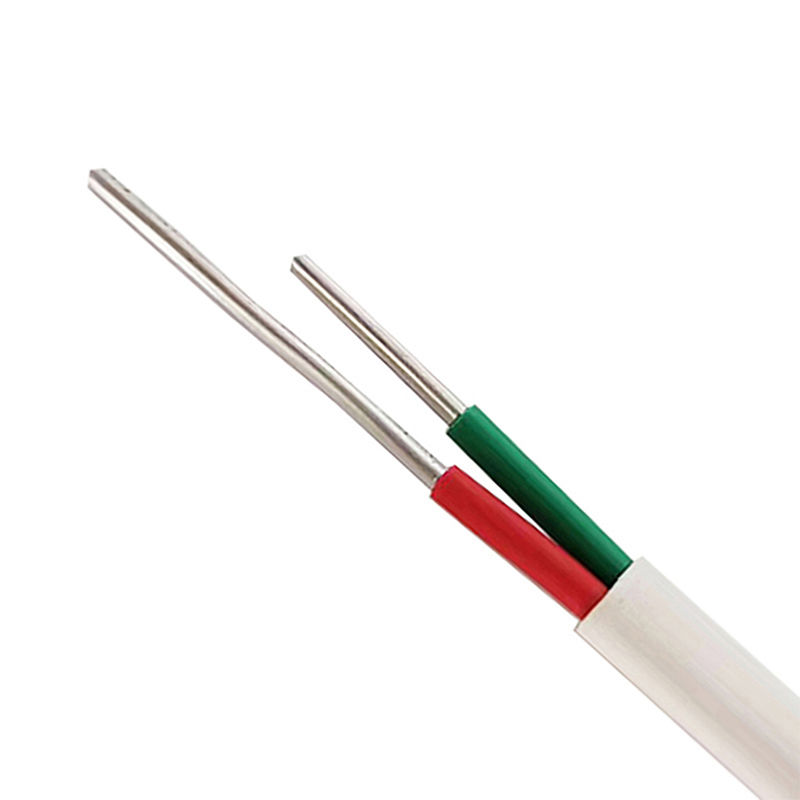

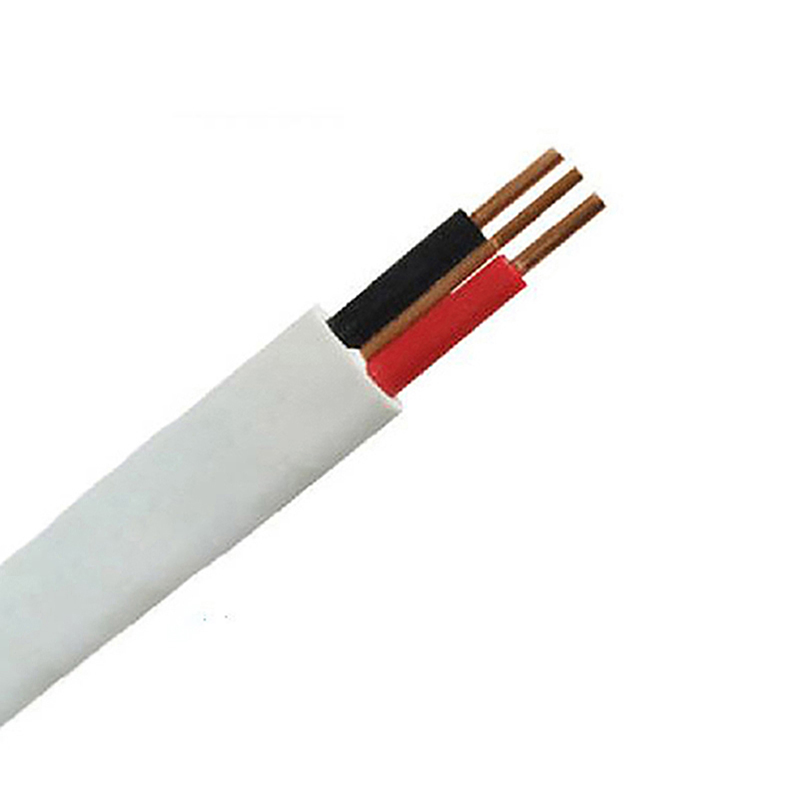

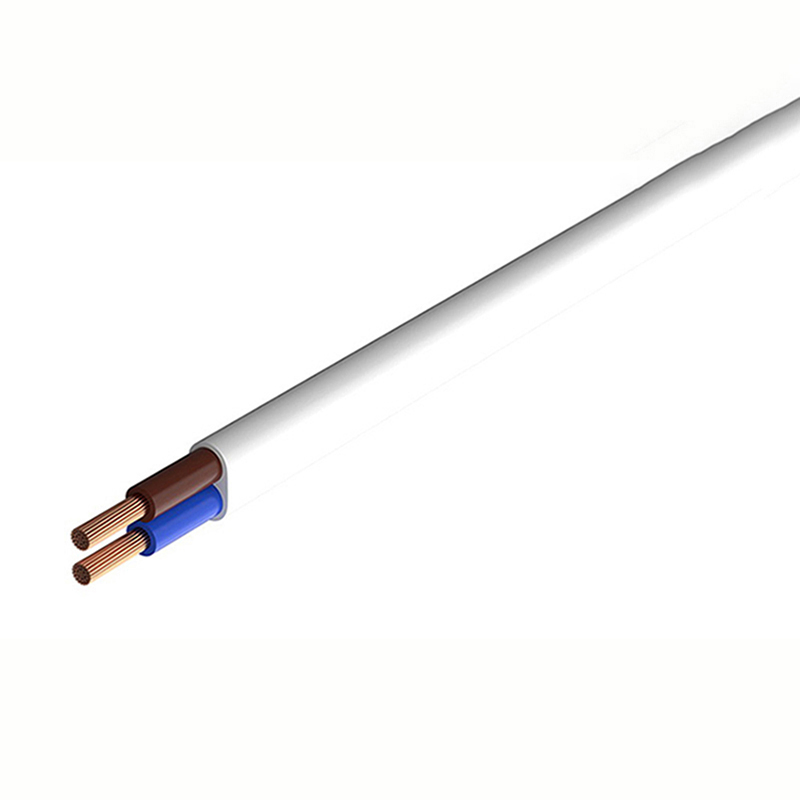

Vsf Stranded Tinned Copper Conductor Housing Electric Wire
VSF Stranded Tinned Copper Conductor Housing Electric WirePRODUCT DESCRIPTION:Rated Temperature 60ºC & 75ºC ConductorBare, stranded or solid copper conductorStandardJIS C3306Application For indoor small electrical instruments Part NO.CoresConductorInsulationJacketMaximum Resist......
Send Inquiry
Product Description
VSF Stranded Tinned Copper Conductor Housing Electric Wire
PRODUCT DESCRIPTION:
PRODUCT DESCRIPTION:
| Rated Temperature | 60ºC & 75ºC | Conductor | Bare, stranded or solid copper conductor |
| Standard | JIS C3306 | Application | For indoor small electrical instruments |
| Part NO. | Cores | Conductor | Insulation | Jacket | Maximum Resistance at 20ºC Ω/km | ||||
| Cross Section mm² | NO./mm | Dia. mm | Nom. Thick. mm | Nom. Dia. mm | Nom. Thick. mm | Nom. Dia. mm | |||
| VSF | 1 | 0.75 | 30/0.180 | 1.10 | 0.80 | 2.70 | - | - | 24.4 |
| HVSF | 0.5 | 20/0.180 | 0.93 | 0.81 | 2.55 | - | - | 40.1 | |
| HVSF | 0.75 | 30/0.180 | 1.10 | 0.80 | 2.70 | - | - | 24.4 | |
| HVSF | 1.25 | 50/0.180 | 1.47 | 0.82 | 3.10 | - | - | 15.1 | |
| HVSF | 2.00 | 37/0.260 | 1.82 | 0.82 | 3.45 | - | - | 9.2 | |
| HCFF | 0.75 | 67/0.120 | 1.13 | 0.82 | 2.75×5.50 | - | - | 24.4 | |
| VFF | 2 | 0.75 | 30/0.177 | 1.11 | 0.82 | 2.75×5.50 | - | - | 24.4 |
| HVFF | 0.75 | 30/0.177 | 1.11 | 0.82 | 2.75×5.50 | - | - | 24.4 | |
| VCTF | 0.75 | 30/0.177 | 1.11 | 0.60 | 2.30 | 1.10 | 6.60 | 24.4 | |
| HVCTF | 0.75 | 30/0.177 | 1.11 | 0.62 | 2.35 | 1.06 | 6.90 | 24.4 | |
| HVCTFK | 3 | 0.75 | 30/0.177 | 1.11 | 0.62 | 2.35 | 1.00 | 4.35×6.70 | 24.4 |
| HVCTF | 0.75 | 30/0.177 | 1.11 | 0.62 | 2.35 | 1.07 | 7.25 | 24.4 | |
| HVCTF | 1.25 | 50/0.177 | 1.48 | 0.61 | 2.70 | 1.06 | 8.00 | 15.1 | |
| *HVCTF-S | 0.75 | 30/0.177 | 1.11 | 0.62 | 2.35 | 0.99 | 7.70 | 24.4 | |
