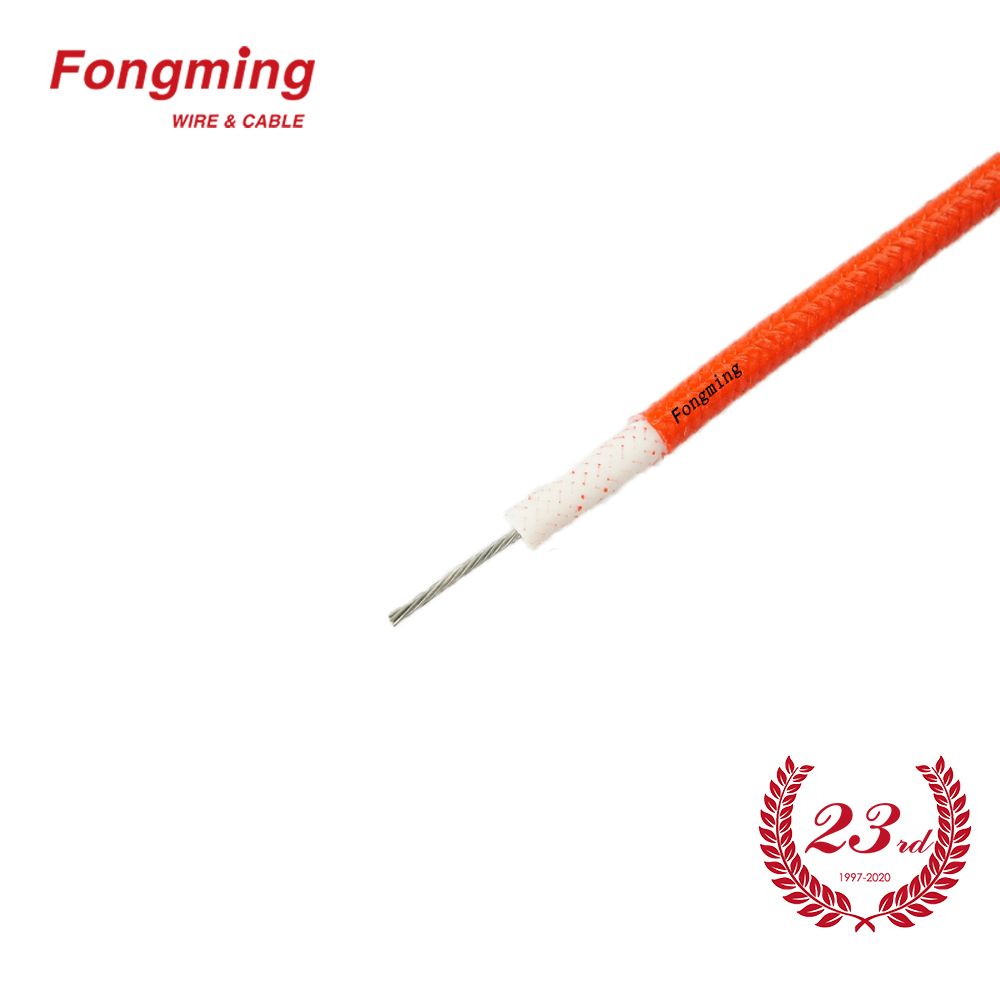

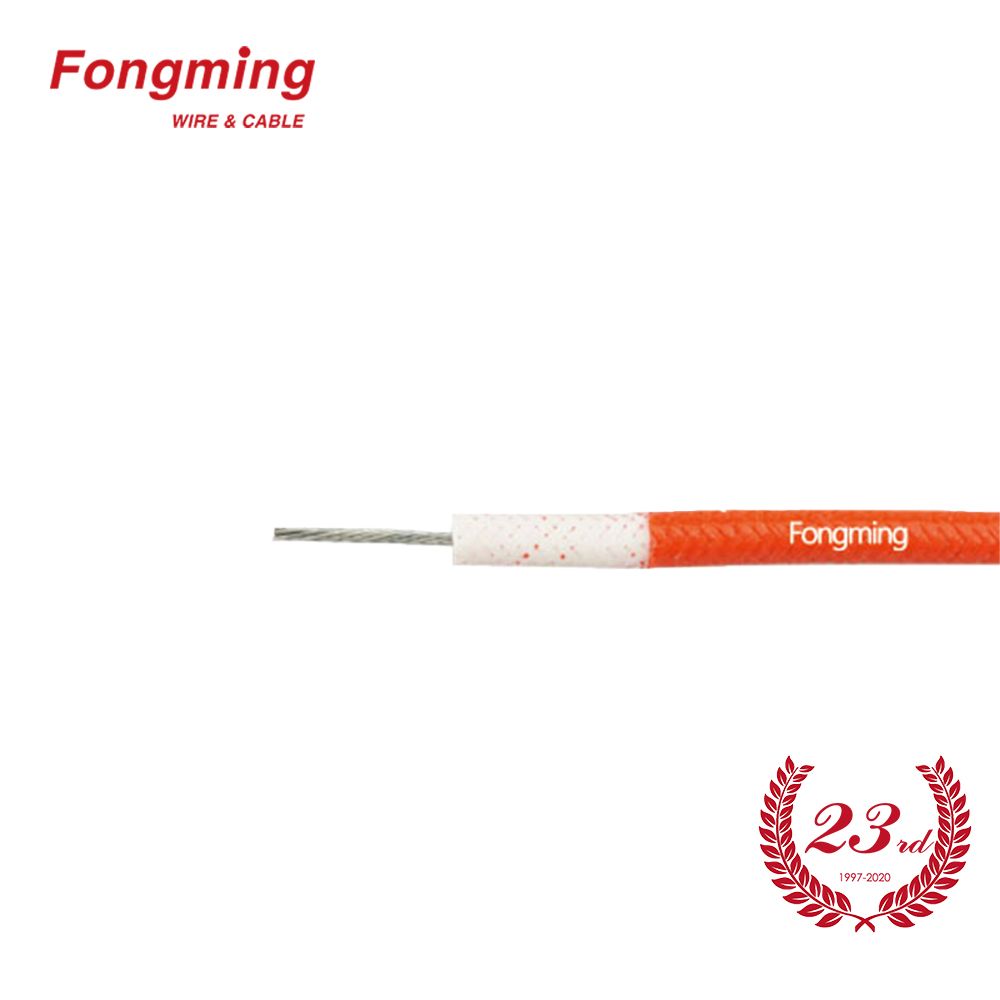

UL3909 Silicone Synthetic Braided Wire

Product Description

Product Description

UL3909 Silicone Synthetic Braided Wire

Description
Name: Silicone Synthetic Braid Wire
Model: UL3909
Size: 16AWG~600kcmil

Feature
Ratings Voltage: 6900V
Rated Temperature: 200ºC

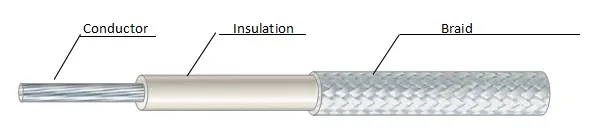

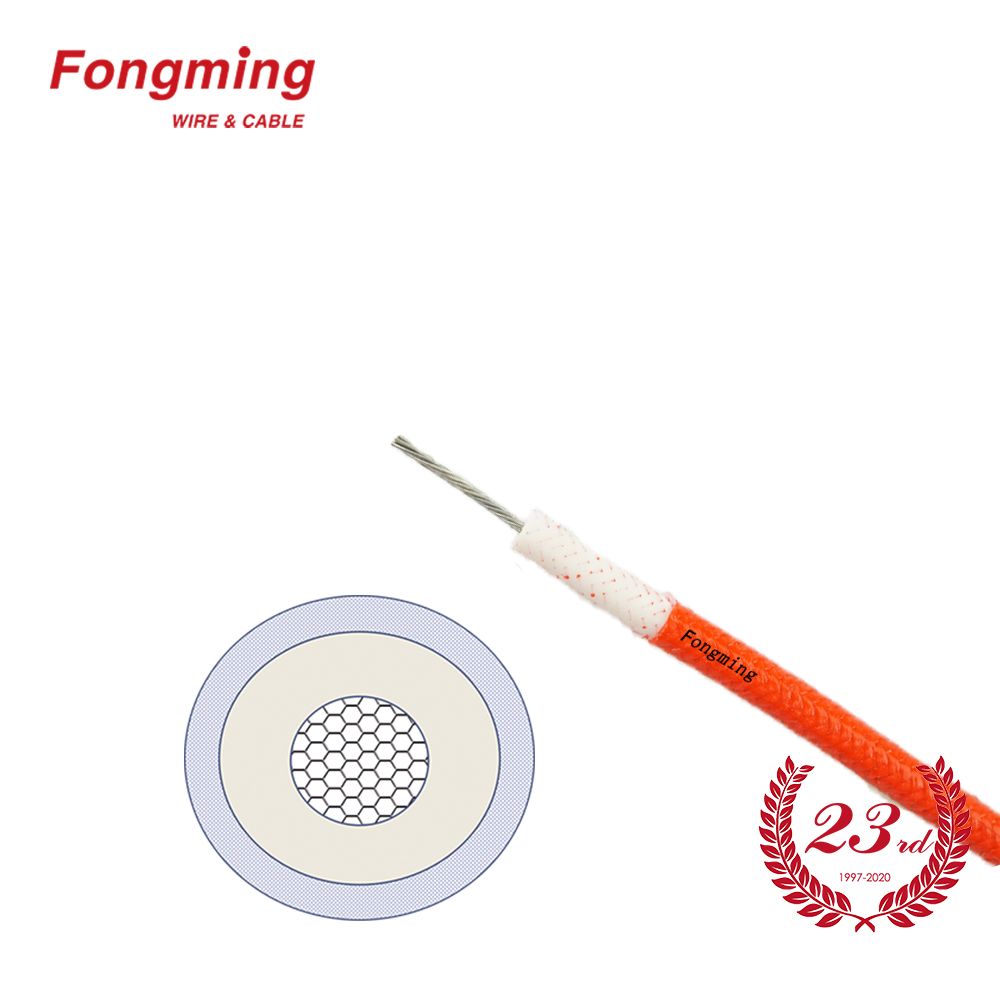

Structure
Conductor: Tinned Copper
Insulation: Silicone Rubber
Jacket: Synthetic braid with Silicone Resin Coating

UL3909 Silicone Synthetic Braided Wire

Size AWG	Conductor Structure (No./mm)	Insulation Nominal Thickness (mm)	Braid Thickness (mm)	Diameter (mm)
16	26/0.254	2.18	0.2	6.4±0.2
14	41/0.254			6.8±0.2
12	65/0.254			7.3±0.2
10	103/0.254		0.25	8.2±0.3
8	163/0.254			9.1±0.3
6	260/0.254			10.2±0.3
4	413/0.254			11.5±0.3
2	168/0.5			13.3±0.4
1	212/0.5			14.3±0.4
1/0	268/0.5			15.5±0.4
2/0	342/0.5			16.7±0.4
3/0	430/0.5			18.3±0.5
4/0	538/0.5			19.8±0.5
250kcmil	633/0.5		0.3	21.0±0.8
300kcmil	760/0.5			21.5±0.8
350kcmil	886/0.5			23.9±0.8
400kcmil	396/0.8			25.2±0.8
500kcmil	495/0.8			27.6±0.8
600kcmil	594/0.8	2.79		31.0±0.8

Certifications

UL3909 Silicone Synthetic Braided Wire

Company Information

UL3909 Silicone Synthetic Braided Wire

Packaging&Shipping

Our Services

1. OEM service available based on official & legal authorization.

2. Strict quality control system.

3. Timely deliverly.

4. Excellent quality with affordable price.

5. Strong technical support.

6. Mobile on 24 hours for any question.

FAQ

1. Why is the price so low?
You are ordering directly from the factory.

2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3. Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?

Yes. customization is welcome .
