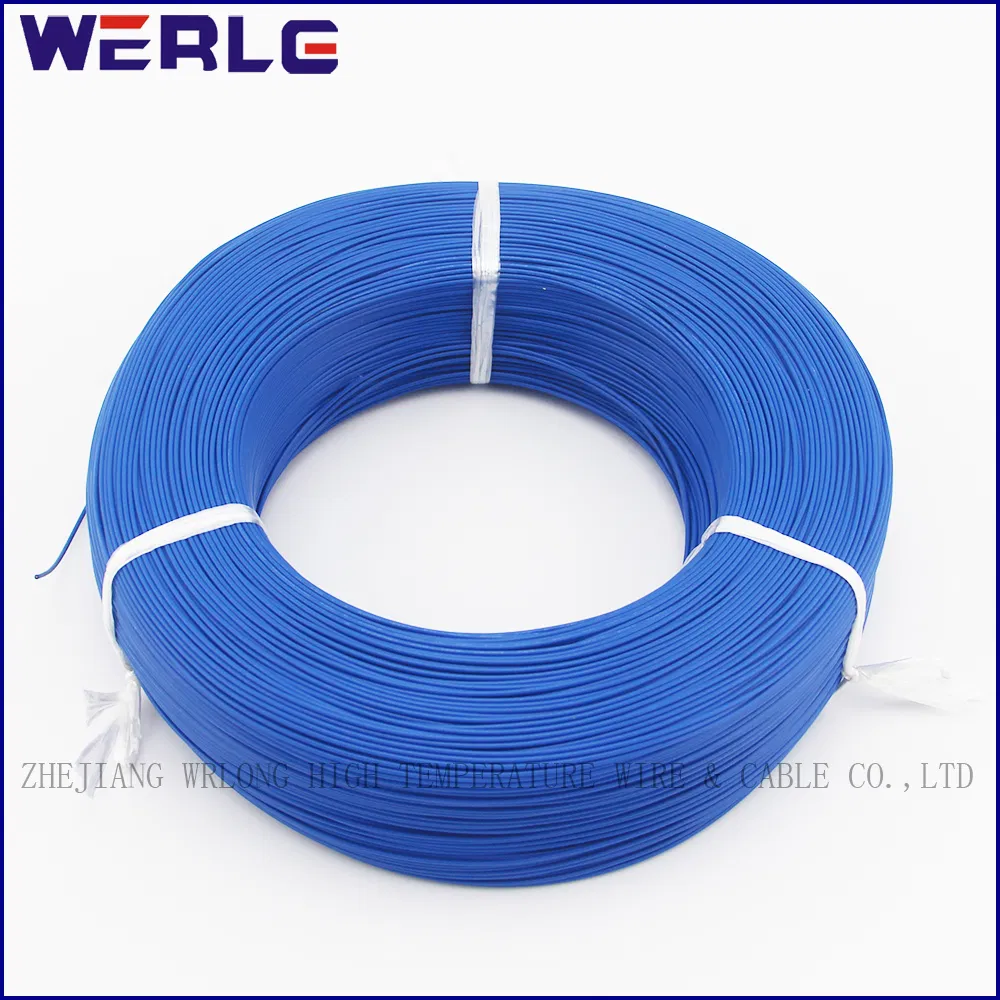

China UL3239 High Temperature Silicone Rubber Insulated Wire 200c 3000V

Product Description

UL3239 High Temperature Silicone Rubber Insulated Wire 200C 3000V
TECHNICAL DATA
Nominal voltage: 3000V
Temperature range: -60ºC~+200ºC
Conductor: Tinned copper
Insulator: Silicone
OD Tolerance: ±0.05mm
Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc
CHARACTERISTIC
High temperature resistance, low temperature resistance, anti-acid and alkali, fire and aging resistance, inoxidizability, resistance of humidity, fine electric insulation and flexible performance UL 758, RoHs compliance.
APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electronic equipment electric machines, temperature sensor, aircraft, aviation, military series, metallurgy chemical series, motor cars & ships , electric heating products, electrical installation, etc.

UL3239	Conductor		Over Diameter		Insulator		Technical Data		Packing(m/roll)
Size	Conductor Construction No./mm	Diameter mm	Average OD ±0.05mm²	Min OD ±0.05mm²	Material	Colour	Temperature Range(ºC)	Nominal voltage	Packing(m/roll)
26AWG	7/0.16	0.48	1.56	1.49	silicone rubber	red,yellow, blue,green, black,white, purple,brown, orange, yellow-green, transparent	:-60ºC~+200ºC	3000V	610
24AWG	11/0.16	0.61	1.68	1.61					610
22AWG	17/0.16	0.76	1.84	1.77					610
22AWG	7/0.25	0.76	1.84	1.77					610
20AWG	26/0.16	0.94	2.02	1.95					610
18AWG	41/0.16	1.18	2.26	2.19					610
16AWG	26/0.254	1.49	2.57	2.50					305
14AWG	41/0.254	1.87	2.95	2.88					305
12AWG	65/0.254	2.39	3.47	3.40					305
10AWG	49/0.37	3.00	4.06	3.99					305
