Product Description

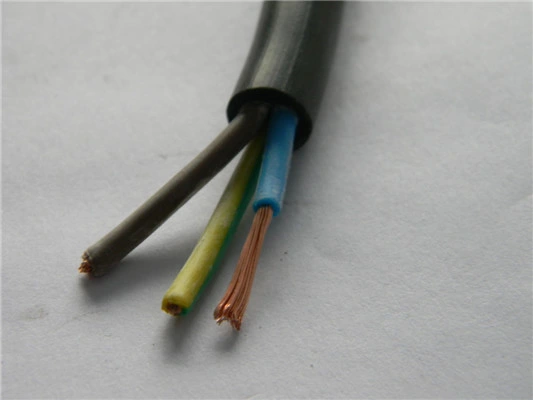

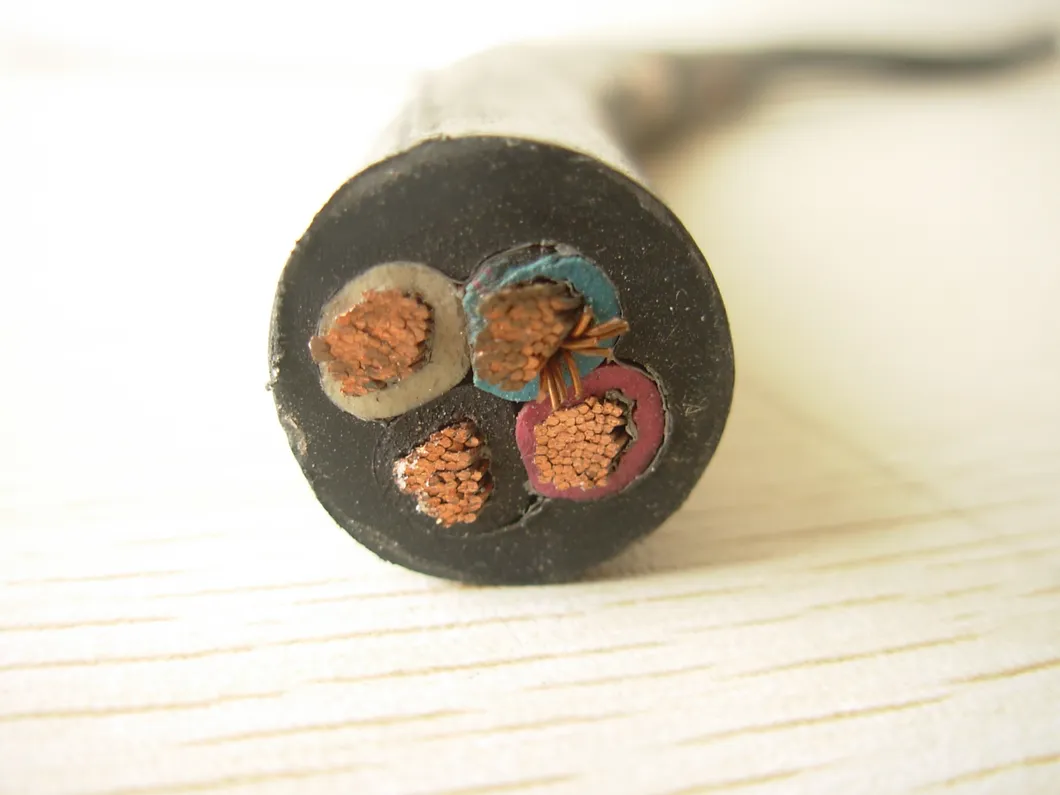

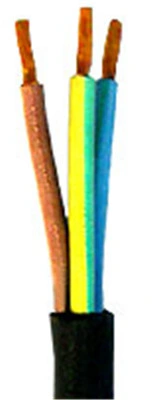

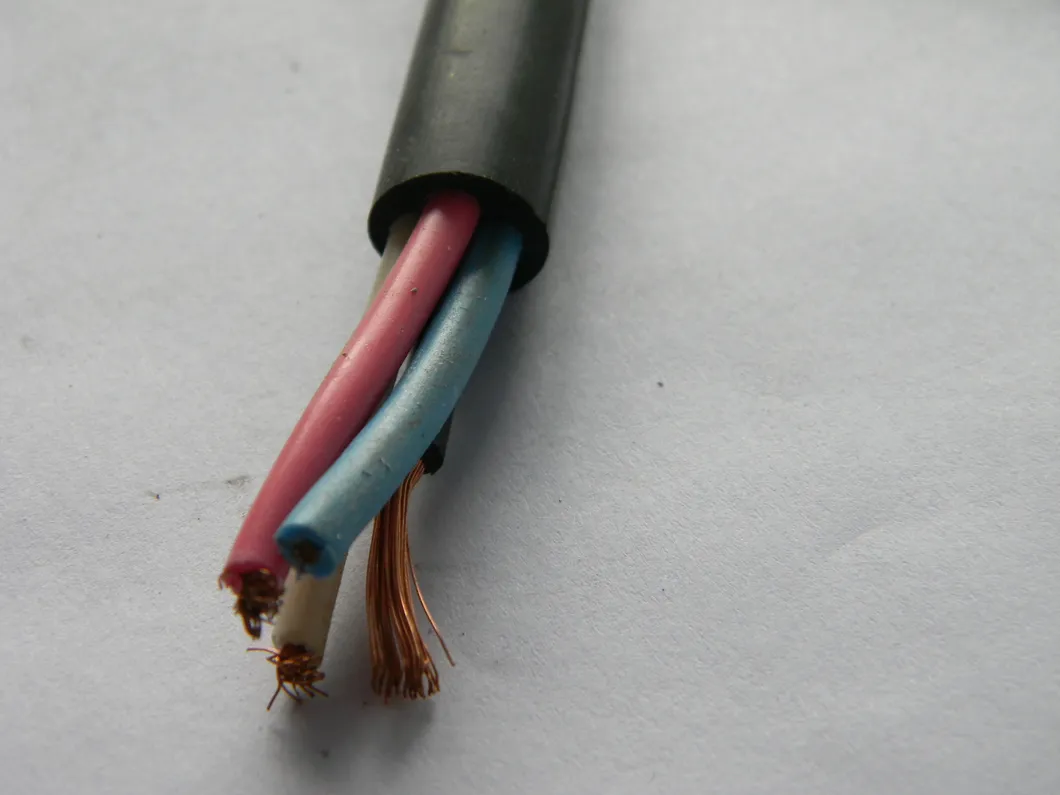

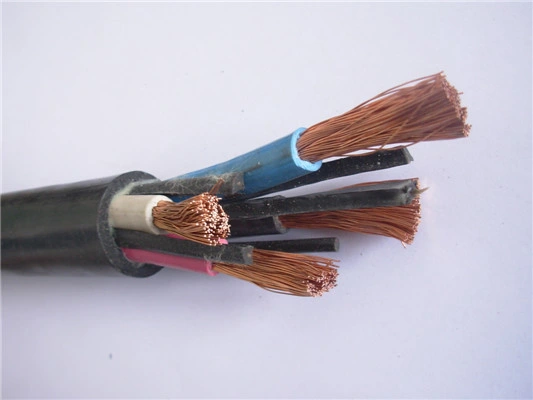

H07RN-F Cable Construction:
- Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
- Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
- Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
- Conductor Stranding: from 2 conductors stranded in layers
- Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
- Jacket Color: Black
H07RN-F Cable Technical Data:
- Nominal Voltage: Uo/U 450/750 volts
- Testing Voltage U: 2500 volts acc. to DIN VDE 0282 part 2 + HD 22.2
- Min. Bending Radius: 15 x O.D.
H07RN-F Cable Ratings & Approvals:
- Temperature Range: -25°C to +60°C
- VDE
- HAR
- CE
Working temperature:
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60C
| HAR Code | IEC | Description | Voltage Design | Cores |
| H05RR-F | 60245IEC 53(YZ)/YZ | Ordinary rubber sheathed cord | 300/500V | 2~6 |
| H05RN-F | 60245 IEC 57(YZW)/YZW | Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord | 300/500V | 2~6 |
| H07RN-F | 60245 IEC 66(YCW)/YC | Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable | 450/750V | 1~5, 3+1/3+2/4+1 |
| H01N2-D | 60245 IEC 81(YH) | Rubber sheathed arc-welding electrode cable | 100/100V | 10-120 |
| 60245 IEC 82(YHF) | polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable | 100/100V | 10-120 |
The Product Model & Specification
Core no. x Nominal sectional area (mm2) | Pcs./Wire dia. (mm) | Insulation thickness(mm) | Sheath thickness (mm) | Average outer dia.(mm) | Weight Reference kg/km | Max DC resistance of conductor at20°C Ω/km | |
Min. | Max. | ||||||
1×1.5 | 30/0.25 | 0.8 | 1.4 | 5.7 | 7.1 | 76 | 13.3 |
1×2.5 | 49/0.25 | 0.9 | 1.4 | 6.3 | 7.9 | 98 | 7.98 |
1×4 | 56/0.30 | 1.0 | 1.5 | 7.2 | 9.0 | 130 | 4.95 |
1×6 | 84/0.30 | 1.0 | 1.6 | 7.9 | 9.8 | 174 | 3.30 |
1×10 | 84/0.40 | 1.2 | 1.8 | 9.5 | 11.9 | 251 | 1.91 |
1×16 | 126/0.40 | 1.2 | 1.9 | 10.8 | 13.4 | 330 | 1.21 |
1×25 | 196/0.40 | 1.4 | 2.0 | 12.7 | 15.8 | 475 | 0.780 |
1×35 | 276/0.40 | 1.4 | 2.2 | 14.3 | 17.9 | 605 | 0.554 |
1×50 | 396/0.40 | 1.6 | 2.4 | 16.5 | 20.6 | 828 | 0.386 |
