UL3239 3kv 200c High Voltage High Temperature Silicone Coated Wire
Product DescriptionUL3239 Silicone Rubber Insulated High Voltage Electrical WireDescriptionName: Silicone Rubber Insulated High Voltage Electrical WireModel: UL3239Size: 24~10AWGFeatureRatings Voltage: 10KVRated Temperature: 200ºCStructureConductor: Copper, Tinned CopperInsulation: Silicone......
Send Inquiry
Product Description
Product Description

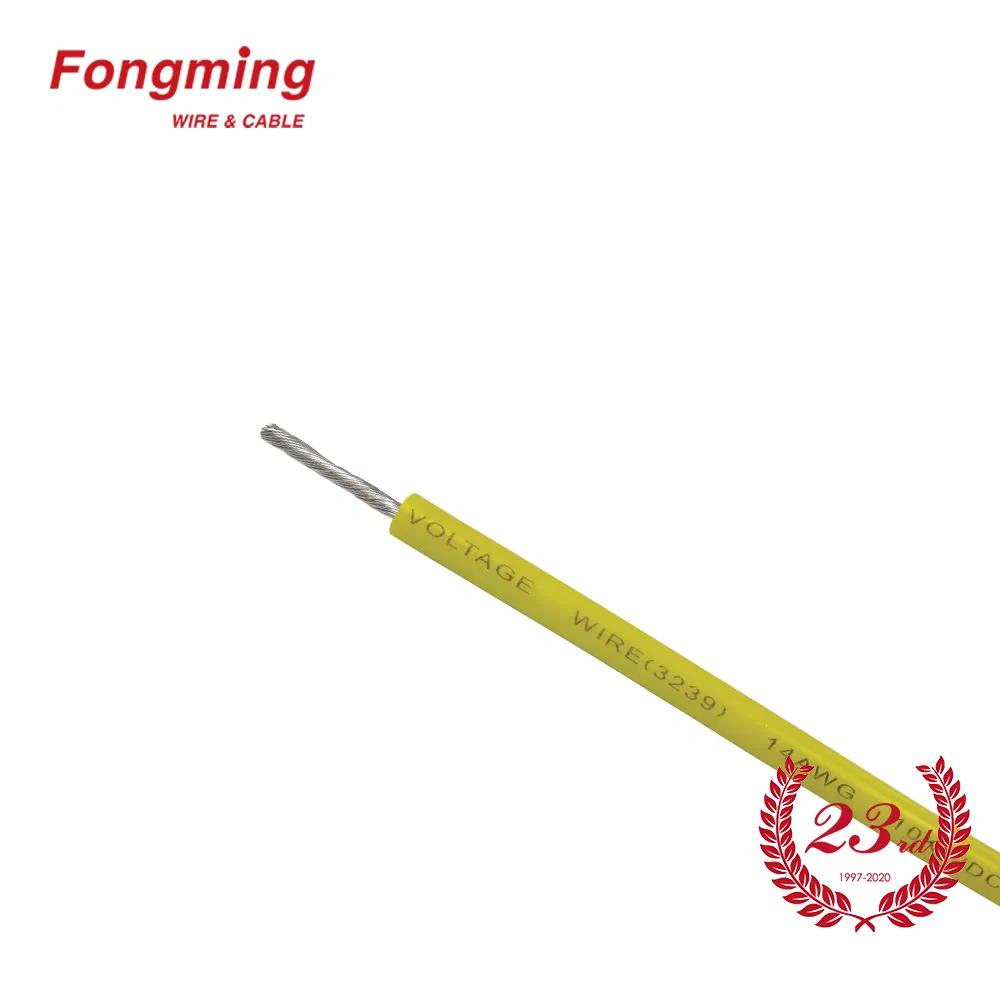

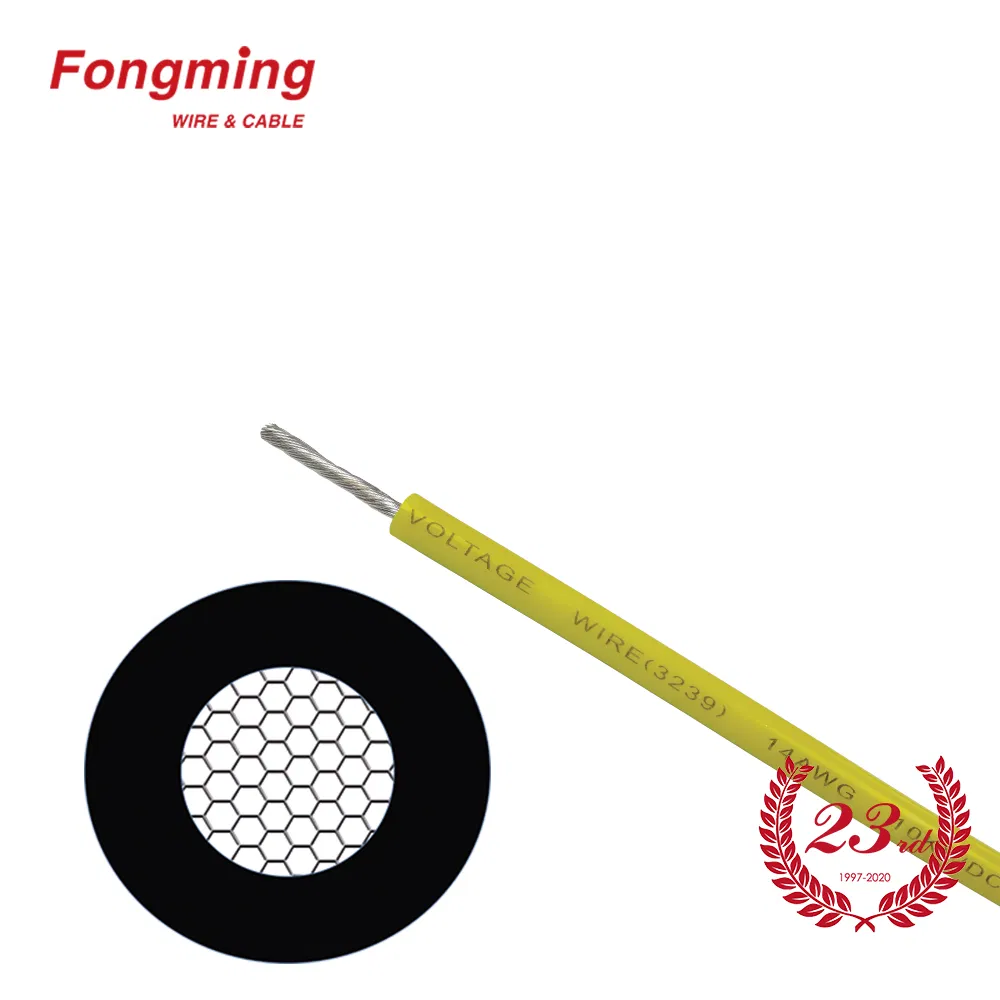

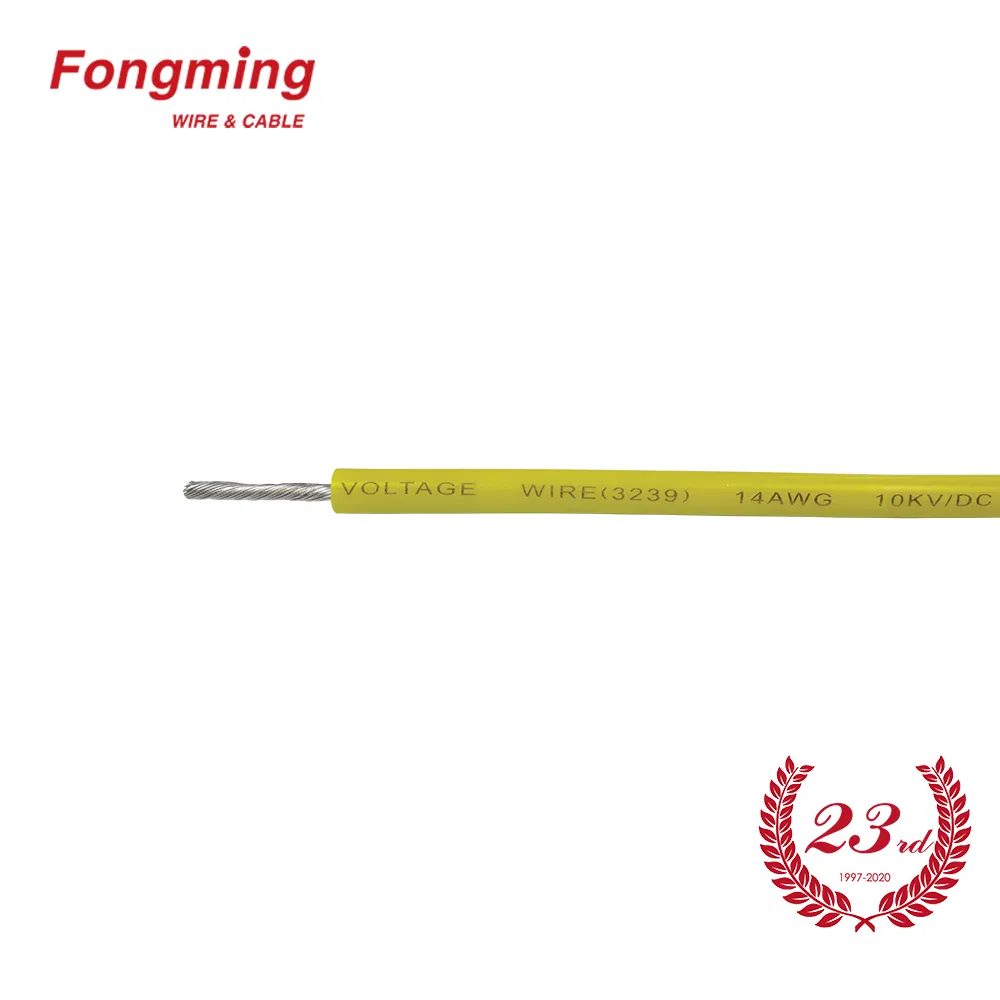

UL3239 Silicone Rubber Insulated High Voltage Electrical Wire
Description
Name: Silicone Rubber Insulated High Voltage Electrical Wire
Model: UL3239
Size: 24~10AWG
Feature
Ratings Voltage: 10KV
Rated Temperature: 200ºC

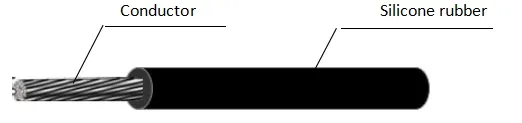

Structure
Conductor: Copper, Tinned Copper
Insulation: Silicone Rubber
| Conductor AWG | Conductor Construction (No./mm) | Insulation Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (AT 20ºCΩ/km) |
| 18 | 16/0.254 16/0.26 | ≥1.15 | 3.6±0.1 | 23.5 |
| 16 | 26//0.254 26/0.26 | 3.9±0.1 | 14.6 | |
| 14 | 41//0254 41/0.254 | 4.3±0.2 | 8.96 | |
| 12 | 65/0.254 | 4.8±0.2 | 5.64 | |
| 10 | 105/0.254 | 5.6±0.2 | 3.54 |
Certifications
Company Information
Packaging&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why is the price so low?
You are ordering directly from the factory.
2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3. Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
