Product Description

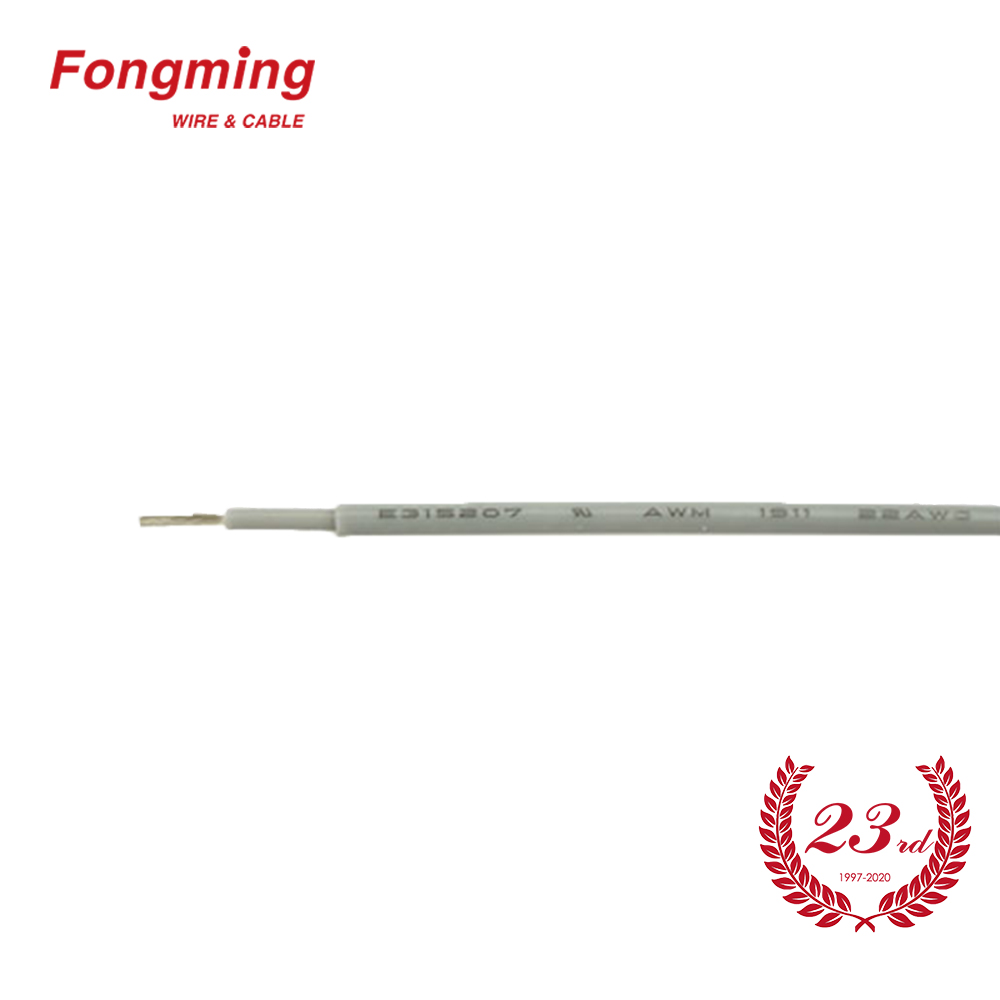

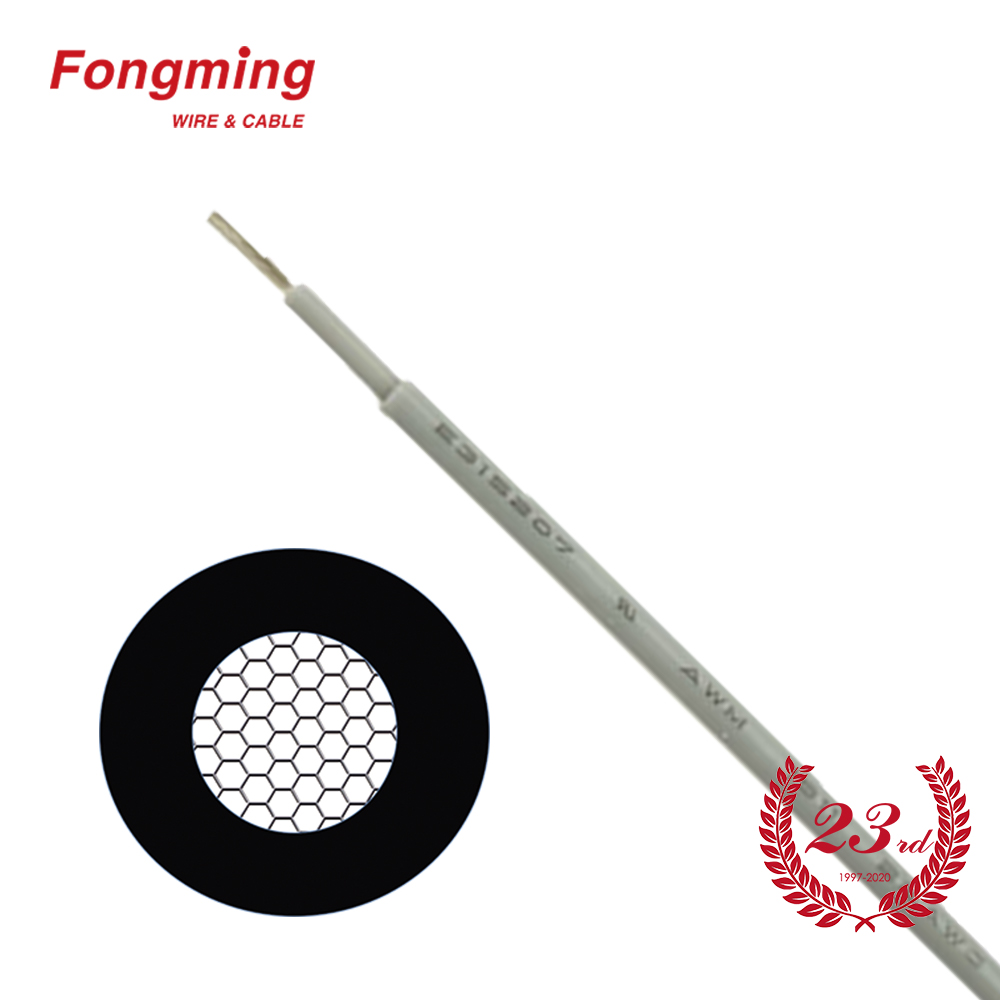

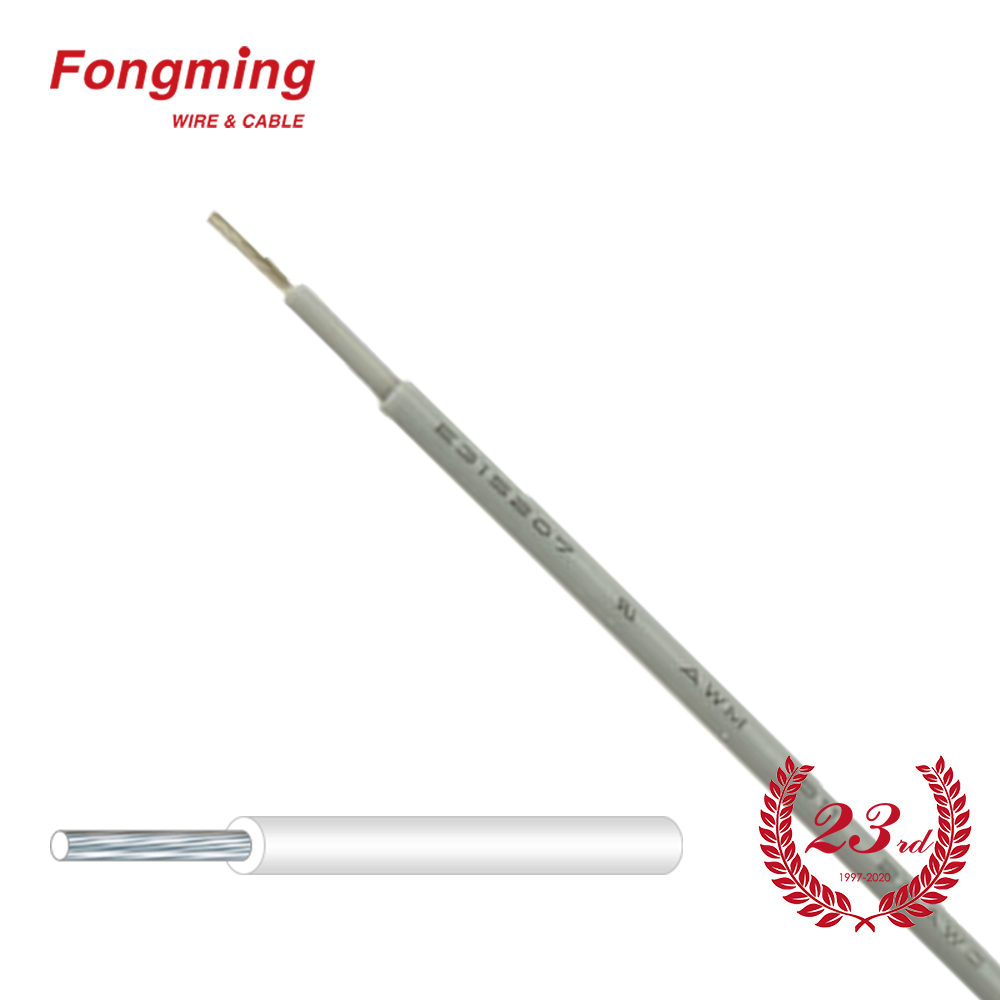

UL1911 High Voltage Electric Lead Wire with PFA Insulation
Description
Name: High Voltage Electric Lead Wire with PFA Insulation
Model: UL1911
Size: 24~10AWG
Feature
Ratings Voltage: 5.0,10.0,15.0,20.0,25.0KVDC
Rated Temperature: 250C

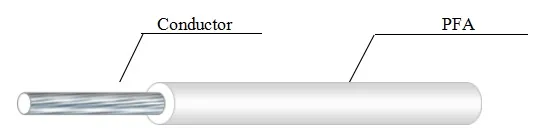

Structure
Conductor: Tinned Copper/ Nickel Plated Copper
Insulation: Extruded PFA
Standard: UL758, UL1581
| Size AWG | Conductor Construction (No./mm) | 5.0KVDC | 10.0KVDC | 15.0KVDC | 20.0KVDC | 25.0KVDC | |||||
| Thickness (mm) | O.D (mm) | Thickness (mm) | O.D (mm) | Thickness (mm) | O.D (mm) | Thickness (mm) | O.D (mm) | Thickness (mm) | O.D (mm) | ||
| 24 | 7/0.2 | 0.56 | 1.8±0.1 | 0.6 | 1.9±0.1 | 0.65 | 2.0±0.1 | 0.7 | 2.1±0.1 | 0.75 | 2.2±0.1 |
| 22 | 7/0.254 | 0.56 | 1.9±0.1 | 0.6 | 2.0±0.1 | 0.65 | 2.1±0.1 | 0.7 | 2.2±0.1 | 0.75 | 2.3±0.1 |
| 20 | 7/0.32 | 0.56 | 2.1±0.1 | 0.6 | 2.2±0.1 | 0.65 | 2.3±0.1 | 0.7 | 2.4±0.1 | 0.75 | 2.5±0.1 |
| 18 | 7/0.39 | 0.56 | 2.3±0.1 | 0.6 | 2.4±0.1 | 0.65 | 2.5±0.1 | 0.7 | 2.6±0.1 | 0.75 | 2.7±0.1 |
| 16 | 19/0.3 | 0.56 | 2.7±0.1 | 0.6 | 2.8±0.1 | 0.65 | 2.9±0.1 | 0.7 | 3.0±0.1 | 0.75 | 3.1±0.1 |
| 14 | 19/0.37 | 0.56 | 3.1±0.1 | 0.6 | 3.2±0.1 | 0.65 | 3.3±0.1 | 0.7 | 3.4±0.1 | 0.75 | 3.5±0.1 |
| 12 | 19/0.48 | 0.56 | 3.6±0.2 | 0.6 | 3.7±0.1 | 0.65 | 3.8±0.2 | 0.7 | 3.9±0.2 | 0.75 | 4.0±0.2 |
| 10 | 37/0.43 | 0.56 | 4.2±0.2 | 0.6 | 4.3±0.1 | 0.65 | 4.4±0.2 | 0.7 | 4.5±0.2 | 0.75 | 4.6±0.2 |
Certifications

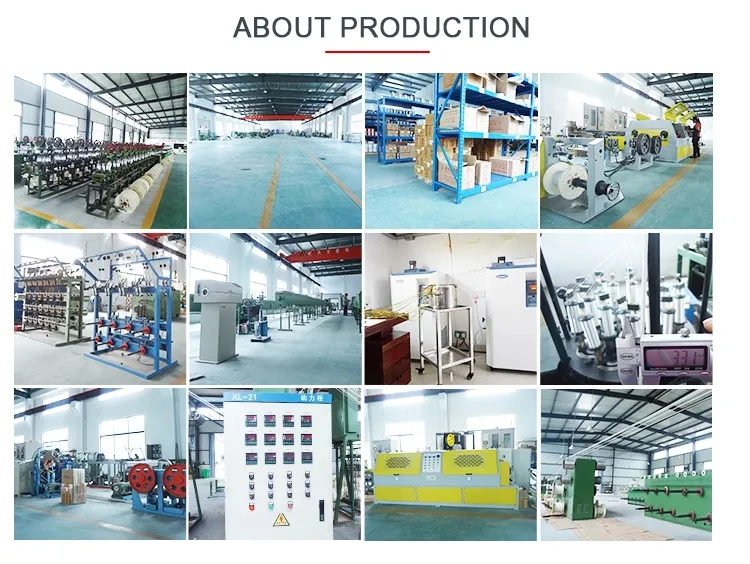

Company Information
