UL Electrical Cable Awm 1185 Shielded Wire with Single Conductor
UL electrical cable awm 1185 shielded wire with single conductorModel: UL1185 single conductor shielded wireRated Voltage: 300VRated Temperature: 60°CReference standard: Subject UL758, UL1581 & CSA C22.2 No.210Conductor: solid or stranded, bare or tinned copper30-4/0 AWGLead free PVC ins......
Send Inquiry
Product Description

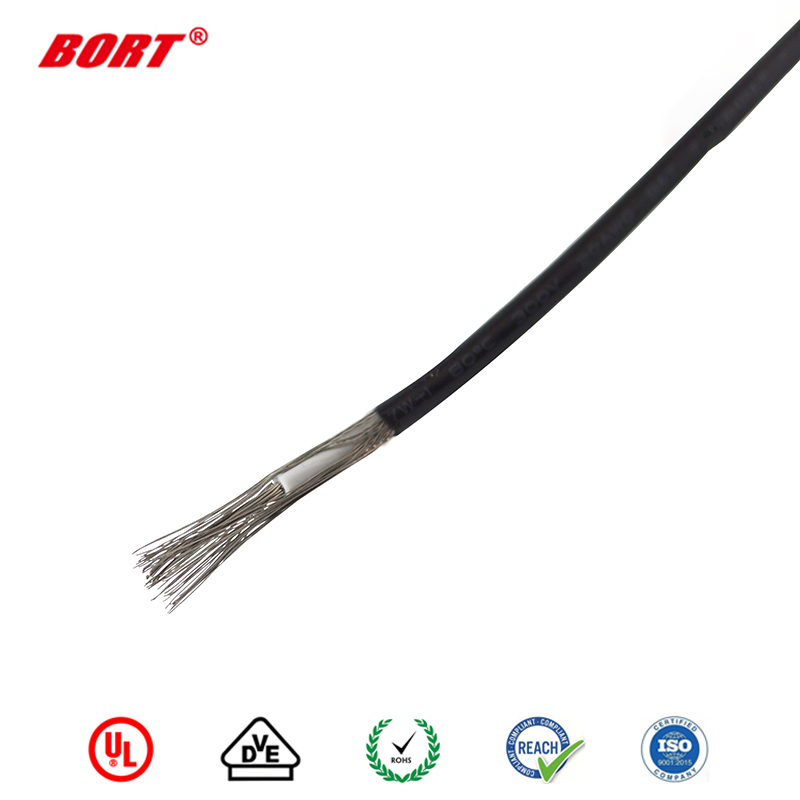

UL electrical cable awm 1185 shielded wire with single conductor
- Model: UL1185 single conductor shielded wire
- Rated Voltage: 300V
- Rated Temperature: 60°C
- Reference standard: Subject UL758, UL1581 & CSA C22.2 No.210
- Conductor: solid or stranded, bare or tinned copper
- 30-4/0 AWG
- Lead free PVC insulation
- Tinned or bare copper wire, spiral shield
- Lead free PVC jacket
- Passes UL VW-1 & CSA FT1 vertical flame test
- For use in recording studios, sound systems and electronic circuits and power adaptor for portable PC
| Conductor | Finished product | ||||
| AWG | NO.of Cond/mm | Insulated Thick. | Braid Shield | Jacket Thick. | Outside Thick. |
| mm | No./d | mm | mm | ||
| 30 | 7/0.1 | 0.41 | 32/0.10 | 0.40 | 2.10 |
| 28 | 7/0.127 | 0.41 | 34/0.10 | 0.40 | 2.20 |
| 26 | 7/0.16 | 0.41 | 37/0.10 | 0.40 | 2.30 |
| 24 | 11/0.16 | 0.41 | 40/0.10 | 0.40 | 2.40 |
| 22 | 17/0.16 | 0.41 | 45/0.10 | 0.40 | 2.60 |
| 20 | 21/0.178 | 0.41 | 50/0.10 | 0.40 | 2.80 |
| 18 | 34/0.178 | 0.41 | 58/0.10 | 0.40 | 3.10 |
| 16 | 26/0.254 | 0.41 | 66/0.10 | 0.40 | 3.40 |
| 28 | 1/0.320 | 0.41 | 33/0.10 | 0.40 | 2.15 |
| 26 | 1/0.404 | 0.41 | 36/0.10 | 0.40 | 2.25 |
| 24 | 1/0.511 | 0.41 | 38/0.10 | 0.40 | 2.35 |
| 22 | 1/0.643 | 0.41 | 42/0.10 | 0.40 | 2.50 |
| 20 | 1/0.813 | 0.41 | 46/0.10 | 0.40 | 2.65 |
| 18 | 1/1.024 | 0.41 | 51/0.10 | 0.40 | 2.85 |
