China UL 1007 30 AWG White Power PVC Copper Conductor Electrical Power Coaxial Electric Wire

Product Description

UL 1007 30 AWG TV White Power PVC Copper Conductor Electrical Power Coaxial Electric Cable

TECHNICAL DATA
Rated voltage: 300V
Rated temperature:-40ºC~+80ºC
Conductor: Tinned or bare, strand or solid copper
Insulator: PVC
OD Tolerance: ±0.05mm

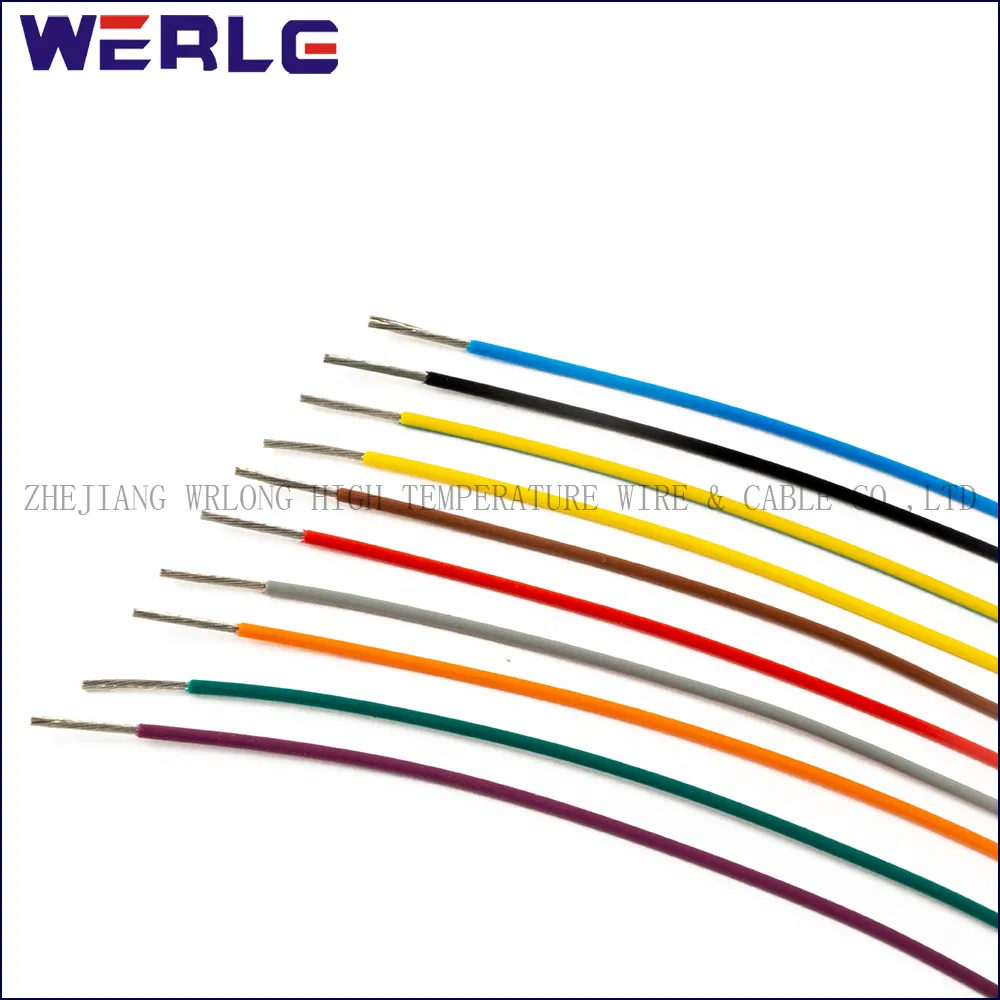

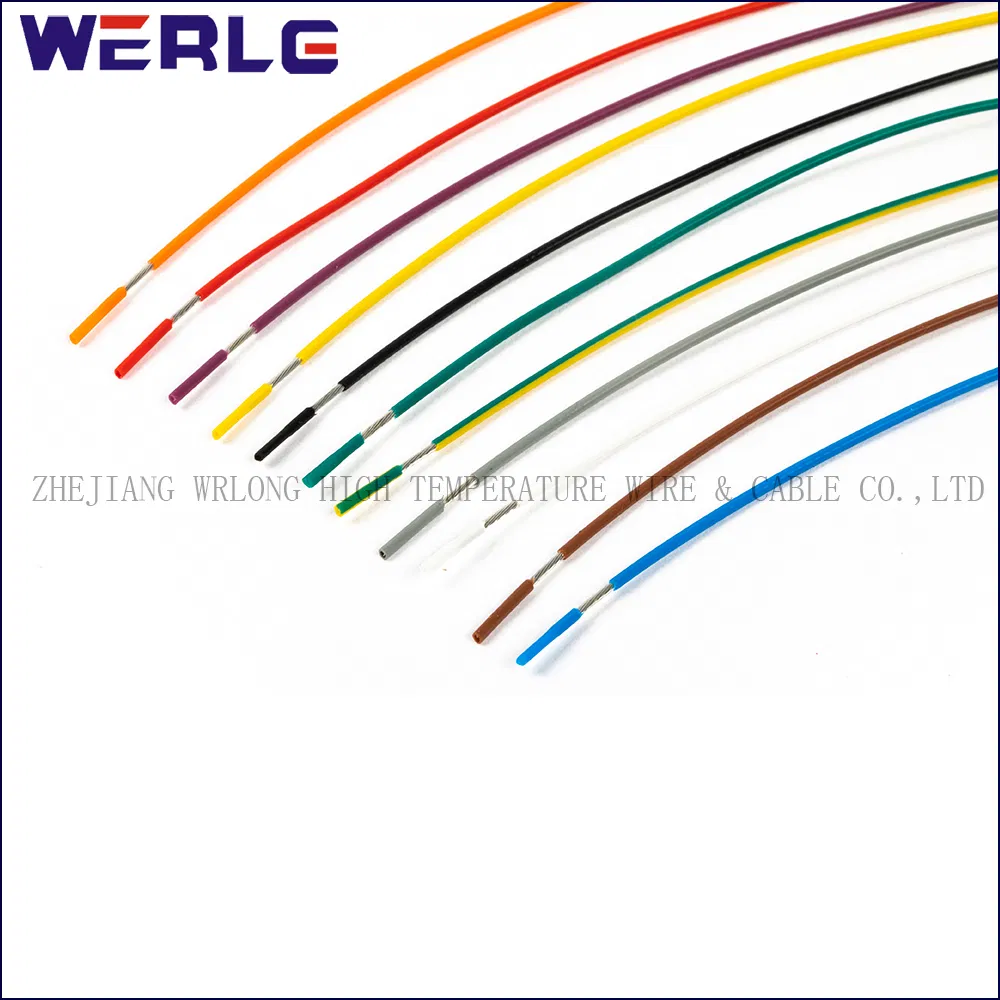

Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc

CHARACTERISTIC
Flexible, easy assemble, cold resistance, stable performance, UL 758, RoHs compliance.

APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, military series, metallurgy chemical series, motor cars & ships, electrical installation.

UL1007	Conductor		Over Diamter ±0.05mm²	Insulator			Technical Data		Packing(m/roll)
Size	Conductor Construction No./mm	Diameter mm	Over Diamter ±0.05mm²	Material	Average Thickness mm	Colour	Temperature Range(ºC)	Nominal voltage	Packing(m/roll)
32 AWG	7/0.08	0.24	1.O5	PVC	0.403	red,yellow, blue,green, black,white, purple,brown, orange, yellow-green, transparent	80ºC	300V	610
30 AWG	7/0.1	0.3	1.11	PVC	0.402				610
28 AWG	7/0.127	0.38	1.19	PVC	0.401				610
26 AWG	7/0.16	0.48	1.29	PVC	0.401				610
24 AWG	11/0.16	0.61	1.42	PVC	0.404				610
22 AWG	17/0.16	0.76	1.57	PVC	0.404				610
20 AWG	26/0.16	0.94	1.75	PVC	0.404				305
18 AWG	41/0.16	1.18	1.99	PVC	0.403				305
16 AWG	26/0.254	1.49	2.29	PVC	0.397				305
14 AWG	41/0.254	1.86	2.68	PVC	0.401				305
