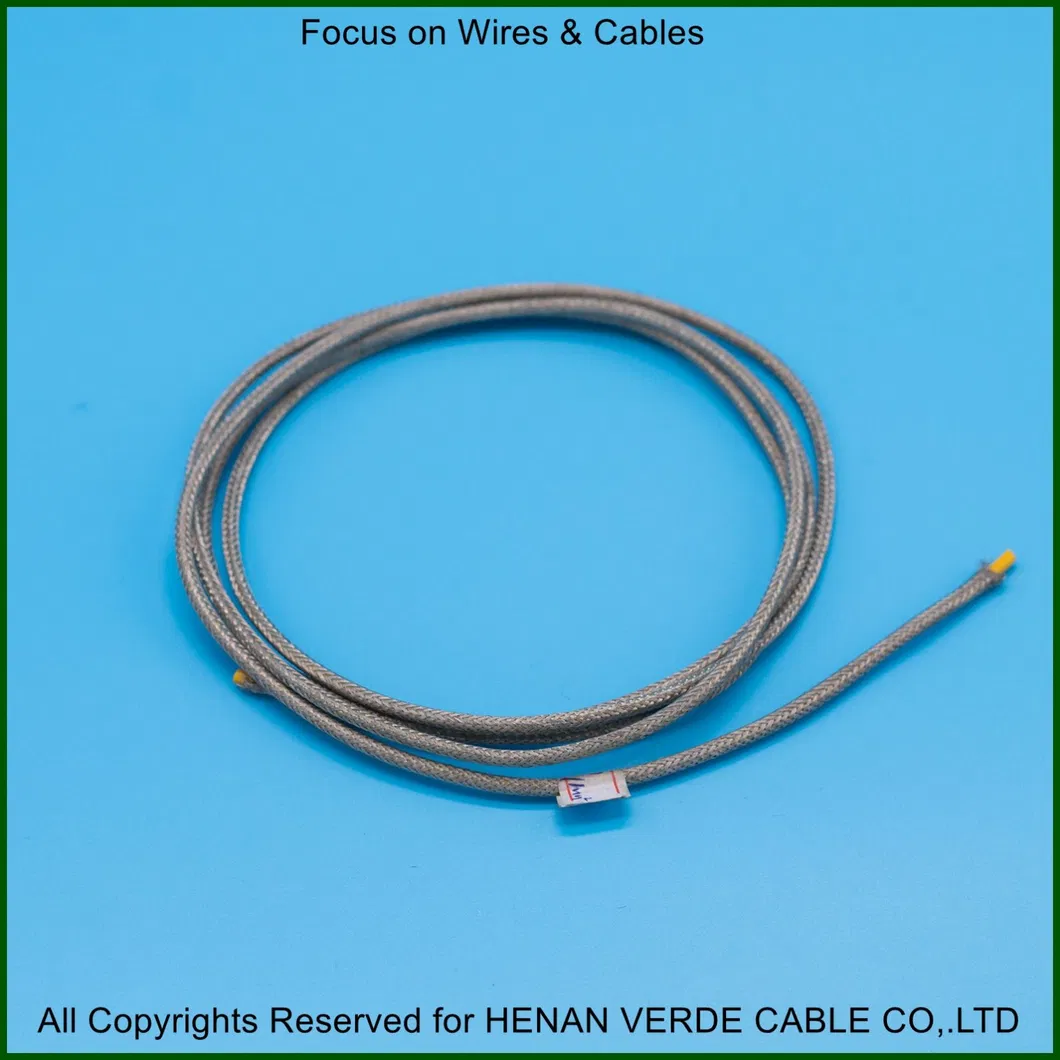

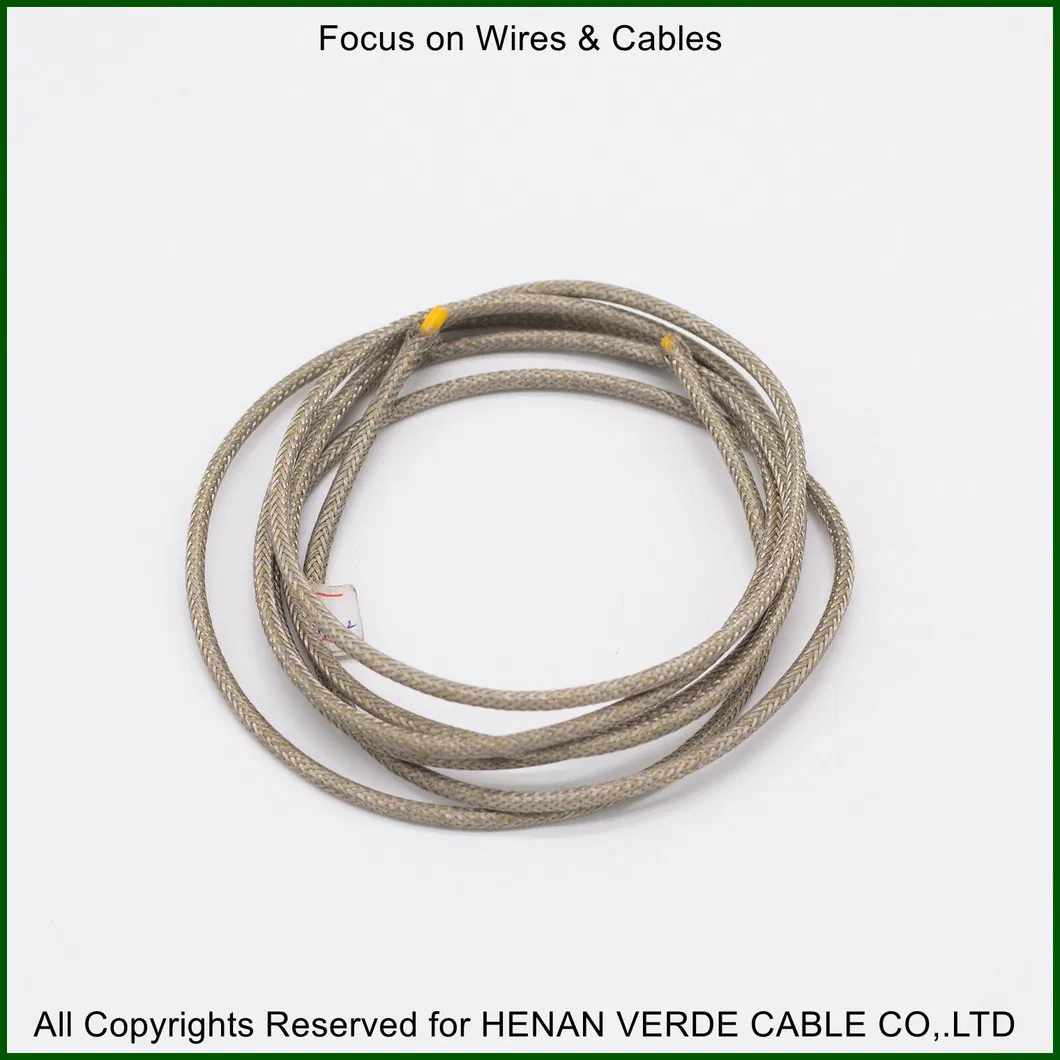

China Tinned Wire Braided Shielded PFA PTFE Paf PTFE Insulated Electronic Wire

Product Description

High temperature Resistant Cable PAF PTFE insulated Coated Electric Wire with Military Quality

Different specifications can be Customized according to your requirement.

Application:
Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below. It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire; household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.

Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage

Rated voltage:600V and below

Test of power-frequency withstand voltage:3000V

Temperature range:-65~+200ºC

Conductor: tinned copper or silver-plated copper

Insulation: FEP

Color:red yellow blue green white black orange purple brown

Specification for AF200

Conductor Nominal Section(mm2)	Conductor Construction (No/mm)	Average. Insulation Thickness (mm)	Calculated. Outer Diameter (mm)	D.C. conductor resistance at 20ºC(Ω/km)
Conductor Nominal Section(mm2)	Conductor Construction (No/mm)	Average. Insulation Thickness (mm)	Calculated. Outer Diameter (mm)	Tinned copper	Silver coated copper
0.035	7/0.08	0.20	0.64	562	550
0.05	10/0.08	0.30	0.90	383	370
0.06	7/0.10	0.30	0.90	348	339
0.08	7/0.12	0.30	0.96	286	280
0.10	7/0.14	0.30	1.02	157	150
0.12	7/0.15 30/0.07	0.30	1.05	152	145
0.14	7/0.16 19/0.10	0.30	1.08	136	130
0.15	30/0.08	0.30	1.10	111	105
0.20	7/0.02 19/0.12	0.30	1.20	87	82
0.35	19/0.16	0.30	1.40	57	54
0.50	19/0.18	0.30	1.50	40	37.5
0.80	19/0.23	0.32	1.79	24	23
1.00	19/0.26	0.35	2.00	21	20
1.20	19/0.28	0.45	2.30	19	18
1.50	19/0.32	0.45	2.50	13	12
2.00	19/0.37	0.45	2.75	10	9
2.50	37/0.30	0.55	3.20	8	7
3.00	37/0.32	0.68	3.60	6.8	6.4

More Specifications can be CUSTOMIZED according to yoru requirement.

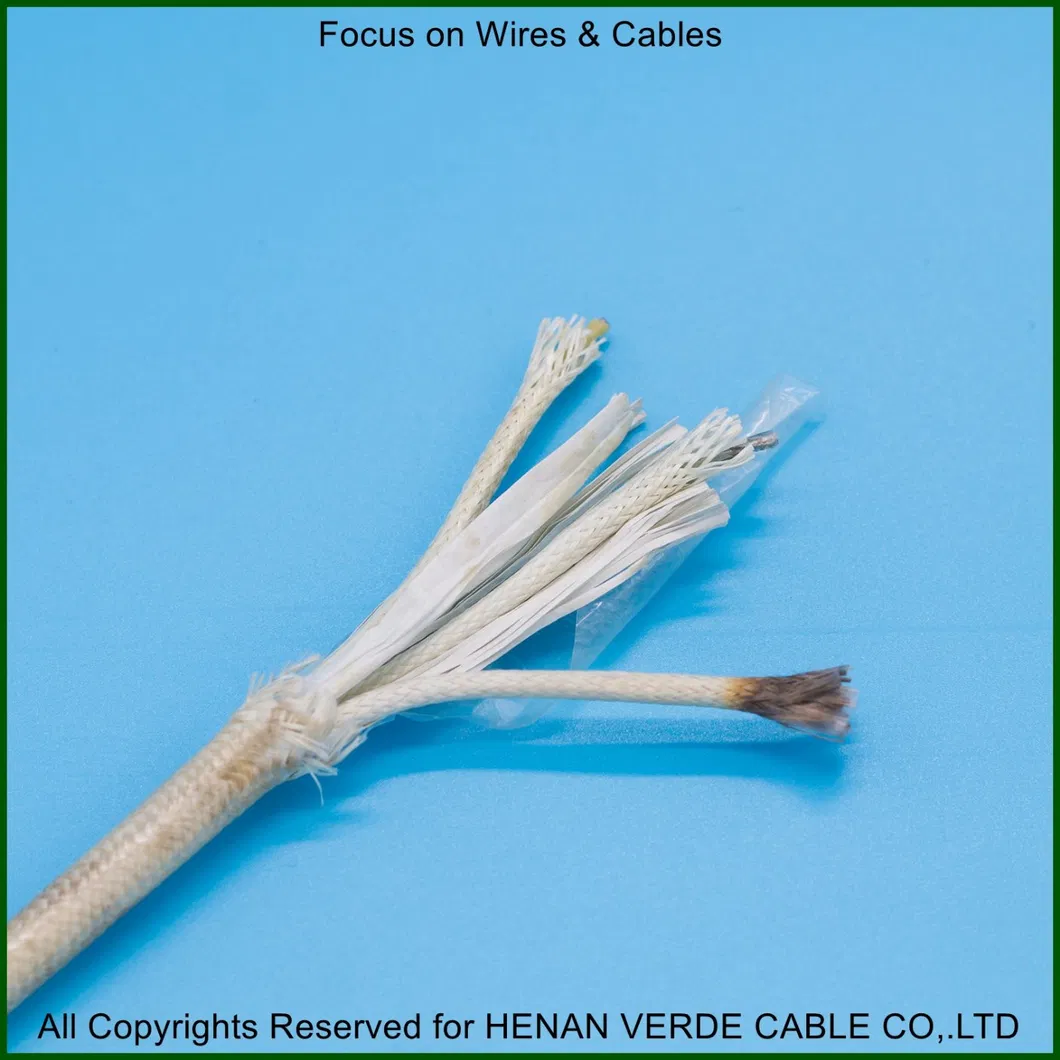

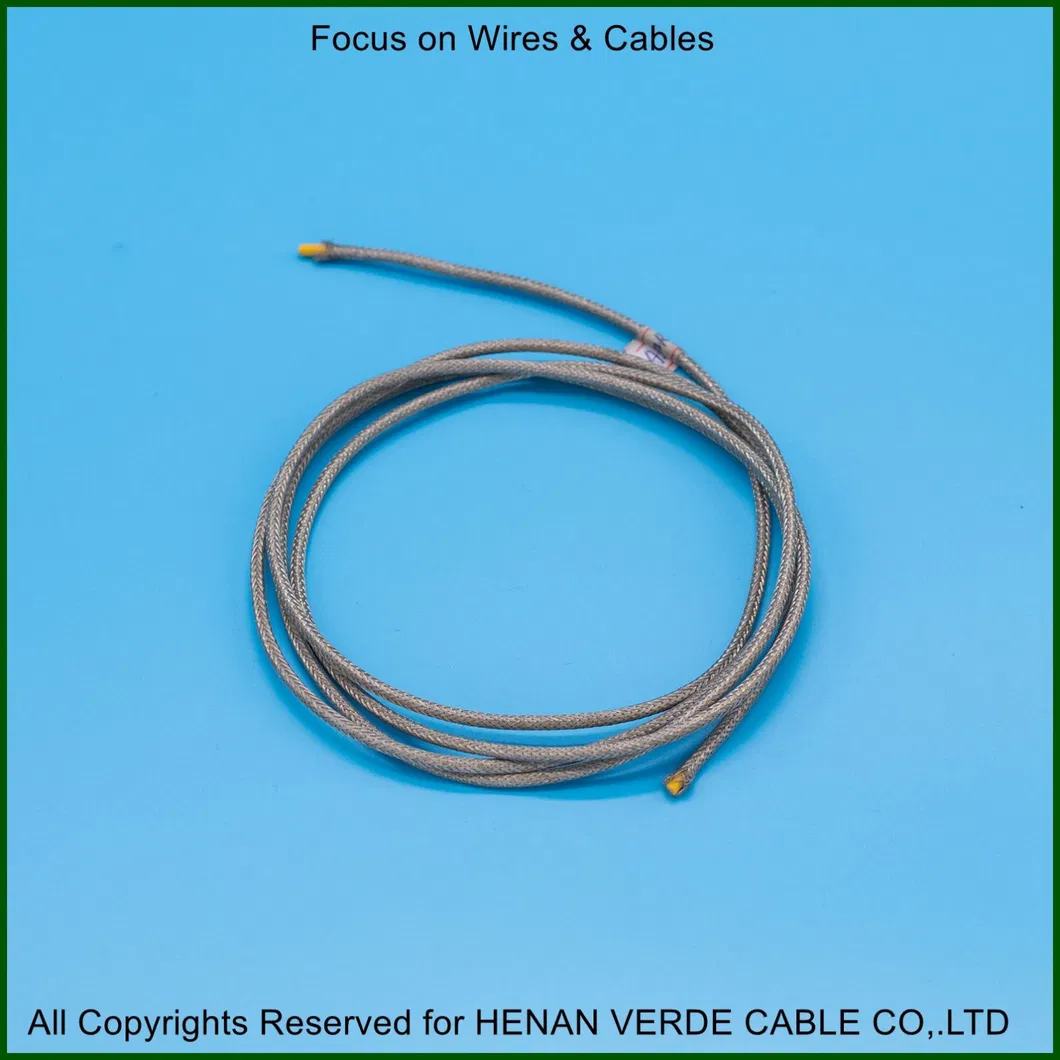

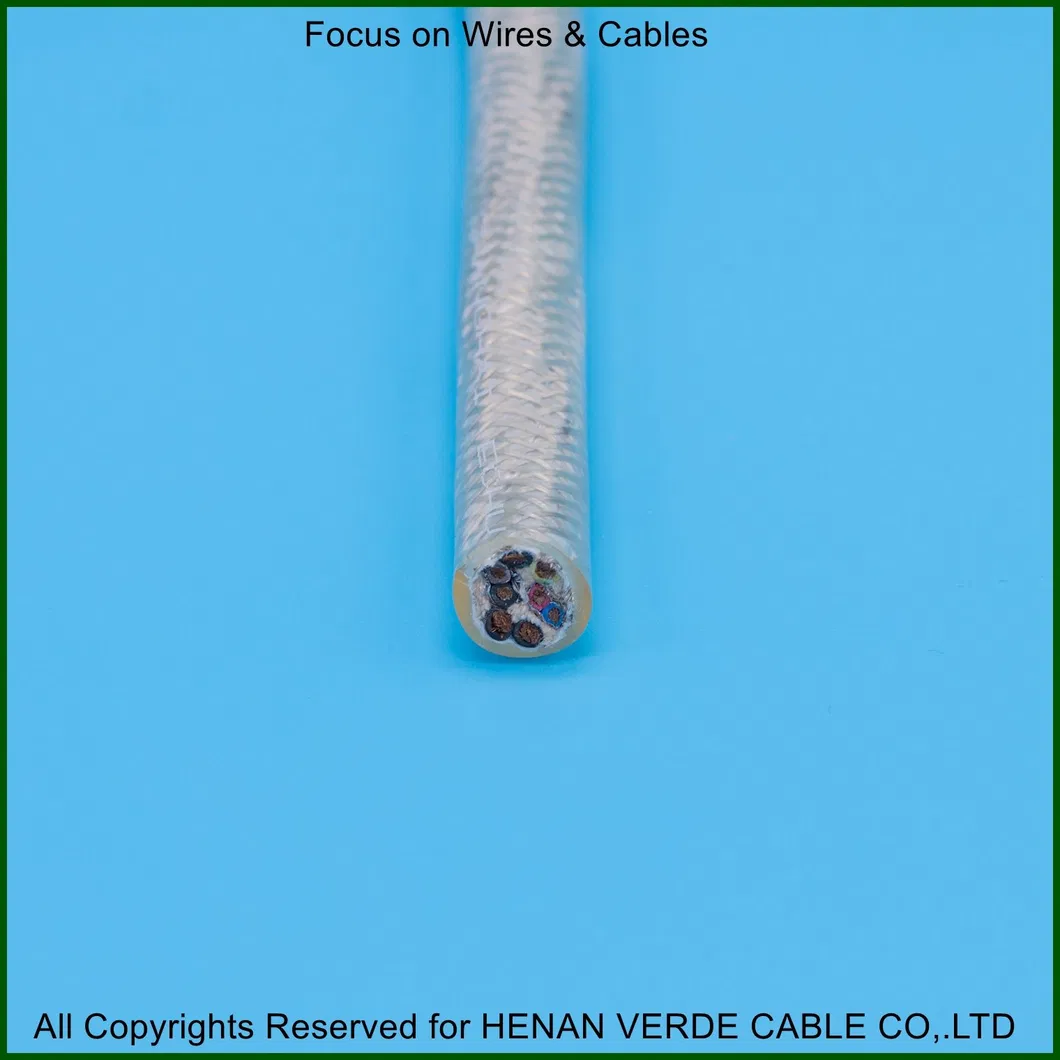

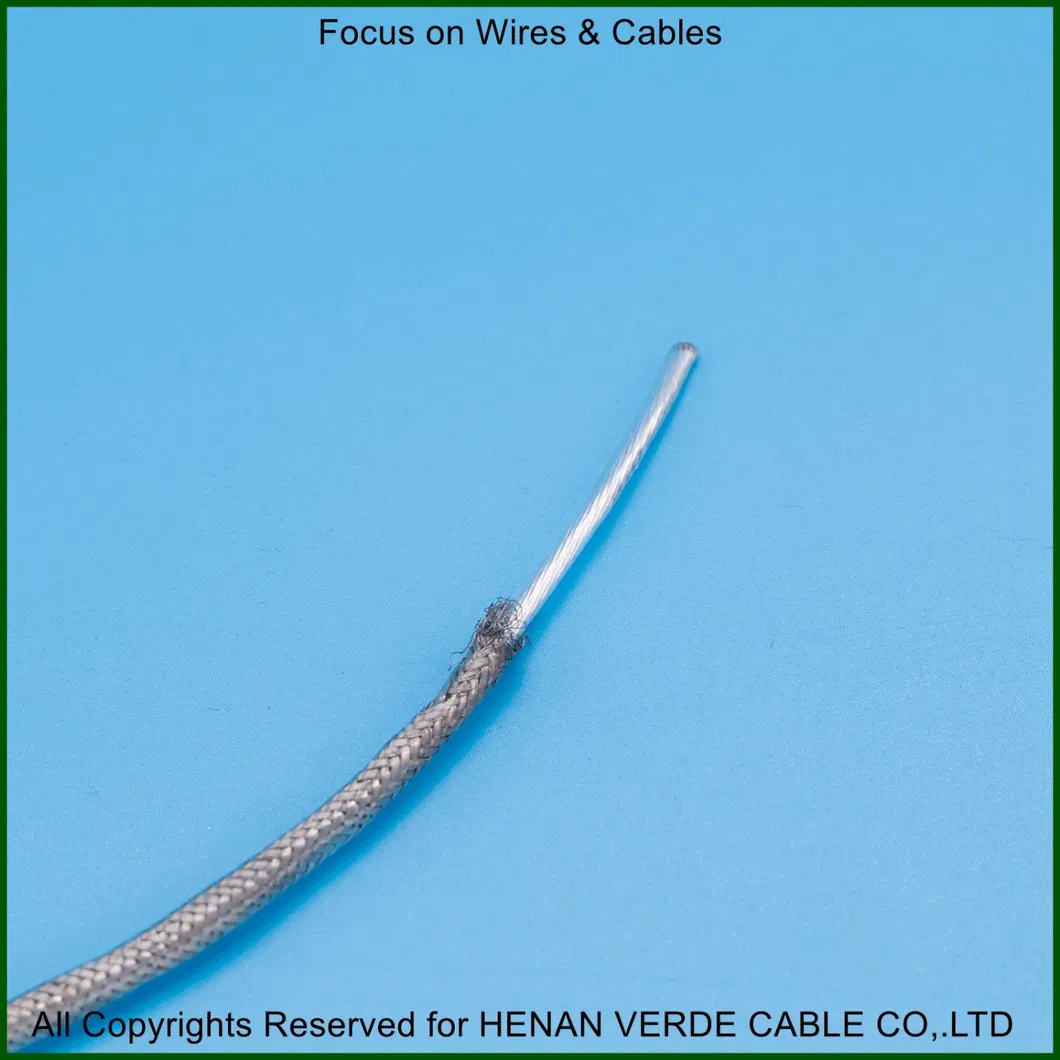

Tinned Wire Braided Shielded PFA PTFE Paf PTFE Insulated Electronic Wire

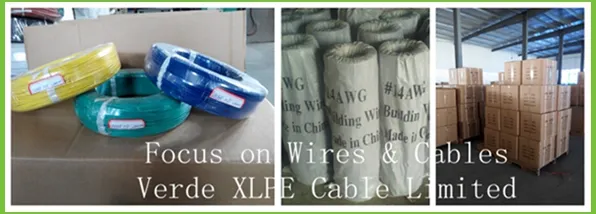

Packing:

Tinned Wire Braided Shielded PFA PTFE Paf PTFE Insulated Electronic Wire

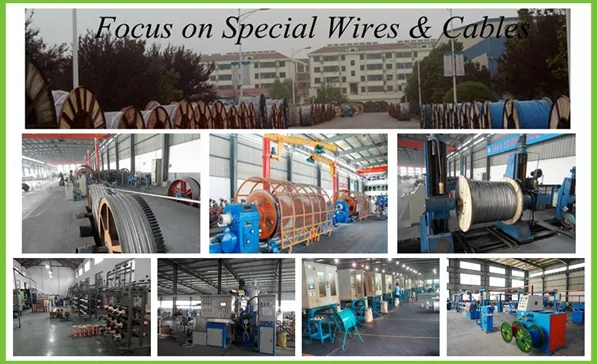

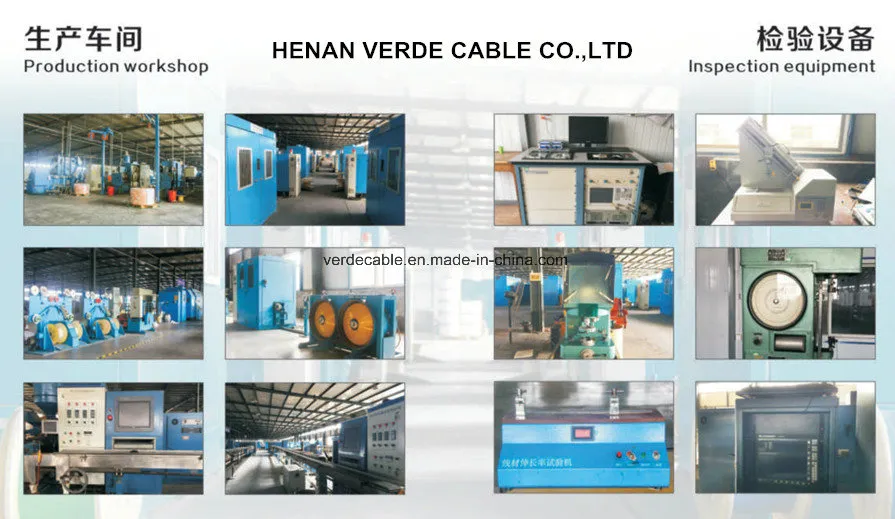

Our workshop View:
Tinned Wire Braided Shielded PFA PTFE Paf PTFE Insulated Electronic Wire

If you want to know more about us and our products,pls contact us.
