Thermoplastic Insulated Copper Wires and Cables UL1015 UL10269 UL2464 12AWG 14AWG
UL1330 FEP Insulated Wire-Rated temperature: 200ºC-Rated voltage: 600V-Reference Standard: UL758, UL1581, C22.2 No.210-Passes UL VW-1 & CSA FT1 vertical flame test.-Uniform insulation thickness of wire to ensure easy stripping and cutting.-For internal wiring of electronic and electrica......
Send Inquiry
Product Description

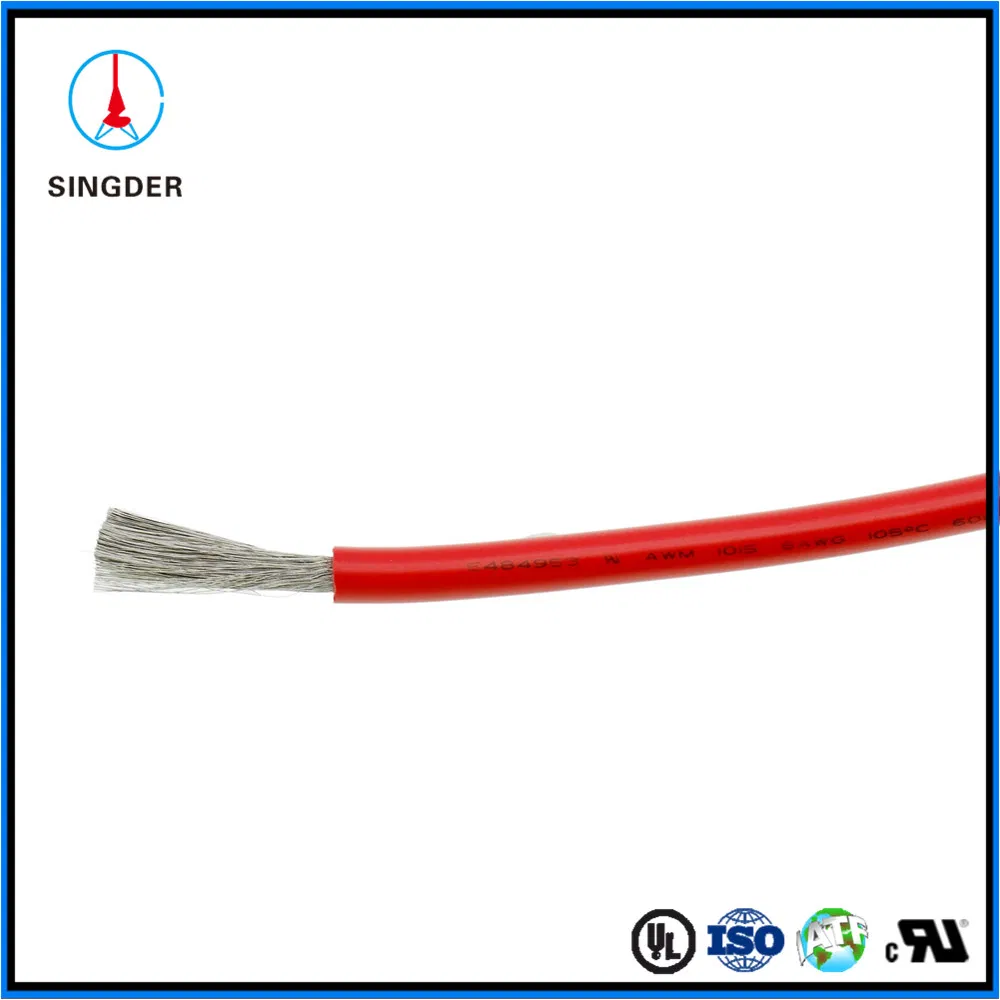

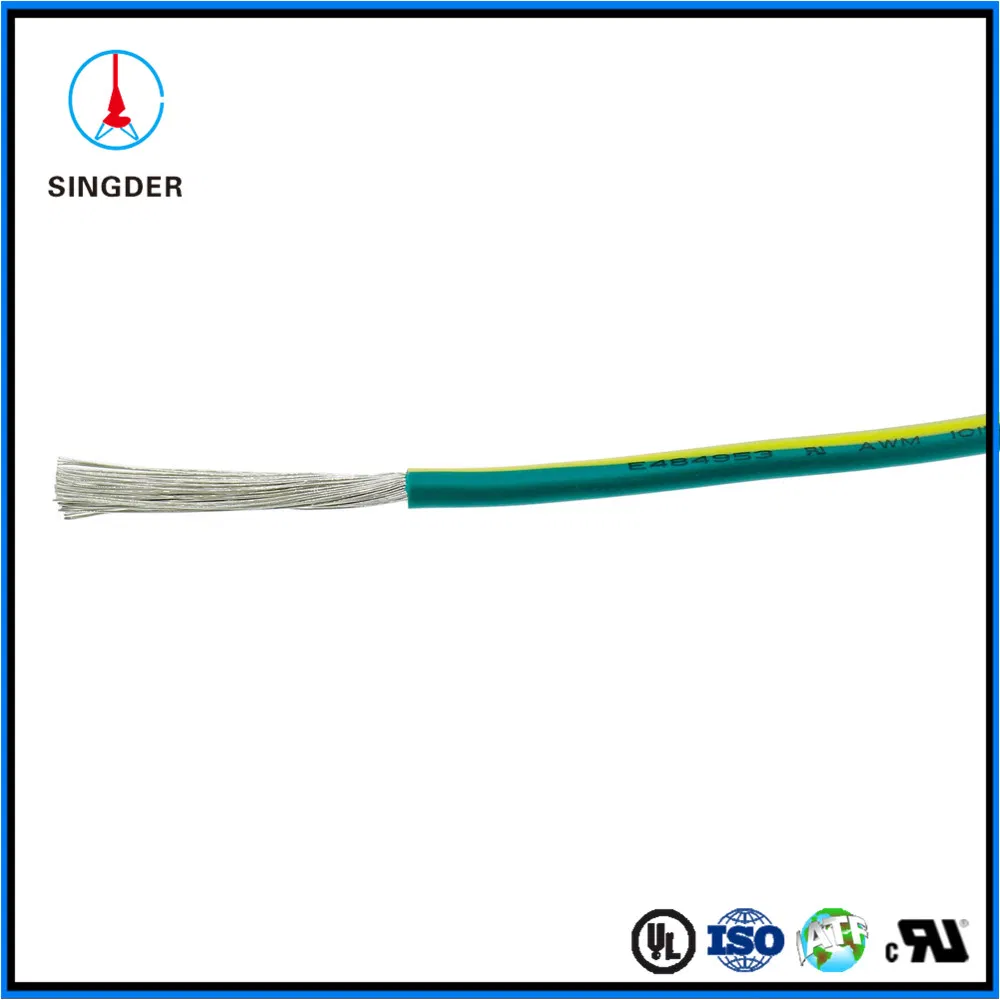

UL1330 FEP Insulated Wire
-Rated temperature: 200ºC
-Rated voltage: 600V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
-Rated temperature: 200ºC
-Rated voltage: 600V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
| Conductor | Insulation | Max. Cond Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 26 | 1/0.41 | 0.41 | 0.51 | 1.50 | 143 |
| 24 | 1/0.511 | 0.51 | 0.55 | 1.70 | 89.2 |
| 22 | 1/0.643 | 0.64 | 0.55 | 1.70 | 56.4 |
| 20 | 7/0.32 | 0.96 | 0.55 | 2.05 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.56 | 2.30 | 23.2 |
| 14 | 41/0.254 | 1.87 | 0.57 | 3.00 | 8.96 |
