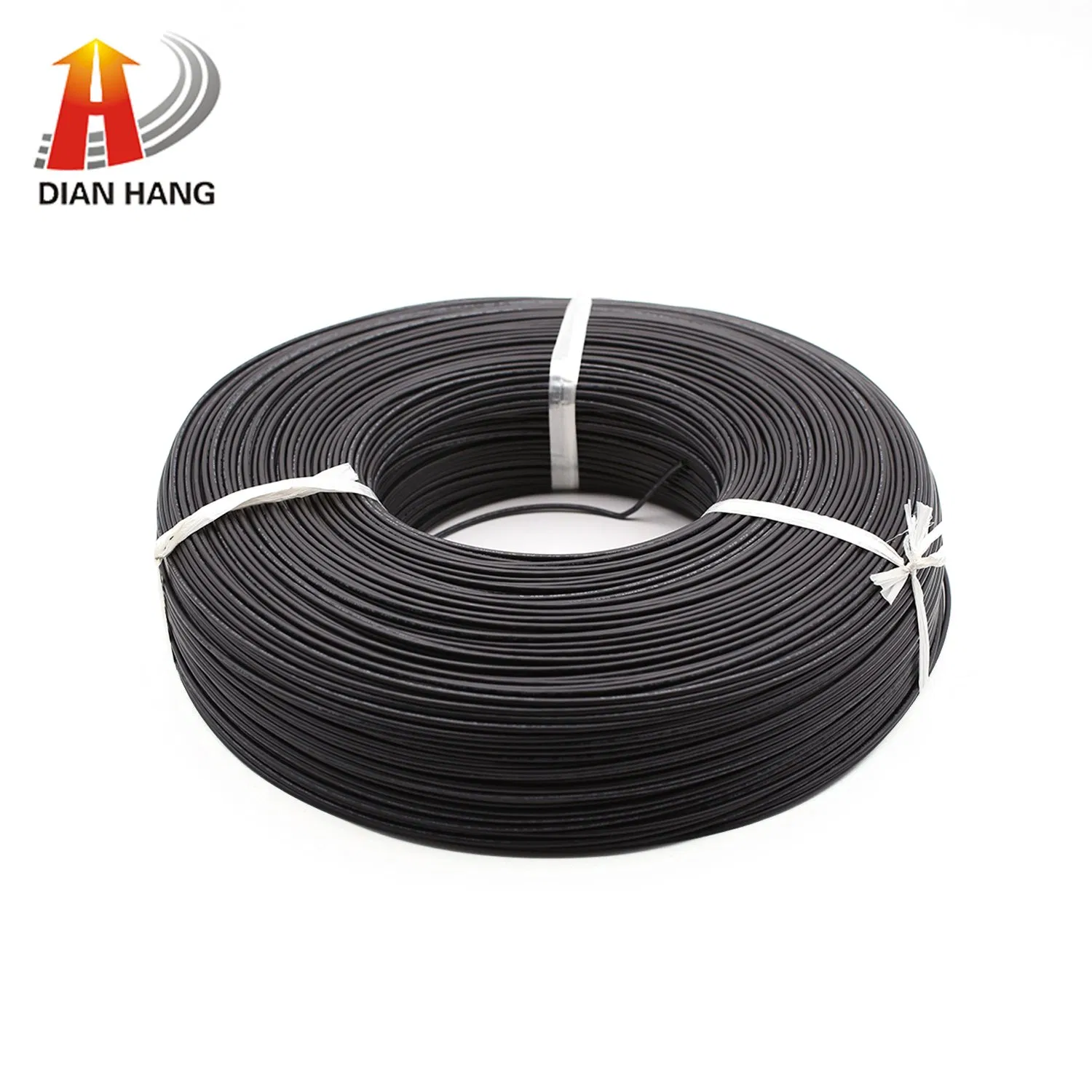

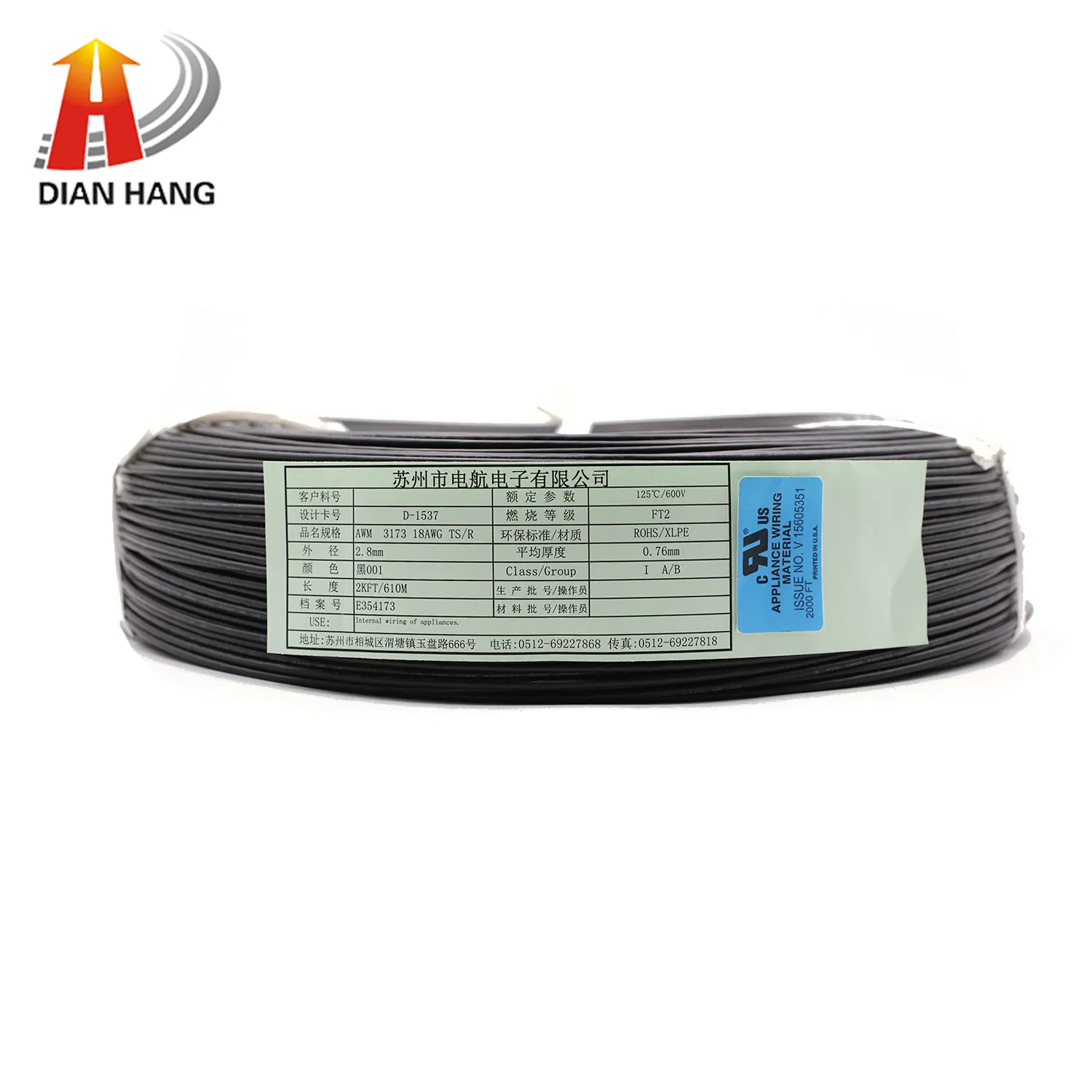

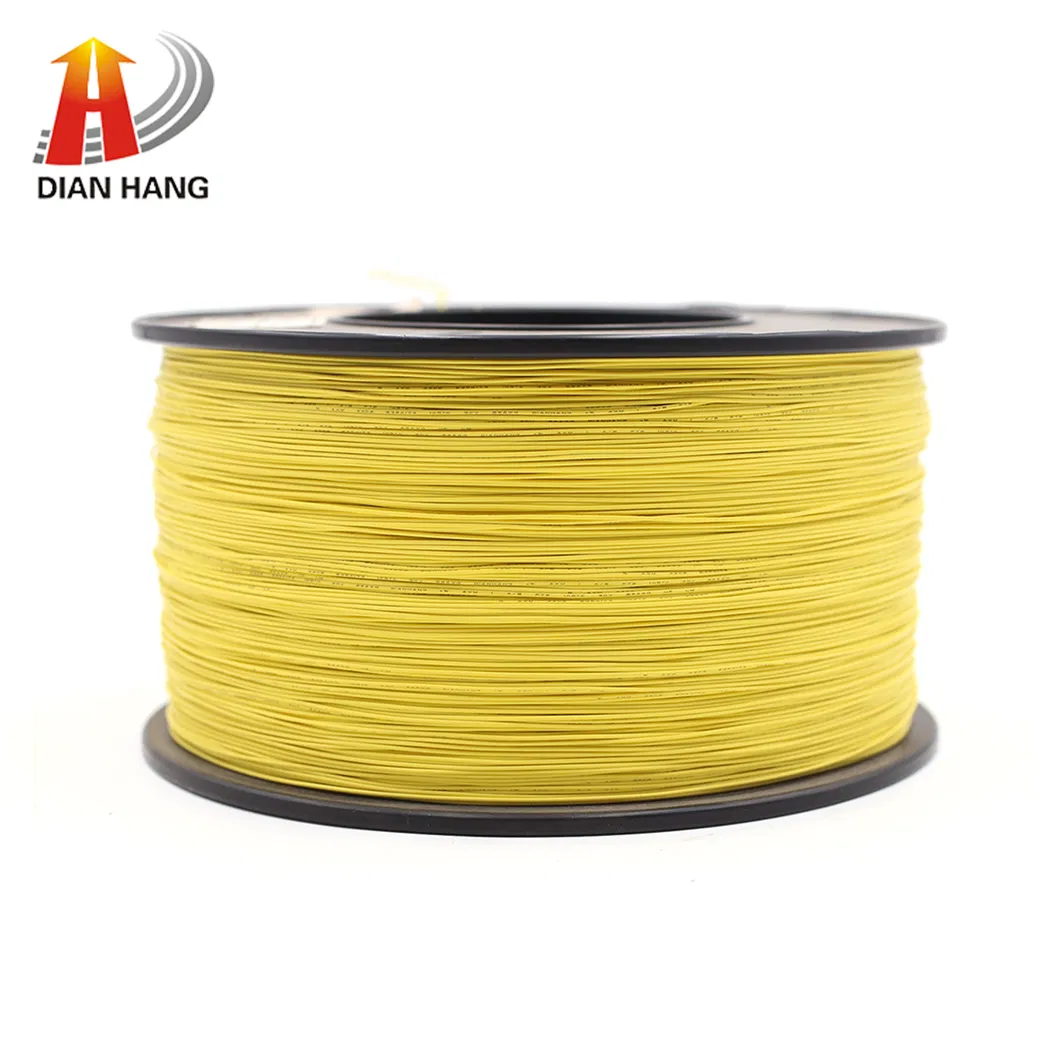

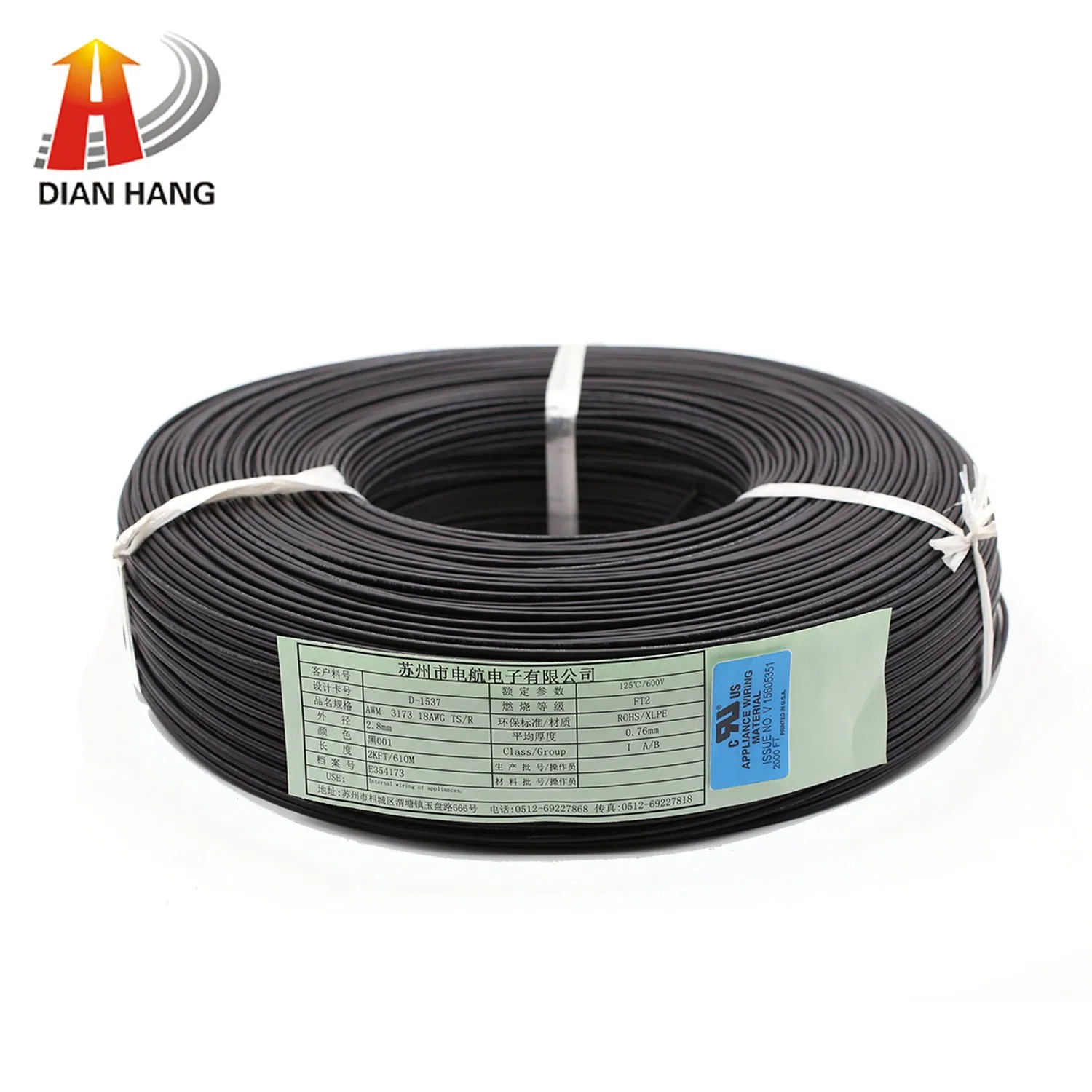

Supply Environmental Protection Wire UL3173 24A Low-Smoke Halogen-Free Retardant Electronic Wire Electrical Copper Thinned Wire PVC Cable
Product DescriptionRated temperature:125ºCRated voltage:600VReference standard:UL758,UL1581,CSA C22.2No.210.2Solid or stranded, tinned or bare copper conductor 29~9AWGXLPE insulation, comply with ROHS, REACH environmental standardPasses UL Horizontal, and CSA FT2 flame testUniform insulatio......
Send Inquiry
Product Description
Rated temperature:125ºC
Rated voltage:600V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 29~9AWG
XLPE insulation, comply with ROHS, REACH environmental standard
Passes UL Horizontal, and CSA FT2 flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:
For general purpose internal wiring of appliance
| UL Type | conductor | insulation | max.cond resistance | compressive strength | |||
| 3173 | specification (AWG) | construction | OD | thickness | OD | (Ω/Km,20ºC,Dc) | (Vac,1min) |
| (mm) | (mm) | (mm) | |||||
| 26 | 7/0.16 | 0.48 | 0.81 | 2.10 | 150 | 2000 | |
| 24 | 11/0.16 | 0.61 | 0.82 | 2.25 | 94.2 | 2000 | |
| 22 | 17/0.16 | 0.76 | 0.82 | 2.40 | 59.4 | 2000 | |
| 20 | 26/0.16 | 0.94 | 0.81 | 2.55 | 36.7 | 2000 | |
| 18 | 16/0.254 | 1.17 | 0.82 | 2.80 | 23.2 | 2000 | |
| 16 | 26/0.254 | 1.49 | 0.81 | 3.10 | 14.6 | 2000 | |
| 14 | 41/0.254 | 1.88 | 0.81 | 3.50 | 8.96 | 2000 | |
| 12 | 65/0.254 | 2.36 | 0.82 | 4.00 | 5.64 | 2000 | |
| 10 | 7/15/0.254 | 3.40 | 0.83 | 5.05 | 3.54 | ||
