Silicone Rubber Insualtion Thick Wall Car Wire
Wuxi Yuanda Electrical Material Co., Ltd. is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and RoHS Environmental Protection Instruction of European Union.Our products includin......
Send Inquiry
Product Description
Wuxi Yuanda Electrical Material Co., Ltd. is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and RoHS Environmental Protection Instruction of European Union.
Our products including silicon rubber wires and cables, FSG silicon extruded and Glassfiber braided sleeves, HST silicon extruded and glassfiber braided sleevings, SRG silicon extruded and glassfiber braided sleevings, SR silicon sleeves as well As other silicon rubber items are widely used for aviation, metallurgy, petroleum, Electronic instruments, meters, household apparatus, transformers and motors.

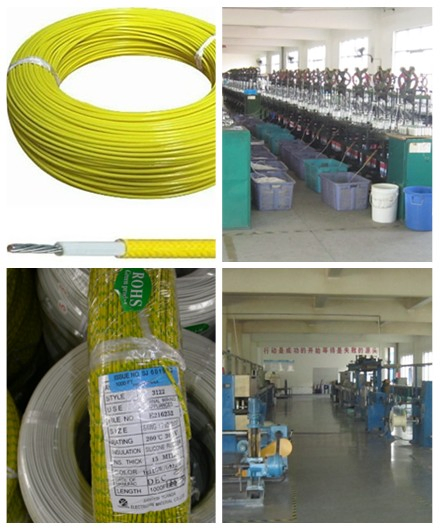

With strong technical power, advanced production equipment, complete testing Facilities and perfect quality ensurance system, we have many years' production Experience in silicon rubber wires and cables. Our products are well sold around
The world, including U. S. A, U. K., Germany, Denmark, Canada, India, and Japan etc...

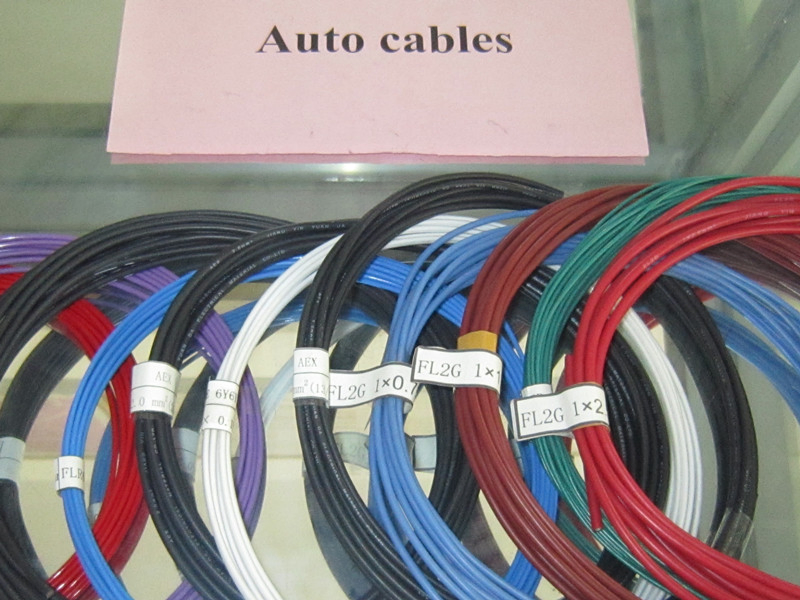

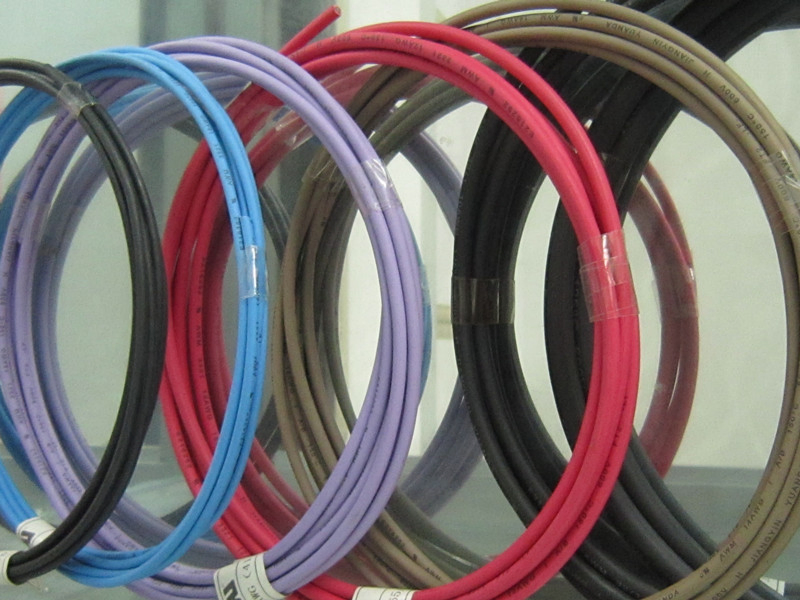

FL2G Silicone rubber insualtion thick wall car wire
Technical Data:
1) Nominal voltage: 60V DC, 25V AC
2) Temperature Range: -60ºC-180ºC
3) Conductor: Copper or Tinned Copper
4) Insulator: Silicone Rubber
5) Testing voltage: 1000V
6) Colours: White, Blue, Red, Black, Yellow, Green
7) Use: Internal wiring of vechiles electrical system.
8) Standard: ISO 6722
Specification:
You can get more detailed information about our company and our products through Visit our website
Welcome to contact with us!
Our products including silicon rubber wires and cables, FSG silicon extruded and Glassfiber braided sleeves, HST silicon extruded and glassfiber braided sleevings, SRG silicon extruded and glassfiber braided sleevings, SR silicon sleeves as well As other silicon rubber items are widely used for aviation, metallurgy, petroleum, Electronic instruments, meters, household apparatus, transformers and motors.
With strong technical power, advanced production equipment, complete testing Facilities and perfect quality ensurance system, we have many years' production Experience in silicon rubber wires and cables. Our products are well sold around
The world, including U. S. A, U. K., Germany, Denmark, Canada, India, and Japan etc...
FL2G Silicone rubber insualtion thick wall car wire
Technical Data:
1) Nominal voltage: 60V DC, 25V AC
2) Temperature Range: -60ºC-180ºC
3) Conductor: Copper or Tinned Copper
4) Insulator: Silicone Rubber
5) Testing voltage: 1000V
6) Colours: White, Blue, Red, Black, Yellow, Green
7) Use: Internal wiring of vechiles electrical system.
8) Standard: ISO 6722
Specification:
| Conductor | Insulation | Max resistance at 20 ºC Ω/km | |||||
| Size mm2 | Conductor construction No./D(mm) | Diameter (mm) | Thickness (mm) | Nominal outer diameter (mm) | Max outer diameter (mm) | Cu core | Tinned-Cu core |
| 0.5 | 28/0.15 | 0.93 | 0.6 | 2.1 | 2.3 | 37.1 | 38.2 |
| 0.75 | 24/0.20 | 1.14 | 0.6 | 2.3 | 2.5 | 24.7 | 25.4 |
| 1.0 | 32/0.20 | 1.32 | 0.6 | 2.5 | 2.7 | 18.5 | 19.1 |
| 1.5 | 30/0.25 | 1.60 | 0.6 | 2.8 | 3.0 | 12.7 | 13.0 |
| 2.0 | (41/0.25)(28/0.30) | 1.90 | 0.6 | 3.1 | 3.3 | 9.42 | 9.69 |
| 2.5 | 50/0.25 | 2.0 | 0.7 | 3.4 | 3.6 | 7.60 | 7.82 |
| 3.0 | 44/0.30 | 2.3 | 0.7 | 3.7 | 4.1 | 6.15 | 6.36 |
| 4.0 | (56/0.30)(140/0.20) | 2.7 | 0.8 | 4.3 | 4.4 | 4.71 | 4.85 |
| 5.0 | (70/0.30)(172/0.20) | 3.0 | 0.8 | 4.6 | 4.9 | 3.94 | 4.02 |
| 6.0 | (84/0.30)(200/0.20) | 3.4 | 0.8 | 4.8 | 5.0 | 3.14 | 3.23 |
| 10 | (84/0.40)(322/0.20) | 4.2 | 1.0 | 6.2 | 6.5 | 1.82 | 1.85 |
| 16 | (126/0.40)(513/0.20) | 5.7 | 1.0 | 7.7 | 8.0 | 1.16 | 1.18 |
| 25 | (196/0.40)(798/0.20) | 7.1 | 1.3 | 9.7 | 10.1 | 0.743 | 0.757 |
| 35 | (276/0.40)(1121/0.20) | 8.5 | 1.3 | 11.1 | 11.5 | 0.527 | 0.538 |
| 50 | (396/0.40)(1596/0.20) | 10.3 | 1.5 | 13.3 | 13.5 | 0.368 | 0.373 |
| 70 | (360/0.50)(2214/0.20) | 12.2 | 1.5 | 15.2 | 15.5 | 0.259 | 0.264 |
| 95 | (475/0.50)(2997/0.20) | 14.2 | 1.6 | 17.4 | 18.0 | 0.196 | 0.200 |
| 120 | (608/0.50)(3811/0.20) | 16.2 | 1.6 | 19.4 | 19.7 | 0.153 | 0.156 |
You can get more detailed information about our company and our products through Visit our website
Welcome to contact with us!
